Autel Robotics EVO II Dual 640T Enterprise Bundle V3 Drone with Thermal Imaging

Name: Autel Robotics EVO II Dual 640T Enterprise Bundle V3 Drone with Thermal Imaging
Brand: Autel Robotics
SKU: 102001516
Price: 5299.00 USD
Availability: InStock

(0)

Be the first to review SKU: 102001516

$5,299.00

In Stock

Dual Thermal & Visual Cameras
Up to 4K HDR Video Resolution
50MP 0.8" RYYB CMOS Sensor
PDAF+CDAF Fast Focusing System

Tracked ShippingRates shown at checkout
60-Day ReturnsOn eligible items
Expert SupportReal people, real advice

Autel Robotics EVO II Dual 640T Enterprise Bundle V3 Drone with Thermal Imaging

Designed for creators who demand more from their gear, the Autel Robotics EVO II Dual 640T Enterprise Bundle V3 Drone with Thermal Imaging delivers capable, consistent performance. It flies for up to 38 minutes at speeds up to 44.7 mph. The system offers a control range of up to 9 miles.

Highlights

Dual Thermal & Visual Cameras
Up to 4K HDR Video Resolution
50MP 0.8" RYYB CMOS Sensor
PDAF+CDAF Fast Focusing System

Ordered from NIXTRONIC, it ships with full tracking worldwide and is backed by our 60-day returns on eligible items.

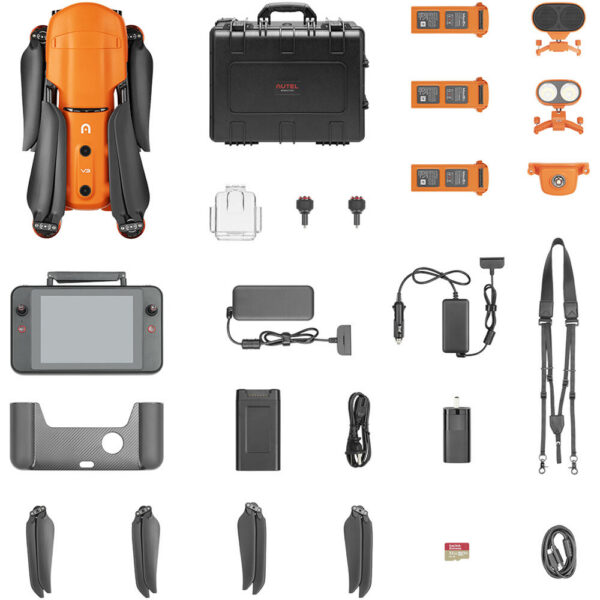

In the Box

Autel Robotics EVO II Dual 640T Enterprise Bundle V3 Drone with Thermal Imaging
7.9" Smart Controller with Case
2 x Pair of Propellers
Smart Controller USB-C Charging Cable and Power Brick
Battery Charger with Wall Cord and Power Converter
3 x Flight Battery
Spare Controller Sticks
32GB SD Card
Gimbal Cover
Smart Controller Hanging Neck Strap
RTK Module Attachment Port Cover
Enterprise Speaker Attachment
Enterprise Search Light Attachment
Enterprise Strobe Light Attachment
Evo II Battery Car Charger
Evo II Battery Multicharger

Videos

SKU	102001516
Brand	Autel Robotics

Performance
Maximum Horizontal Speed	44.7 mph / 72 km/h
Maximum Ascent Speed	17.9 mph / 29 km/h
Maximum Descent Speed	8.9 mph / 14 km/h
Maximum Wind Resistance	27 mph / 43.2 km/h
Maximum Take-Off Altitude	4.3 Miles / 7 km
Maximum Flight Time	38 Minutes
Maximum Hover Time	33 Minutes
Maximum Tilt Angle	33°
Hovering Accuracy	Vision Positioning Vertical: ±0.3' / 0.1 m Horizontal: ±1' / 0.3 m GNSSVertical: ±1.6' / 0.5 m Horizontal: ±4.9' / 1.5 m
Maximum Angular Velocity	120°/s (Pitch)

Aircraft
Rotor Configuration	Quadcopter
Remote ID	Yes
Aircraft I/O	1x USB-C (Data)
Operating Conditions	14 to 104°F / -10 to 40°C

Imaging
Number of Cameras	2 (Cannot Be Used Simultaneously)
Camera System	Wide 1/1.28"-Type CMOS Sensor with 23mm-Equivalent, f/1.9 Lens (1.9° FoV) Standard Size-Unspecified CMOS Sensor with Lens Thermal Vanadium Oxide (VOX) Sensor with -4 to 1022°F / -20 to 550°C Measurement Range with Lens (33° FoV)
Zoom	16x Optical
Minimum Focus Distance	Wide1.6' / 0.5 m
ISO Sensitivity Range	Wide Photo: 100 to 6400 Video: 100 to 64,000
Night Vision	No
Shutter Speed	Wide 1/8000 to 8 Seconds (Photo) 1/8000 to 1 Seconds (Video)
Maximum Video Resolution	Wide Up to UHD 4K at 60 fps Thermal Up to 512p at 25 fps
Still Image Support	Wide Up to 12.5 MP (DNG / JPEG) Up to 50 MP (DNG / JPEG) Up to 8 MP (DNG / JPEG) Thermal Up to 2 MP (JPEG) Up to .9 MP (JPEG) Up to .3 MP (JPEG)
Photo Modes	Auto-Exposure Bracketing (AEB), Burst Shooting, Interval, Single Shot
Media/Memory Card Slot	In Aircraft BodymicroSD/microSDHC/microSDXC (UHS-III) [256 GB Maximum / Class 10/U1/V10 or Faster Recommended]
Internal Storage	In Aircraft Body8 GBIn Remote/Transmitter128 GB

Gimbal
Number of Axes	Three: Pitch (Tilt) / Roll / Yaw (Pan)
Rotation Range	Controllable Range Yaw (Pan): 180° (-90 to 90°) Pitch (Tilt): 120° (-90 to 30°) Mechanical Range Yaw (Pan): 200° (-100 to 100°) Pitch (Tilt): 180° (-135 to 45°)
Follow Speed	Tilt: 300°/s
Stabilization Accuracy	±0.005°

Avoidance/Sensing System
Sensing System	Omnidirectional with Ultrasonic Enhancement
Sensing System Capabilities	Forward Measurement Range: 2 to 59' / 0.5 to 18 m Max Speed: 26.8 mph / 12 m/s Field of View: 60° (Horizontal) / 80° (Vertical) Backward Measurement Range: 2 to 52' / 0.5 to 16 m Max Speed: 26.8 mph / 12 m/s Field of View: 60° (Horizontal) / 80° (Vertical) Lateral Measurement Range: 2 to 33' / 0.5 to 10 m Max Speed: 11.2 mph / 5 m/s Field of View: 65° (Horizontal) / 50° (Vertical) Upward Measurement Range: 2 to 33' / 0.5 to 10 m Max Speed: 11.2 mph / 5 m/s Field of View: 50° (Front-to-Back) / 65° (Side-to-Side) Downward Measurement Range: 2 to 33' / 0.5 to 10 m Max Speed: 11.2 mph / 5 m/s Field of View: 80° (Front-to-Back) / 100° (Side-to-Side)

Remote Controller / Transmitter
Control Method	Included Transmitter
Transmission System	Proprietary• Frequencies: 900 MHz / 2.4 GHz / 5.1 GHz / 5.8 GHz• Power at 0.9G: 31 d Bm (FCC/ISED)• Power at 2.4G: 32 d Bm (ISED) / 20 d Bm (CE/MIC/RCM/SRRC)• Power at 5.1G: 33 d Bm (CE/ISED/MIC/SRRC) / 14 d Bm (CE/RCM)
Maximum Operating Distance	9 Miles / 15 km
Transmitter I/O	1x USB-C Input (Power)1x USB-A Output (Expansion)1x HDMI Output (Video)
Clean Video Output	Not Specified by Manufacturer
Battery Type	Built-In Lithium-Ion Polymer (LiPo) (5800 m Ah)
Operating Temperature	-4 to 104°F / -20 to 40°C
Mobile App Compatible	No
Built-In Display	7.9" (2048 x 1536) Touchscreen LCD, 2000 nits/ cd/m2

Flight Battery
Battery Chemistry	Lithium-Ion Polymer (LiPo)
Battery Capacity	7100 m Ah / 82 Wh
Battery Configuration	3 S / 11.55 V
Maximum Charging Power	93 W
Operating Temperature	32 to 104°F / 0 to 40°C
Storage Temperature	14 to 86°F / -10 to 30°C
Charging Temperature	41 to 113°F / 5 to 45°C
Weight	13 oz / 365 g

Charger
Input Power	100 to 240 VAC, 50 / 60 Hz at 1.5 A
Output Voltage	13.2 V, 5 A12 V, 1.5 A9 V, 2 A5 V, 3 A
Power Rating	66 W

General
GNSS Support	GPS, GLONASS, Bei Dou, Galileo
Diagonal Size	15.6" / 397 mm
Overall Dimensions	5.1 x 4.3 x 9.1" / 130.0 x 108.0 x 230.0 mm (Folded)22 x 4.3 x 18" / 558.0 x 108.0 x 457.0 mm (Unfolded)
Weight	3 lb / 1150 g (Takeoff)4 lb / 2000 g (with Maximum Payload)
