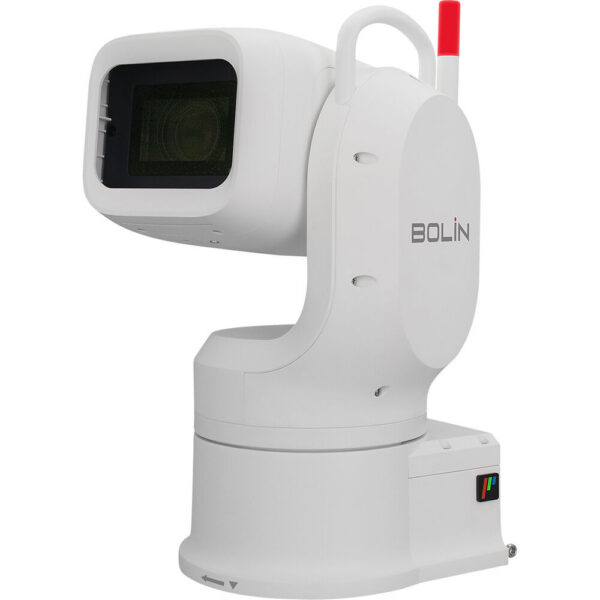

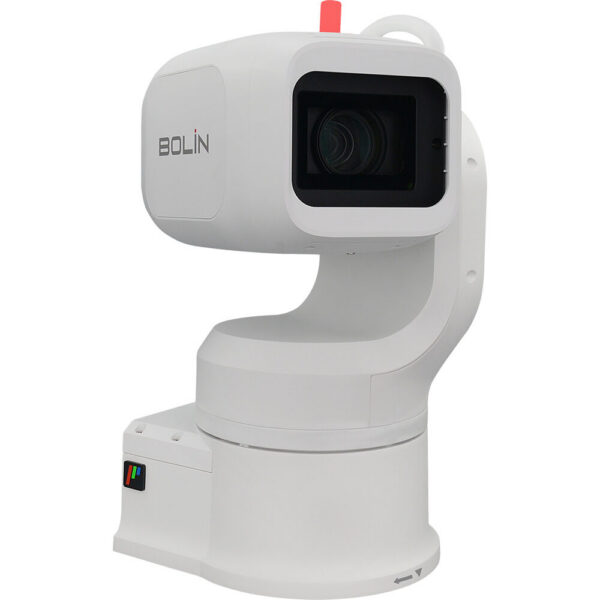

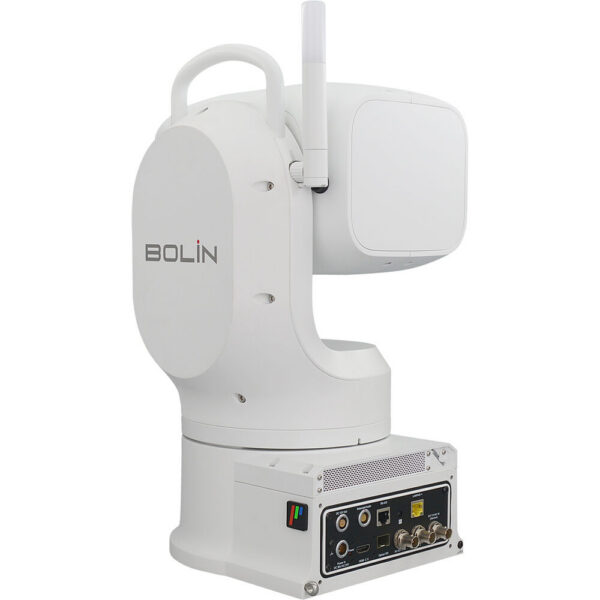

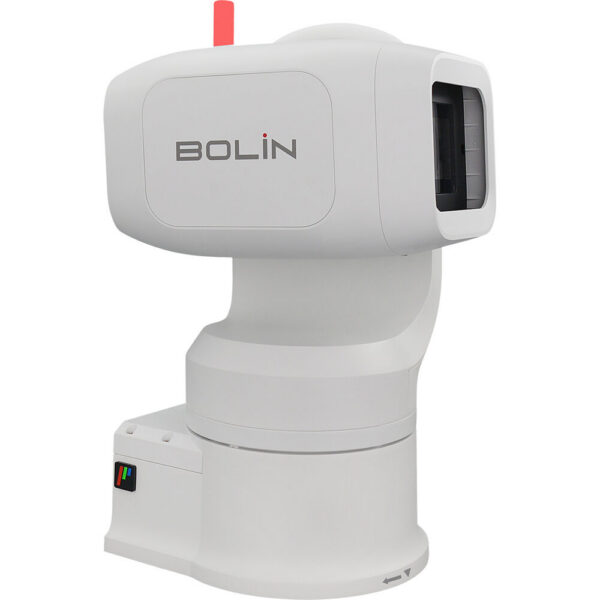

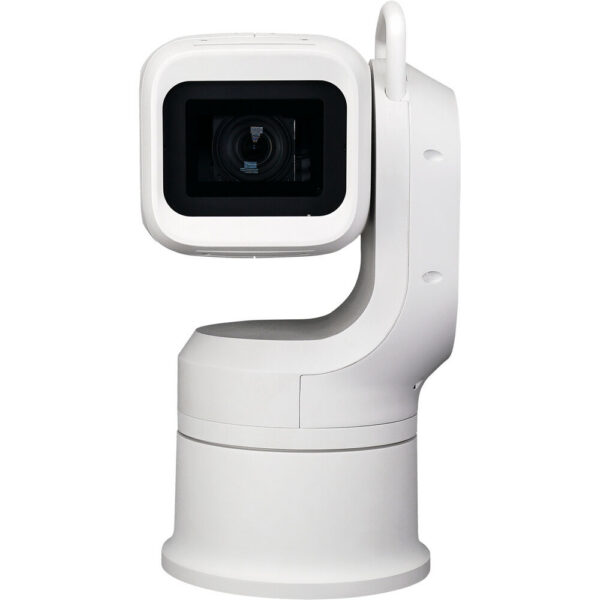

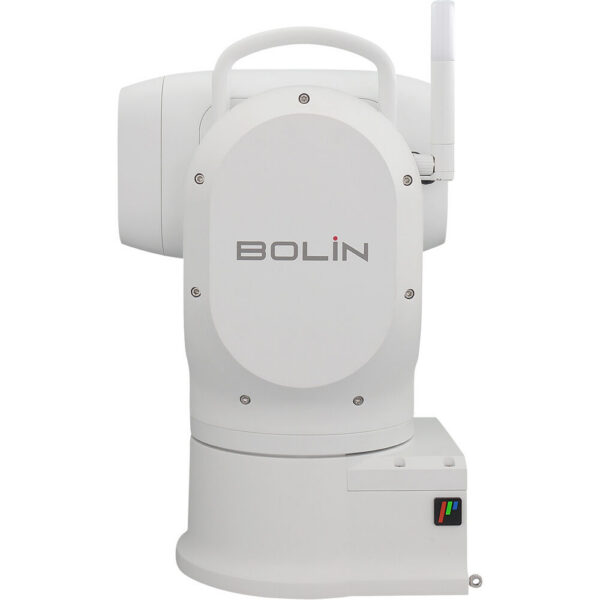

Bolin Technology EXU230H EX-ULTRA 1080p Outdoor PTZ Camera (White)
$8,395.00
In Stock
- 1/1.8" CMOS Sensor, 4.17MP
- Up to 1080p60 Output
- 3G-SDI, HDMI 2.0, and IP Transmission
- 30x Optical Zoom, 12x Digital Zoom
Tracked ShippingRates shown at checkout
60-Day ReturnsOn eligible items
Expert SupportReal people, real advice
Bolin Technology EXU230H EX-ULTRA 1080p Outdoor PTZ Camera (White)
The Bolin Technology EXU230H EX-ULTRA 1080p Outdoor PTZ Camera (White) is built for photographers and creators who want dependable, professional results. At its core is a 4.09 Megapixel 1/1.8"-Type sensor. Everyday handling is covered with No connectivity.
Highlights
- 1/1.8" CMOS Sensor, 4.17MP
- Up to 1080p60 Output
- 3G-SDI, HDMI 2.0, and IP Transmission
- 30x Optical Zoom, 12x Digital Zoom
Ordered from NIXTRONIC, it ships with full tracking worldwide and is backed by our 60-day returns on eligible items.
In the Box
- Bolin Technology EXU230H EX-ULTRA 1080p Outdoor PTZ Camera (White)
- IR Remote Control
- Tally Light Attachment
- Safety Wire
- Screw
- Cable Cover
- 12 x Seal Ring
- 4 x Panel Bolt
Videos
| SKU | EXU230HW |
|---|---|
| Brand | Bolin Technology |
| Image Sensor | 1/1.8"-Type CMOS |
|---|---|
| Sensor Resolution | Effective: 4.09 Megapixel (2688 x 1520) Actual: 4.17 Megapixel (2712 x 1538) |
| Focus Control | Autofocus Manual Focus |
| Shutter Speed | 1/10000 to 1/1 Second |
|---|---|
| Signal-to-Noise Ratio | 50 dB |
| Minimum Illumination | 0.5 Lux (Color) |
| Flip / Mirror Support | Image Flip, Mirror (Vertical) |
| White Balance | Presets: ATW, Auto, Indoors, Manual, One Push Set, Outdoors |
| Focal Length | 6.5 to 162.5mm |
|---|---|
| Max Optical Zoom | 30x |
| Max Digital Zoom | 12x |
| Field of View | Horizontal: 58.1 to 2.3°Vertical: 34.9 to 1.7° |
| Maximum Aperture | f/1.6 to 4.8 |
| Minimum Focus Distance | 3.9" / 10 cm (Wide) to 3.9' / 120 cm (Tele) |
| Video Output | via HDMI / SDI/BNC1920 x 1080p at 24.00/25/29.97/50/59.94/60.00 fps 1920 x 1080i at 50/60.00 fps 1280 x 720 at 50/59.94/60.00 fps via RJ451920 x 1080p at 25/30.00/50/60.00 fps 1280 x 720 at 50/60.00 fps |
|---|---|
| Embedded Audio | HDMI/LAN (RJ45)/SDI |
| Internal Recording | No |
| Audio Recording | 2-Channel 16-Bit 48 k Hz AAC LC Audio |
| Broadcast Output | NTSC/PAL |
| IP Streaming | H.264/H.265/MJPEG via NDI/RTMP/RTP/RTSP/TCP/UDP 1920 x 1080 at 25p, 30p, 50p, 60p (Simultaneous Multi-Stream) 1280 x 720 at 50p, 60p (Simultaneous Multi-Stream) |
| Presets | 255 via IP, IR |
|---|---|
| Pan/Tilt/Roll | Pan: 340° (-170 to 170°) at 0.01 to 60°/s Tilt: 210° (-90 to 120°) at 0.01 to 60°/s |
| Tally Light | Yes |
| Wireless | No |
|---|
| Video I/O | 1x HDMI 2.0 Output 2x BNC (3G-SDI) Output 1x RJ45 Input/Output |
|---|---|
| Audio I/O | 1x 10-Pin Hirose Mic/Line Input/Output |
| Other I/O | 1x BNC (Genlock) Input 1x RJ45 (RS-422) Control |
| Expansion Slots | 1x SFP Slot |
| Built-In Microphone | No |
| PoE Support | Yes: PoE++ 802.3bt |
|---|---|
| Power I/O | 1x Hirose 4-Pin (24VDC) Input 1x Hirose 4-Pin (12VDC) Output |
| Power Consumption | Device: 12 VDC 30 to 60 W |
| Operating Conditions | -40 to 140°F / -40 to 60°C up to 100% Humidity |
|---|
| Mounting | 1x 1/4"-20 Female1x 3/8"-16 Female |
|---|---|
| Weight | 22 lb / 10 kg (Body Only) |
| Package Weight | 31.695 lb |
|---|---|
| Box Dimensions (Lx WxH) | 20.2 x 19.8 x 12.3" |
