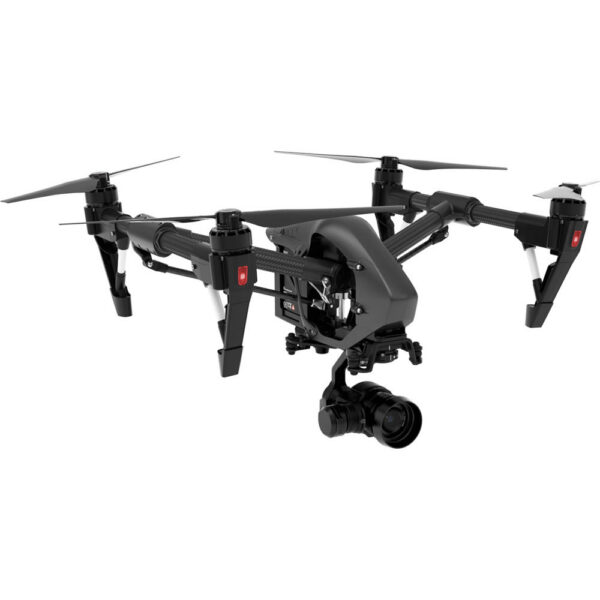

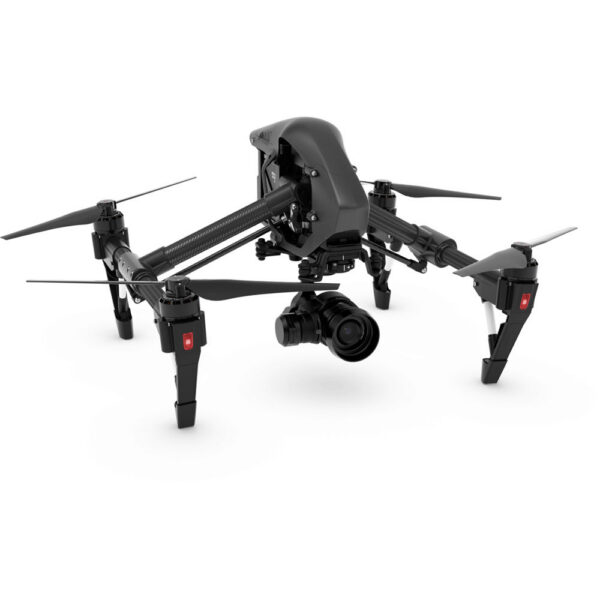

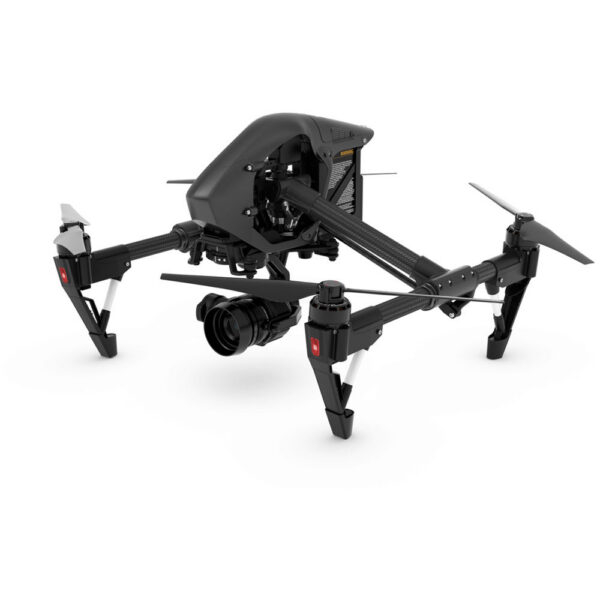

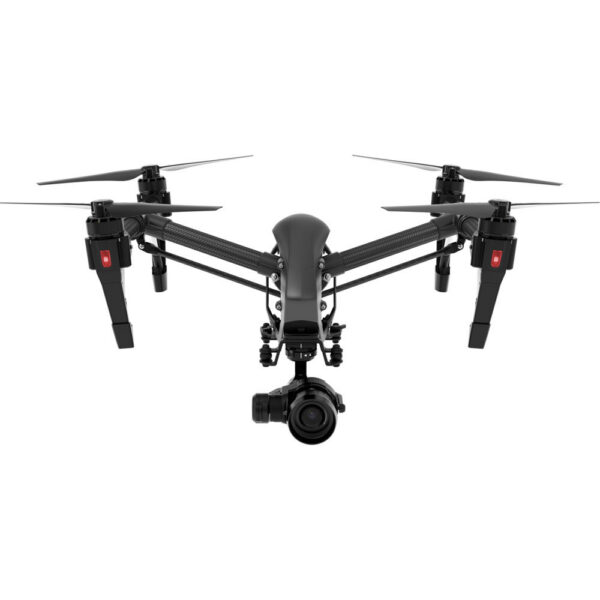

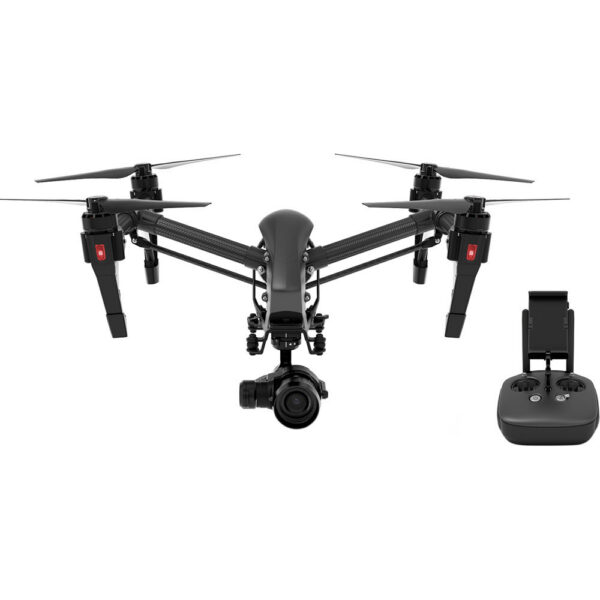

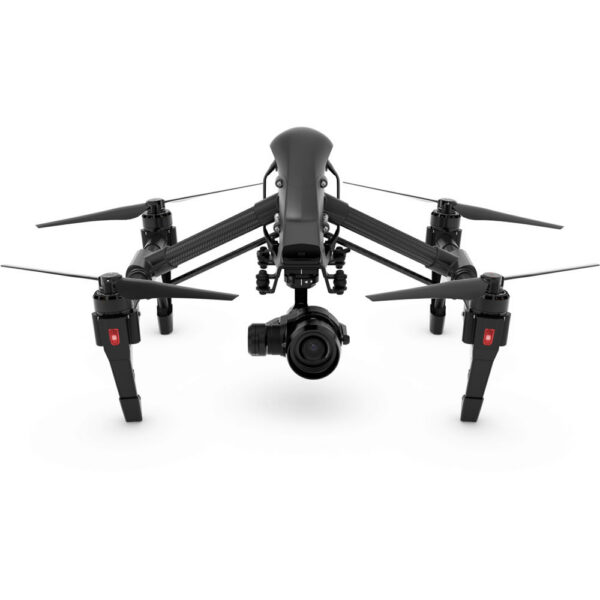

DJI Inspire 1 v2.0 PRO Black Edition Quadcopter with Zenmuse X5 4K Camera and 3-Axis Gimbal
The DJI Inspire 1 v2.0 PRO Black Edition Quadcopter with Zenmuse X5 4K Camera and 3-Axis Gimbal is built for photographers and creators who want dependable, professional results. It flies for up to up to 18 minutes.
Highlights
4K MFT Camera with 3-Axis Gimbal
15mm f/1.7 Lens Included
Up to 1.2 Mile Radio Range
GPS-Based Stabilization System
Ordered from NIXTRONIC, it ships with full tracking worldwide and is backed by our 60-day returns on eligible items.
In the Box
DJI Inspire 1 v2.0 PRO Black Edition Quadcopter with Zenmuse X5 4K Camera and 3-Axis Gimbal
Ascent: 16.4 fps / 5 m/s Descent: 13.1 fps / 4 m/s
Maximum Speed
72.2 fps / 22 m/s (Attitude mode; no wind)
Maximum Flight Altitude
14,764' / 4,500 m
Maximum Wind Speed Resistance
32.8 fps / 10 m/s
Maximum Flight Time
Up to 18 minutes
Camera
Model
Name: Zenmuse X5
Lens Mount
MFT (Micro Four Thirds)
Photo Resolution
16 MP (4608 x 3456)
Video Resolution
DCI 4K (4096 x 2160): 24p, 25p UHD 4K (3840 x 2160): 25p, 30p FHD (1920 x 1080): 24p, 25p, 30p, 48p, 50p, 60p
Field of view (FOV)
15 mm f1.7 ：72° (included) 12 mm f2.0：84° (available separately)
Photo Modes
Single shot Burst: 3, 5, or 7 frames Auto Exposure (AE) Bracketing: 3/5 bracketed frames at 0.7 EV bias Time-Lapse: 3, 5, 7, 10, 20, 30, or 60 second intervals
With Standard Lens, Balancing Ring, Lens Hood, and microSD card: 1.2 lb / 526 g
Lens
Model
DJI MFT 15 mm f/1.7 ASPH
Mount
MFT (Micro Four Thirds)
Focal Length
15 mm 35 mm Equivalent: 30 mm
Aperture Range
f/1.7 to f/16
Focus Range
0.7' (0.2 m) to ∞
Field of View
72°
Elements
9 elements in 7 groups (3 aspherical elements)
Aperture
7 diaphragm blades / circular aperture diaphragm
Dimensions
Maximum Diameter: 2.3" / 57.5 mm Length: 1.4" / 36 mm
Weight
4.1 oz / 115 g
Gimbal
Model
Zenmuse X5
Mount
Detachable
Number of Axes
3-axis
Control Angle Accuracy
±0.02°
Control Range
Pitch: -90° to +30° Pan: ±320°
Manual Control Speed
Pitch: Up to 120°/second Pan: Up to 180°/second
Flight Controller
Indoor Hovering
Enabled by default
Vision Positioning
Frequency: 50 Hz Velocity Range: Below 26.2 fps / 8 m/s (6.6' / 2 m above the ground) Altitude Range: 2 to 196.8" / 5 to 500 cm Operating Environment: Rich pattern surface with adequate lighting (> 15 lux) Operating Range: 0 to 8.2' / 0 to 2.5 m
Motor
Model
DJI 3510
Propeller
Model
DJI 1345
Transmitter
Operating Frequency
Transmitter to Transmitter: 5.728 to 5.850 GHz Transmitter to Aircraft: 2.400 to 2.483 GHz
Range
Line-of-Sight: Up to 6561.7' / 2000 m
Receive Sensitivity
1% PER:-93 d
Bm
EIRP
10 d
Bm at 900 MHz; 8 d
Bm at 5.8 GHz; 20 d
Bm at 2.4 GHz
Connectivity
1 x USB type A female (for connecting mobile device) 1 x Micro-USB for firmware updates 1 x Mini-HDMI video output for FPV 1 x CAN-Bus port (for future accessory)
Dual User Capability
Host-and-slave connection
Mobile Device Holder
Device Width: 2 to 6.7" / 5 to 17 cm
Output Power
9 W
Power Requirements
1.2 A at 7.4 VDC
Battery
6S LiPo; 6000 m
Ah
Charging Temperature
Less than 3 Months: -4 to 113°F / -20 to 45°C More than Three Months: 72 to 82°F / 22 to 28°C
Storage Temperature
72 to 82°F / 22 to 28°C -4°F / -20°C
Flight Battery
Model
TB47
Voltage
6S LiPo; 22.2 VDC
Capacity
4500 m
Ah / 99.9 Wh
Maximum Charging Power
180 W
Operating Temperature
-4 to 104°F / -20 to 40°C
Storage Temperature
-4 to 113°F / -20 to 45°C 72 to 82°F / 22 to 28°C
Charging Temperature
32 to 104°F / 0 to 40°C
Weight
1.3 lb / 570 g
Charger
Model
A14-100P1A
Voltage
26.3 VDC
Output Power
100 W
Mobile App
System Requirements
iOS: 7.1 or later Android: 4.1.2 or later Note: The device must be connected to a transmitter via USB (wireless linking is not supporting). Additionally, waypoint navigation requires an active Internet connection in order to load the maps
General
Model
Aircraft: T600
Operating Temperature
14 to 104°F / -10 to 40°C
Dimensions
Diagonal Distance: Landing Gear Lowered: 22" / 559 mm Landing Gear Raised: 22.9" / 581 mm Overall Dimensions: 17.2 x 17.8 x 11.9" / 438 x 451 x 301 mm
Weight
Not specified by manufacturer
Packaging Info
Package Weight
23.3 lb
Box Dimensions (Lx WxH)
22.7 x 21.2 x 11.6"
