DZOFilm X-Tract 18-28mm T8 FF Probe Zoom Macro Lens (360°, ARRI PL, Meters)
$3,999.00
In Stock
- Full Frame | T8 Maximum Aperture
- Innovative 360° Probe Zoom
- 0.8 MOD FIZ Gears, 300° Focus Rotation
- 2.1:1 Image Magnification, Macro Views
Tracked ShippingRates shown at checkout
60-Day ReturnsOn eligible items
Expert SupportReal people, real advice

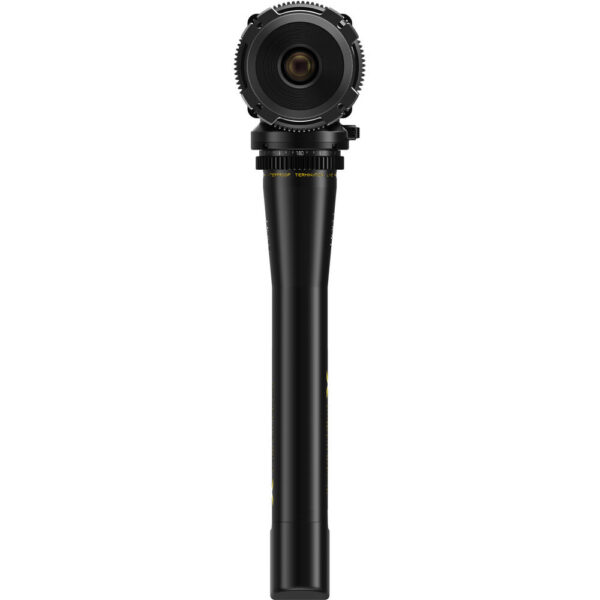

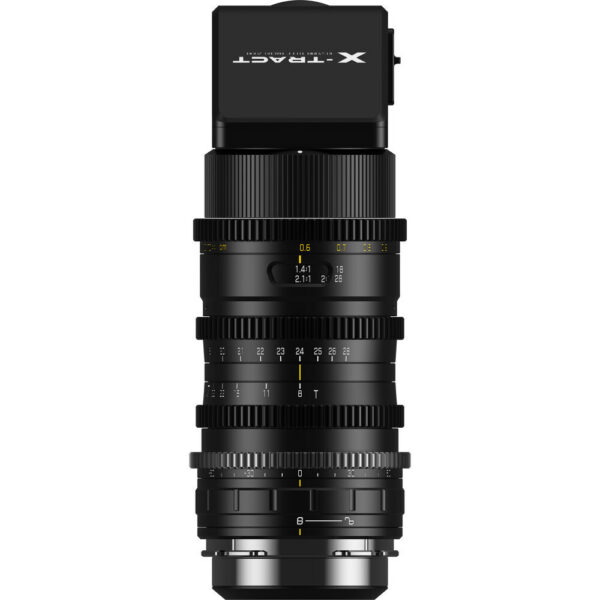

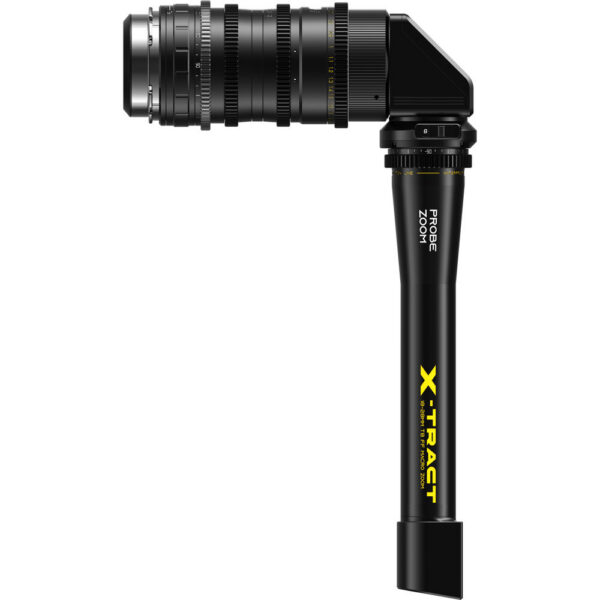

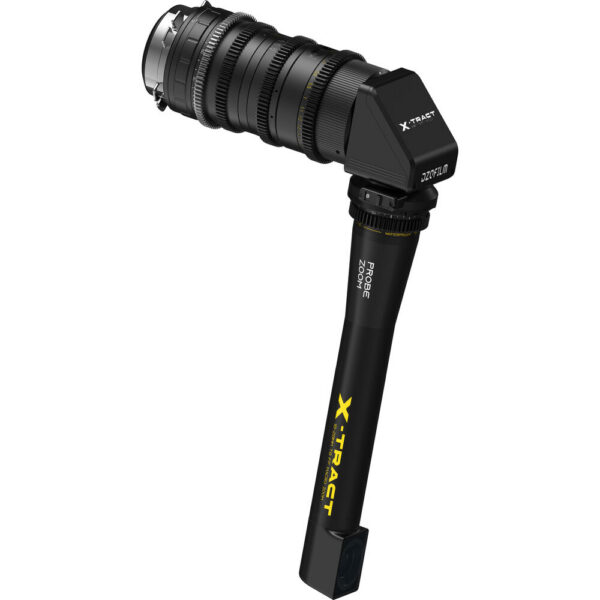

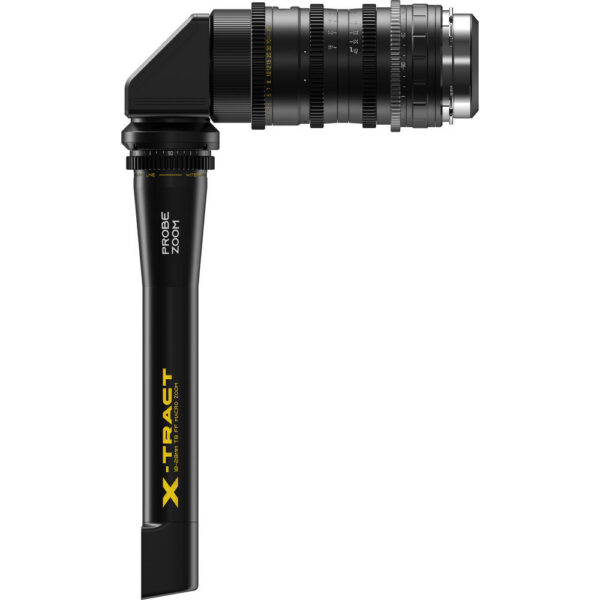

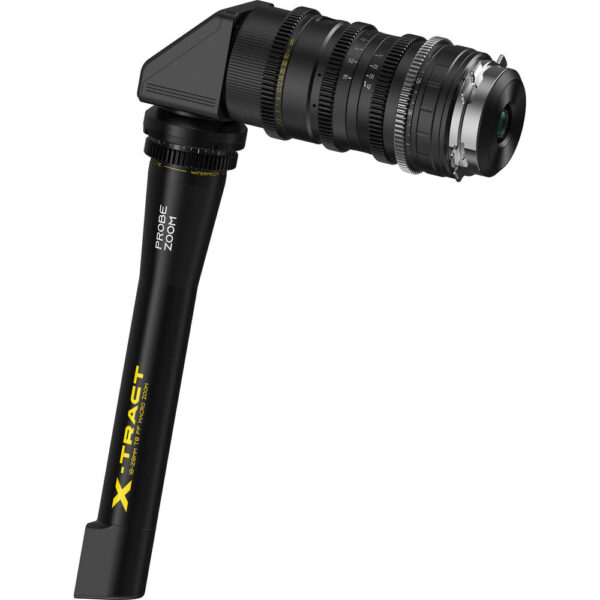

DZOFilm X-Tract 18-28mm T8 FF Probe Zoom Macro Lens (360°, ARRI PL, Meters)
The DZOFilm X-Tract 18-28mm T8 FF Probe Zoom Macro Lens (360°, ARRI PL, Meters) brings serious imaging performance to every shoot, from planned sessions to spontaneous moments. It covers 18 to 28mm with a maximum aperture of T8 on the ARRI PL mount, designed for Full-Frame (43.2 mm Image Circle) cameras.
Highlights
- Full Frame | T8 Maximum Aperture
- Innovative 360° Probe Zoom
- 0.8 MOD FIZ Gears, 300° Focus Rotation
- 2.1:1 Image Magnification, Macro Views
Ordered from NIXTRONIC, it ships with full tracking worldwide and is backed by our 60-day returns on eligible items.
In the Box
- DZOFilm X-Tract 18-28mm T8 FF Probe Zoom Macro Lens (360°, ARRI PL, Meters)
- 360° Tube
- Front Cap
- Rear Cap
- Y-Bracket Support
- Bolt Driver
- Shim Set
- Large O-Ring Quick Release Clamp (1.8")
- 2 x Small O-Ring Quick Release Clamp (1.2")
- UV Filter (#1)
- UV Filter (#2)
- Hard Case with Foam Inlay
Videos
| SKU | DZO-X1828C |
|---|---|
| Brand | DZOFilm |
| Focal Length | 18 to 28mm |
|---|---|
| Maximum Aperture | T8 |
| Minimum Aperture | T22 |
| Lens Mount | ARRI PL |
| Lens Format Coverage | Full-Frame (43.2 mm Image Circle) |
| Angle of View | Full Frame Horizontal: 100 to 73° |
| Focus Scales | Metric |
| Optical Design | 27 Elements in 20 Groups |
| Filter Thread | No |
| Zoom Ratio | 1.56x |
| Minimum Focus Distance | From Front of Lens: 0.2" / 6 mm |
| Magnification | 2.1:1 Macro Reproduction Ratio2.1x Magnification |
| Aperture/Iris Blades | 10 |
| Image Stabilization | No |
| Lens Mounting | 1x 1/4"-20 (via Included Support Foot)3x 3/8"-16 (via Included Support Foot) |
| Gear Standard | Focus, Iris, Zoom: 0.8 MOD |
| Gear Rotation | Focus: 300° |
| Electronic Communication | No |
| Built-In Light | No |
| Probe Offset | No |
| Diameter | Front: 1.2" / 30 mm |
| Length | 16.3" / 415 mm |
| Weight | 2.38 lb / 1.08 kg |
| Package Weight | 11.575 lb |
|---|---|
| Box Dimensions (Lx WxH) | 18.3 x 16.6 x 9.1" |
