Autel Robotics Alpha Industrial Drone with 5-in-1 Gimbal

Name: Autel Robotics Alpha Industrial Drone with 5-in-1 Gimbal
Brand: Autel Robotics
SKU: 102002550
Price: 19289.00 USD
Availability: InStock

(0)

Be the first to review SKU: 102002550

$19,289.00

In Stock

Visual/Thermal Wide & Tele Imaging
Up to 1.25-Mile Laser Range-Finding
720° Visual & Radar Obstacle Avoidance
Anti-Interference Technology

Tracked ShippingRates shown at checkout
60-Day ReturnsOn eligible items
Expert SupportReal people, real advice

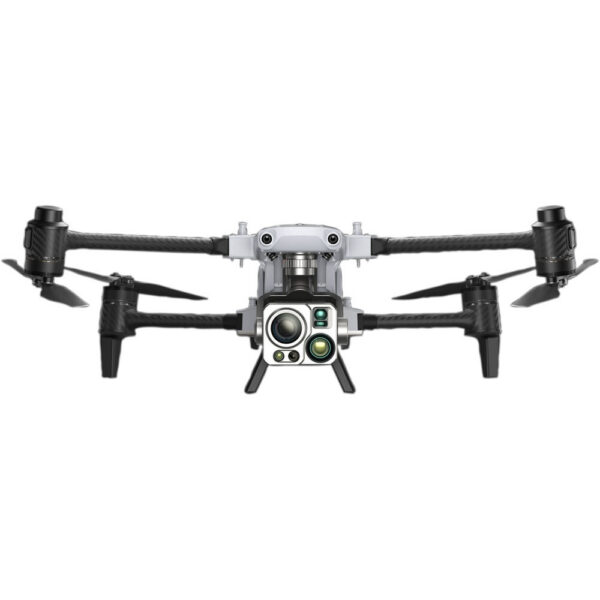

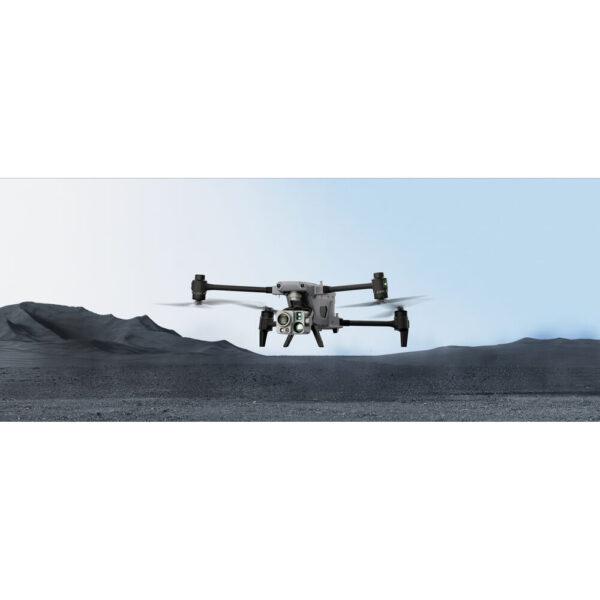

Autel Robotics Alpha Industrial Drone with 5-in-1 Gimbal

The Autel Robotics Alpha Industrial Drone with 5-in-1 Gimbal brings serious imaging performance to every shoot, from planned sessions to spontaneous moments. It flies for up to 40 minutes at speeds up to 56 mph. The system offers a control range of up to 12 miles.

Highlights

Visual/Thermal Wide & Tele Imaging
Up to 1.25-Mile Laser Range-Finding
720° Visual & Radar Obstacle Avoidance
Anti-Interference Technology

Every order from NIXTRONIC ships tracked worldwide and is covered by our 60-day return policy on eligible items.

In the Box

Autel Robotics Alpha Industrial Drone with 5-in-1 Gimbal
Smart Controller V3
2 x Flight Battery
Battery Charger
Propellers
Carry Case

SKU	102002550
Brand	Autel Robotics

Performance
Maximum Horizontal Speed	56 mph / 25 m/s
Maximum Ascent Speed	34 mph / 15 m/s
Maximum Descent Speed	6 mph / 10 km/h
Maximum Wind Resistance	27 mph / 12 m/s
Maximum Take-Off Altitude	2.8 Miles / 4500 m
Maximum Flight Time	40 Minutes
Maximum Hover Time	38 Minutes
Maximum Tilt Angle	36°
Hovering Accuracy	Vision Positioning Vertical: ±0.3' / 0.1 m Horizontal: ±0.49' / 0.15 m RTKVertical: ±0.3' / 0.1 m Horizontal: ±0.3' / 0.1 m GNSSVertical: ±1' / 0.3 m Horizontal: ±1' / 0.3 m
Maximum Angular Velocity	300°/s (Pitch)120°/s (Yaw)

Aircraft
Rotor Configuration	Quadcopter
Remote ID	Yes
Operating Conditions	-4 to 122°F / -20 to 50°C

Imaging
Number of Cameras	4 (Cannot Be Used Simultaneously)
Camera System	Wide 1/2"-Type CMOS Sensor with 24mm-Equivalent, f/2.8 Lens Zoom 1/1.8"-Type CMOS Sensor with 34.7 to 838mm-Equivalent, f/1.6 Lens Wide Thermal Vanadium Oxide (VOX) Sensor with -4 to 1022°F / -20 to 550°C Measurement Range with Lens (12.3° FoV) Thermal Vanadium Oxide (VOX) Sensor with -4 to 1022°F / -20 to 550°C Measurement Range with Lens (42° FoV)
Zoom	Zoom35x Optical / 560x Digital Wide Thermal3.5x Digital Thermal56x Digital
Minimum Focus Distance	Zoom32.8' / 10 m Thermal114.8' / 35 m Wide Thermal19.7' / 6 m
ISO Sensitivity Range	Wide100 to 3200 Zoom100 to 25,600 (Extended: 100 to 160,000)
Night Vision	No
Shutter Speed	All Cameras 1/8000 to 1/2 Second (Photo) 1/8000 to 1/30 Second (Video)
Maximum Video Resolution	Wide Up to 4000 x 3000 at 25 fps Zoom Up to UHD 4K at 30 fps Thermal Up to 640 x 512 at 25 fps
Still Image Support	Wide Up to 12 MP (JPEG) Zoom Up to 8 MP (JPEG) Thermal Up to .3 MP (JPEG)
Photo Modes	Single Shot
Media/Memory Card Slot	In GimbalmicroSD/microSDHC/microSDXC (UHS-I) [256 GB Maximum / Class 10/U3/V30 or Faster Recommended]
Internal Storage	In Remote/Transmitter128 GB

Gimbal
Number of Axes	Three: Pitch (Tilt) / Roll / Yaw (Pan)
Rotation Range	Controllable Range Yaw (Pan): 120° (-90 to 30°) Mechanical Range Yaw (Pan): 180° (-90 to 90°) Roll: 120° (-60 to 60°) Pitch (Tilt): 180° (-135 to 45°)
Follow Speed	Tilt: 100°/s
Stabilization Accuracy	±0.005°

Avoidance/Sensing System
Sensing System	Omnidirectional with Radar Enhancement
Sensing System Capabilities	Forward Detection Range: 1 to 102' / 0.2 to 31 m Field of View: 90° (Vertical) / 90° (Horizontal) Backward Detection Range: 1 to 85' / 0.2 to 26 m Field of View: 90° (Vertical) / 90° (Horizontal) Lateral Detection Range: 1 to 148' / 0.2 to 45 m Field of View: 90° (Vertical) / 90° (Horizontal) Upward Detection Range: 1 to 148' / 0.2 to 45 m Field of View: 90° (Front-to-Back) / 90° (Side-to-Side) Downward Detection Range: 1 to 148' / 0.2 to 45 m Field of View: 90° (Front-to-Back) / 90° (Side-to-Side)
Laser Rangefinder	Yes: 1.2 Miles / 2 km

Remote Controller / Transmitter
Control Method	Included Transmitter
Transmission System	Wi-Fi 5 (802.11ac)• Frequencies: 2.4 GHz (2.400 to 2.4835) / 5.8 GHz (5.725 to 5.750)• Power at 2.4G: 30 d Bm (FCC/ISED) / 20 d Bm (CE/SRRC/UKCA)• Power at 5.8G: 30 d Bm (FCC/ISED/SRRC) / 14 d Bm (CE/UKCA) Bluetooth 5.0• Frequencies: 2.4 GHz (2.400 to 2.4835)• Power at 2.4G: 20 d Bm Proprietary• Frequencies: 900 MHz (902.000 to 928.000) / 2.4 GHz (2.400 to 2.4835) / 5.1 GHz (5.15 to 5.25) / 5.8 GHz (5.725 to 5.850)• Power at 0.9G: 30 d Bm (FCC/ISED)• Power at 2.4G: 30 d Bm (FCC/ISED) / 20 d Bm (CE/SRRC/UKCA)• Power at 5.1G: 30 d Bm (FCC) / 23 d Bm (CE/UKCA)• Power at 5.8G: 30 d Bm (FCC/ISED/SRRC) / 14 d Bm (CE/UKCA)
Maximum Operating Distance	12 Miles / 20 km
Transmitter I/O	1x HDMI (Video)1x USB-C (Data)1x USB-A (Data)
Clean Video Output	Not Specified by Manufacturer
Battery Type	Built-In Lithium-Ion Polymer (LiPo) (5800 m Ah)
Operating Temperature	32 to 113°F / 0 to 45°C
Mobile App Compatible	No
Built-In Display	7.9" (2048 x 1536) Touchscreen LCD, 2000 nits/ cd/m2
Dimensions (Wx HxD)	105.9 x 74.4 x 34.3" / 269 x 189 x 87 cm (Antennas Folded)105.9 x 118.9 x 34.3" / 269 x 302 x 87 cm (Antennas Unfolded)

Flight Battery
Battery Chemistry	Lithium-Ion Polymer (LiPo)
Battery Capacity	10,000 m Ah / 237 Wh
Battery Configuration	6 S / 23.7 V
Maximum Charging Power	260 W
Storage Temperature	14 to 86°F / -10 to 30°C
Charging Temperature	50 to 113°F / 10 to 45°C
Weight	2 lb / 988 g

Charger
Input Power	100 to 240 VAC, 50 / 60 Hz at 4 A
Output Voltage	26.4 V, 7 A
Power Rating	185 W

General
GNSS Support	GPS, GLONASS, Bei Dou, Galileo
Encryption	No
Diagonal Size	2.7' / 814 mm
Overall Dimensions	1.5 x 0.9 x 0.8' / 455.0 x 263.0 x 245.0 mm (Folded)4 x 3.2 x 0.9' / 1205.0 x 980.0 x 278.0 mm (Unfolded)
Weight	14 lb / 6.34 kg (Takeoff)19 lb / 8.4 kg (with Maximum Payload)
