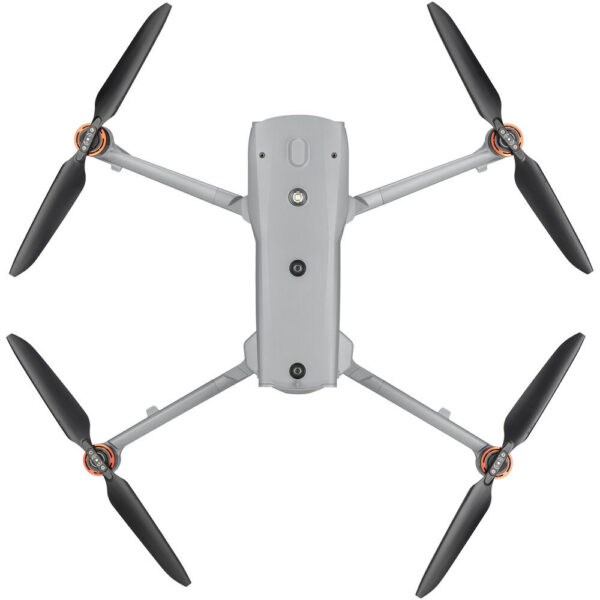

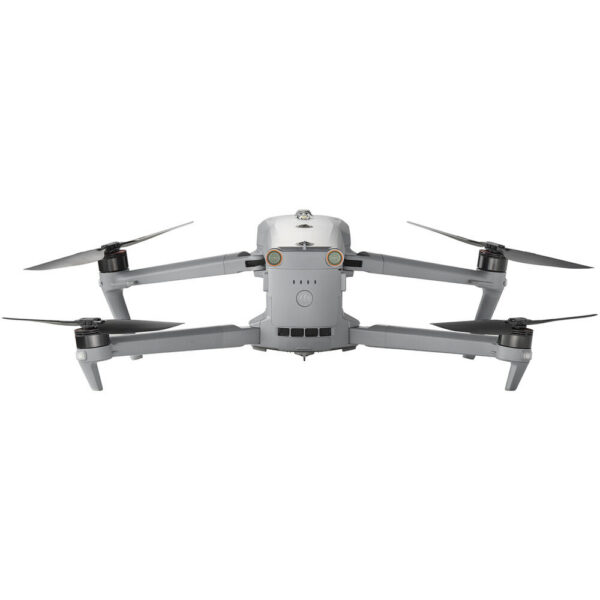

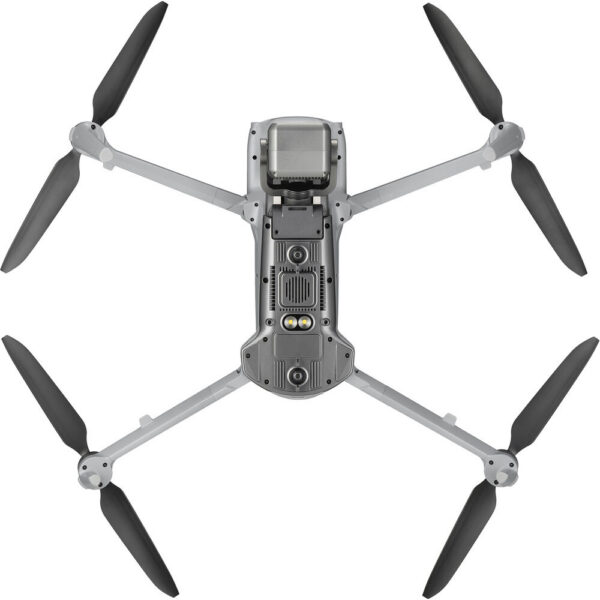

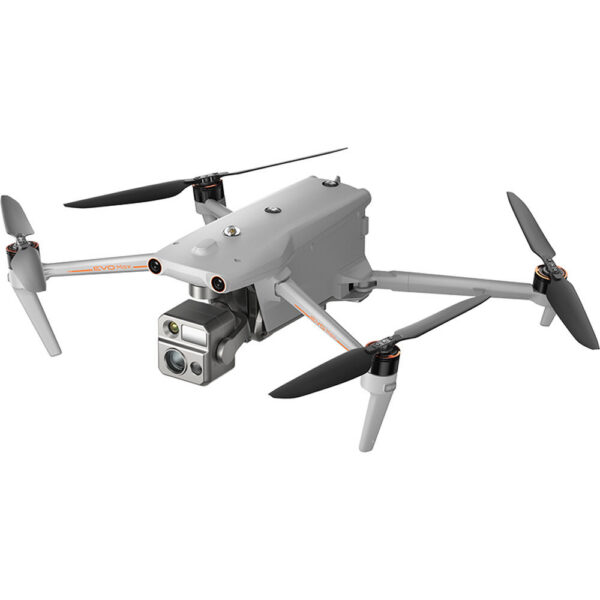

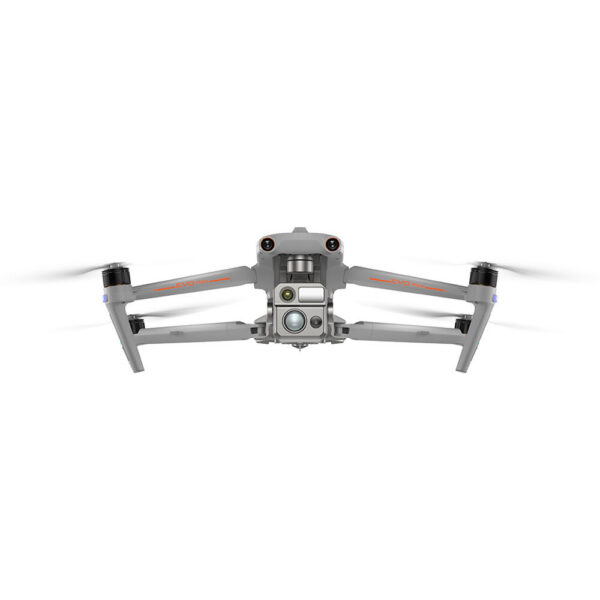

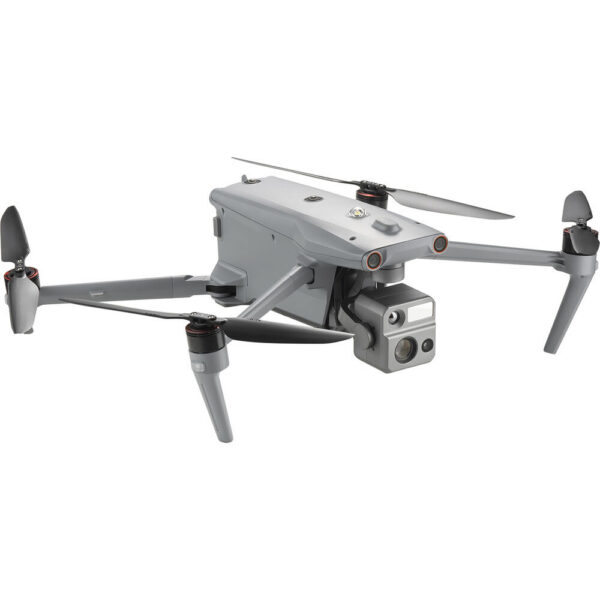

Autel Robotics EVO Max 4N Industrial Drone
$12,599.00
In Stock
- Quad Camera with Thermal & Range Finding
- 8-Camera 720° Obstacle Avoidance
- Anti-Jamming & Anti-Interference
- Drone-to-Drone Autonomous Communication
Tracked ShippingRates shown at checkout
60-Day ReturnsOn eligible items
Expert SupportReal people, real advice
Autel Robotics EVO Max 4N Industrial Drone
The Autel Robotics EVO Max 4N Industrial Drone brings serious imaging performance to every shoot, from planned sessions to spontaneous moments.
Highlights
- Quad Camera with Thermal & Range Finding
- 8-Camera 720° Obstacle Avoidance
- Anti-Jamming & Anti-Interference
- Drone-to-Drone Autonomous Communication
Every order from NIXTRONIC ships tracked worldwide and is covered by our 60-day return policy on eligible items.
In the Box
- Autel Robotics EVO Max 4N Industrial Drone
- Autel Robotics EVO MAX Battery
- Autel Robotics Smart Controller V3 for EVO II V3 Drones
- Rugged Case
- 64GB SD Card
- Autel Robotics Propellers for EVO Max Drones (Pair)
- Autel Robotics EVO Max Flight Battery Charger
- Smart Controller Lanyard
- Smart Controller Cover
- Spare Joystick for Smart Controller
- RC Charger
- RC Charger Cable
- Autel Robotics Gimbal Cover for EVO Max 4T Drones
- Data Cable
- Screwdriver
Videos
| SKU | 102002198 |
|---|---|
| Brand | Autel Robotics |
| Maximum Horizontal Speed | 51.4 mph / 83 km/h |
|---|---|
| Maximum Ascent Speed | 17.9 mph / 29 km/h |
| Maximum Descent Speed | 13.4 mph / 22 km/h |
| Maximum Wind Resistance | 27 mph / 43 km/h |
| Maximum Take-Off Altitude | 4.3 Miles / 7000 m |
| Maximum Flight Time | 42 Minutes |
| Maximum Hover Time | 38 Minutes |
| Maximum Tilt Angle | 36° |
| Hovering Accuracy | Vision Positioning Vertical: ±0.3' / 0.1 m Horizontal: ±0.49' / 0.15 m RTKVertical: ±0.49' / 0.15 m Horizontal: ±0.3' / 0.1 m GNSSVertical: ±1' / 0.3 m Horizontal: ±1' / 0.3 m |
| Maximum Angular Velocity | 300°/s (Pitch)120°/s (Yaw) |
| Rotor Configuration | Quadcopter |
|---|---|
| Propeller Size | 11" |
| Remote ID | Yes |
| Aircraft I/O | 1x USB-C (Service) |
| Operating Conditions | -4 to 122°F / -20 to 50°C |
| Number of Cameras | 3 (Cannot Be Used Simultaneously) |
|---|---|
| Camera System | Wide50 MP, 1/1.28"-Type CMOS Sensor with 23mm-Equivalent, f/1.9 Lens (85° FoV) Standard2.3 MP, Size-Unspecified CMOS Sensor with 41.4mm-Equivalent Lens (52° FoV) |
| Zoom | Standard8x Optical Thermal8x Optical |
| Minimum Focus Distance | Wide3.3' / 1 m Thermal7.2' / 2.2 m |
| ISO Sensitivity Range | Standard Photo/Video: 100 to 450,000 in Manual, Auto Mode Wide Photo: 100 to 6400 in Auto Mode Video: 100 to 64,000 in Auto Mode Photo: 100 to 12,800 in Manual Mode Video: 100 to 6400 in Manual Mode |
| Night Vision | Black-and-White Only |
| Shutter Speed | Wide 1/8000 to 1/2 Seconds (Photo) 1/8000 to 1/30 Seconds (Video) |
| Maximum Video Resolution | Standard Up to 4000 x 3000 at 30 fps Wide Up to 4000 x 3000 at 30 fps Thermal Up to 640 x 512 at 25 fps |
| Still Image Support | Standard Up to 2.3 MP (JPEG) Wide Up to 12 MP (JPEG) Thermal Up to 3 MP (JPEG) |
| Photo Modes | Burst Shooting, Single Shot |
| Media/Memory Card Slot | In Aircraft BodymicroSD/microSDHC/microSDXC (UHS-III) [Class 10/U1/V10 or Faster Recommended] |
| Internal Storage | In Aircraft Body128 GBIn Remote/Transmitter128 GB |
| Number of Axes | Three: Pitch (Tilt) / Roll / Yaw (Pan) |
|---|---|
| Rotation Range | Controllable Range Pitch (Tilt): 120° (-90 to 30°) Mechanical Range Yaw (Pan): 180° (-135 to 45°) Roll: 90° (-45 to 45°) Pitch (Tilt): 90° (-45 to 45°) |
| Follow Speed | Tilt: 100°/s |
| Stabilization Accuracy | ±0.005° |
| Sensing System | Omnidirectional with Radar Enhancement |
|---|---|
| Sensing System Capabilities | Forward Detection Range: 1 to 164' / 0.3 to 50 m Field of View: 120° (Horizontal) / 80° (Vertical) Backward Detection Range: 1 to 164' / 0.3 to 50 m Field of View: 120° (Horizontal) / 80° (Vertical) Lateral Detection Range: 2 to 85' / 0.5 to 26 m Upward Detection Range: 1 to 85' / 0.2 to 26 m Field of View: 120° (Front-to-Back) / 180° (Side-to-Side) Downward Detection Range: 0 to 262' / 0.15 to 80 m Field of View: 120° (Front-to-Back) / 180° (Side-to-Side) |
| Laser Rangefinder | Yes: 0.7 Miles / 1200 m |
| Control Method | Included Transmitter |
|---|---|
| Transmission System | Proprietary• Frequencies: 900 MHz (902.000 to 928.000) / 2.4 GHz (2.4 to 2.476) / 5.8 GHz• Power at 0.9G: 30 d Bm (FCC)• Power at 2.4G: 12.14 d Bm (MIC) / 30 d Bm (FCC) / 20 d Bm (CE/SRRC)• Power at 5.1G: 30 d Bm (FCC/SRRC) / 14 d Bm (CE) |
| Maximum Operating Distance | 12.4 Miles / 20 km |
| Transmitter I/O | 1x HDMI (Video)1x USB-C (Data, Power)1x USB-A (Data, Power) |
| Clean Video Output | Not Specified by Manufacturer |
| Battery Type | Built-In Lithium-Ion (5800 m Ah) |
| Operating Temperature | -4 to 104°F / -20 to 40°C |
| Mobile App Compatible | No |
| Built-In Display | 7.9" (2048 x 1536) Touchscreen LCD, 2000 nits/ cd/m2 |
| Dimensions (Wx HxD) | 10.6 x 7.4 x 3.4" / 269 x 189 x 87 mm (Antennas Folded)10.6 x 11.9 x 3.4" / 269 x 302 x 87 mm (Antennas Unfolded) |
| Battery Chemistry | Lithium-Ion Polymer (LiPo) |
|---|---|
| Battery Capacity | 8070 m Ah / 120 Wh |
| Battery Configuration | 4 S / 14.88 V |
| Maximum Charging Power | 247 W / 17 V |
| Charging Temperature | 41 to 113°F / 5 to 45°C |
| Weight | 1 lb / 520 g |
| Input Power | 240 VAC, 50 / 60 Hz at 3 A |
|---|---|
| Output Voltage | 17 V, 7.06 A5 V, 3 A9 V, 3 A12 V, 2.5 A |
| Power Rating | 120 W |
| GNSS Support | GPS, GLONASS, Bei Dou, Galileo |
|---|---|
| Encryption | 128-Bit AES |
| Diagonal Size | 1.5' / 464 mm |
| Overall Dimensions | 22.7 x 5.9 x 26" / 576.0 x 149.0 x 660.0 mm (Folded)10.1 x 5.2 x 5.4" / 257.0 x 133.0 x 136.0 mm (Unfolded) |
| Weight | 4 lb / 1600 g (With Battery, Gimbal) |
| Package Weight | 20.32 lb |
|---|---|
| Box Dimensions (Lx WxH) | 19.5 x 17.3 x 10.2" |
