Bolin Technology R9-230NX Full HD NDI|HX3 PTZ Camera (Black)
$4,895.00
In Stock
- 1/1.8" CMOS Sensor, 4.17MP
- NDI|HX3, 3G-SDI, HDMI 2.0, and IP Output
- Up to 1080p60 Resolution Video Output
- 30x Optical Zoom, 12x Digital Zoom
Tracked ShippingRates shown at checkout
60-Day ReturnsOn eligible items
Expert SupportReal people, real advice

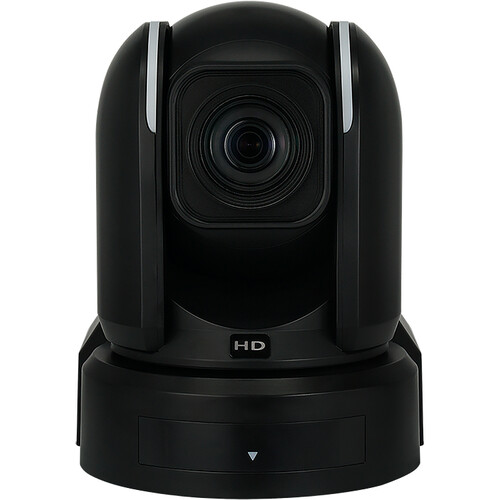

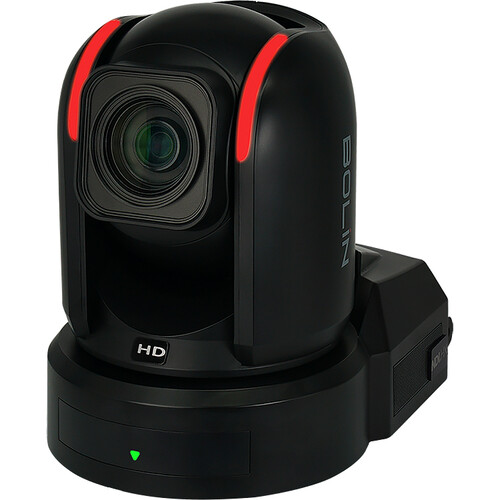

Bolin Technology R9-230NX Full HD NDI|HX3 PTZ Camera (Black)
Designed for creators who demand more from their gear, the Bolin Technology R9-230NX Full HD NDI|HX3 PTZ Camera (Black) delivers capable, consistent performance. At its core is a 4.17 Megapixel 1/1.8"-Type sensor. Everyday handling is covered with No connectivity.
Highlights
- 1/1.8" CMOS Sensor, 4.17MP
- NDI|HX3, 3G-SDI, HDMI 2.0, and IP Output
- Up to 1080p60 Resolution Video Output
- 30x Optical Zoom, 12x Digital Zoom
Every order from NIXTRONIC ships tracked worldwide and is covered by our 60-day return policy on eligible items.
In the Box
- Bolin Technology R9-230NX Full HD NDI|HX3 PTZ Camera (Black)
- Power Adapter
- Power Cable
- IR Remote Control
- RJ45 to RS-422 Extension Cable
- Mounting Screw Set
- Safety Cable
- Dust Cover
- Lens Cap
| SKU | R9-230NX |
|---|---|
| Brand | Bolin Technology |
| Image Sensor | 1/1.8"-Type CMOS |
|---|---|
| Effective Sensor Resolution | Effective: 4.17 Megapixel (2712 x 1538) Actual: 4.09 Megapixel (2688 x 1520) |
| Focus Control | Autofocus Manual Focus |
| Shutter Speed | 1/10000 to 1/1 Second |
|---|---|
| Signal-to-Noise Ratio | 50 dB |
| Minimum Illumination | 0.5 Lux (Color) |
| Flip / Mirror Support | Image Flip, Mirror (Vertical) |
| White Balance | Presets: ATW, Auto, Indoors, Manual, One Push Set, Outdoors |
| Focal Length | 6.5 to 162.5mm |
|---|---|
| Max Optical Zoom | 30x |
| Max Digital Zoom | 12x |
| Field of View | Horizontal: 58.1 to 2.3°Vertical: 34.9 to 1.7° |
| Maximum Aperture | f/1.6 to 4.8 |
| Minimum Focus Distance | 3.9" / 10 cm (Wide) to 3.9' / 120 cm (Tele) |
| Video Output | via RJ451920 x 1080p at 25/30.00/50/60.00 fps 1280 x 720 at 60.00/50 fps via SDI/BNC / HDMI1920 x 1080p at 25/24.00/29.97/50/59.94/60.00 fps 1920 x 1080i at 60.00/50 fps 1280 x 720 at 59.94/60.00/50 fps |
|---|---|
| Embedded Audio | HDMI/LAN (RJ45)/NDI/SDI |
| Internal Recording | No |
| Audio Recording | 2-Channel 16-Bit 48 k Hz AAC LC Audio |
| Broadcast Output | NTSC/PAL |
| Presets | 255 via IP, IR |
|---|---|
| Pan/Tilt/Roll | Pan: 340° (-170 to 170°) at 0.05 to 100°/s Tilt: 120° (-30 to 90°) at 0.05 to 100°/s |
| Tally Light | Yes |
| Wireless | No |
|---|

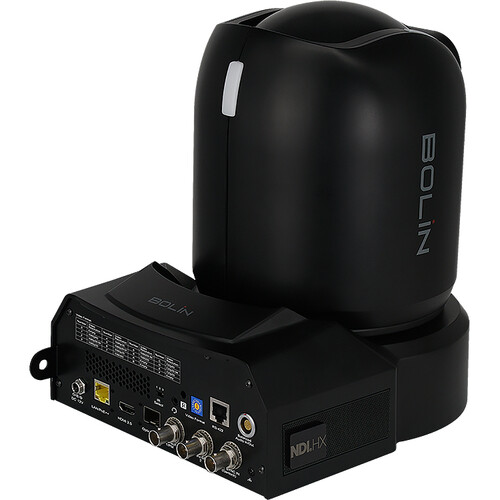

| Video I/O | 1x HDMI 2.0 Output 2x BNC (3G-SDI) Output 1x RJ45 (NDI) Input/Output |
|---|---|
| Audio I/O | 1x 10-Pin LEMO Mic/Line Input/Output |
| Other I/O | 1x BNC (Genlock) Input 1x RJ45 (RS-422) Control |
| Expansion Slots | 1x SFP Slot |
| PoE Support | Yes: PoE++ 802.3bt |
|---|---|
| Power I/O | 1x Barrel (12VDC) Input |
| Power Consumption | Device: 12 VDC 30 to 60 WPoE: 12 VDC 30 to 60 W |
| Operating Conditions | 14 to 122°F / -10 to 50°C up to 80% Humidity |
|---|
| Mounting | 1x 1/4"-20 Female |
|---|---|
| Dimensions (W x H x D) | 7.9 x 9.8 x 10" / 201 x 249 x 253 mm |
| Weight | 8.4 lb / 3.8 kg (Body Only) |
| Package Weight | 13.935 lb |
|---|---|
| Box Dimensions (Lx WxH) | 14.6 x 12.2 x 9.8" |
