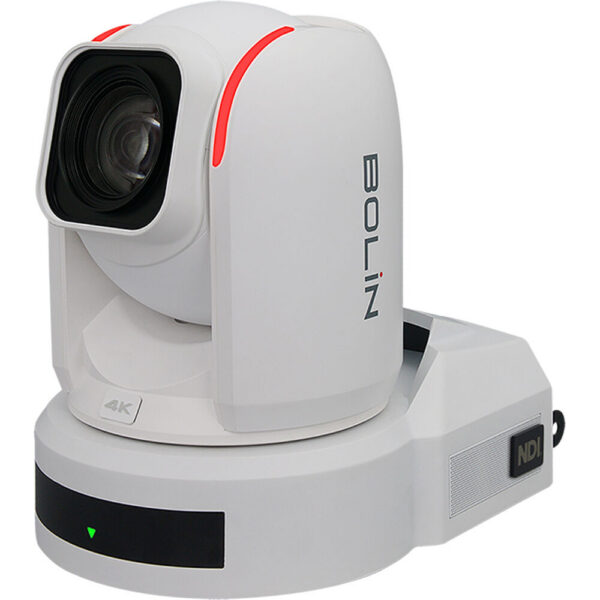

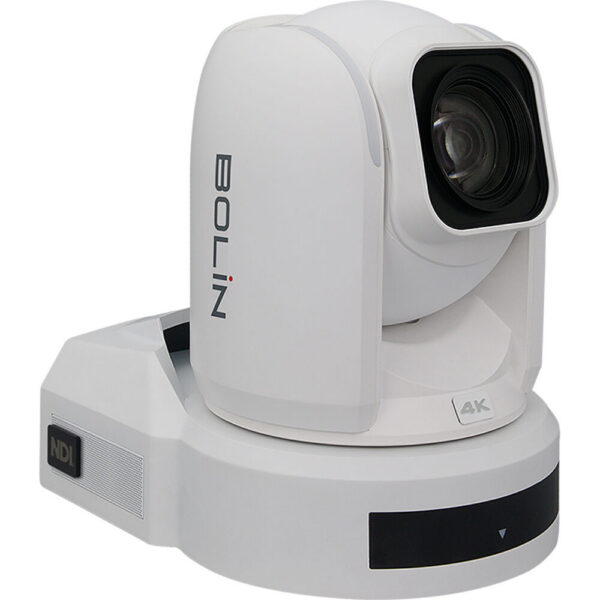

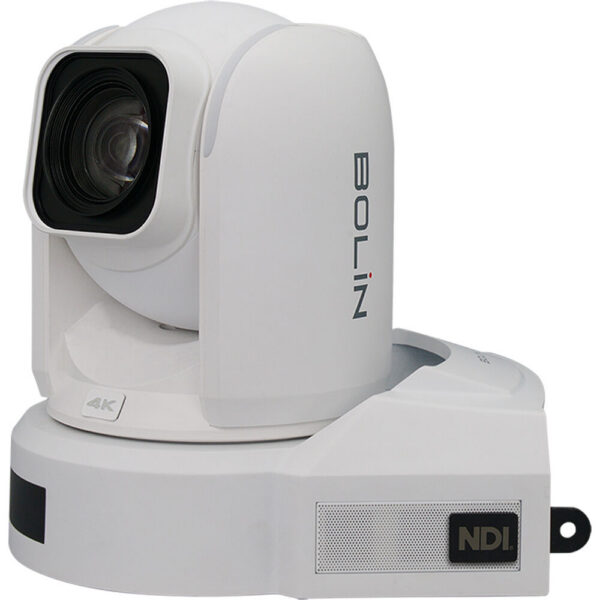

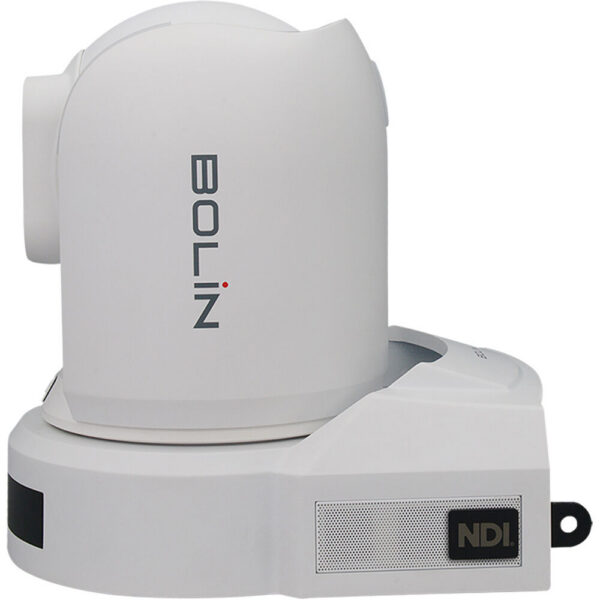

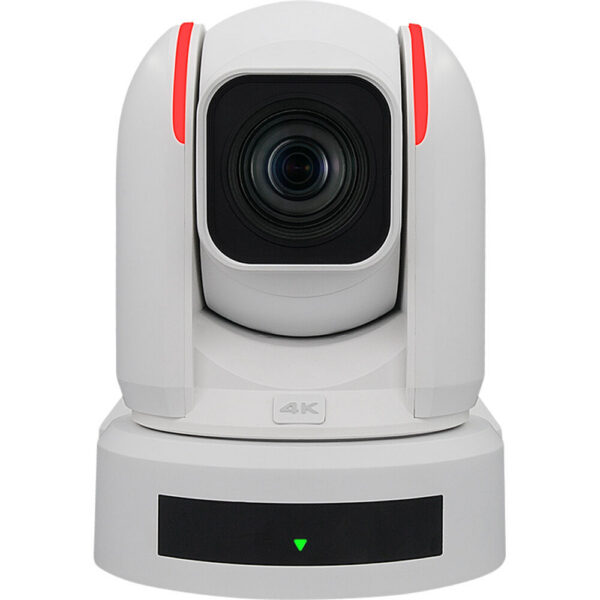

Bolin Technology R9-418N 4K NDI 6-Ready High-Bandwidth 1" PTZ Camera (White)
$6,495.00
In Stock
- Sony 1" CMOS Sensor, 14.2MP
- Up to 4K30 via NDI|HX3/IP/HDMI/6G-SDI
- 18x 4K Optical Zoom, 24x in HD
- NDI Embedded Bridge, FreeD Protocol
Tracked ShippingRates shown at checkout
60-Day ReturnsOn eligible items
Expert SupportReal people, real advice
Bolin Technology R9-418N 4K NDI 6-Ready High-Bandwidth 1" PTZ Camera (White)
The Bolin Technology R9-418N 4K NDI 6-Ready High-Bandwidth 1" PTZ Camera (White) brings serious imaging performance to every shoot, from planned sessions to spontaneous moments. At its core is a 14.2 Megapixel 1"-Type sensor. Everyday handling is covered with No connectivity.
Highlights
- Sony 1" CMOS Sensor, 14.2MP
- Up to 4K30 via NDI|HX3/IP/HDMI/6G-SDI
- 18x 4K Optical Zoom, 24x in HD
- NDI Embedded Bridge, FreeD Protocol
Ordered from NIXTRONIC, it ships with full tracking worldwide and is backed by our 60-day returns on eligible items.
In the Box
- Bolin Technology R9-418N 4K NDI 6-Ready High-Bandwidth 1" PTZ Camera (White)
- IR Remote Control
- Power Adapter
- Power Cable
| SKU | R9-418NW |
|---|---|
| Brand | Bolin Technology |
| Image Sensor | 1"-Type CMOS |
|---|---|
| Sensor Resolution | 14.2 Megapixel (3840 x 2160) |
| Focus Control | Autofocus Manual Focus |
| Shutter Speed | 1/10000 to 1/8 Second |
|---|---|
| Signal-to-Noise Ratio | 50 dB |
| Minimum Illumination | 0.5 Lux at 1/30 Shutter Speed |
| Flip / Mirror Support | Image Flip, Mirror (Vertical) |
| White Balance | Presets: ATW, AWB, Auto, Manual, One Push, Outdoors |
| Focal Length | 9.3 to 111.6mm |
|---|---|
| Max Optical Zoom | 18x |
| Field of View | Horizontal: 64.6 to 6.1° |
| Maximum Aperture | f/2.8 to 4.5 |
| Minimum Focus Distance | 3.1" / 8 cm (Wide) to 39.4" / 100 cm (Tele) |
| Video Output | 4:2:2 10-Bit via HDMI3840 x 2160 at 23.98/24.00/29.97 fps 1920 x 1080p at 23.98/24.00/25/29.97/30.00/50/59.94/60.00 fps 1920 x 1080i at 50/59.94/60.00 fps 1280 x 720 at 50/59.94/60.00 fps 4:2:2 10-Bit via SDI/BNC1920 x 1080p at 23.98/24.00/25/29.97/30.00/50/59.94/60.00 fps 1920 x 1080i at 50/59.94/60.00 fps 1280 x 720 at 50/59.94/60.00 fps |
|---|---|
| Embedded Audio | HDMI/LAN (RJ45)/SDI |
| Internal Recording | No |
| Audio Recording | 24-Bit 192 k Hz AAC Audio |
| Broadcast Output | NTSC/PAL |
| IP Streaming | H.264/H.265 via HTTP/NDI/NDI HX3/RTMP/RTMPS/RTP/RTSP/SRT/TCP/UDP 3840 x 2160 at 25p, 30p (Simultaneous Multi-Stream) 1920 x 1080 at 25p, 30p, 50p, 60p (Simultaneous Multi-Stream) 1280 x 720 at 25p, 30p, 50p, 60p (Simultaneous Multi-Stream) H.264/H.265 via RTMP/RTP/RTSP/TCP/UDP 480 x 360 to 720 x 480 at 25p, 30p, 50p, 60p |
| Presets | 255 via IP, VISCA, Pelco-P, Pelco-D |
|---|---|
| Pan/Tilt/Roll | Pan: 340° (-170 to 170°) at 0.05 to 100°/s Tilt: 120° (-30 to 90°) at 0.05 to 50°/s |
| Tally Light | Yes |
| Wireless | No |
|---|
| Video I/O | 1x HDMI 2.0 Output 2x BNC (6G-SDI) Output 1x RJ45 (NDI) Input/Output |
|---|---|
| Audio I/O | 1x 1/8" / 3.5 mm TRRS Headphone/Mic Intercom Input 1x 10-Pin LEMO Mic/Line Input/Output (+48 V Phantom Power) |
| Other I/O | 1x RJ45 (RS-422) Control Input/Output 1x RJ45 (Ethernet, LAN) Control/Data Input/Output 1x BNC (Genlock) Input |
| Expansion Slots | 1x SFP+ Slot |
| Built-In Microphone | No |
| PoE Support | Yes: PoE++ 802.3bt |
|---|---|
| Power I/O | 1x Barrel (12VDC) Input |
| Power Consumption | Device: 29 to 50 W |
| Operating Conditions | 14 to 122°F / -10 to 50°C up to 80% Humidity |
|---|
| Mounting | 1x 1/4"-20 Female |
|---|---|
| Materials | Magnesium Alloy |
| Dimensions (W x H x D) | 7.9 x 9.8 x 10" / 201 x 249 x 253 mm |
| Weight | 8 lb / 3.8 kg (Body Only) |
