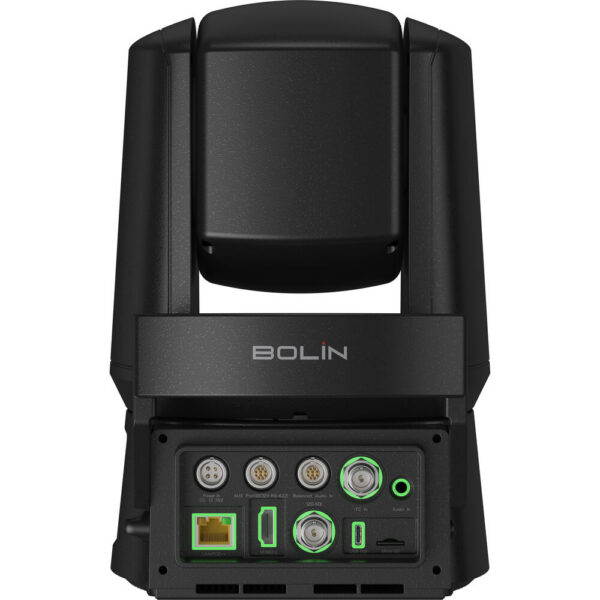

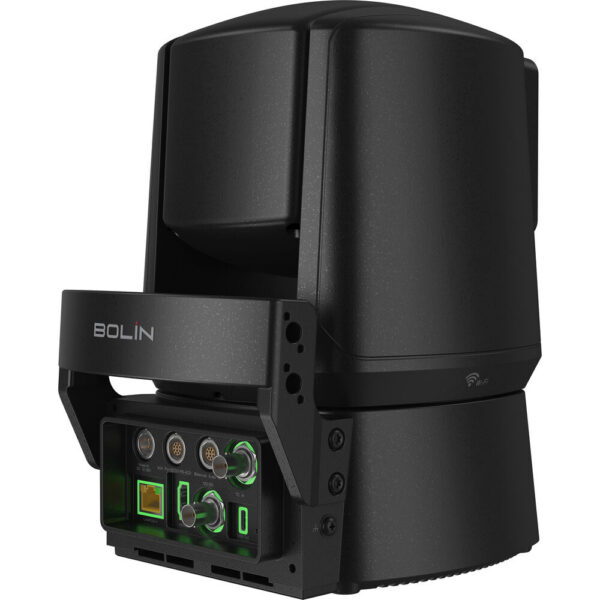

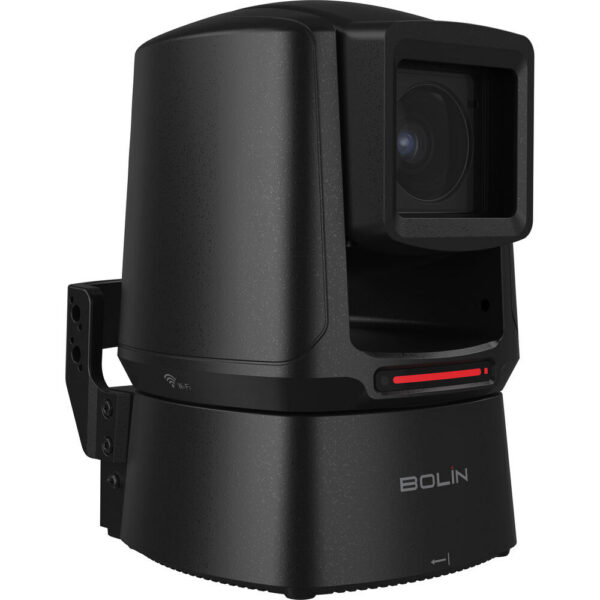

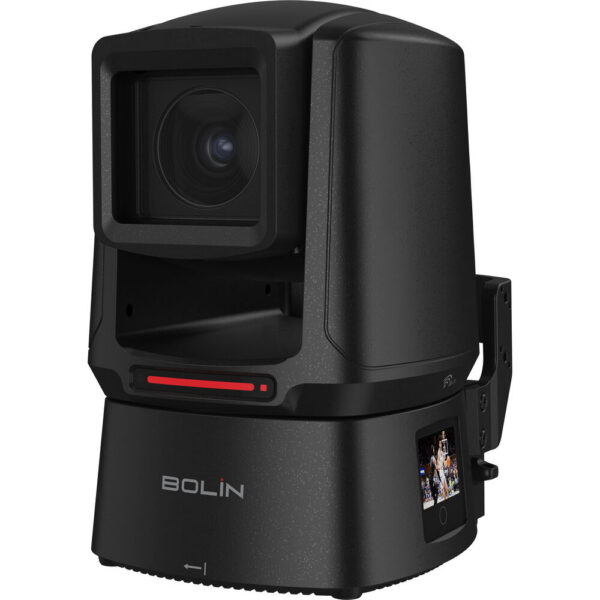

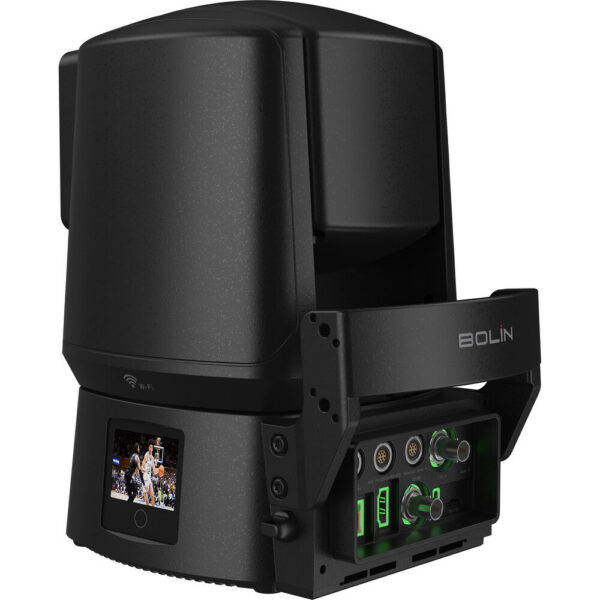

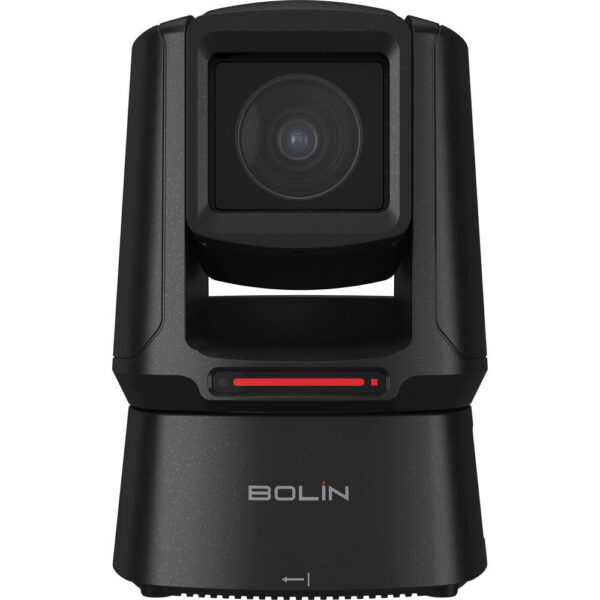

Bolin Technology Range All-Weather 4K60 PTZ Camera with 25x Optical Zoom

Name: Bolin Technology Range All-Weather 4K60 PTZ Camera with 25x Optical Zoom
Brand: Bolin Technology
SKU: RANGE
Price: 6995.00 USD
Availability: InStock

(0)

Be the first to review SKU: RANGE

$6,995.00

In Stock

IP65 Waterproof Design
8.4MP 1/1.8" Sony CMOS Sensor
Up to UHD 4K60, 12G-SDI, HDMI, IP, UVC
3-Axis Image Stabilization

Tracked ShippingRates shown at checkout
60-Day ReturnsOn eligible items
Expert SupportReal people, real advice

Bolin Technology Range All-Weather 4K60 PTZ Camera with 25x Optical Zoom

The Bolin Technology Range All-Weather 4K60 PTZ Camera with 25x Optical Zoom is built for photographers and creators who want dependable, professional results. At its core is a 8.4 Megapixel 1/1.8"-Type sensor. Everyday handling is covered with Wi-Fi 6 (802.11ax)*Built-In connectivity.

Highlights

IP65 Waterproof Design
8.4MP 1/1.8" Sony CMOS Sensor
Up to UHD 4K60, 12G-SDI, HDMI, IP, UVC
3-Axis Image Stabilization

Ordered from NIXTRONIC, it ships with full tracking worldwide and is backed by our 60-day returns on eligible items.

In the Box

Bolin Technology Range All-Weather 4K60 PTZ Camera with 25x Optical Zoom
Power Adapter
Power Cable
Instant Rain Cover
Waterproof Cover for Mount
6 x Waterproof Plug
Protection Cover
IR Remote
Installation Lock

SKU	RANGE
Brand	Bolin Technology

Imaging
Image Sensor	1/1.8"-Type CMOS
Sensor Resolution	8.4 Megapixel (3840 x 2160)
Focus Control	Autofocus Manual Focus

Exposure Control
Shutter Speed	1/30000 to 1/25 Second
Signal-to-Noise Ratio	50 dB
Minimum Illumination	0.5 Lux at f/1.61 Aperture
Flip / Mirror Support	Image Flip, Mirror (Vertical)
White Balance	Presets: ATW, Auto, Indoors, Manual, One Push, Outdoors

Lens
Focal Length	7.1 to 171.95mm
Max Optical Zoom	25x
Max Digital Zoom	16x
Field of View	Horizontal: 59.2 to 2.5°Vertical: 34.6 to 1.4°
Maximum Aperture	f/1.6 to 7.6
Minimum Focus Distance	5.9" / 15 cm (Wide) to 39.4" / 100 cm (Tele)

Video Capture
Video Output	via USB3840 x 2160p at 60.00 fps 3840 x 2160p at 60.00 fps 1920 x 1080p up to 60.00 fps 1280 x 720 up to 60.00 fps 800 x 600 up to 60.00 fps 704 x 576p up to 60.00 fps 640 x 480p up to 60.00 fps 320 x 240 up to 60.00 fps 4:2:2/4:2:0 8/12-Bit via HDMI / RJ45 / SDI/BNC3840 x 2160 at 23.98/24.00/25/29.97/50/60.00 fps 3840 x 2160p at 23.98/24.00/25/29.97/50/59.94/60.00 fps 1920 x 1080p at 23.98/24.00/25/29.97/50/59.94/60.00/100/120 fps 1920 x 1080i at 50/60.00 fps 1280 x 720 at 50/60.00 fps
Embedded Audio	HDMI/LAN (RJ45)/NDI/SDI
Audio Recording	2-Channel 16-Bit 48 k Hz AAC LC Audio
Broadcast Output	NTSC/PAL
Supported Protocols	Camera ControlIP/IR/NDI/NDI/HX3
IP Streaming	H.264/H.265/MJPEG via NDI/RTMP/RTP/RTSP/TCP/UDP 3840 x 2160 at 24p, 25p, 29.97p, 30p, 60p (Simultaneous Multi-Stream) 1920 x 1080 at 25p, 29.97p, 30p, 50p, 59.94p, 60p (Simultaneous Multi-Stream) 1280 x 720 at 50p, 60p (Simultaneous Multi-Stream) H.264/H.265/MJPEG/MPEG-4 via NDI/NDI HX3/RTMP/RTP/RTSP 1280 x 720 to 3840 x 2160 up to 60p (Main Stream) 352 x 228 to 1280 x 720 up to 60p (Sub Stream)

Control
Presets	255 via IP, IR, VISCA
Pan/Tilt/Roll	Pan: 340° (-170 to 170°) at 0.05 to 70°/s Tilt: 210° (-30 to 180°) at 0.05 to 70°/s
Tally Light	Yes

Networking
Wireless	Wi-Fi 6 (802.11ax)*Built-In

Interface
Media/Memory Card Slot	Single Slot: microSD/microSDHC/microSDXC [128 TB Maximum]

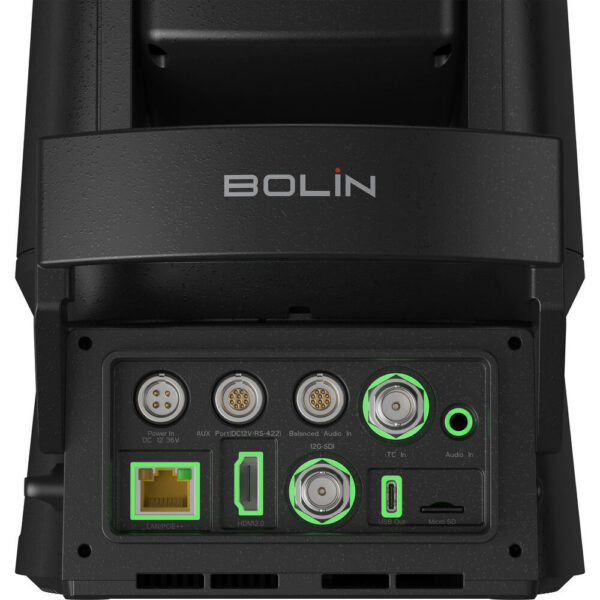

Video I/O	1x HDMI 2.0 Output 1x BNC (12G-SDI) Output 1x RJ45 (NDI) Input/Output 1x USB-C 3.0 / 3.1/3.2 Gen 1 Output
Audio I/O	1x 1/8" / 3.5 mm TRS Stereo Mic/Line Input 1x 10-Pin Hirose Mic/Line Input (+48 V Phantom Power)
Other I/O	1x BNC (Timecode) Input 1x Hirose 10-Pin (RS-422) Control/Aux Input/Output
Built-In Microphone	No

Power
PoE Support	Yes: PoE++ 802.3bt
Power I/O	1x Hirose 4-Pin (12 to 36VDC) Input
Power Consumption	Device: 12 VDC 32 to 78 WPoE: 12 VDC

Environmental
Operating Conditions	-40 to 140°F / -40 to 60°C up to 100% Humidity
Environmental Resistance	Dust/Weather/Water-Resistant (IP65)

General
Mounting	1x 1/4"-20 Female1x 3/8"-16 Female
Certifications	CCC, CE, FCC, IC, RoHS, UKCA, UL, WEEE
Dimensions (W x H x D)	10.1 x 8.9 x 6.6" / 256 x 226 x 168 mm
Weight	11 lb / 5.15 kg (Body Only)
