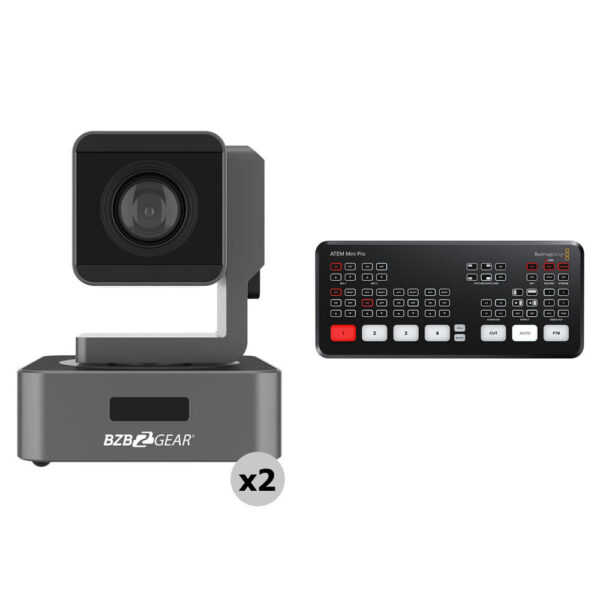

BZBGEAR 1080p 10x Zoom PTZ 2-Camera Kit with ATEM Mini Pro HDMI Switcher
$2,107.40
In Stock
- Two 1080p PTZ Cameras with 10x Zoom
- ATEM Mini Pro HDMI Live Stream Switcher
- Switch/Live Stream up to 4 HDMI Sources
- PoE, IP/Serial Control Support
Tracked ShippingRates shown at checkout
60-Day ReturnsOn eligible items
Expert SupportReal people, real advice
BZBGEAR 1080p 10x Zoom PTZ 2-Camera Kit with ATEM Mini Pro HDMI Switcher
The BZBGEAR 1080p 10x Zoom PTZ 2-Camera Kit with ATEM Mini Pro HDMI Switcher brings serious imaging performance to every shoot, from planned sessions to spontaneous moments. At its core is a 2.7 Megapixel 1/2.7"-Type sensor. Everyday handling is covered with IR connectivity.
Highlights
- Two 1080p PTZ Cameras with 10x Zoom
- ATEM Mini Pro HDMI Live Stream Switcher
- Switch/Live Stream up to 4 HDMI Sources
- PoE, IP/Serial Control Support
Every order from NIXTRONIC ships tracked worldwide and is covered by our 60-day return policy on eligible items.
In the Box

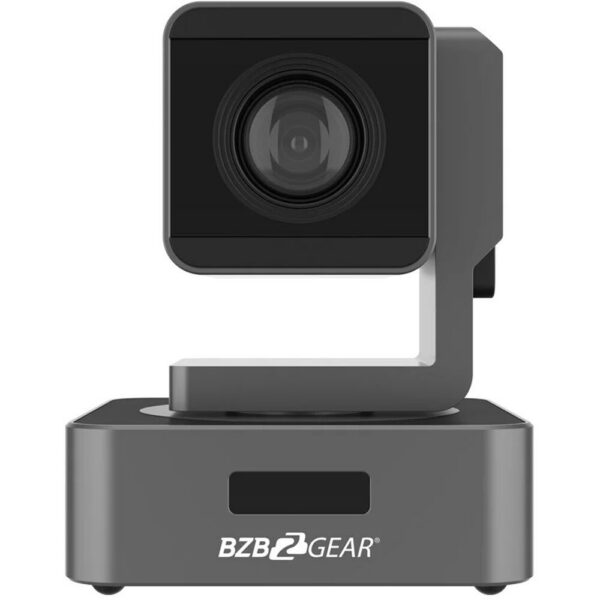

- 2 x BZBGEAR 1080p HDMI/SDI/USB Live Streaming PTZ Camera with 10x Zoom & PoE (Gray)
- Power Adapter
- IR Remote Control
- RS-232 Adapter

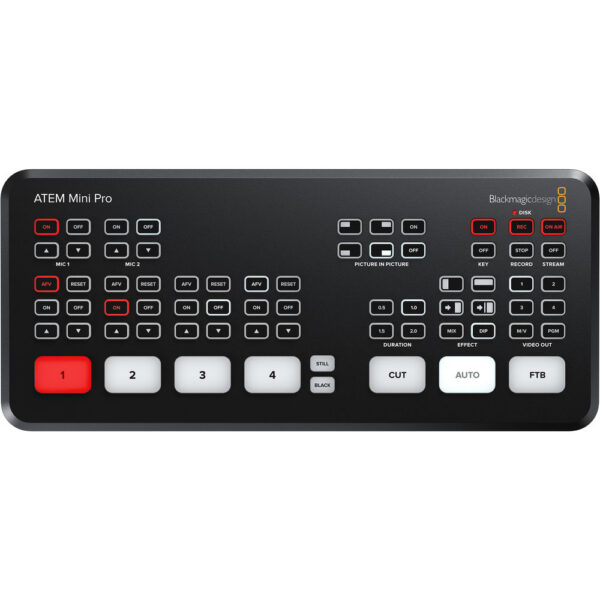

- Blackmagic Design ATEM Mini Pro HDMI Live Stream Switcher
- 12V Power Supply with International Adapters
Videos
| SKU | BZVP10HSU2SK |
|---|---|
| Brand | BZBGEAR |
| Image Sensor | 1/2.7"-Type CMOS |
|---|---|
| Sensor Resolution | 2.7 Megapixel (1920 x 1080) |
| IR Cut Filter | No |
| Focus Control | Autofocus Manual Focus |
| Shutter Speed | 1/10000 to 1 Second |
|---|---|
| Minimum Illumination | 0.05 Lux |
| Flip / Mirror Support | Image Flip, Mirror (Vertical) |
| White Balance | Presets: Auto, Indoors, Manual, Outdoors Range: 3000 to 6500K |
| Focal Length | 5.1 to 51mm |
|---|---|
| Max Optical Zoom | 10x |
| Field of View | Horizontal: 72 to 2.9° |
| Maximum Aperture | f/1.6 to 2.8 |
| Video Output | via HDMI / RJ45 / SDI/BNC / USB1920 x 1080p at 25/29.97/50/59.94 fps 1920 x 1080i at 25/29.97/50/59.94 fps 1280 x 720 at 25/29.97/50/59.94 fps |
|---|---|
| Embedded Audio | HDMI/SDI: 2-Channel |
| Internal Recording | No |
| Broadcast Output | NTSC |
| IP Streaming | H.264/H.265/MJPEG via ONVIF/RTMP/RTSP/TCP 1280 x 720 to 1920 x 1080 |
| Presets | 255 via IP, RS-232, VISCA9 via IR |
|---|---|
| Pan/Tilt/Roll | Pan: 356° (-178 to 178°) at 0.1 to 180°/s Tilt: 120° (-30 to 90°) at 0.1 to 120°/s |
| Tally Light | No |
| Wireless | IR |
|---|
| Video I/O | 1x HDMI Output 1x BNC (3G-SDI) Output 1x USB-B 3.0 / 3.1/3.2 Gen 1 Output |
|---|---|
| Audio I/O | 1x 1/8" / 3.5 mm TRS Stereo Line Input |
| Other I/O | 1x Mini-DIN 8-Pin (Pelco-D, Pelco-P, RS-232, VISCA) Control Input 1x RJ45 (LAN) Control Input/Output |
| Built-In Microphone | No |
| Built-In Speaker | No |
| PoE Support | Yes: PoE 802.3af |
|---|---|
| Power I/O | 1x Barrel (12VDC up to 2 A) Input |
| Power Consumption | Power Supply: 100 to 240 VAC 12 W |
| Operating Conditions | 14 to 122°F / -10 to 50°C |
|---|---|
| Storage Conditions | 14 to 140°F / -10 to 60°C |
| Impact Resistance | No |
| Environmental Resistance | No |
| Mounting | 3x M3 Female for Bracket/Ceiling |
|---|---|
| OS Compatibility | Computer: Windows / macOS 11 or Later Mobile: iOS Only |
| Dimensions (W x H x D) | 4.7 x 5.7 x 4.7" / 120 x 145 x 120 mm |
| Weight | 4 lb / 1.6 kg (Body Only) |
| Package Weight | 4.135 lb |
|---|---|
| Box Dimensions (Lx WxH) | 10.1 x 9.2 x 8" |
