BZBGEAR Universal NDI/HDMI/SDI/USB Live Streaming PTZ Camera with 30x Zoom (White)

Name: BZBGEAR Universal NDI/HDMI/SDI/USB Live Streaming PTZ Camera with 30x Zoom (White)
Brand: BZBGEAR
SKU: BG-UPTZ-ND30X-W
Price: 1359.20 USD
Availability: InStock

(0)

Be the first to review SKU: BG-UPTZ-ND30X-W

$1,359.20

In Stock

1/2.8" 2.07MP HD Sensor
NDI|HX, HDMI, 3G-SDI, USB 3.0, IP Output
30x Optical Zoom, 10x Digital Zoom
Capture up to 1080p60 Video, PoE Support

Tracked ShippingRates shown at checkout
60-Day ReturnsOn eligible items
Expert SupportReal people, real advice

BZBGEAR Universal NDI/HDMI/SDI/USB Live Streaming PTZ Camera with 30x Zoom (White)

The BZBGEAR Universal NDI/HDMI/SDI/USB Live Streaming PTZ Camera with 30x Zoom (White) is built for photographers and creators who want dependable, professional results. At its core is a 2.07 Megapixel 1/2.8"-Type sensor. Everyday handling is covered with IR connectivity.

Highlights

1/2.8" 2.07MP HD Sensor
NDI|HX, HDMI, 3G-SDI, USB 3.0, IP Output
30x Optical Zoom, 10x Digital Zoom
Capture up to 1080p60 Video, PoE Support

Ordered from NIXTRONIC, it ships with full tracking worldwide and is backed by our 60-day returns on eligible items.

In the Box

BZBGEAR Universal NDI/HDMI/SDI/USB Live Streaming PTZ Camera with 30x Zoom (White)
Power Adapter
IR Remote Control
RS-232 Cable

Videos

SKU	BG-UPTZ-ND30X-W
Brand	BZBGEAR

Imaging
Image Sensor	1/2.8"-Type CMOS
Sensor Resolution	2.07 Megapixel (1920 x 1080)
IR Cut Filter	No
Focus Control	Autofocus Manual Focus

Exposure Control
Shutter Speed	1/10000 to 1 Second
Signal-to-Noise Ratio	50 dB
Minimum Illumination	0.5 Lux
Flip / Mirror Support	Image Flip, Mirror (Vertical)
White Balance	Range: 2400 to 7100K Presets: Auto, Manual, One Push

Lens
Focal Length	4.3 to 129mm
Max Optical Zoom	30x
Max Digital Zoom	10x
Field of View	Horizontal: 65.1 to 2.34°
Maximum Aperture	f/1.6 to 4.7

Video Capture
Video Output	via HDMI / RJ45 / SDI/BNC / USB1920 x 1080p at 25/29.97/50/59.94 fps 1920 x 1080i at 50/59.94 fps 1280 x 720 at 25/29.97/50/59.94 fps
Embedded Audio	HDMI/NDI/USB/BNC
Internal Recording	No
Broadcast Output	NTSC
IP Streaming	H.264/H.265 via NDI/NDI HX/ONVIF/RTMP/RTSP/SRT/TCP 1280 x 720 to 1920 x 1080

Control
Presets	255 via IP, RS-232, VISCA10 via IR
Pan/Tilt/Roll	Pan: 340° (-170 to 170°) at 0.1 to 60°/s Tilt: 120° (-30 to 90°) at 0.1 to 30°/s
Tally Light	No

Networking
Wireless	IR

Interface

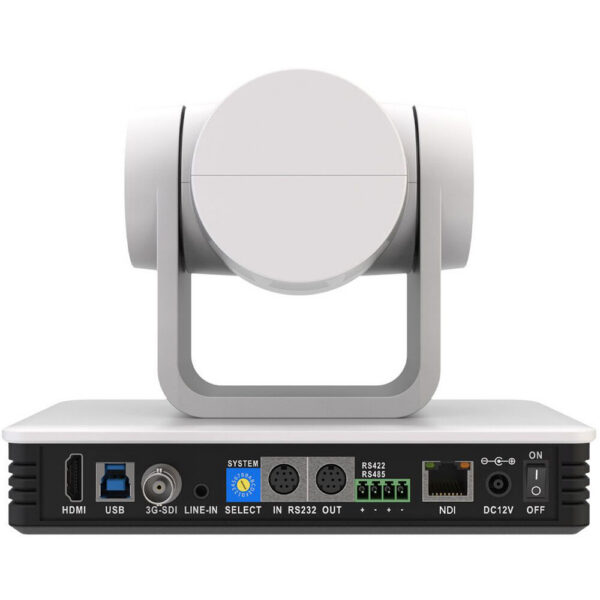

Video I/O	1x HDMI Output 1x BNC (3G-SDI) Output 1x USB-B 3.0 / 3.1/3.2 Gen 1 Output 1x RJ45 (NDI) Output
Audio I/O	1x 1/8" / 3.5 mm TRS Stereo Line Input
Other I/O	1x Mini-DIN 8-Pin (Pelco-D, Pelco-P, RS-232, VISCA) Control Input 1x Mini-DIN 8-Pin (Pelco-D, Pelco-P, RS-232, VISCA) Control Output 1x Block (RS-485) Control Input 1x RJ45 (LAN) Input/Output
Built-In Microphone	No
Built-In Speaker	No

Power
PoE Support	Yes: PoE 802.3af
Power I/O	1x Barrel (12VDC up to 1 A) Input
Power Consumption	Power Supply: 12 VDC 12 to 30 W

Environmental
Operating Conditions	14 to 122°F / -10 to 50°C at 20 to 80% Humidity
Storage Conditions	14 to 140°F / -10 to 60°C at 20 to 95% Humidity
Impact Resistance	No
Environmental Resistance	No

General
Mounting	1x 1/4"-20 Female
OS Compatibility	Computer: Windows / macOS 11 or Later Mobile: iOS Only
Dimensions (W x H x D)	7 x 5.9 x 4.55" / 17.8 x 15.1 x 11.55 cm
Weight	3 lb / 1.38 kg (Body Only)
