Canon CR-N300 4K NDI PTZ 3-Camera Kit with RC-IP300 Controller (2 White, 1 Black)

Name: Canon CR-N300 4K NDI PTZ 3-Camera Kit with RC-IP300 Controller (2 White, 1 Black)
Brand: Canon
SKU: CARN300BW2K
Price: 10296.00 USD
Availability: InStock

(0)

Be the first to review SKU: CARN300BW2K

$10,296.00

In Stock

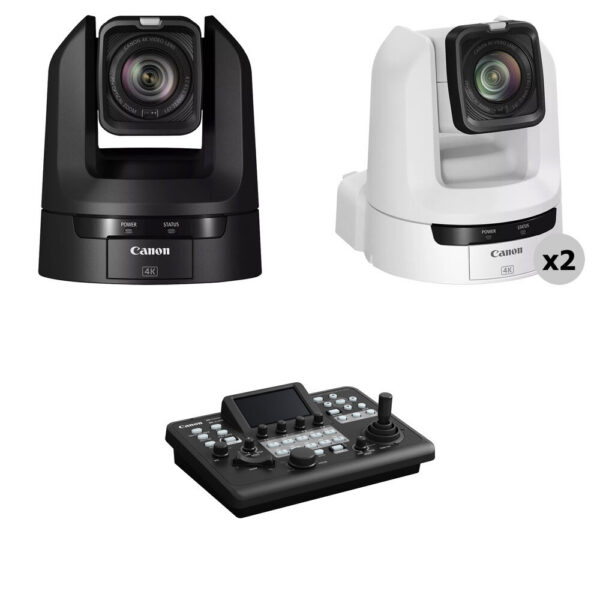

2 White, 1 Black CR-N300 4K PTZ Cameras
RC-IP300 PTZ Joystick Camera Controller
Capture up to UHD 4K30/1080p60 Video
8.29MP 1/2.3" CMOS Sensor with Hybrid AF

Tracked ShippingRates shown at checkout
60-Day ReturnsOn eligible items
Expert SupportReal people, real advice

Canon CR-N300 4K NDI PTZ 3-Camera Kit with RC-IP300 Controller (2 White, 1 Black)

Designed for creators who demand more from their gear, the Canon CR-N300 4K NDI PTZ 3-Camera Kit with RC-IP300 Controller (2 White, 1 Black) delivers capable, consistent performance. At its core is a 8.29 Megapixel 1/2.3"-Type sensor. Everyday handling is covered with IR connectivity.

Highlights

2 White, 1 Black CR-N300 4K PTZ Cameras
RC-IP300 PTZ Joystick Camera Controller
Capture up to UHD 4K30/1080p60 Video
8.29MP 1/2.3" CMOS Sensor with Hybrid AF

Every order from NIXTRONIC ships tracked worldwide and is covered by our 60-day return policy on eligible items.

In the Box

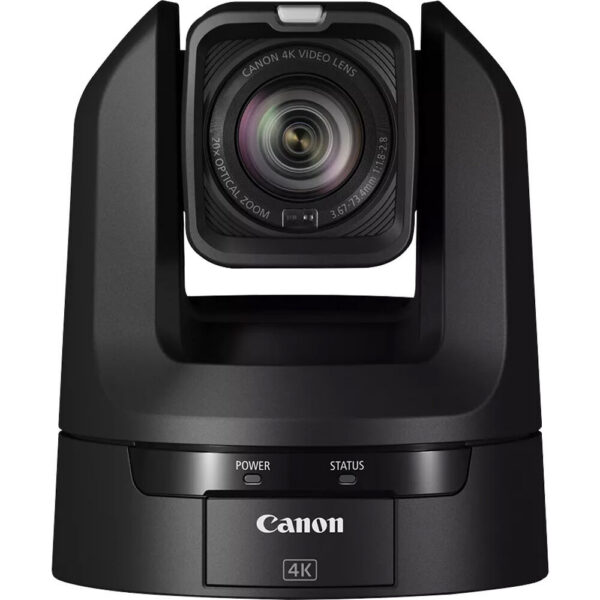

Canon CR-N300 4K NDI HX2 PTZ Camera with 20x Zoom (Satin Black)
IR Remote Control
Remote Battery
Safety Wire
Ceiling Plate
Safety Wire with Screw
AC Adapter
Power Cable

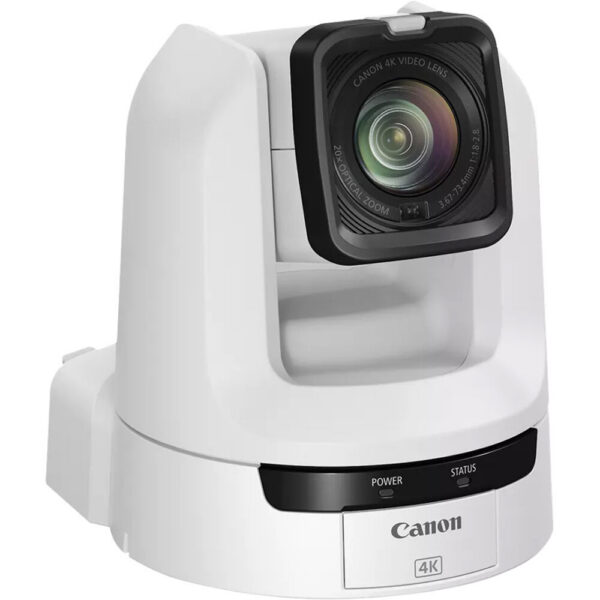

2 x Canon CR-N300 4K NDI PTZ Camera with 20x Zoom (Titanium White)

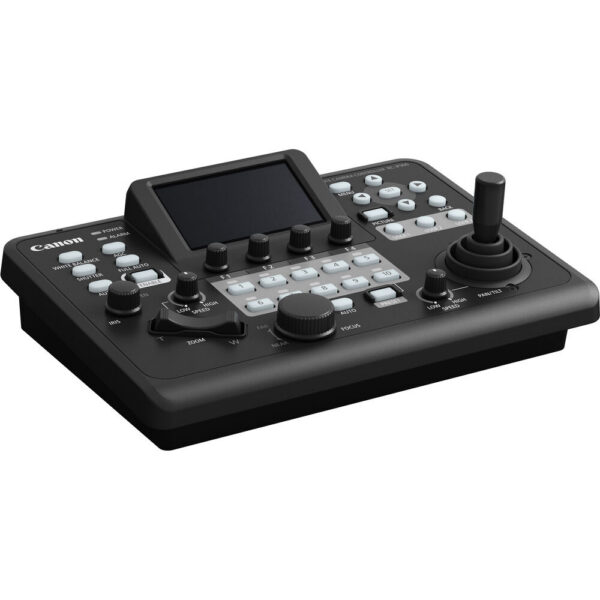

Canon RC-IP300 PTZ Camera Controller
Power Supply

Videos

SKU	CARN300BW2K
Brand	Canon

Imaging
Image Sensor	1/2.3"-Type CMOS
Sensor Resolution	Effective: 8.29 Megapixel (3840 x 2160) Actual: 21.14 Megapixel
IR Cut Filter	No
Focus Control	Autofocus Manual Focus

Exposure Control
Shutter Speed	1/2000 to 1/6 Second
ISO/Gain Sensitivity	Gain: 0 to 36 dB
Minimum Illumination	1.5 Lux at 1/30 Shutter Speed
Flip / Mirror Support	Image Flip, Mirror (Vertical)
White Balance	Range: 2000 to 15,000K Presets: AWB, Manual, Set A, Set B

Lens
Focal Length	3.7 to 73.4mm (35mm Equivalent: 29.3 to 601mm)
Max Optical Zoom	20x
Max Digital Zoom	20x
Field of View	Horizontal: 65.6 to 3.6°Vertical: 39.8 to 2°
Maximum Aperture	f/1.8 to 2.8
Minimum Focus Distance	0.4" / 1 cm (Wide) to 23.6" / 60 cm (Tele)

Video Capture
Video Output	via USB1920 x 1080p at 5/12 fps 1280 x 720 at 5/12 fps 640 x 360 at 5/12 fps 4:2:0 8-Bit via RJ453840 x 2160 at 5/14.99/29.97 fps 1920 x 1080p at 5/14.99/29.97/59.94 fps 1280 x 720 at 5/14.99/29.97/59.94 fps 640 x 360 at 5/14.99/29.97/59.94 fps 4:2:2 10-Bit via HDMI3840 x 2160 at 23.98/25/29.97 fps 1920 x 1080p at 23.98/25/29.97/50/59.94 fps 1920 x 1080i at 50/59.94 fps 1280 x 720 at 50/59.94 fps 4:2:2 10-Bit via SDI/BNC1920 x 1080p at 23.98/25/29.97/50/59.94 fps 1920 x 1080i at 50/59.94 fps 1280 x 720 at 50/59.94 fps
Embedded Audio	SDI
Internal Recording	No
Broadcast Output	NTSC/PAL
IP Streaming	H.264 via NDI HX2/RTMP/RTMPS/RTP/RTSP/SRT 3840 x 2160 at 5.00p, 14.99p, 29.97p 640 x 360 to 1920 x 1080 at 5.00p, 14.99p, 29.97p, 59.94p

Control
Presets	100 via IP, VISCA
Pan/Tilt/Roll	Pan: 340° (-170 to 170°) at 2 to 300°/s Tilt: 130° (-30 to 100°) at 0.2 to 170°/s
Tally Light	Yes

Networking
Wireless	IR

Interface
Media/Memory Card Slot	Single Slot: microSD/microSDHC/microSDXC
Video I/O	1x BNC (3G-SDI) Output 1x HDMI Output 1x RJ45 (NDI) Output 1x USB-C 3.0 / 3.1/3.2 Gen 1 Output
Audio I/O	1x 1/8" / 3.5 mm TRS Stereo Microphone Input
Other I/O	1x RJ45 (RS-422, VISCA) Control Input 1x USB-A Input
Built-In Microphone	No
Built-In Speaker	No

Power
PoE Support	Yes: PoE+ 802.3at
Power I/O	1x Barrel (24VDC) Input
Power Consumption	PoE: 16.2 WPower Supply: 24 VDC 15 W

Environmental
Operating Conditions	32 to 104°F / 0 to 40°C at 10 to 90% Humidity
Storage Conditions	32 to 104°F / 0 to 40°C at 10 to 90% Humidity

General
Mounting	1x 1/4"-20 Female for Tripod
OS Compatibility	Computer: Windows 10 or Later / macOS 11 Only Mobile: Android/iOS
Dimensions (W x H x D)	6.1 x 7 x 6.5" / 154 x 178 x 164 mm (Without Protrusions)
Weight	5 lb / 2.2 kg (Body Only)
