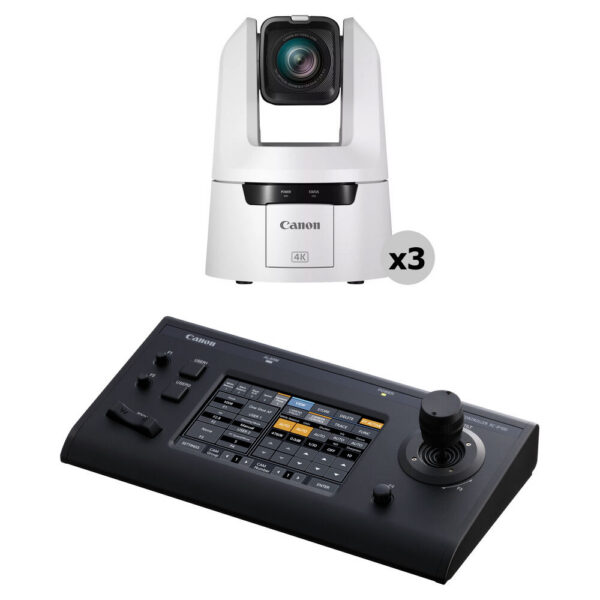

Canon CR-N500 4K NDI 15x Zoom PTZ 3-Camera Kit with Touchscreen Controller (Titanium White)

Name: Canon CR-N500 4K NDI 15x Zoom PTZ 3-Camera Kit with Touchscreen Controller (Titanium White)
Brand: Canon
SKU: CACRN500WX3K
Price: 19096.00 USD
Availability: InStock

(0)

Be the first to review SKU: CACRN500WX3K

$19,096.00

In Stock

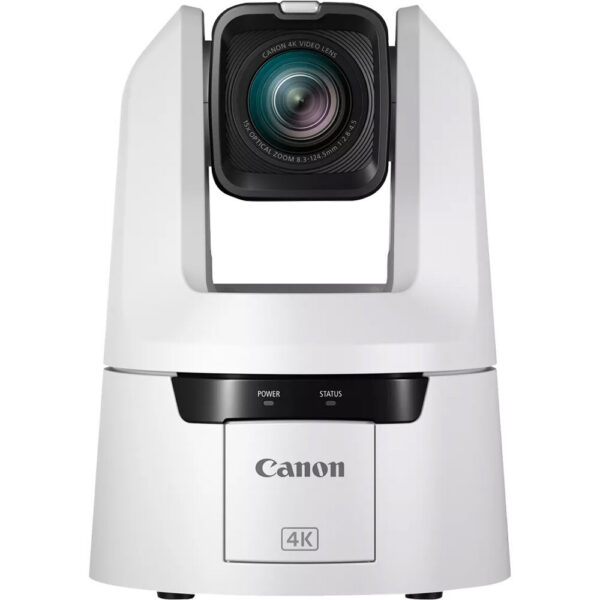

Three White UHD 4K30/1080p60 PTZ Cameras
1" CMOS Sensor with Dual-Pixel AF

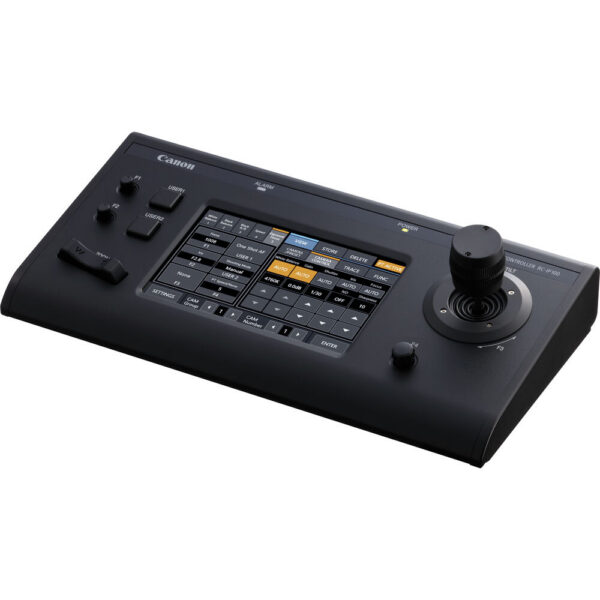

RC-IP100 Touchscreen Joystick Controller
7" Touchscreen Control-Panel Display

Tracked ShippingRates shown at checkout
60-Day ReturnsOn eligible items
Expert SupportReal people, real advice

Canon CR-N500 4K NDI 15x Zoom PTZ 3-Camera Kit with Touchscreen Controller (Titanium White)

Designed for creators who demand more from their gear, the Canon CR-N500 4K NDI 15x Zoom PTZ 3-Camera Kit with Touchscreen Controller (Titanium White) delivers capable, consistent performance. At its core is a 8.29 Megapixel 1"-Type sensor. Everyday handling is covered with IR*Built-In connectivity.

Highlights

Three White UHD 4K30/1080p60 PTZ Cameras
1" CMOS Sensor with Dual-Pixel AF
RC-IP100 Touchscreen Joystick Controller
7" Touchscreen Control-Panel Display

Every order from NIXTRONIC ships tracked worldwide and is covered by our 60-day return policy on eligible items.

In the Box

3 x Canon CR-N500 Professional 4K NDI HX2 PTZ Camera with 15x Zoom (White)
IR Remote with Battery
Safety Wire
Safety Wire with Screw
Mounting Plate with Screw
AC Adapter
Power Cable
Canon RC-IP100 Touchscreen PTZ Joystick Controller

Videos

SKU	CACRN500WX3K
Brand	Canon

Imaging
Image Sensor	1"-Type CMOS
Sensor Resolution	Effective: 8.29 Megapixel (3840 x 2160) Actual: 13.4 Megapixel
Focus Control	Autofocus Manual Focus

Exposure Control
Shutter Speed	1/2000 to 1/3 Second
White Balance	Presets: AWB, Daylight, Manual, Set A, Set B, Tungsten

Lens
Focal Length	8.3 to 124.5mm (35mm Equivalent: 25.5 to 382.5mm)
Max Optical Zoom	15x
Max Digital Zoom	20x
Field of View	Horizontal: 73 to 5.7°Vertical: 45.2 to 3.2°
Maximum Aperture	f/2.8 to 4.5
Minimum Focus Distance	0.4" / 1 cm (Wide) to 23.6" / 59.9 cm (Tele)

Video Capture
Video Output	4:2:0 8-Bit via RJ453840 x 2160 at 14.99/29.97 fps 1920 x 1080p at 14.99/29.97/50/59.94 fps 1280 x 720 at 14.99/29.97/59.94 fps 640 x 360 at 14.99/29.97/59.94 fps 4:2:2 10-Bit via HDMI3840 x 2160 at 23.98/25/29.97 fps 1920 x 1080p at 14.99/29.97/59.94 fps 1920 x 1080i at 50/59.94 fps 1280 x 720 at 50/59.94 fps 4:2:2 10-Bit via SDI/BNC1920 x 1080p at 23.98/25/29.97/50/59.94 fps 1920 x 1080i at 50/59.94 fps 1280 x 720 at 50/59.94 fps
Embedded Audio	HDMI/NDI/SDI
Internal Recording	No
Audio Recording	Yes
Broadcast Output	NTSC/PAL
IP Streaming	H.264/H.265 via NDI HX/NDI HX2/RTMP/RTMPS/RTP/RTSP/SRT 3840 x 2160 at 5.00p, 14.99p, 29.97p (Simultaneous Multi-Stream) 640 x 360 to 1920 x 1080 at 5.00p, 14.99p, 29.97p, 59.94p (Simultaneous Multi-Stream)

Control
Presets	100 via IP, VISCA
Pan/Tilt/Roll	Pan: 348° (-170 to 170°) at 0.1 to 100°/s Tilt: 130° (-30 to 90°) at 0.21 to 100°/s
Tally Light	Yes

Networking
Wireless	IR*Built-In

Interface
Media/Memory Card Slot	Single Slot: microSD (Unspecified Type)
Video I/O	1x BNC (3G-SDI) Output 1x HDMI Output 1x RJ45 (NDI) Output
Audio I/O	2x XLR 3-Pin Microphone Input 1x 1/8" / 3.5 mm TRS Stereo Microphone Input
Other I/O	1x RJ45 (RS-422, VISCA) Input 1x USB-A Control Input 1x BNC (Genlock) Input/Output
Built-In Microphone	No
Built-In Speaker	No

Power
PoE Support	Yes: PoE+ 802.3at
Power I/O	1x Barrel (24VDC) Input
Power Consumption	PoE: 19.6 WPower Supply: 24 VDC 18.6 W

Environmental
Operating Conditions	32 to 104°F / 0 to 40°C at 10 to 90% Humidity
Storage Conditions	32 to 104°F / 0 to 40°C at 10 to 90% Humidity
Impact Resistance	No
Environmental Resistance	No

General
Mounting	1x 1/4"-20 Female
OS Compatibility	Computer: macOS 11 or Later / Windows 10 or Later Mobile: Android/iOS
Dimensions (W x H x D)	7.87 x 10.6 x 8.2" / 19.99 x 26.9 x 20.8 cm (Without Protrusions)
Weight	9 lb / 4.1 kg (Body Only)
