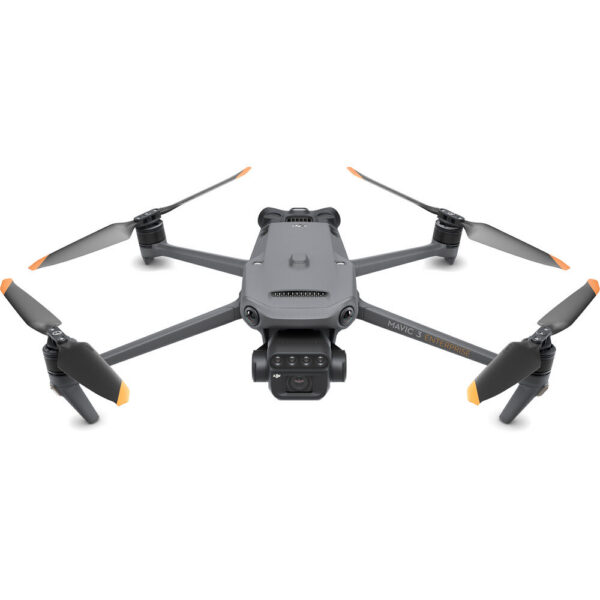

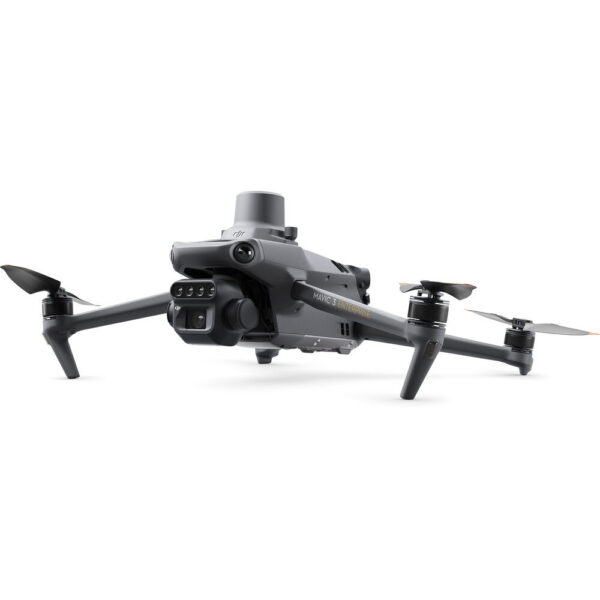

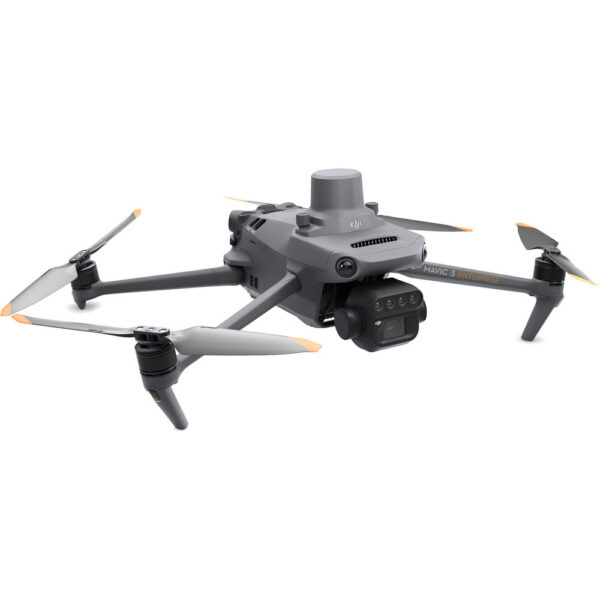

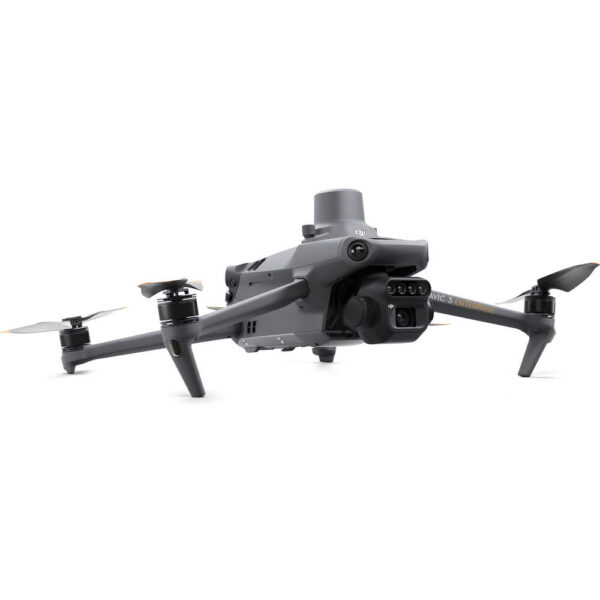

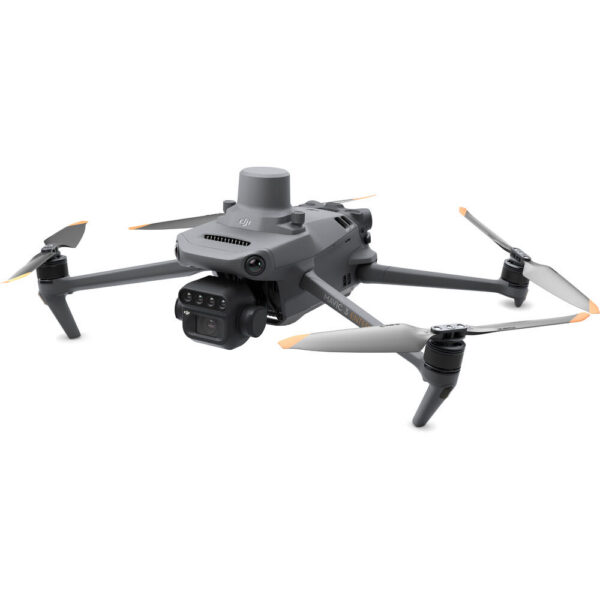

DJI Mavic 3M Multispectral Drone
$5,729.00
In Stock
- Ideal for Agriculture & Surveying
- 20MP RGB & 4 x 5MP Multispectral Camera
- Green, Red, Red Edge & Near Infrared
- RTK for Centimeter-Level Precision
Tracked ShippingRates shown at checkout
60-Day ReturnsOn eligible items
Expert SupportReal people, real advice
DJI Mavic 3M Multispectral Drone
The DJI Mavic 3M Multispectral Drone brings serious imaging performance to every shoot, from planned sessions to spontaneous moments.
Highlights
- Ideal for Agriculture & Surveying
- 20MP RGB & 4 x 5MP Multispectral Camera
- Green, Red, Red Edge & Near Infrared
- RTK for Centimeter-Level Precision
Every order from NIXTRONIC ships tracked worldwide and is covered by our 60-day return policy on eligible items.
In the Box
- DJI Mavic 3M Multispectral Drone
- Carrying Case
- Flight Battery with RTK Module
- Remote Controller
- 3 x Pair of Propellers
- Charger
- Power Cable
- USB-C Cable
- USB-C to USB-A Cable
Videos
| SKU | CP.EN.00000445.06 |
|---|---|
| Brand | DJI |
| Maximum Horizontal Speed | 47 mph / 76 km/h |
|---|---|
| Maximum Ascent Speed | 17.9 mph / 29 km/h |
| Maximum Descent Speed | 13.4 mph / 22 km/h |
| Maximum Wind Resistance | 26.8 mph / 43 km/h |
| Maximum Take-Off Altitude | 3.7 Miles / 6 km |
| Maximum Flight Time | 43 Minutes |
| Maximum Hover Time | 37 Minutes |
| Maximum Tilt Angle | 35° |
| Hovering Accuracy | Vision Positioning Vertical: ±0.3' / 0.1 m Horizontal: ±1' / 0.3 m RTKVertical: ±0.3' / 0.1 m Horizontal: ±0.3' / 0.1 m GNSSVertical: ±1.6' / 0.5 m |
| Maximum Angular Velocity | 200°/s (Pitch) |
| Rotor Configuration | Quadcopter |
|---|---|
| Propeller Size | 9.4x5.3" |
| Remote ID | Yes |
| Aircraft I/O | 1x USB-C (Data) |
| Operating Conditions | 14 to 104°F / -10 to 40°C |
| Number of Cameras | 3 (Supports Individual Camera + FPV Simultaneously) |
|---|---|
| Camera System | Wide20 MP, 4/3"-Type CMOS Sensor with 24mm-Equivalent, f/2.8 Lens (84° FoV) Multispectral5 MP, 1/2.8"-Type CMOS Sensor with 25mm-Equivalent, f/2 Lens (73.91° FoV) |
| Zoom | 8x Optical |
| Minimum Focus Distance | Wide3.3' / 1 m |
| ISO Sensitivity Range | Wide100 to 6400 |
| Night Vision | No |
| Shutter Speed | Wide Electronic Shutter: 1/8000 to 8 Seconds (Photo/Video) Mechanical Shutter: 1/2000 to 8 Seconds (Photo/Video) Multispectral Electronic Shutter: 1/12800 to 1/30 Seconds (Photo/Video) |
| Maximum Video Resolution | Wide Up to UHD 4K at 30 fps Multispectral Up to 1080p at 30 fps |
| Still Image Support | Wide Up to 20 MP (DNG / JPEG) Multispectral Up to 5 MP (TIFF) |
| Photo Modes | Burst Shooting, Interval, Single Shot |
| Media/Memory Card Slot | In Aircraft BodymicroSD/microSDHC/microSDXC [512 GB Maximum / U3/V30 or Faster Recommended]In Remote/TransmittermicroSD/microSDHC/microSDXC |
| Internal Storage | In Remote/Transmitter64 GB |
| Number of Axes | Three: Pitch (Tilt) / Roll / Yaw (Pan) |
|---|---|
| Rotation Range | Controllable Range Pitch (Tilt): 125° (-90 to 35°) Mechanical Range Yaw (Pan): 54° (-27 to 27°) Roll: 90° (-45 to 45°) Pitch (Tilt): 180° (-135 to 45°) |
| Follow Speed | Tilt: 100°/s |
| Stabilization Accuracy | ±0.007° |
| Sensing System | Omnidirectional with Infrared Enhancement |
|---|---|
| Sensing System Capabilities | Forward Measurement Range: 2 to 66' / 0.5 to 20 m Detection Range: 2 to 656' / 0.5 to 200 m Max Speed: 33.6 mph / 15 m/s Field of View: 90° (Horizontal) / 103° (Vertical) Backward Measurement Range: 2 to 52' / 0.5 to 16 m Max Speed: 26.8 mph / 12 m/s Field of View: 90° (Horizontal) / 103° (Vertical) Lateral Measurement Range: 2 to 82' / 0.5 to 25 m Max Speed: 33.6 mph / 15 m/s Field of View: 90° (Horizontal) / 85° (Vertical) Upward Measurement Range: 1 to 33' / 0.2 to 10 m Max Speed: 13.4 mph / 6 m/s Field of View: 100° (Front-to-Back) / 90° (Side-to-Side) Downward Measurement Range: 1 to 59' / 0.3 to 18 m Max Speed: 13.4 mph / 6 m/s Field of View: 130° (Front-to-Back) / 160° (Side-to-Side) |
| Control Method | Included Transmitter |
|---|---|
| Transmission System | Ocu Sync 3.0 (O3)• Frequencies: 2.4 GHz (2.4 to 2.4835) / 5.8 GHz (5.725 to 5.85)• Power at 2.4G: 33 d Bm (FCC) / 20 d Bm (CE/MIC/SRRC)• Power at 5.8G: 33 d Bm (FCC) / 30 d Bm (SRRC) / 14 d Bm (CE) |
| Maximum Operating Distance | 9 Miles / 15 km |
| Transmitter I/O | 1x Mini-HDMI Output (Video)1x USB-C Input (Power) |
| Clean Video Output | Not Specified by Manufacturer |
| Battery Type | Built-In Lithium-Ion (5000 m Ah) |
| Operating Temperature | 14 to 104°F / -10 to 40°C |
| Mobile App Compatible | Yes: Android Only |
| Built-In Display | 5.5" (1920 x 1080) Touchscreen LCD, 1000 nits/ cd/m2 |
| Dimensions (Wx HxD) | 7.22 x 5.41 x 1.9" / 183.27 x 137.41 x 47.6 mm (Antennas Folded, Joystick Unmounted)7.22 x 8.01 x 2.36" / 183.27 x 203.35 x 59.84 mm (Antennas Unfolded, Joystick Mounted) |
| Battery Chemistry | Lithium Cobalt Oxide (Li CoO2) |
|---|---|
| Battery Capacity | 5000 m Ah / 77 Wh |
| Battery Configuration | 4 S / 15.4 V |
| Maximum Charging Power | 17.6 W |
| Charging Temperature | 41 to 104°F / 5 to 40°C |
| Weight | 12 oz / 335.5 g |
| Input Power | 100 to 240 VAC, 50 / 60 Hz at 2.5 A |
|---|---|
| Power Rating | 100 W |
| GNSS Support | GPS, GLONASS, Galileo |
|---|---|
| Diagonal Size | 1.2' / 380.1 mm |
| Overall Dimensions | 0.3 x 0.4 x 0.7' / 96.3 x 122.2 x 223.0 mm (Folded)0.9 x 0.5 x 1.1' / 283.0 x 139.6 x 347.5 mm (Unfolded) |
| Weight | 2 lb / 951 g (With Propellers)2 lb / 1050 g (with Maximum Payload) |
| Package Weight | 12.065 lb |
|---|---|
| Box Dimensions (Lx WxH) | 18.2 x 15.2 x 9.3" |
