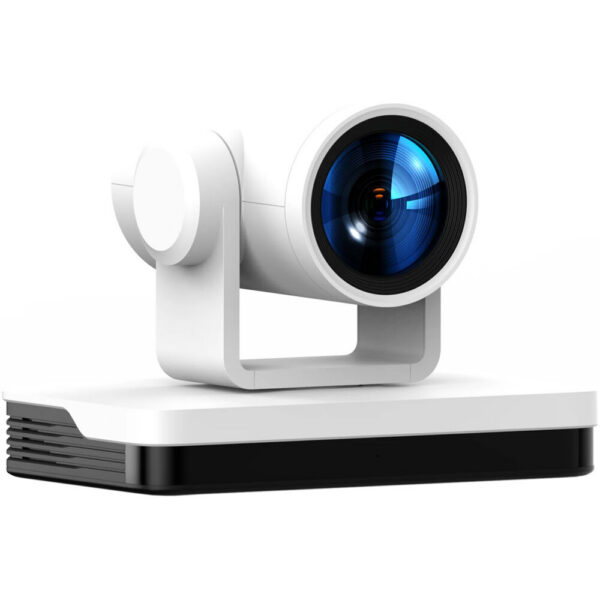

DVDO C5-1 4K HDMI/IP/3G-SDI/USB PTZ Camera with 25x Optical Zoom & AI Auto Tracking (White)
$2,499.00
In Stock
- Up to UHD 4K60, 1/1.8" Sony CMOS Sensor
- Dual-Stream Outputs via USB 2.0
- HDMI, 3G-SDI, USB 2.0, RJ45 & Line-In
- 25x Optical Zoom, Wide 59.2° Angle
Tracked ShippingRates shown at checkout
60-Day ReturnsOn eligible items
Expert SupportReal people, real advice
DVDO C5-1 4K HDMI/IP/3G-SDI/USB PTZ Camera with 25x Optical Zoom & AI Auto Tracking (White)
The DVDO C5-1 4K HDMI/IP/3G-SDI/USB PTZ Camera with 25x Optical Zoom & AI Auto Tracking (White) is built for photographers and creators who want dependable, professional results. At its core is a 8.51 Megapixel 1/1.8"-Type sensor. Everyday handling is covered with IR connectivity.
Highlights
- Up to UHD 4K60, 1/1.8" Sony CMOS Sensor
- Dual-Stream Outputs via USB 2.0
- HDMI, 3G-SDI, USB 2.0, RJ45 & Line-In
- 25x Optical Zoom, Wide 59.2° Angle
Ordered from NIXTRONIC, it ships with full tracking worldwide and is backed by our 60-day returns on eligible items.
In the Box
- DVDO C5-1 4K HDMI/IP/3G-SDI/USB PTZ Camera with 25x Optical Zoom & AI Auto Tracking (White)
- Power Supply
- RS-232 Control Cable
- USB 2.0 Cable
- IR Remote Control
- Ceiling Bracket
- Wall Bracket
Videos
| SKU | DVDO-C5-1-W |
|---|---|
| Brand | DVDO |
| Image Sensor | 1/1.8"-Type CMOS |
|---|---|
| Effective Sensor Resolution | 8.51 Megapixel |
| Focus Control | Autofocus Manual Focus |
| Shutter Speed | 1/10000 to 1/25 Second |
|---|---|
| Signal-to-Noise Ratio | 50 dB |
| Minimum Illumination | 0.05 Lux |
| Flip / Mirror Support | Image Flip, Mirror (Vertical) |
| White Balance | Presets: Auto, Color Temperature, Manual, One Push |
| Focal Length | 7.1 to 171.95mm |
|---|---|
| Max Optical Zoom | 25x |
| Field of View | Horizontal: 59.2 to 2.5°Vertical: 34.6 to 1.4° |
| Maximum Aperture | f/1.8 to 3.56f/1.61 to 5.19 |
| Video Output | via RJ45 / SDI/BNC / USB / HDMI3840 x 2160 at 25/29.97/50/59.94/60.00 fps 1920 x 1080p at 59.94/60.00/25/29.97/30.00/50 fps 1920 x 1080i at 59.94/60.00/50 fps 1280 x 720 at 59.94/60.00/50 fps |
|---|---|
| Embedded Audio | HDMI/LAN (RJ45)/USB Output |
| Internal Recording | No |
| Broadcast Output | NTSC/PAL |
| Presets | 255 via RS-232, VISCA |
|---|---|
| Pan/Tilt/Roll | Pan: 220° (-110 to 110°) at 0.1 to 100°/s Tilt: 60° (-30 to 30°) at 0.1 to 70°/s |
| Tally Light | No |
| Wireless | IR |
|---|

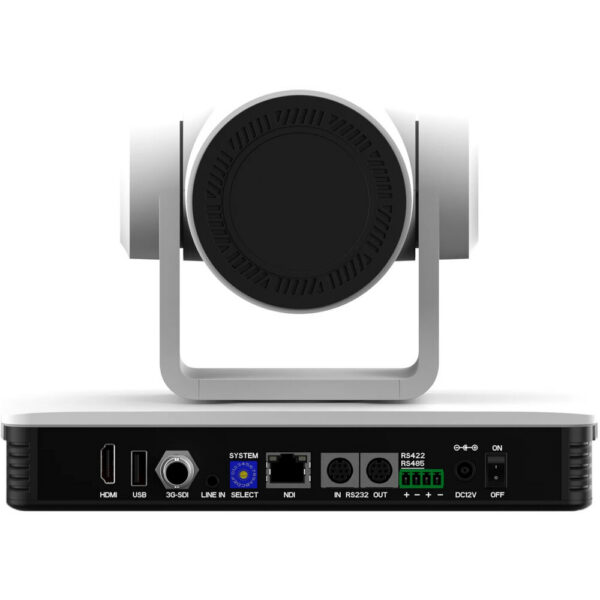

| Video I/O | 1x HDMI 1.3 Output 1x BNC (3G-SDI) Output 1x RJ45 LAN Output 1x USB-A 2.0 Output |
|---|---|
| Audio I/O | 1x 1/8" / 3.5 mm TRS Stereo Line Input |
| Other I/O | 1x Mini-DIN 8-Pin (RS-232) Control Input 1x Mini-DIN 8-Pin (RS-232) Control Output 1x Block 4-Pin (RS-485) Control |
| Built-In Speaker | No |
| PoE Support | Yes: PoE 802.3af |
|---|---|
| Power I/O | 1x Barrel (12VDC at 2.5 A) Input |
| Power Consumption | 12 W |
| Operating Conditions | 14 to 122°F / -10 to 50°C at 20 to 80% Humidity |
|---|---|
| Storage Conditions | 14 to 140°F / -10 to 60°C at 20 to 95% Humidity |
| Environmental Resistance | No |
| Mounting | 1x 1/4"-20 Female |
|---|---|
| Certifications | FCC Class A |
| Dimensions (W x H x D) | 8.7 x 6.3 x 5.7" / 220 x 159 x 144 mm |
| Weight | 3.7 lb / 1.7 kg (Body Only) |
