Kokusai Denki Electric SK-UHD7000U 2/3" GS-CMOS UHD 4K Live Production Camera (ST Studio Package)
$55,635.00
In Stock
- 3840 x 2160 2/3" CMOS Image Sensor
- Up to UHD 4K59.94 12G-SDI Out
- CU-UHD7000U Camera Control Unit
- HDF-700H-S2 Viewfinder with Cable & Hood
Tracked ShippingRates shown at checkout
60-Day ReturnsOn eligible items
Expert SupportReal people, real advice
Kokusai Denki Electric SK-UHD7000U 2/3" GS-CMOS UHD 4K Live Production Camera (ST Studio Package)
The Kokusai Denki Electric SK-UHD7000U 2/3" GS-CMOS UHD 4K Live Production Camera (ST Studio Package) brings serious imaging performance to every shoot, from planned sessions to spontaneous moments. At its core is a Not Specified by Manufacturer 2/3"-Type sensor paired with the B4 lens mount.
Highlights
- 3840 x 2160 2/3" CMOS Image Sensor
- Up to UHD 4K59.94 12G-SDI Out
- CU-UHD7000U Camera Control Unit
- HDF-700H-S2 Viewfinder with Cable & Hood
Every order from NIXTRONIC ships tracked worldwide and is covered by our 60-day return policy on eligible items.
In the Box
- Kokusai Denki Electric SK-UHD7000 2/3" GS-CMOS UHD 4K Live Production Camera
- Kokusai Denki Electric Tripod Adapter for All Portable Cameras
- Port Cap

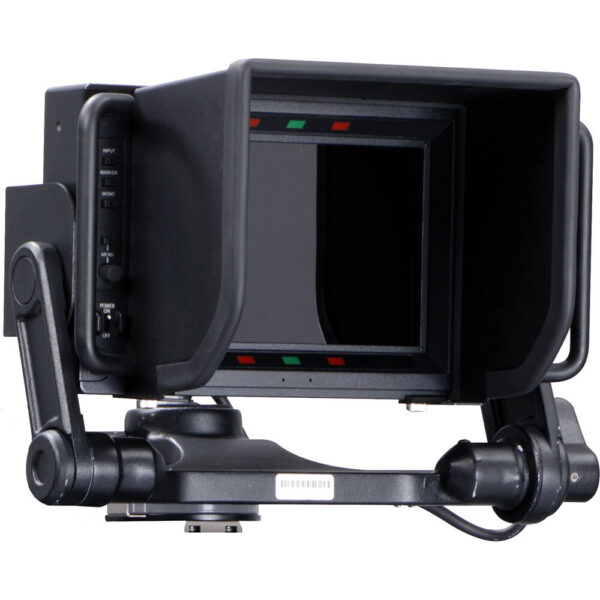

- Kokusai Denki Electric HDF-700H-S2 Viewfinder
- VFC-770 Camera Cable
- Hood
- Kokusai Denki Electric CU-UHD7000 Camera Control Unit
- AC Power Supply
- VFC950H2 VF Cable
| SKU | SK-UHD7000U(R1)-ST |
|---|---|
| Brand | Kokusai Denki Electric |
| Lens Mount | B4 |
|---|---|
| Image Sensor | 2/3"-Type 3-Chip CMOS |
| Sensor Resolution | Not Specified by Manufacturer |
| Image Stabilization | No |
| Built-In ND Filter | Mechanical Filter Wheel with Clear, 2-Stop (1/4), 4-Stop (1/16), 6-Stop (1/64) ND Filters |
| Capture Type | Video Only |
| Shutter Type | Electronic Global Shutter |
|---|---|
| Shutter Speed | 1/2000 to 1/60 Second |
| ISO/Gain Sensitivity | Gain: -9 to 24 dB |
| Signal-to-Noise Ratio | 62 dB |
| White Balance | Range: 3200 to 8000K |
| Exposure Modes | Auto, Manual |
| Focus Mode | Direct Manual Focus, Full-Time Servo |
|---|
| Internal Recording | No |
|---|---|
| Video Output | 3840 x 2160 up to 59.94 fps |
| Broadcast Output | NTSC with 2000 TV Lines or More |
| Fast-/Slow-Motion Support | No |
| Interval Recording Modes | No |
| Gamma Curve | Rec709, Rec2020, Sony S-Log 3 |
| Built-In Microphone | No |
| IP Streaming | No |
| Media/Memory Card Slot | No |
|---|---|
| Internal Storage | No |
| Video I/O | 1x BNC (HD-SDI) Monitor Output 2x BNC (12G-SDI) Output 1x BNC (SD-SDI) Input/Output |
| Audio I/O | 2x XLR 3-Pin Microphone Input 2x XLR 5-Pin Intercom Input/Output 1x 1/8" / 3.5 mm TS Mono Headphone Output |
| Power I/O | 1x XLR 4-Pin (12VDC) Input 1x USB-A (5VDC up to 1 A) Output |
| Other I/O | 1x BNC (Genlock) Input 1x 4-Pin (Remote) Control Input/Output 1x 20-Pin Viewfinder Output 1x 12-Pin (Lens Control) 1x RJ45 (Ethernet, LAN) Input/Output 1x FC Fiber Control 1x 6-Pin (Return) |
| Wireless | No |
| Mobile App Compatible | No |
| Global Positioning (GPS, GLONASS, etc.) | No |
| Display Type | No |
|---|---|
| Resolution | No |
| Type | Support via Video Out Only |
|---|
| Power Consumption | 60 W |
|---|
| Operating Conditions | -4 to 113°F / -20 to 45°C |
|---|---|
| Storage Conditions | -4 to 140°F / -20 to 60°C |
| Shoe Mount | No |
|---|---|
| Accessory Mounting Thread | No |
| Dimensions (W x H x D) | 8.1 x 5.5 x 4.3" / 205 x 140 x 110 mm |
| Weight | 5 lb / 2.4 kg (Body Only) |
Reviews
There are no reviews yet.
