Kokusai Denki Electric Z-HD6500 Studio Package with CCU, Remote Panel, VF, and TA-Z3 Tripod Plate
$45,085.00
In Stock
- Z-HD6500 2/3" UHD 4K HDR GS-CMOS Camera
- CU-HD650U Camera Control Unit
- RU-1000VR Remote Control Panel
- HDF-700H-S2 7" Viewfinder
Tracked ShippingRates shown at checkout
60-Day ReturnsOn eligible items
Expert SupportReal people, real advice
Kokusai Denki Electric Z-HD6500 Studio Package with CCU, Remote Panel, VF, and TA-Z3 Tripod Plate
The Kokusai Denki Electric Z-HD6500 Studio Package with CCU, Remote Panel, VF, and TA-Z3 Tripod Plate brings serious imaging performance to every shoot, from planned sessions to spontaneous moments. At its core is a Not Specified by Manufacturer Super35 sensor paired with the B4 lens mount.
Highlights
- Z-HD6500 2/3" UHD 4K HDR GS-CMOS Camera
- CU-HD650U Camera Control Unit
- RU-1000VR Remote Control Panel
- HDF-700H-S2 7" Viewfinder
Every order from NIXTRONIC ships tracked worldwide and is covered by our 60-day return policy on eligible items.
In the Box

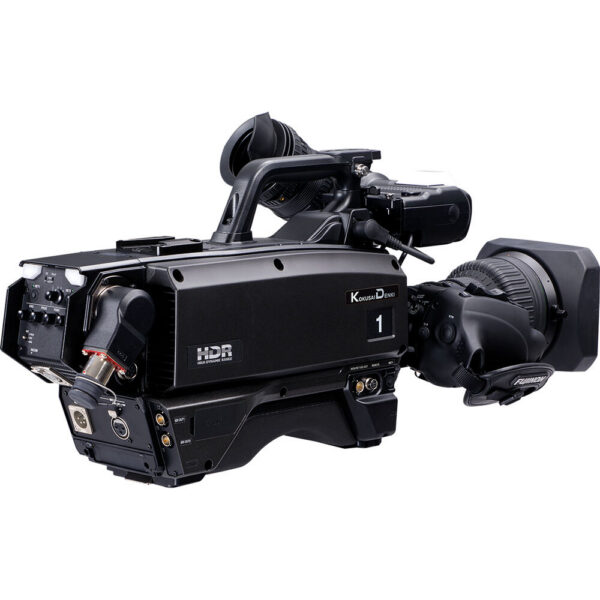

- Kokusai Denki Electric Z-HD6500 2/3" UHD 4K HDR CMOS Camera Head

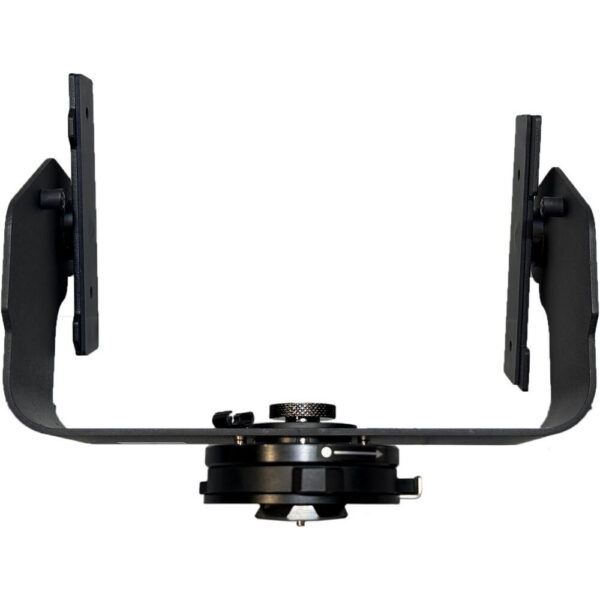

- Kokusai Denki Electric Tripod Adapter for All Portable Cameras

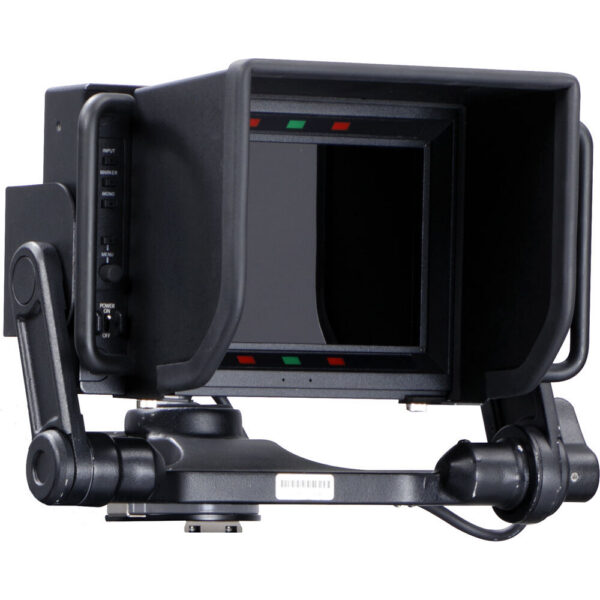

- Kokusai Denki Electric HDF-700H-S2 Viewfinder
- VFC-770 Camera Cable
- Hood
- Kokusai Denki Electric Cradle Mount for HDF-700H-S2

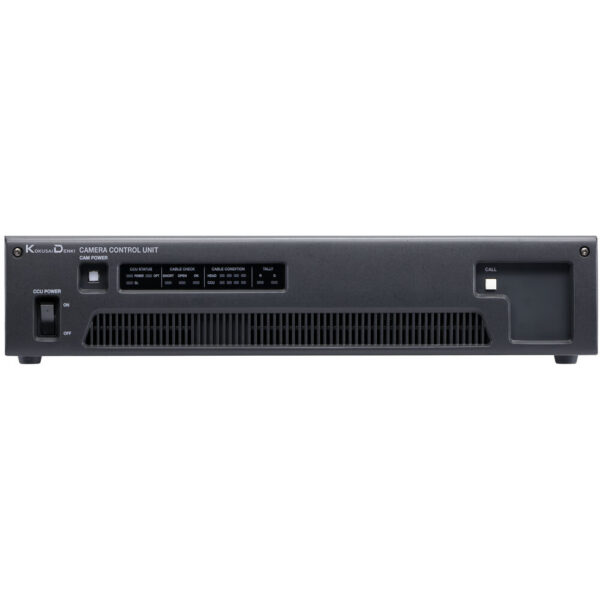

- Kokusai Denki Electric CU-HD650 UHD 4K Camera Control Unit
- AC Power Supply
- Kokusai Denki Electric Remote Control Panel for Select HDTV Camera Systems
- HFC950H2 VF Cable
| SKU | Z-HD6500U(S1)-ST |
|---|---|
| Brand | Kokusai Denki Electric |
| Lens Mount | B4 |
|---|---|
| Lens Communication | Yes |
| Image Sensor | Super35 3-Chip CMOS |
| Sensor Resolution | Not Specified by Manufacturer |
| Image Stabilization | No |
| Built-In ND Filter | Mechanical Filter Wheel with Clear, 2-Stop (1/4), 4-Stop (1/16), 6-Stop (1/64) ND Filters |
| Capture Type | Video Only |
| Shutter Type | Electronic Global Shutter |
|---|---|
| Shutter Speed | 1/2000 to 1/50 Second |
| Signal-to-Noise Ratio | 62 dB |
| White Balance | Range: 3200 to 8000K |
| Exposure Modes | Auto, Manual |
| Focus Mode | Full-Time Servo, Manual Focus |
|---|
| Internal Recording | No |
|---|---|
| Video Output | via Optical Fiber3840 x 21601920 x 1080 via SDI/BNC3840 x 2160 up to 59.94 fps 1920 x 1080 up to 59.94 fps |
| Broadcast Output | NTSC with 10000 TV LinesPAL with 10000 TV Lines |
| Fast-/Slow-Motion Support | No |
| Interval Recording Modes | No |
| Gamma Curve | Rec2020 |
| Audio Recording | 2-Channel |
| IP Streaming | Yes |
| Media/Memory Card Slot | No |
|---|---|
| Internal Storage | No |
| Video I/O | 2x BNC (3G-SDI) Output 1x BNC (HD-SDI) Monitor Output 1x BNC (HD-SDI) Input |
| Audio I/O | 1x XLR 3-Pin Input 1x XLR 5-Pin Intercom Input/Output |
| Power I/O | 1x XLR 4-Pin (10.5 to 17VDC) Input 1x Proprietary (12VDC at 2.5 A) Input 1x Hirose 5-Pin Output |
| Other I/O | 1x 4-Pin Control 1x 20-Pin Viewfinder Output 1x 12-Pin Viewfinder Output 1x RJ45 (LAN) |
| Wireless | No |
| Mobile App Compatible | No |
| Global Positioning (GPS, GLONASS, etc.) | No |
| Display Type | No |
|---|---|
| Resolution | No |
| Type | Optional, Not Included |
|---|
| Power Consumption | 70 W |
|---|
| Operating Conditions | -4 to 122°F / -20 to 50°C |
|---|---|
| Storage Conditions | -4 to 140°F / -20 to 60°C |
| Shoe Mount | No |
|---|---|
| Accessory Mounting Thread | No |
| Dimensions (W x H x D) | 14.4 x 7.5 x 5.5" / 36.5 x 19.1 x 14 cm |
| Weight | 10 lb / 4.6 kg (Body Only) |
