The Tenveo All-in-One UHD 4K SDI/HDMI/IP/NDI PTZ 2-Camera Kit with Joystick Controller brings serious imaging performance to every shoot, from planned sessions to spontaneous moments. At its core is a 8.42 Megapixel 1/1.8"-Type sensor. Everyday handling is covered with No connectivity.
Highlights
Two 4K PTZ Cameras with 20x Zoom

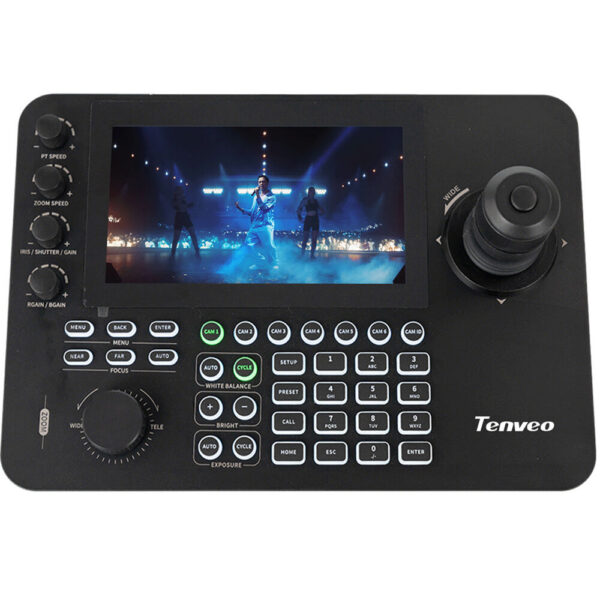

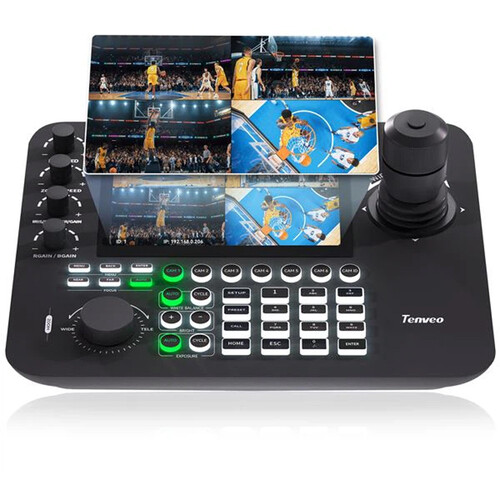

PTZ Controller with 7" LCD Screen
3G-SDI, HDMI, USB 2.0 & IP/NDI Output
RS-232 & IR Control with Custom Presets
Every order from NIXTRONIC ships tracked worldwide and is covered by our 60-day return policy on eligible items.

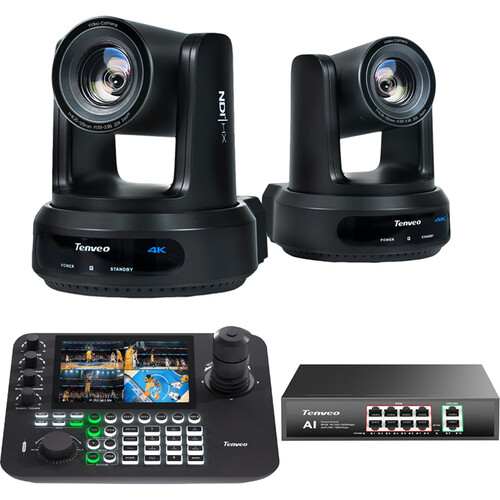

In the Box
2 x Tenveo AI Auto-Tracking UHD 4K SDI/HDMI/USB/NDI Camera with 20x Optical Zoom
Tenveo KB300 PRO Keyboard Camera Controller
SKU
TEVO-BK2U20NP-2
Brand
Tenveo
Imaging
Image Sensor
1/1.8"-Type CMOS
Sensor Resolution
8.42 Megapixel
Focus Control
Autofocus
Exposure Control
Minimum Illumination
0.5 Lux
Flip / Mirror Support
Image Flip, Mirror (Vertical)
White Balance
Presets: Auto, Manual
Lens
Focal Length
6.25 to 125mm
Max Optical Zoom
20x
Max Digital Zoom
16x
Field of View
Diagonal: 66.6 to 4°
Maximum Aperture
f/1.58 to 3.95
Video Capture
Video Output
via HDMI3840 x 2160 up to 60.00 fps via RJ45 / SDI/BNC / USB1920 x 1080 up to 60.00 fps
Embedded Audio
HDMI/IP/NDI/SDI/USB
Internal Recording
No
Broadcast Output
NTSC
Supported Protocols
Camera ControlIP/IR/NDI/HX2/ONVIF/Pelco-D/Pelco-P/RS-232/VISCA
IP Streaming
Dante AV-H/HTTP/NDI HX2/ONVIF/RTMP/RTMPS/RTSP/SRT 1920 x 1080 up to 60p
Control
Presets
255 via RS-23210 via IR
Pan/Tilt/Roll
Pan: 350° (-175 to 175°) at 0.1 to 100°/s Tilt: 180° (-90 to 90°) at 0.1 to 80°/s
