Tenveo All-in-One UHD 4K SDI/HDMI/IP/NDI PTZ 3-Camera Kit with Joystick Controller
The Tenveo All-in-One UHD 4K SDI/HDMI/IP/NDI PTZ 3-Camera Kit with Joystick Controller brings serious imaging performance to every shoot, from planned sessions to spontaneous moments. At its core is a 8.42 Megapixel 1/1.8"-Type sensor. Everyday handling is covered with No connectivity.
Highlights
Three 4K PTZ Cameras with 20x Zoom

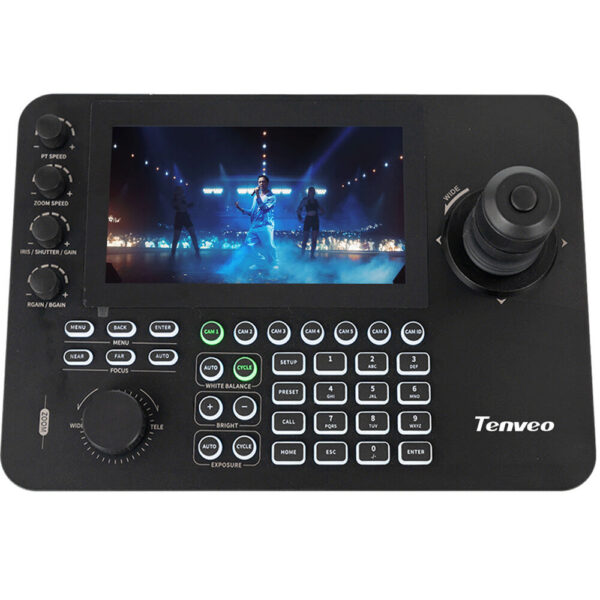

PTZ Controller with 7" LCD Screen
3G-SDI, HDMI, USB 2.0 & IP/NDI Output

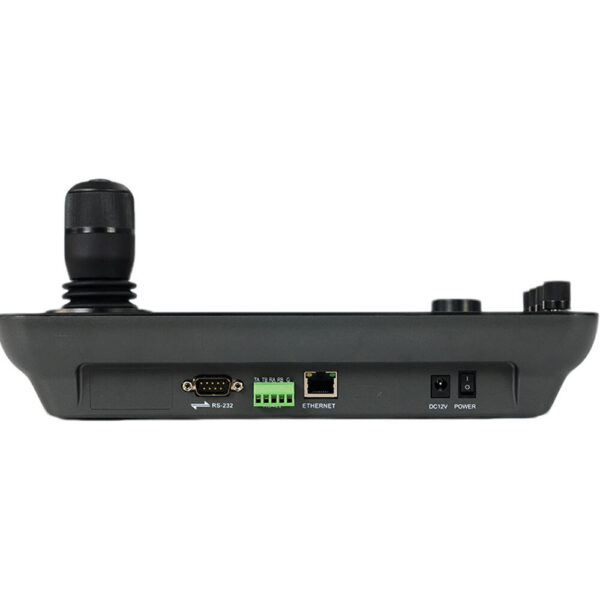

RS-232 & IR Control with Custom Presets
Ordered from NIXTRONIC, it ships with full tracking worldwide and is backed by our 60-day returns on eligible items.

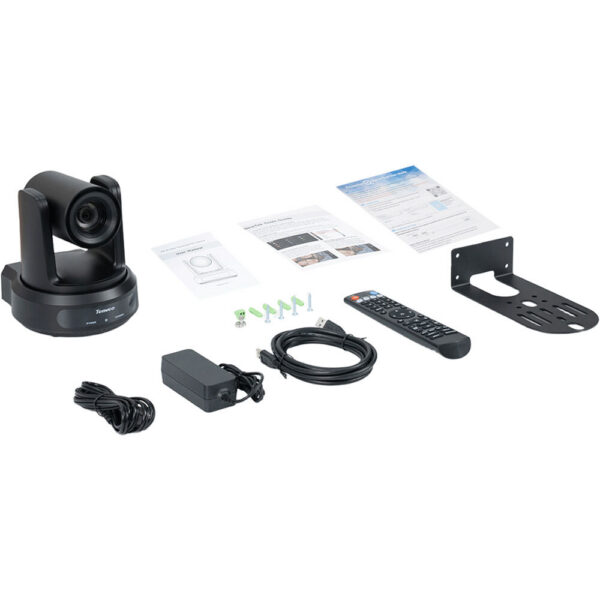

In the Box

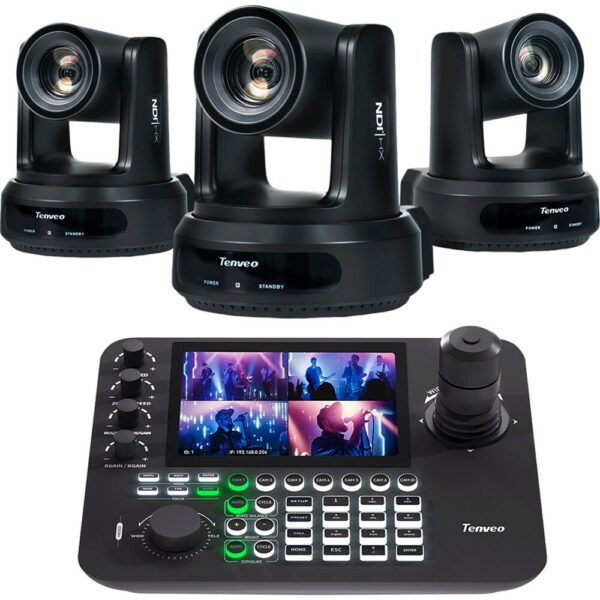

Tenveo All-in-One UHD 4K SDI/HDMI/IP/NDI PTZ 3-Camera Kit with Joystick Controller 3 x Tenveo AI Auto-Tracking UHD 4K SDI/HDMI/USB/NDI Camera with 20x Optical Zoom KB300 PRO Camera Controller
SKU TEVO-BK3U20N-3 Brand Tenveo
Imaging
Image Sensor 1/1.8"-Type CMOS Sensor Resolution 8.42 Megapixel Focus Control Autofocus
Exposure Control
Minimum Illumination 0.5 Lux Flip / Mirror Support Image Flip, Mirror (Vertical) White Balance Presets: Auto, Manual
Lens
Focal Length 6.25 to 125mm Max Optical Zoom 20x Field of View Diagonal: 66.6 to 4° Maximum Aperture f/1.58 to 3.95
Video Capture
Video Output via HDMI3840 x 2160 up to 60.00 fps via RJ45 / SDI/BNC / USB1920 x 1080 up to 60.00 fps Embedded Audio HDMI/IP/NDI/SDI/USB Internal Recording No Broadcast Output NTSC Supported Protocols Camera ControlIP/IR/NDI/ONVIF/Pelco-D/Pelco-P/RS-232/VISCA IP Streaming Dante AV-H/HTTP/NDI HX2/ONVIF/RTMP/RTMPS/RTSP/SRT 1920 x 1080
Control
Presets 255 via RS-23210 via IR Pan/Tilt/Roll Pan: 350° (-175 to 175°) at 0.1 to 100°/s Tilt: 180° (-90 to 90°) at 0.1 to 80°/s
Interface
Video I/O 1x HDMI Output Audio I/O 1x 1/8" / 3.5 mm TRS Stereo Line Input Built-In Microphone No
Power
PoE Support Yes: PoE 802.3af
General
Mounting 1x Proprietary for Ceiling/Tripod/Wall
Packaging Info
Package Weight 26.95 lb Box Dimensions (Lx WxH) 21.9 x 17.9 x 16"
