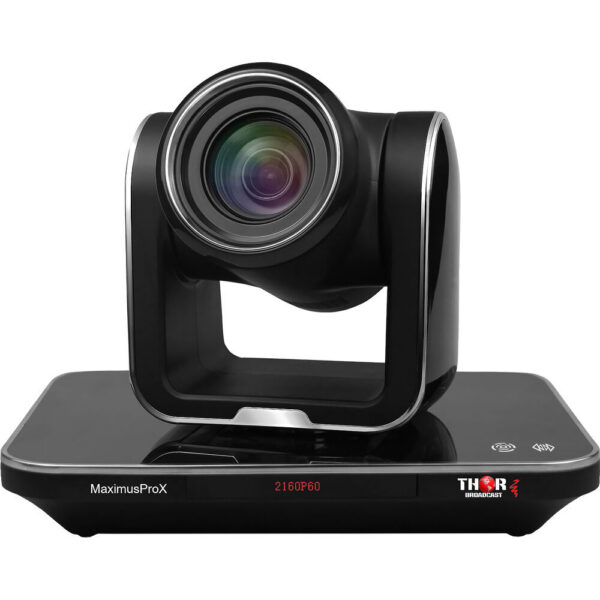

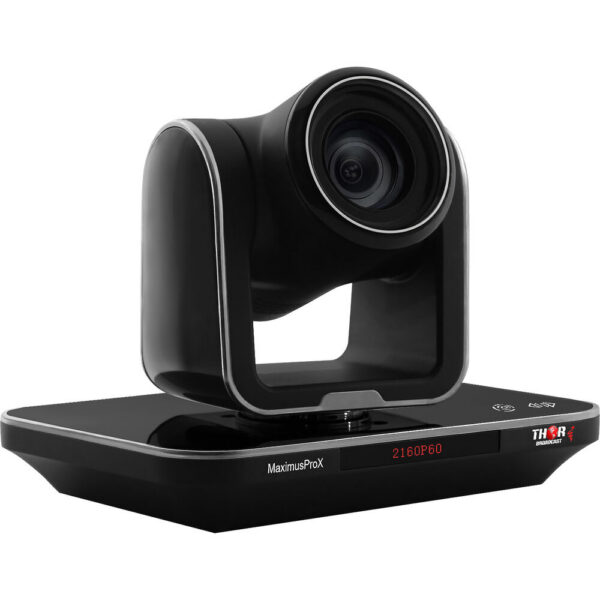

Thor 1080p HDMI/SDI Live Streaming PTZ Camera with 20x Optical Zoom
$895.00
In Stock
- 1/2.8" HD CMOS 2.38 MP Sensor
- Resolution up to 1920 x 1080p60
- 20x Optical Zoom, 12x Digital Zoom
- HDMI, 3G-SDI, USB, IP Video Outputs
Tracked ShippingRates shown at checkout
60-Day ReturnsOn eligible items
Expert SupportReal people, real advice
Thor 1080p HDMI/SDI Live Streaming PTZ Camera with 20x Optical Zoom
Designed for creators who demand more from their gear, the Thor 1080p HDMI/SDI Live Streaming PTZ Camera with 20x Optical Zoom delivers capable, consistent performance. At its core is a 2.38 Megapixel 1/2.8"-Type sensor. Everyday handling is covered with No connectivity.
Highlights
- 1/2.8" HD CMOS 2.38 MP Sensor
- Resolution up to 1920 x 1080p60
- 20x Optical Zoom, 12x Digital Zoom
- HDMI, 3G-SDI, USB, IP Video Outputs
Ordered from NIXTRONIC, it ships with full tracking worldwide and is backed by our 60-day returns on eligible items.

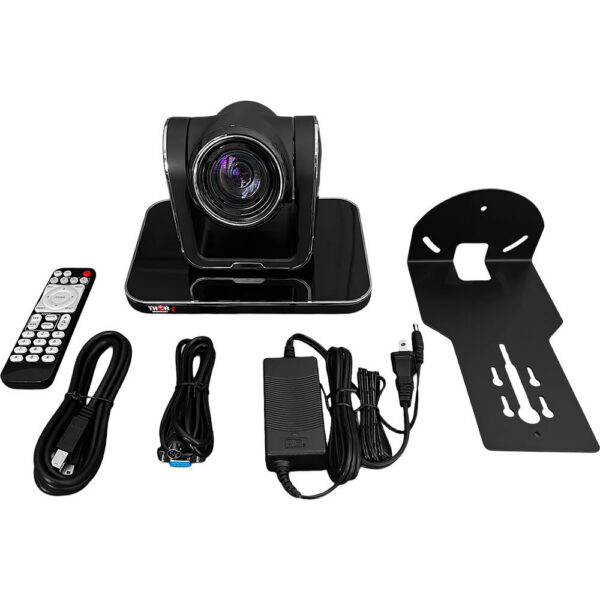

In the Box
- Thor 1080p HDMI/SDI Live Streaming PTZ Camera with 20x Optical Zoom

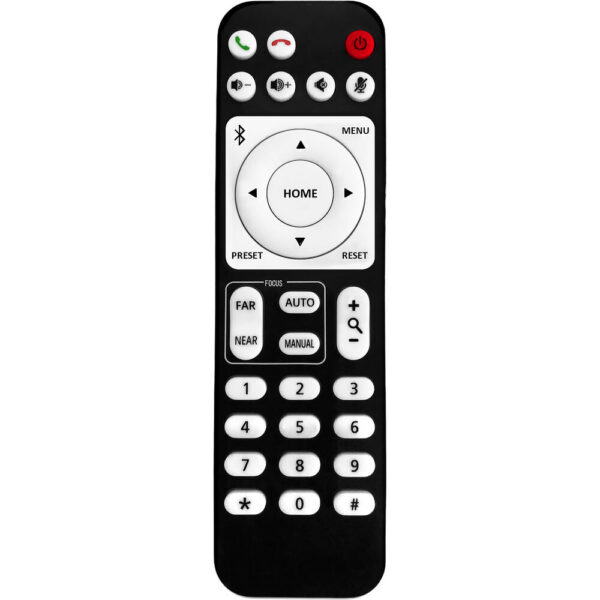

- IR Remote Control
- 12 VDC Power Adapter
- RS-232 Cable
- Mounting Bracket
Videos
| SKU | MAXIMUSPROX |
|---|---|
| Brand | Thor |
| Image Sensor | 1/2.8"-Type CMOS |
|---|---|
| Sensor Resolution | 2.38 Megapixel |
| Focus Control | Autofocus Manual Focus |
| Shutter Speed | 1/10000 to 1 Second |
|---|---|
| Minimum Illumination | 0.5 Lux |
| Flip / Mirror Support | Image Flip, Mirror (Vertical) |
| Focal Length | 4.7 to 94mm |
|---|---|
| Max Optical Zoom | 20x |
| Max Digital Zoom | 12x |
| Field of View | Horizontal: 65 to 2.9° |
| Maximum Aperture | f/1.6 to 3.5 |
| Video Output | via HDMI / SDI/BNC / USB1920 x 1080p at 25/29.97/50/59.94 fps 1920 x 1080i at 25/29.97/50/59.94 fps 1280 x 720 at 25/29.97/50/59.94 fps 720 x 576i at 50 fps 640 x 480i at 59.94 fps |
|---|---|
| Internal Recording | No |
| Audio Recording | G.711 Audio AAC Audio |
| Broadcast Output | NTSC |
| IP Streaming | H.264/H.265/MJPEG via RTMP/RTSP/TCP/UDP 320 x 240 to 1920 x 1080 at 60p |
| Presets | 255 via IP, RS-232, VISCA9 via IR |
|---|---|
| Pan/Tilt/Roll | Pan: 178° at 0.08 to 180°/s Tilt: 120° (-30 to 90°) at 0.08 to 120°/s |
| Tally Light | No |
| Wireless | No |
|---|

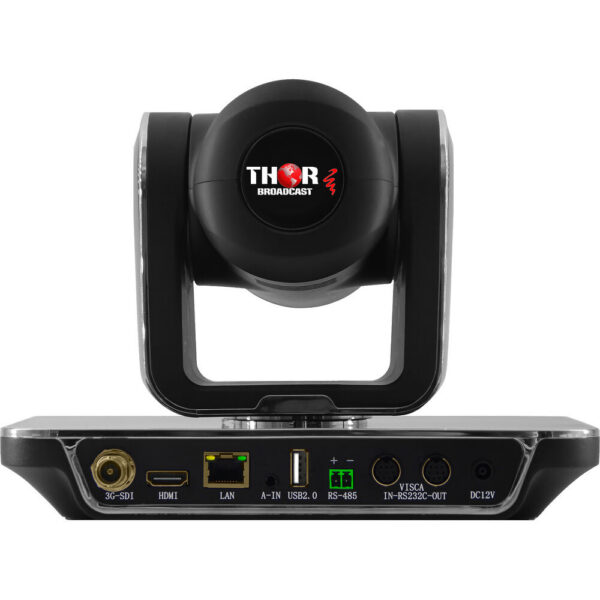

| Video I/O | 1x BNC (3G-SDI) Output 1x HDMI Output 1x USB-A 2.0 Output |
|---|---|
| Audio I/O | 1x 1/8" / 3.5 mm TRS Stereo Line Input |
| Other I/O | 1x Block 2-Pin (RS-422, RS-485) Input/Output 1x Mini-DIN 8-Pin (RS-232) Control Input 1x Mini-DIN 8-Pin (RS-232) Control Output 1x Block 2-Pin (RS-485) Control Input 1x RJ45 (LAN) Control Output |
| Built-In Microphone | No |
| Built-In Speaker | No |
| PoE Support | Yes: PoE 802.3af |
|---|---|
| Power I/O | 1x Barrel (12VDC at 1 A) Input |
| Power Consumption | Power Supply: 12 W |
| Operating Conditions | 14 to 122°F / -10 to 50°C |
|---|---|
| Impact Resistance | No |
| Environmental Resistance | No |
| Mounting | 1x 1/4"-20 Female for Bracket |
|---|---|
| Dimensions (W x H x D) | 6.1 x 7.1 x 8.7" / 154 x 181 x 220 mm |
| Weight | 56 oz / 1.6 kg (Body Only) |
