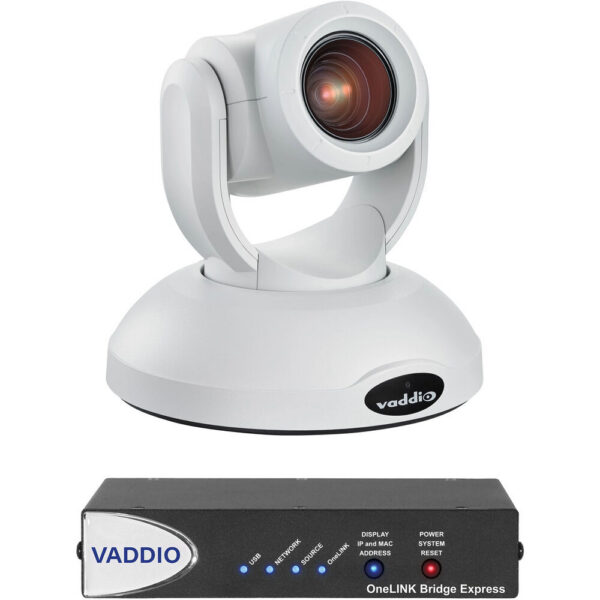

Vaddio RoboSHOT 20 UHD OneLINK Bridge Express System (White)
The Vaddio RoboSHOT 20 UHD OneLINK Bridge Express System (White) is built for photographers and creators who want dependable, professional results. Everyday handling is covered with IR*Built-In connectivity.
Highlights
RoboSHOT 20 UHD PTZ Camera
OneLINK Bridge Express System
UHD 4K Resolution, 20x Total Zoom
Single 1/2.3" Exmor Sensor
Ordered from NIXTRONIC, it ships with full tracking worldwide and is backed by our 60-day returns on eligible items.
In the Box

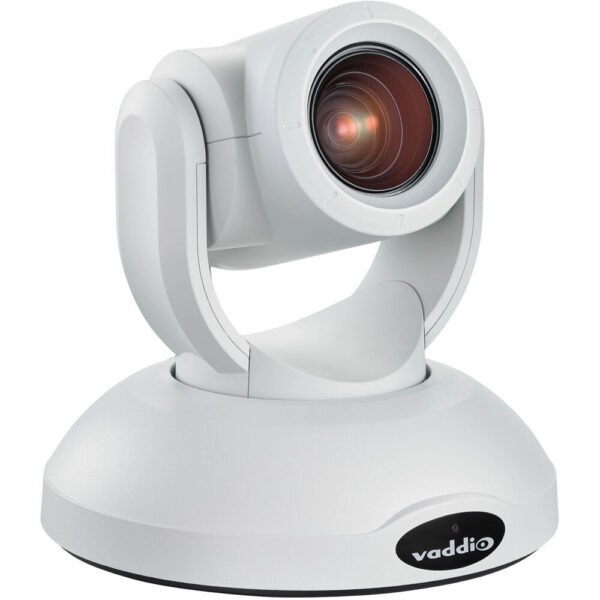

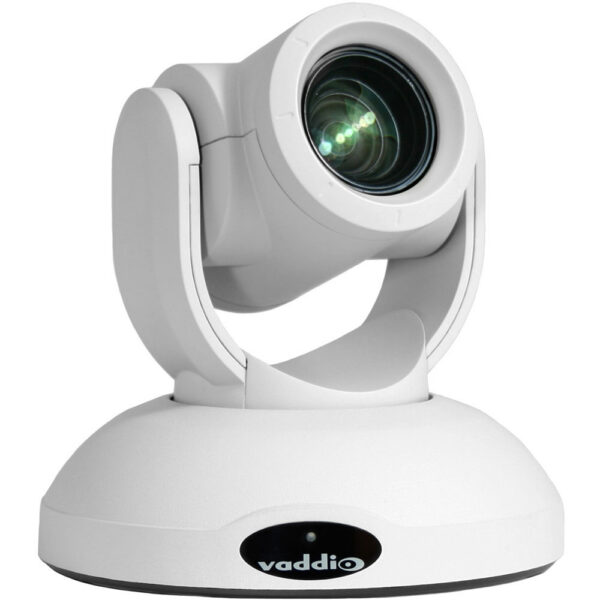

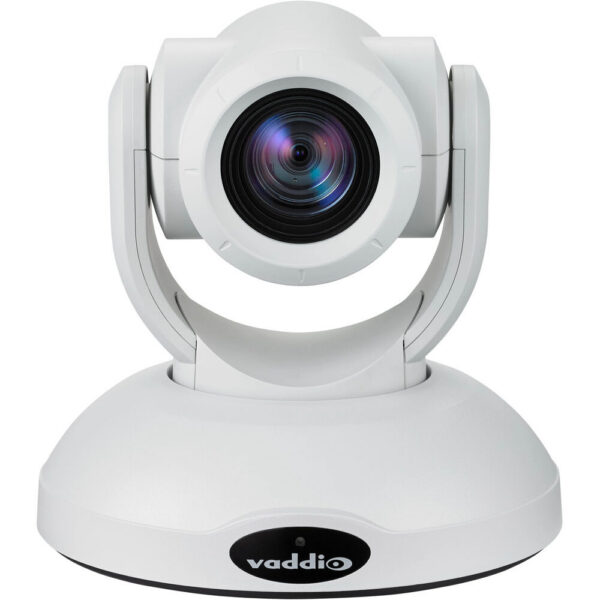

Vaddio RoboSHOT 20 UHD Ultra High Definition PTZ Camera (White)
Vaddio IR Remote Commander
AC Adapter (12 VDC, 3 A)
North American Power Cord Set

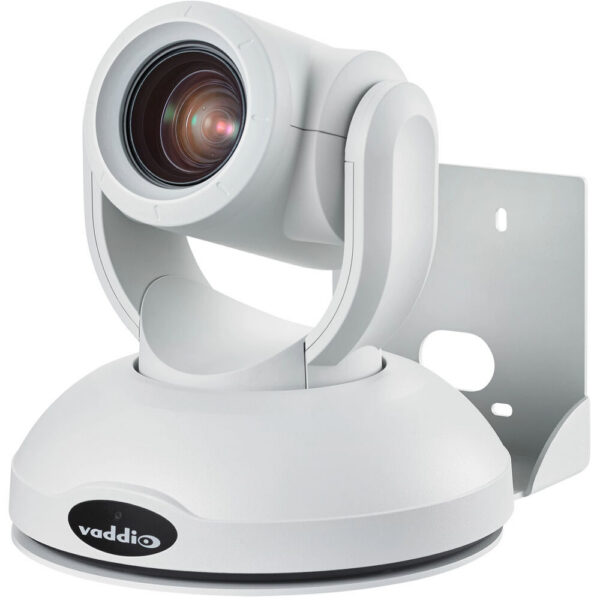

Thin Profile Wall Mount
EZCamera RS-232 Control Adapter

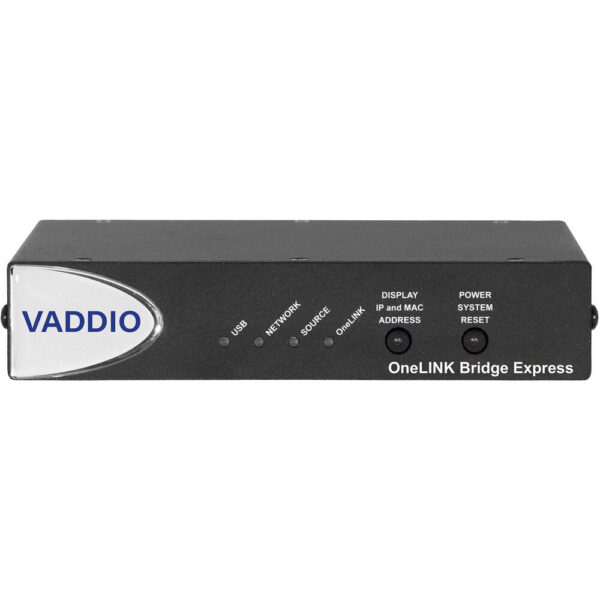

Vaddio OneLINK Bridge Express
Power Supply
4 x 3-Position 3.5mm Phoenix Plug
USB 3.0 Type-A to Type-B Cable (6')
RS-232 Adapter
Videos
SKU
999-9950-270W
Brand
Vaddio
Imaging
Image Sensor
1/2.3"-Type CMOS
Sensor Resolution
Actual: 9.03 Megapixel
Effective: 8.93 Megapixel
Focus Control
Autofocus
Manual Focus
Exposure Control
Minimum Illumination
100 Lux
Flip / Mirror Support
Mirror (Vertical)
White Balance
Presets: ATW, Auto, Indoors, Manual, One Push, Outdoors
Lens
Focal Length
10 to 120mm
Max Optical Zoom
12x
Max Digital Zoom
1.7x
Field of View
Horizontal: 74 to 4.8°
Video Capture
Video Output
SDI/BNC / HDMI3840 x 2160 at 25/30.00 fps 1920 x 1080p at 25/29.97/50/59.94 fps 1280 x 720 at 50/59.94 fps
Broadcast Output
NTSC
IP Streaming
H.264 via RTSP 1920 x 1080 at 30p (Simultaneous Multi-Stream)
Control
Presets
16
Pan/Tilt/Roll
Pan: 320° (-160 to 160°) at 0.35 to 120°/s Tilt: 120° (-30 to 90°) at 0.35 to 120°/s
Supported Control Protocols
IPIRRS-232VISCA
Wireless
Wireless
IR*Built-In
Interface

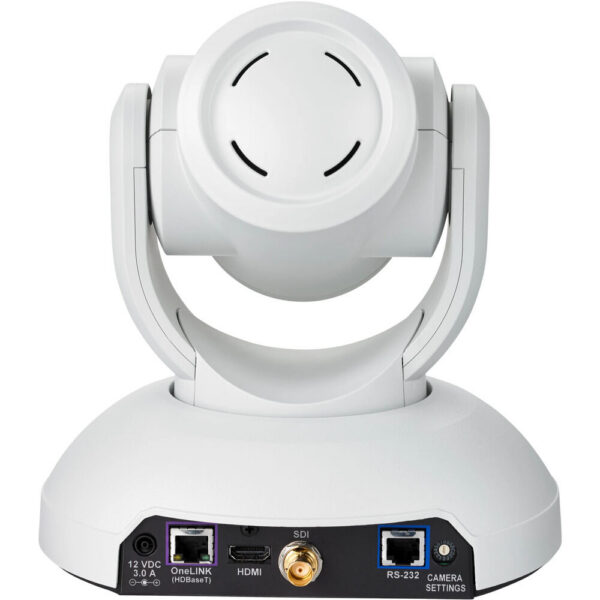

Video I/O
1x BNC (3G-SDI) Output 1x HDMI Output
Other I/O
1x RJ45 (RS-232, VISCA) Control 1x RJ45 (LAN)
Built-In Microphone
No
Built-In Speaker
No
Power
PoE Support
PoE++ 802.3bt
Power Consumption
Power Supply: 12 VDC at 3 A
Environmental
Operating Conditions
23 to 140°F / -5 to 60°C at 20 to 80% Humidity
Storage Conditions
-4 to 140°F / -20 to 60°C at 20 to 95% Humidity
General
Certifications
CE, FCC, TAA, UL
Dimensions (W x H x D)
8 x 7.9 x 7.7" / 20.3 x 20.1 x 19.6 cm
Weight
6 lb / 2.7 kg (Body Only)
Packaging Info
Package Weight
11.2 lb
Box Dimensions (Lx WxH)
13.5 x 13.5 x 11.8"
