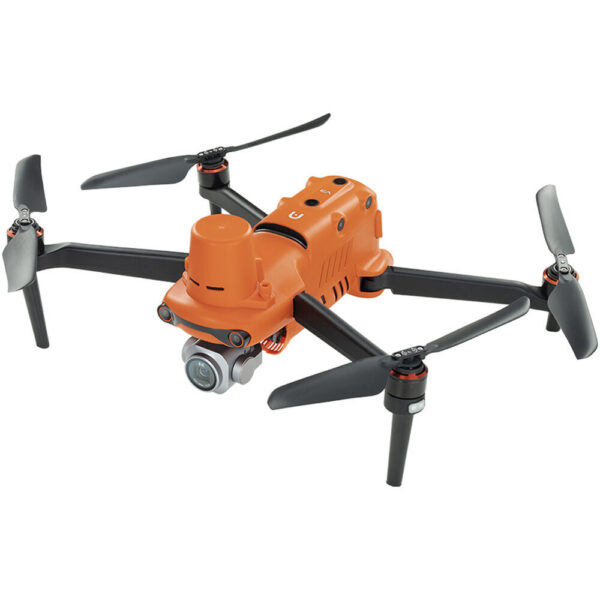

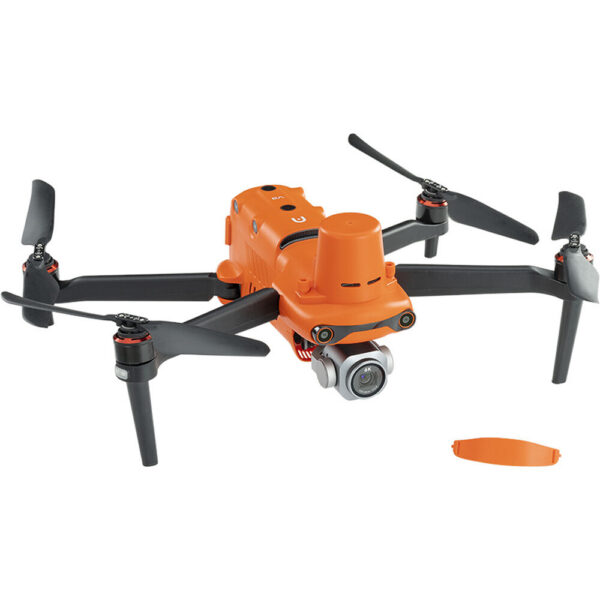

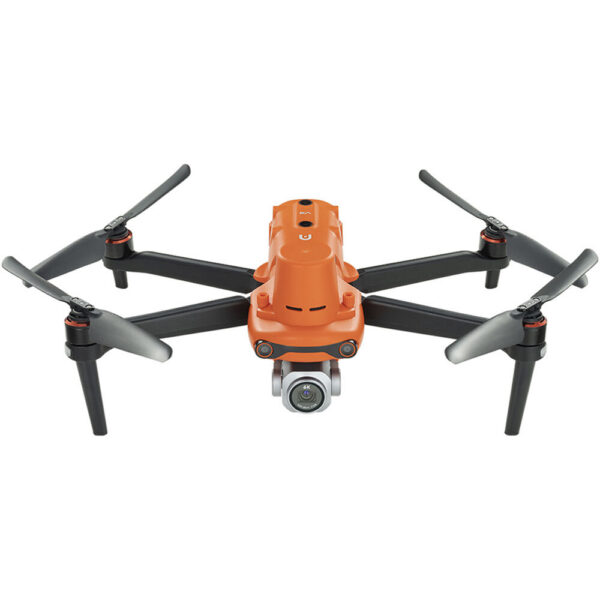

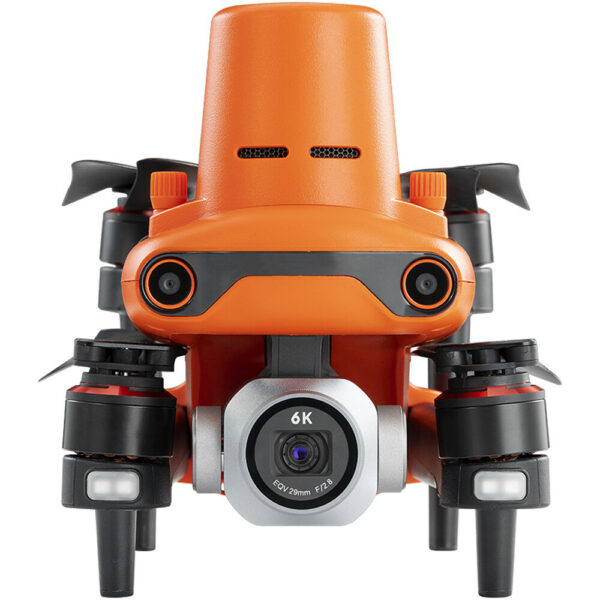

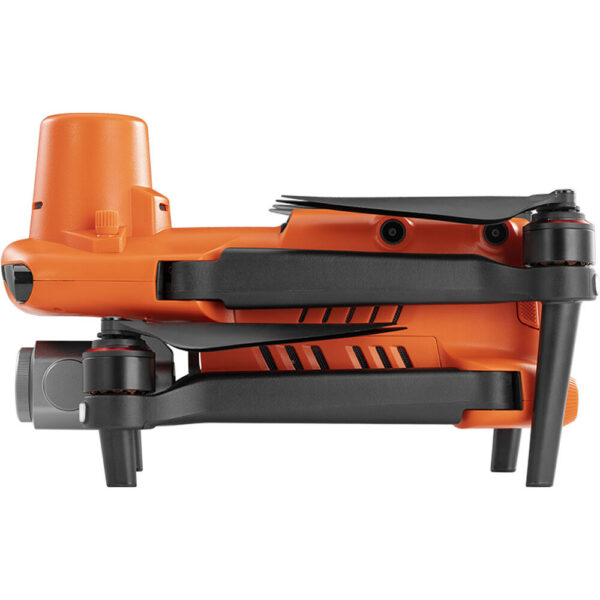

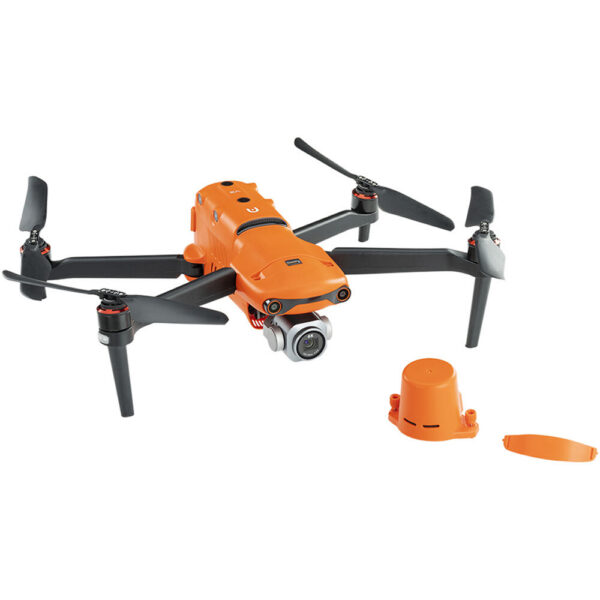

Autel Robotics EVO II Pro 6K RTK Rugged Bundle V3
$2,999.00
In Stock
- 20MP 1" CMOS for 6K & 4K HDR Video
- Adjustable f/2.8 to f/11 Aperture
- 7.9" Smart Controller V3
- Centimeter-Level RTK Mapping
Tracked ShippingRates shown at checkout
60-Day ReturnsOn eligible items
Expert SupportReal people, real advice
Autel Robotics EVO II Pro 6K RTK Rugged Bundle V3
The Autel Robotics EVO II Pro 6K RTK Rugged Bundle V3 brings serious imaging performance to every shoot, from planned sessions to spontaneous moments.
Highlights
- 20MP 1" CMOS for 6K & 4K HDR Video
- Adjustable f/2.8 to f/11 Aperture
- 7.9" Smart Controller V3
- Centimeter-Level RTK Mapping
Every order from NIXTRONIC ships tracked worldwide and is covered by our 60-day return policy on eligible items.

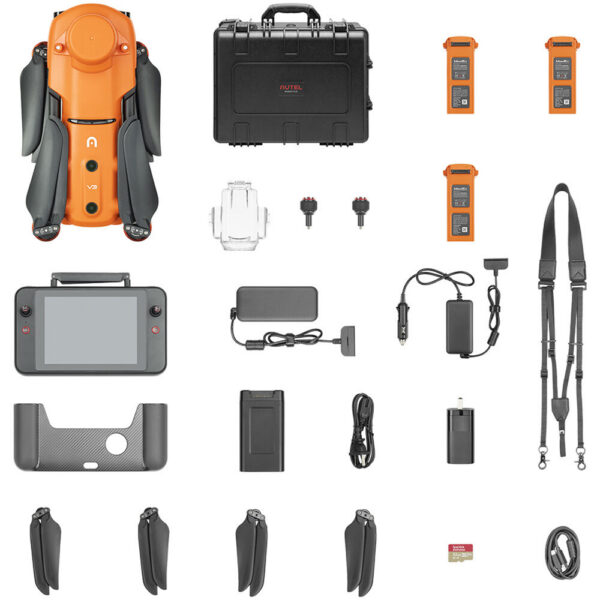

In the Box
- Autel Robotics EVO II Pro 6K RTK Rugged Bundle V3
- Smart Controller V3
- 3 x Battery
- RTK Module
- Gimbal Cover
- Pair of Spare Propellers
- Smart Controller USB-C Charging Cable
- Smart Controller Power Brick
- Pair of Spare Controller Sticks
- 32GB SD Card
- Smart Controller Hanging Neck Strap
- RTK Module Attachment Port Cover
- Battery Charger with Power Cord & Converter
- Battery Car Charger
- Battery Multi-Charger
| SKU | 102001519 |
|---|---|
| Brand | Autel Robotics |
| Maximum Horizontal Speed | 44.7 mph / 72 km/h |
|---|---|
| Maximum Ascent Speed | 17.9 mph / 29 km/h |
| Maximum Descent Speed | 8.9 mph / 14 km/h |
| Maximum Wind Resistance | 39 mph / 63 km/h |
| Maximum Take-Off Altitude | 4.3 Miles / 7 km |
| Maximum Flight Time | 36 Minutes |
| Maximum Hover Time | 35 Minutes |
| Maximum Tilt Angle | 33° |
| Hovering Accuracy | Vision Positioning Vertical: ±0.3' / 0.1 m Horizontal: ±1' / 0.3 m RTKVertical: ±0.3' / 0.1 m Horizontal: ±0.3' / 0.1 m GNSSVertical: ±1.6' / 0.5 m Horizontal: ±4.9' / 1.5 m |
| Maximum Angular Velocity | 120°/s (Pitch) |
| Rotor Configuration | Quadcopter |
|---|---|
| Remote ID | Yes |
| Aircraft I/O | 1x USB-C (Data) |
| Operating Conditions | 14 to 104°F / -10 to 40°C |
| Number of Cameras | 1 |
|---|---|
| Camera System | 20 MP, 1"-Type CMOS Sensor with 29mm-Equivalent, f/2.8 Lens (82° FoV) |
| Zoom | 16x Optical |
| Minimum Focus Distance | 1.6' / 0.5 m |
| ISO Sensitivity Range | Photo: 100 to 6400 Video: 100 to 44,000 |
| Night Vision | No |
| Shutter Speed | 1/8000 to 8 Seconds (Photo) 1/8000 to 1 Seconds (Video) |
| Maximum Video Resolution | Up to 6K at 30 fps / UHD 4K at 60 fps |
| Still Image Support | Up to 20 MP (DNG / JPEG) |
| Photo Modes | Auto-Exposure Bracketing (AEB), Burst Shooting, Interval, Single Shot |
| Media/Memory Card Slot | In Aircraft BodymicroSD/microSDHC/microSDXC [256 GB Maximum / U3/V30 or Faster Recommended]In Remote/TransmittermicroSD/microSDHC/microSDXC |
| Internal Storage | In Aircraft Body8 GBIn Remote/Transmitter128 GB |
| Number of Axes | Three: Pitch (Tilt) / Roll / Yaw (Pan) |
|---|---|
| Rotation Range | Controllable Range Yaw (Pan): 180° (-90 to 90°) Pitch (Tilt): 120° (-90 to 30°) Mechanical Range Yaw (Pan): 200° (-100 to 100°) Pitch (Tilt): 180° (-135 to 45°) |
| Follow Speed | Tilt: 300°/s |
| Stabilization Accuracy | ±0.005° |
| Sensing System | Omnidirectional with Ultrasonic Enhancement |
|---|---|
| Sensing System Capabilities | Forward Measurement Range: 2 to 59' / 0.5 to 18 m Max Speed: 26.8 mph / 12 m/s Field of View: 60° (Horizontal) / 80° (Vertical) Backward Measurement Range: 2 to 52' / 0.5 to 16 m Max Speed: 26.8 mph / 12 m/s Field of View: 60° (Horizontal) / 80° (Vertical) Lateral Measurement Range: 2 to 33' / 0.5 to 10 m Max Speed: 11.2 mph / 5 m/s Field of View: 65° (Horizontal) / 50° (Vertical) Upward Measurement Range: 2 to 33' / 0.5 to 10 m Max Speed: 11.2 mph / 5 m/s Field of View: 65° (Front-to-Back) / 50° (Side-to-Side) Downward Measurement Range: 2 to 33' / 0.5 to 10 m Max Speed: 11.2 mph / 5 m/s Field of View: 100° (Front-to-Back) / 80° (Side-to-Side) |
| Control Method | Included Transmitter |
|---|---|
| Transmission System | Proprietary• Frequencies: 900 MHz / 2.4 GHz / 5.1 GHz / 5.8 GHz• Power at 0.9G: 33 d Bm (FCC)• Power at 2.4G: 20 d Bm (CE/SRRC)• Power at 5.1G: 33 d Bm (SRRC) / 14 d Bm (CE) |
| Maximum Operating Distance | 9 Miles / 15 km |
| Transmitter I/O | 1x USB-A Output (Power)1x USB-C (Power)1x HDMI Output (Video) |
| Clean Video Output | No |
| Battery Type | Built-In Lithium-Ion Polymer (LiPo) (5800 m Ah) |
| Operating Temperature | -4 to 104°F / -20 to 40°C |
| Mobile App Compatible | Yes: Android & iOSApp Name: Autel Explorer |
| Built-In Display | 7.9" (2048 x 1536) Touchscreen LCD, 2000 nits/ cd/m2 |
| Battery Chemistry | Lithium-Ion Polymer (LiPo) |
|---|---|
| Battery Capacity | 7100 m Ah / 82 Wh |
| Battery Configuration | 3 S / 11.55 V |
| Maximum Charging Power | 93 W |
| Charging Temperature | 41 to 113°F / 5 to 45°C |
| Weight | 13 oz / 365 g |
| Input Power | 100 to 240 VAC, 50 / 60 Hz at 1.5 A |
|---|---|
| Output Voltage | 13.2 V, 5 A12 V, 1.5 A9 V, 2 A5 V, 3 A |
| Power Rating | 66 W |
| GNSS Support | GPS, GLONASS, Bei Dou, Galileo |
|---|---|
| Diagonal Size | 15.6" / 397 mm |
| Overall Dimensions | 5.1 x 4.3 x 9.1" / 130.0 x 108.0 x 230.0 mm (Folded)22 x 4.3 x 18" / 558.0 x 108.0 x 457.0 mm (Unfolded) |
| Weight | 3 lb / 1187 g (Takeoff)4 lb / 2000 g (with Maximum Payload) |
| Package Weight | 21.15 lb |
|---|---|
| Box Dimensions (Lx WxH) | 21.7 x 18.2 x 10.4" |
