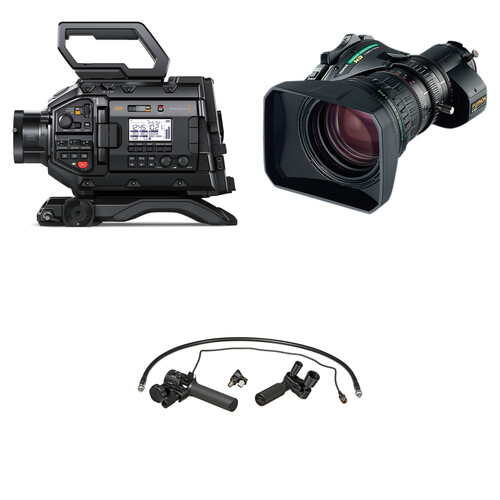

Blackmagic Design URSA Broadcast G2 Camera with Fujinon 8.5-170mm Digital Servo Lens & Zoom/Focus Control
$13,955.00
In Stock

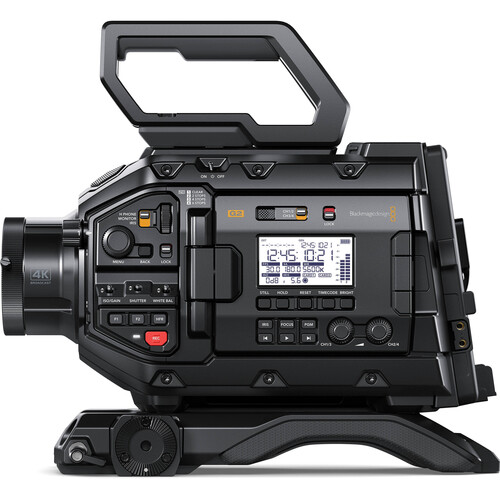

- URSA Broadcast G2 Camera

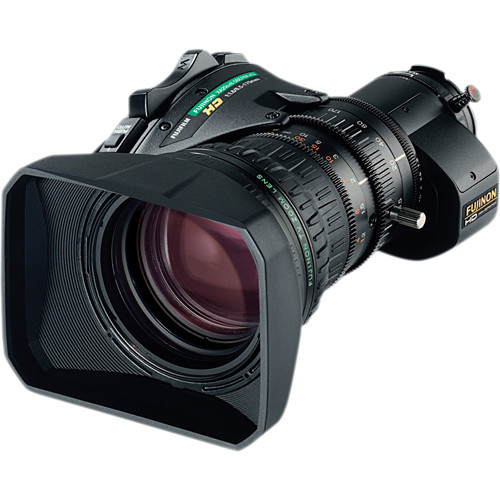

- Fujinon XA20sx8.5BERM-K3 ENG Lens

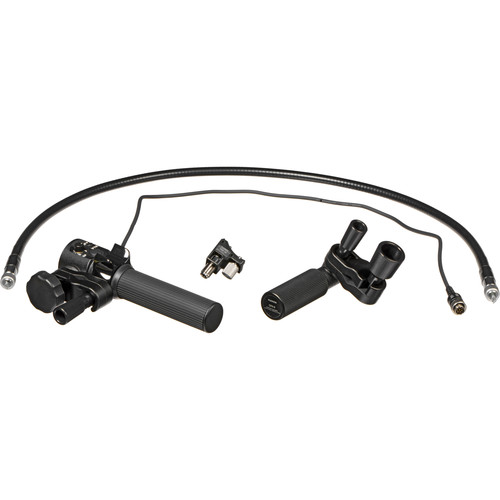

- MS-01 Rear Zoom/Focus Lens Control Kit
- Digital Servo Unit Included
Tracked ShippingRates shown at checkout
60-Day ReturnsOn eligible items
Expert SupportReal people, real advice
Blackmagic Design URSA Broadcast G2 Camera with Fujinon 8.5-170mm Digital Servo Lens & Zoom/Focus Control
The Blackmagic Design URSA Broadcast G2 Camera with Fujinon 8.5-170mm Digital Servo Lens & Zoom/Focus Control is built for photographers and creators who want dependable, professional results. At its core is a Not Specified by Manufacturer 2/3"-Type sensor paired with the B4 lens mount.
Highlights
- URSA Broadcast G2 Camera
- Fujinon XA20sx8.5BERM-K3 ENG Lens
- MS-01 Rear Zoom/Focus Lens Control Kit
- Digital Servo Unit Included
Ordered from NIXTRONIC, it ships with full tracking worldwide and is backed by our 60-day returns on eligible items.
In the Box
- Blackmagic Design URSA Broadcast G2 Camera
- B4 Turret Dust Cap
- EF Mount
- EF Mount Dust Cap
- 8 x EF Mount Screw
- 12V/100W Power Supply
- Shoulder Pad
- Top Handle
- V-Mount Battery Plate
- 4 x V-Mount Plate Spare Screw
- Viewfinder Mounting Plate
- 2 x 1/4"-20 Baseplate Screw
- 2 x Long 1/4"-20 Top Handle Screw
- 2 x Short 1/4"-20 Top Handle Screw
- Da Vinci Resolve Studio Download QR Code
- Camera Software Download QR Code
- Fujinon XA20sx8.5BERM-K3 ENG Lens
- Fujinon MS-01 Rear Zoom and Focus Lens Control Kit
- Fujinon SRD92B Zoom Rate Demand
- Fujinon CFH3 Focus Grip
- Fujinon FMM-6B Manual Focus Module for Select Fujinon ENG/EFP Lenses
- Flexible Cable (CFC-12-990)
| SKU | CINEURSAMWC6KG2-XA20SX8.5BERM-KIT |
|---|---|
| Brand | Blackmagic Design |
| Lens Mount | B4 |
|---|---|
| Lens Communication | Yes |
| Image Sensor | 23.1 x 12.99 mm (2/3"-Type) CMOS |
| Sensor Resolution | Not Specified by Manufacturer |
| Image Stabilization | No |
| Built-In ND Filter | Mechanical Filter Wheel with Clear, 2-Stop (1/4), 4-Stop (1/16), 6-Stop (1/64) ND Filters |
| Built-In CC Filter | No |
| Capture Type | Stills & Video |
| Shutter Type | Electronic Rolling Shutter |
|---|---|
| ISO/Gain Sensitivity | Native: 400 to 3200 (100 to 25,600 Extended) Gain: -6 to 18 dB |
| Signal-to-Noise Ratio | Not Specified by Manufacturer |
| Advertised Dynamic Range | 13 Stops |
| Focus Mode | Automatic, Manual Focus |
|---|
| Internal Recording | Blackmagic RAW 10-Bit 6144 x 3456 up to 50 fps (65 to 359 Mb/s)3728 x 3104 up to 59.94 fps (36 to 265 Mb/s)6144 x 2560 up to 59.94 fps (49 to 359 Mb/s)3840 x 2160 up to 59.94 fps (32 to 190 Mb/s)1920 x 1080 up to 150 fps (5.2 to 47 Mb/s)H.2653840 x 2160 up to 59.94 fps (3.2 to 7.8 Mb/s) Pro Res 422/Pro Res 422 HQ3840 x 2160 up to 59.94 fps (73.6 to 110 Mb/s)1920 x 1080p up to 59.94 fps (27.5 to 110 Mb/s)1920 x 1080p up to 120 fps (18.4 to 27.5 Mb/s)H.2641920 x 1080p up to 59.94 fps (1.8 to 7 Mb/s) |
|---|---|
| Fast-/Slow-Motion Support | Yes |
| Built-In Microphone | Stereo |
| Audio Recording | Pro Res: 4-Channel, 24-Bit at 48 k Hz |
| IP Streaming | No |
| Media/Memory Card Slot | Dual Slot: SD/SDHC/SDXC (UHS-II) Dual Slot: CFast (CFast 2.0) |
|---|---|
| Internal Storage | No |
| Video I/O | 2x BNC (12G-SDI) Output 1x BNC (12G-SDI) Input |
| Audio I/O | 2x XLR 3-Pin Mic/Line Input on Camera Body (+48 V Phantom Power)1x 1/8" / 3.5 mm TRRS Headphone/Mic Headphone Input/Output on Camera Body |
| Power I/O | 1x XLR 4-Pin Input 1x XLR 4-Pin (12 to 20VDC) Output 1x Molex 12-Pin Input |
| Other I/O | 1x USB-C (USB 3.2 / 3.1 Gen 2) (Shared with Video Output)1x USB-C Data Input 1x 2.5 mm Sub-Mini (LANC) Control Output 1x BNC (Reference, Sync, Timecode) Data Input 1x Hirose 12-Pin (Camera Interface) Control Output |
| Wireless | Bluetooth |
| Mobile App Compatible | Yes: iPadOS Only App Name: Blackmagic Camera Control App |
| Global Positioning (GPS, GLONASS, etc.) | No |
| Display Type | Primary Monitor: Articulating 4" Touchscreen LCDStatus Display: Fixed Non-Touchscreen LCD |
|---|
| Type | Optional, Not Included |
|---|
| Battery | V-Mount |
|---|---|
| Power Consumption | 100 W |
| Operating Conditions | 32 to 104°F / 0 to 40°C up to 90% Humidity |
|---|---|
| Storage Conditions | -4 to 113°F / -20 to 45°C |
| Shoe Mount | No |
|---|---|
| Tripod Mount | 3x 1/4"-20 Female |
| Accessory Mounting Thread | 1x ARRI/Hirth Rosette |
| Netflix Approved | Yes |
| Materials | Magnesium Alloy |
| Dimensions (W x H x D) | 21 x 10 x 7" / 53.3 x 25.4 x 17.8 cm |
| Weight | 11.02 lb / 5 kg (Body Only) |
| Package Weight | 11.4 lb |
|---|---|
| Box Dimensions (Lx WxH) | 21 x 10.1 x 7.1" |
