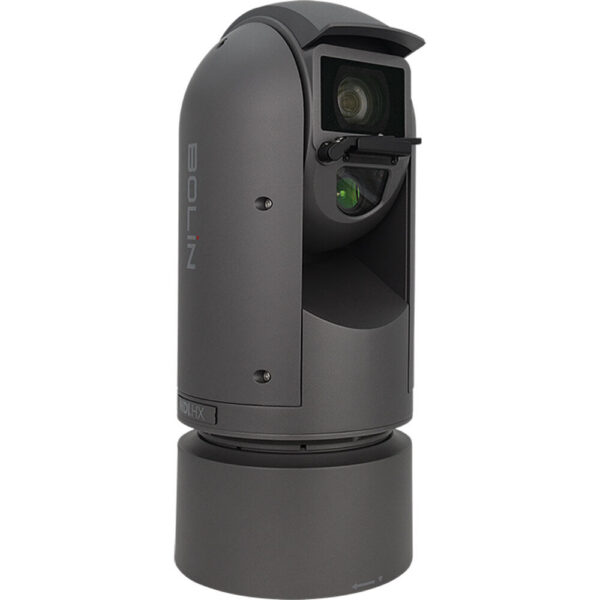

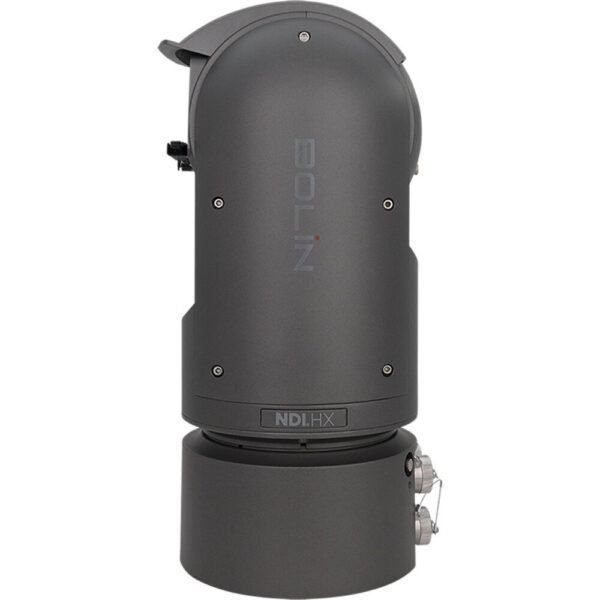

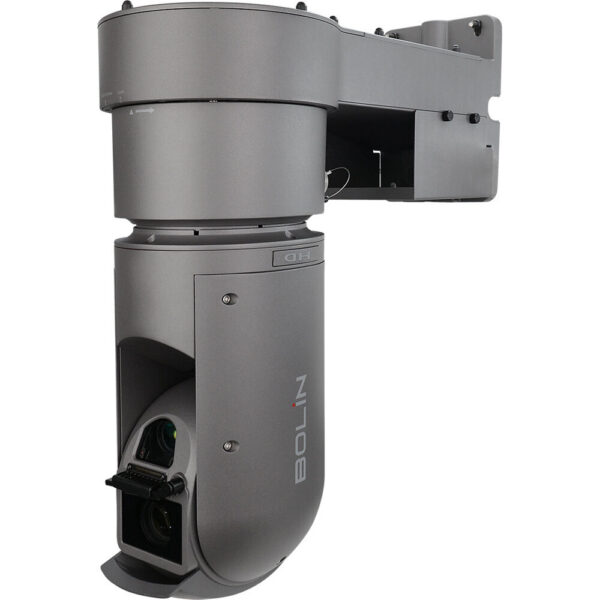

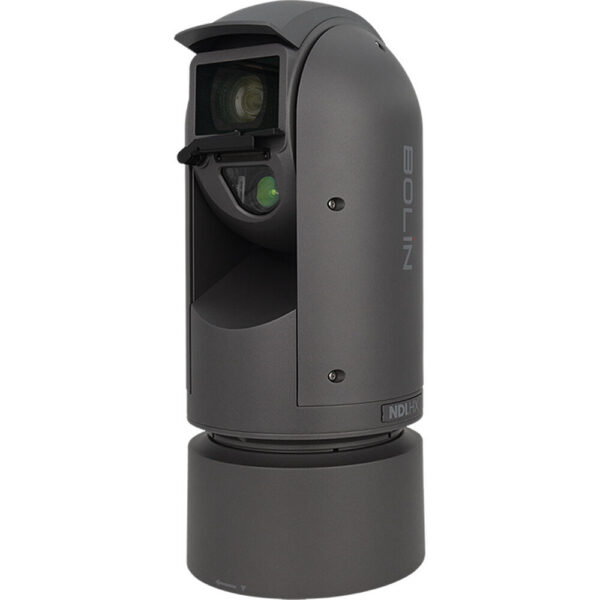

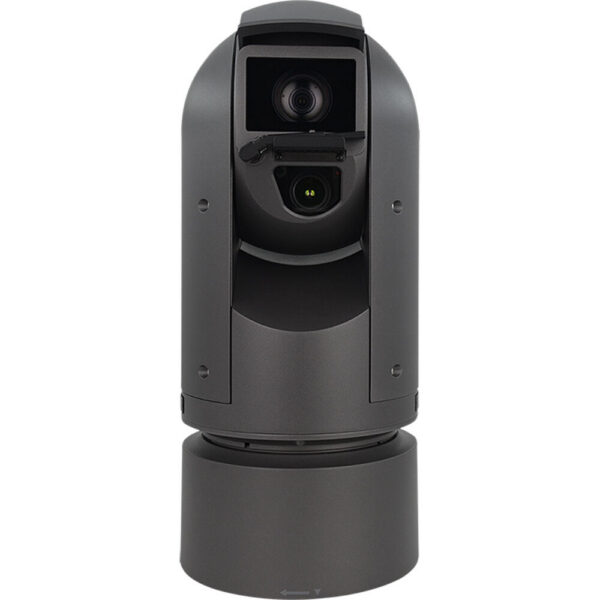

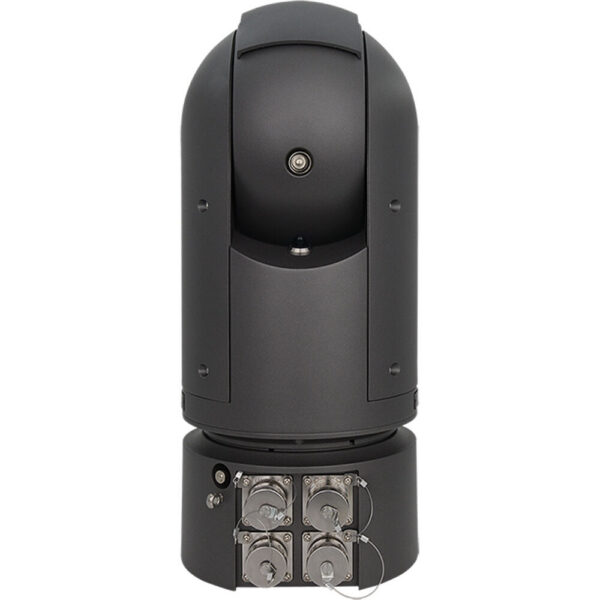

Bolin Technology EX1030NX Outdoor 1080p NDI HX3 PTZ Camera with Roll Axis & 30x Zoom (Dark Gray)
$7,995.00
In Stock
- Designed for Extreme Weather Conditions
- 1/2.8" CMOS STARVIS II Sensor
- Features Roll Axis up to 15°
- 3G-SDI and NDI HX3 / IP Outputs
Tracked ShippingRates shown at checkout
60-Day ReturnsOn eligible items
Expert SupportReal people, real advice
Bolin Technology EX1030NX Outdoor 1080p NDI HX3 PTZ Camera with Roll Axis & 30x Zoom (Dark Gray)
The Bolin Technology EX1030NX Outdoor 1080p NDI HX3 PTZ Camera with Roll Axis & 30x Zoom (Dark Gray) is built for photographers and creators who want dependable, professional results. At its core is a 2.13 Megapixel 1/2.8"-Type sensor. Everyday handling is covered with No connectivity.
Highlights
- Designed for Extreme Weather Conditions
- 1/2.8" CMOS STARVIS II Sensor
- Features Roll Axis up to 15°
- 3G-SDI and NDI HX3 / IP Outputs
Every order from NIXTRONIC ships tracked worldwide and is covered by our 60-day return policy on eligible items.
In the Box
- Bolin Technology EX1030NX Outdoor 1080p NDI HX3 PTZ Camera with Roll Axis & 30x Zoom (Dark Gray)
- Power Adapter
- Safety Chain
- Power Connector
- 4 x Waterproof Connector
| SKU | EX1030NX |
|---|---|
| Brand | Bolin Technology |
| Image Sensor | 1/2.8"-Type CMOS |
|---|---|
| Sensor Resolution | 2.13 Megapixel (1920 x 1080) |
| Focus Control | Autofocus |
| Shutter Speed | 1/10000 to 1/1 Second |
|---|---|
| Signal-to-Noise Ratio | 50 dB |
| Minimum Illumination | 0.09 Lux at 1/30 Shutter Speed |
| Flip / Mirror Support | Image Flip |
| White Balance | Presets: ATW, AWB, Auto, Indoors, Manual, One Push, Outdoors, Sodium, Sodium Auto, Sodium Out Auto |
| Focal Length | 4.3 to 129mm |
|---|---|
| Max Optical Zoom | 30x |
| Max Digital Zoom | 12x |
| Field of View | Horizontal: 64 to 2.4° |
| Maximum Aperture | f/1.6 to 14 |
| Minimum Focus Distance | 0.4" / 10 mm (Wide) to 47.2" / 1.2 m (Tele) |
| Video Output | via RJ45 / SDI/BNC1920 x 1080p at 25/29.97/30.00/50/59.94/60.00 fps 1920 x 1080i at 50/59.94/60.00 fps 1280 x 720 at 50/59.94/60.00 fps |
|---|---|
| Embedded Audio | NDI/SDI |
| Internal Recording | No |
| Broadcast Output | NTSC/PAL |
| Supported Protocols | Camera Control FreeD/IP/ONVIF/Pelco-D/Pelco-P/VISCA |
| IP Streaming | H.264/H.265/MJPEG via HTTP/NDI/NDI HX3/ONVIF/RTMP/RTMPS/RTP/RTSP/SRT/TCP/UDP 1280 x 720 to 1920 x 1080 at 25p, 30p, 50p, 60p (Main Stream) 352 x 228 to 704 x 576 at 25p, 30p (Sub Stream) |
| Presets | 255 |
|---|---|
| Pan/Tilt/Roll | Pan: 360° Tilt: 180° (-45 to 135°) |
| Tally Light | No |
| Wireless | No |
|---|
| Video I/O | 1x BNC (3G-SDI) Output |
|---|---|
| Other I/O | 1x RJ45 (Camera Interface, Gigabit Ethernet, LAN, VISCA) |
| Built-In Microphone | No |
| PoE Support | Yes: PoE++ 802.3bt |
|---|---|
| Power I/O | 1x DC (24VAC) Input 1x DC (36VDC) Input |
| Power Consumption | Device: 58 W with Heater |
| Operating Conditions | -22 to 140°F / -30 to 60°C up to 100% Humidity |
|---|---|
| Environmental Resistance | Weather-Resistant (IP67) |
| Certifications | CE, FCC, IC, RoHS, UKCA, WEEE |
|---|---|
| Dimensions (W x H x D) | 7.1 x 16.7 x 7.1" / 180 x 423 x 180 mm |
| Weight | 23 lb / 10.5 kg (Body Only) |
