Bolin Technology EXU230NX Outdoor NDI|HX3 PTZ Camera (Gray)
$8,995.00
In Stock
- 1/1.8" CMOS Sensor, 4.17MP
- NDI|HX3, 3G-SDI, HDMI 2.0, and IP Output
- Up to 1080p60 Resolution Video Output
- 30x Optical Zoom, 12x Digital Zoom
Tracked ShippingRates shown at checkout
60-Day ReturnsOn eligible items
Expert SupportReal people, real advice

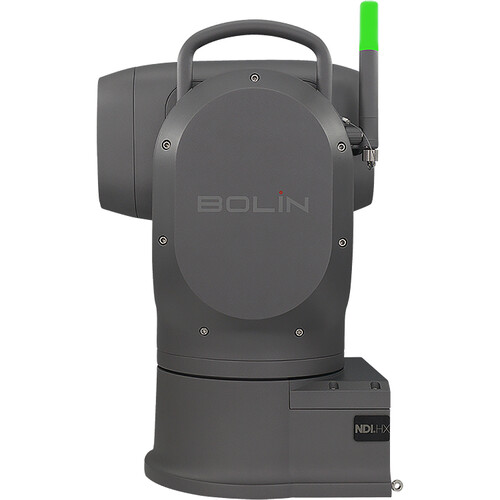

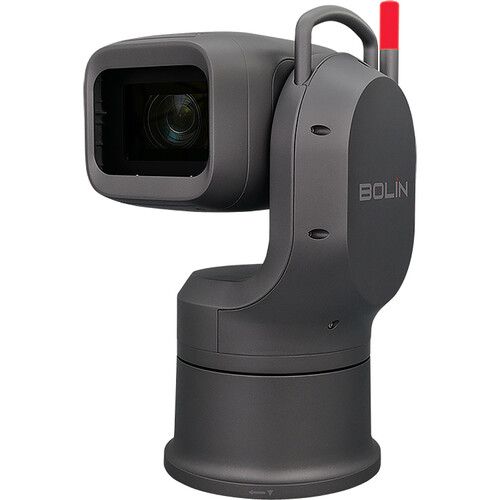

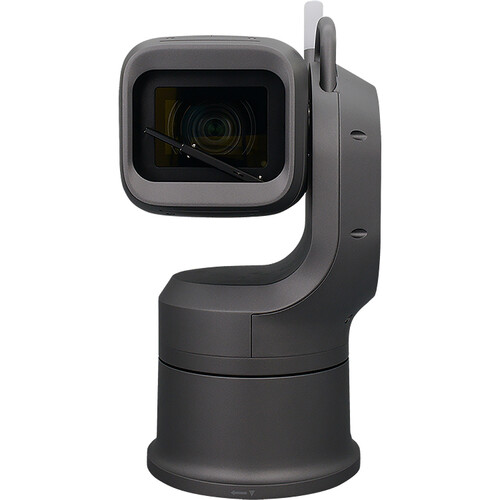

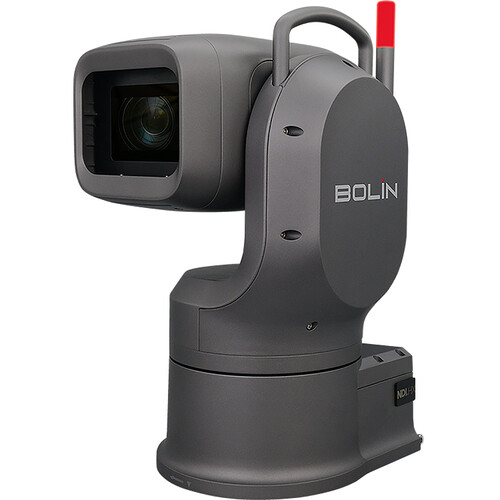

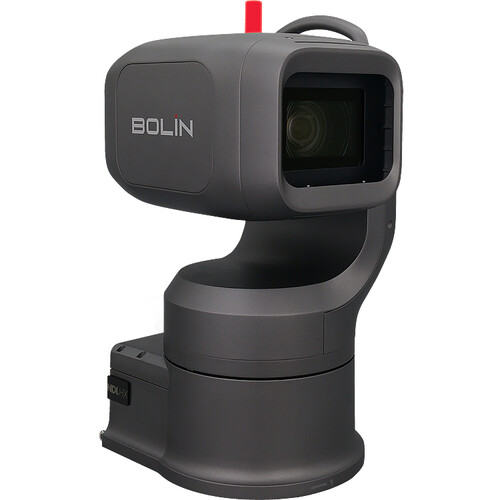

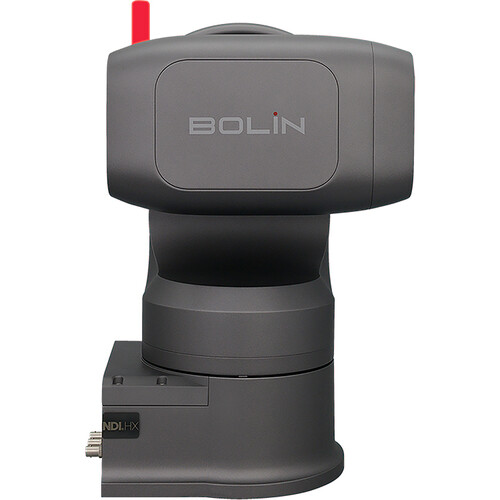

Bolin Technology EXU230NX Outdoor NDI|HX3 PTZ Camera (Gray)
The Bolin Technology EXU230NX Outdoor NDI|HX3 PTZ Camera (Gray) brings serious imaging performance to every shoot, from planned sessions to spontaneous moments. At its core is a 4.17 Megapixel 1/1.8"-Type sensor. Everyday handling is covered with No connectivity.
Highlights
- 1/1.8" CMOS Sensor, 4.17MP
- NDI|HX3, 3G-SDI, HDMI 2.0, and IP Output
- Up to 1080p60 Resolution Video Output
- 30x Optical Zoom, 12x Digital Zoom
Every order from NIXTRONIC ships tracked worldwide and is covered by our 60-day return policy on eligible items.
In the Box
- Bolin Technology EXU230NX Outdoor NDI|HX3 PTZ Camera (Gray)
- Power Adapter
- IR Remote Control
- Tally Light Attachment
- RJ45 RS-422 Adapter
- Mount Cover Set
- Rainproof Tripod Mount Cover
- Camera Cover
- Lock
- Tripod Mount Screw Set (1/4"-20, 3/8"-16)
| SKU | EXU230NX |
|---|---|
| Brand | Bolin Technology |
| Image Sensor | 1/1.8"-Type CMOS |
|---|---|
| Effective Sensor Resolution | Effective: 4.17 Megapixel (2712 x 1538) Actual: 4.09 Megapixel (2688 x 1520) |
| Focus Control | Autofocus Manual Focus |
| Shutter Speed | 1/10000 to 1/1 Second |
|---|---|
| Signal-to-Noise Ratio | 50 dB |
| Minimum Illumination | 0.5 Lux (Color) |
| Flip / Mirror Support | Image Flip, Mirror (Vertical) |
| White Balance | Presets: ATW, Auto, Indoors, Manual, One Push Set, Outdoors |
| Focal Length | 6.5 to 162.5mm |
|---|---|
| Max Optical Zoom | 30x |
| Max Digital Zoom | 12x |
| Field of View | Horizontal: 58.1 to 2.3°Vertical: 34.9 to 1.7° |
| Maximum Aperture | f/1.6 to 4.8 |
| Minimum Focus Distance | 3.9" / 10 cm (Wide) to 3.9' / 120 cm (Tele) |
| Video Output | via RJ451920 x 1080p at 25/30.00/50/60.00 fps 1280 x 720 at 60.00/50 fps via SDI/BNC / HDMI1920 x 1080p at 25/24.00/29.97/50/59.94/60.00 fps 1920 x 1080i at 60.00/50 fps 1280 x 720 at 59.94/60.00/50 fps |
|---|---|
| Embedded Audio | HDMI/LAN (RJ45)/NDI/SDI |
| Internal Recording | No |
| Audio Recording | 2-Channel 16-Bit 48 k Hz AAC LC Audio |
| Broadcast Output | NTSC/PAL |
| Presets | 255 via IP, IR |
|---|---|
| Pan/Tilt/Roll | Pan: 340° (-170 to 170°) at 0.01 to 100°/s Tilt: 210° (-90 to 120°) at 0.01 to 100°/s |
| Tally Light | Yes |
| Wireless | No |
|---|
| Video I/O | 1x HDMI 2.0 Output 2x BNC (3G-SDI) Output 1x RJ45 (NDI) Input/Output |
|---|---|
| Audio I/O | 1x 10-Pin LEMO Mic/Line Input/Output |
| Other I/O | 1x BNC (Genlock) Input 1x RJ45 (RS-422) Control |
| Expansion Slots | 1x SFP Slot |
| PoE Support | Yes: PoE++ 802.3bt |
|---|---|
| Power I/O | 1x Hirose 4-Pin (24VDC) Input 1x Hirose 4-Pin (12VDC) Output |
| Power Consumption | Device: 24 VDC 30 to 60 WPoE: 24 VDC 30 to 60 W |
| Operating Conditions | -40 to 140°F / -40 to 60°C |
|---|
| Mounting | 1x 1/4"-20 Female1x 3/8"-16 Female |
|---|---|
| Weight | 22.0 lb / 10 kg (Body Only) |
| Package Weight | 31.19 lb |
|---|---|
| Box Dimensions (Lx WxH) | 20 x 20 x 12.4" |
