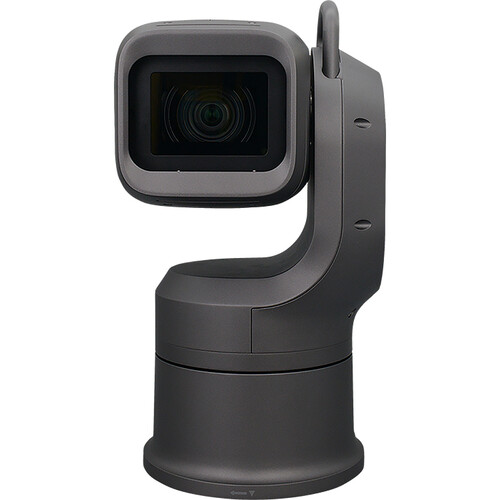

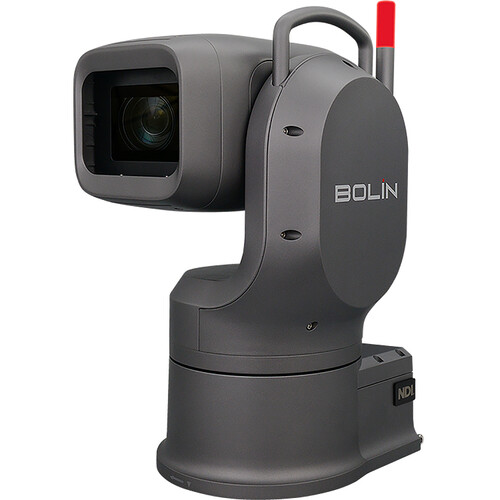

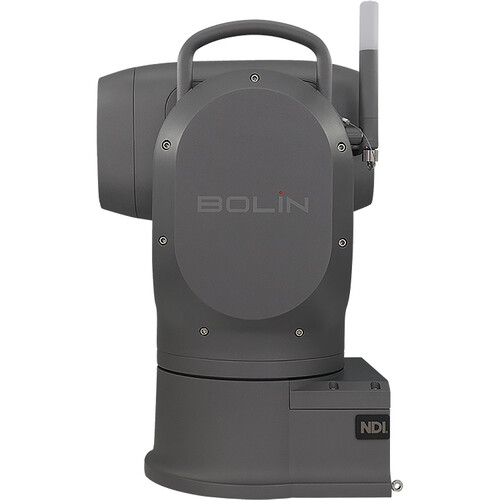

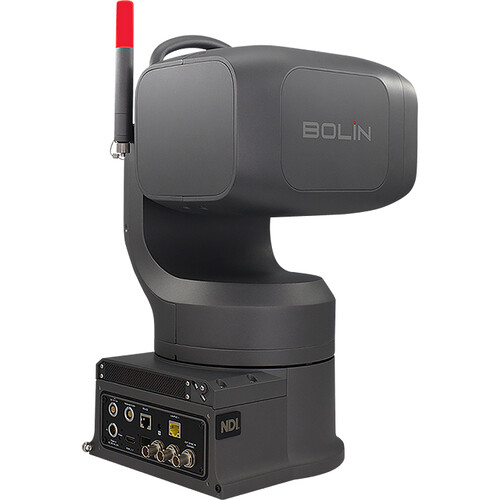

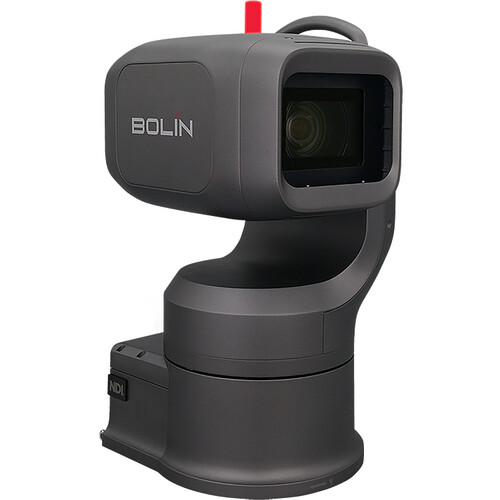

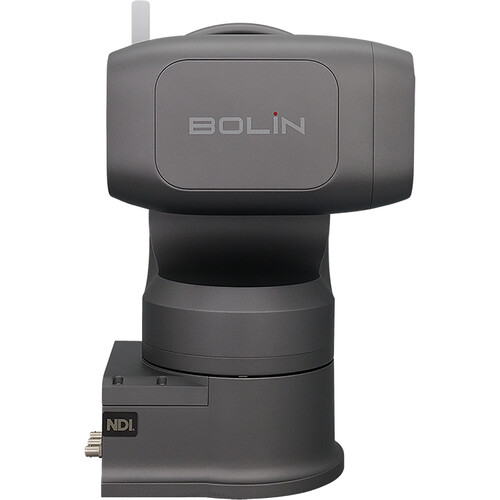

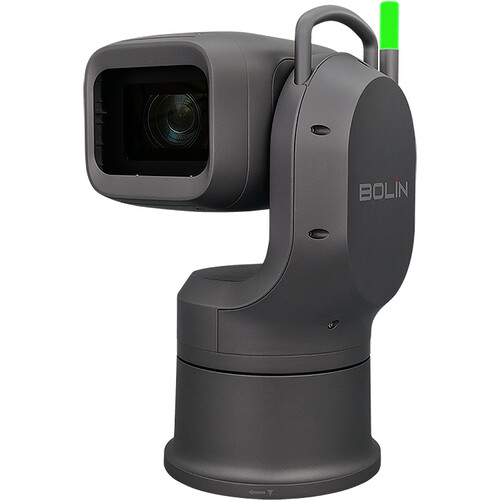

Bolin Technology EXU248N Outdoor NDI 6-Ready High-Bandwidth 1" PTZ Camera (Gray)
$10,995.00
In Stock
- 1" CMOS Exmor R Sensor, 14.2MP
- NDI, 6G-SDI, HDMI, IP Out up to UHD 4K30
- Zeiss Vario-Sonnar T Lens, 48x HD Zoom
- NDI Embedded Bridge
Tracked ShippingRates shown at checkout
60-Day ReturnsOn eligible items
Expert SupportReal people, real advice
Bolin Technology EXU248N Outdoor NDI 6-Ready High-Bandwidth 1" PTZ Camera (Gray)
Designed for creators who demand more from their gear, the Bolin Technology EXU248N Outdoor NDI 6-Ready High-Bandwidth 1" PTZ Camera (Gray) delivers capable, consistent performance. At its core is a 14.2 Megapixel 1"-Type sensor. Everyday handling is covered with No connectivity.
Highlights
- 1" CMOS Exmor R Sensor, 14.2MP
- NDI, 6G-SDI, HDMI, IP Out up to UHD 4K30
- Zeiss Vario-Sonnar T Lens, 48x HD Zoom
- NDI Embedded Bridge
Every order from NIXTRONIC ships tracked worldwide and is covered by our 60-day return policy on eligible items.
In the Box
- Bolin Technology EXU248N Outdoor NDI 6-Ready High-Bandwidth 1" PTZ Camera (Gray)
- Power Adapter
- IR Remote Control
- Tally Light Attachment
- Camera Cover
- Cable Cover
- Screw Set
| SKU | EXU248N |
|---|---|
| Brand | Bolin Technology |
| Image Sensor | 1"-Type CMOS |
|---|---|
| Effective Sensor Resolution | Effective: 14.2 Megapixel (3840 x 2160) Actual: 8.29 Megapixel (3840 x 2160) |
| Focus Control | Autofocus Manual Focus |
| Shutter Speed | 1/10000 to 1/1 Second |
|---|---|
| Signal-to-Noise Ratio | 50 dB |
| Minimum Illumination | 0.5 Lux at 1/30 Shutter Speed (Color) |
| Flip / Mirror Support | Image Flip, Mirror (Vertical) |
| White Balance | Presets: ATW, Auto, Indoors, Manual, One Push Set, Outdoors |
| Focal Length | 9.3 to 111.6mm |
|---|---|
| Max Optical Zoom | 48x |
| Max Digital Zoom | 2x ( in 1080p) |
| Field of View | Horizontal: 64.6 to 6.1°Vertical: 39.2 to 3.4° |
| Maximum Aperture | f/2.8 to 4.5 |
| Minimum Focus Distance | 3.1" / 8 cm (Wide) to 3.9" / 10 cm (Tele) |
| Video Output | via RJ453840 x 2160 at 25/30.00 fps 1920 x 1080p at 60.00/25/30.00/50 fps 1280 x 720 at 60.00/50 fps 4:2:2/4:2:0 10/12-Bit via SDI/BNC / HDMI3840 x 2160 at 25/24.00/29.97/23.98 fps 1920 x 1080p at 59.94/60.00/24.00/25/29.97/50 fps 1920 x 1080i at 60.00/50 fps 1280 x 720 at 59.94/60.00/50 fps |
|---|---|
| Embedded Audio | HDMI/LAN (RJ45)/NDI/SDI |
| Internal Recording | No |
| Audio Recording | Yes |
| Broadcast Output | NTSC/PAL |
| Presets | 255 via IP, IR |
|---|---|
| Pan/Tilt/Roll | Pan: 340° (-170 to 170°) at 0.01 to 60°/s Tilt: 210° (-90 to 120°) at 0.01 to 60°/s |
| Tally Light | Yes |
| Wireless | No |
|---|
| Video I/O | 1x HDMI 2.0 Output 2x BNC (6G-SDI) Output 1x RJ45 Input/Output |
|---|---|
| Audio I/O | 1x 10-Pin LEMO Mic/Line Input/Output |
| Other I/O | 1x BNC (Genlock) Input 1x RJ45 (RS-422) Control |
| Expansion Slots | 1x SFP Slot |
| PoE Support | Yes: PoE++ 802.3bt |
|---|---|
| Power I/O | 1x Hirose 4-Pin (24VDC) Input 1x Hirose 4-Pin (12VDC) Output |
| Power Consumption | Device: 12 VDC 30 to 60 W |
| Operating Conditions | -40 to 140°F / -40 to 60°C |
|---|
| Mounting | 1x 1/4"-20 Female1x 3/8"-16 Female |
|---|---|
| Dimensions (W x H x D) | 8.8 x 16.5 x 10.4" / 223.5 x 419.5 x 265 mm |
| Weight | 22.0 lb / 10 kg (Body Only) |
| Package Weight | 34.2 lb |
|---|---|
| Box Dimensions (Lx WxH) | 21.5 x 19.3 x 13.2" |
