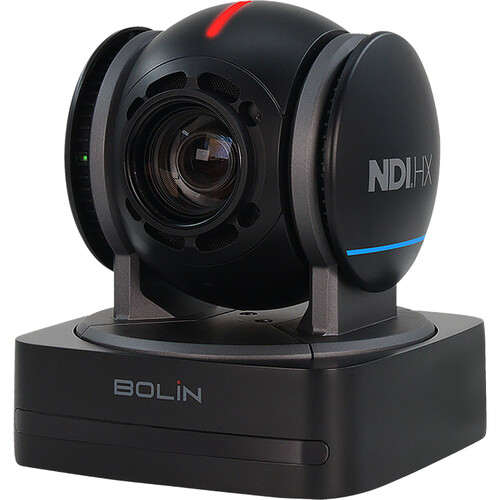

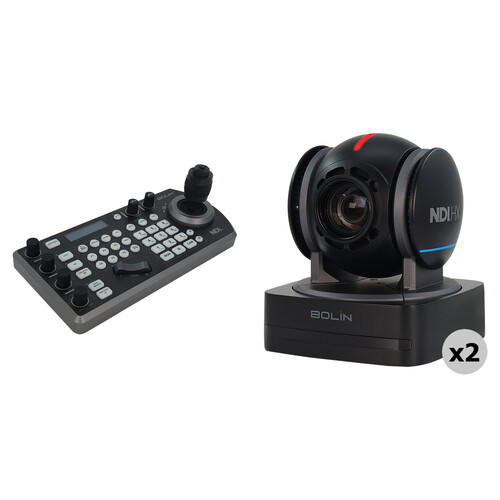

Bolin Technology N2-220X NDI|HX3 PTZ 2-Camera Kit with IP Controller (Black)
$3,385.00
In Stock
- Two PTZ Cameras with One Controller
- Output via NDI|HX3/USB/IP/HDMI/3G-SDI
- Up to 1080p60 Output
- 20x Optical Zoom, 16x Digital Zoom
Tracked ShippingRates shown at checkout
60-Day ReturnsOn eligible items
Expert SupportReal people, real advice
Bolin Technology N2-220X NDI|HX3 PTZ 2-Camera Kit with IP Controller (Black)
Designed for creators who demand more from their gear, the Bolin Technology N2-220X NDI|HX3 PTZ 2-Camera Kit with IP Controller (Black) delivers capable, consistent performance. At its core is a 2.13 Megapixel 1/2.8"-Type sensor. Everyday handling is covered with IR connectivity.
Highlights
- Two PTZ Cameras with One Controller
- Output via NDI|HX3/USB/IP/HDMI/3G-SDI
- Up to 1080p60 Output
- 20x Optical Zoom, 16x Digital Zoom
Ordered from NIXTRONIC, it ships with full tracking worldwide and is backed by our 60-day returns on eligible items.
In the Box
- 2 x Bolin Technology N2-220X NDI|HX3 PTZ Camera (Black)
- IR Remote Control
- Power Adapter
- RJ45 to RS-232/422/485 Cable Adapter

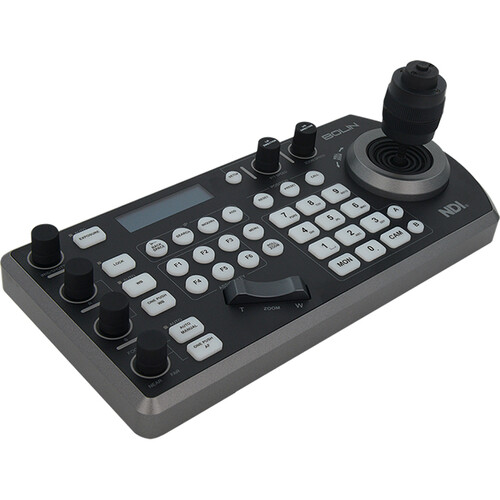

- Bolin Technology NDI-Enabled IP PTZ Camera Controller
- RS-422 RJ45 Adapter
- Serial Control Junction Box
- Power Supply (12V, 2A)
| SKU | BON2220X2CK |
|---|---|
| Brand | Bolin Technology |
| Image Sensor | 1/2.8"-Type CMOS |
|---|---|
| Sensor Resolution | 2.13 Megapixel (1920 x 1080) |
| Focus Control | Autofocus Manual Focus |
| Shutter Speed | 1/10000 to 1 Second |
|---|---|
| Signal-to-Noise Ratio | 50 dB |
| Minimum Illumination | 0.5 Lux |
| Flip / Mirror Support | Image Flip |
| White Balance | Presets: ATW, AWB, Auto, Indoors, Manual, One Push Set, Outdoors |
| Focal Length | 5.2 to 104mm |
|---|---|
| Max Optical Zoom | 20x |
| Max Digital Zoom | 16x |
| Field of View | Horizontal: 55.8 to 3.2° |
| Maximum Aperture | f/1.6 to 3 |
| Minimum Focus Distance | 0.4" / 1 cm |
| Video Output | via HDMI / SDI/BNC1920 x 1080p at 25/29.97/30.00/50/59.94/60.00 fps 1280 x 720 at 25/30.00/50/59.94/60.00 fps via RJ45 / USB1920 x 1080p at 25/30.00/50/60.00 fps 1280 x 720 at 25/30.00/50/60.00 fps |
|---|---|
| Embedded Audio | HDMI/LAN (RJ45)/SDI/USB: 2-Channel |
| Internal Recording | No |
| Audio Recording | 2-Channel 32-Bit 96 k Hz |
| Broadcast Output | NTSC/PAL |
| IP Streaming | H.264/H.265/MJPEG via NDI/NDI HX2/NDI HX3/RTMP/RTMPS/RTP/RTSP/SRT/TCP/UDP/UVC/UAC 320 x 180 to 1920 x 1080 at 25p, 30p, 50p, 60p (Simultaneous Multi-Stream) H.264/H.265/MJPEG via ONVIF/RTMP/RTP/RTSP/TCP/UDP 640 x 360 to 1920 x 1080 at 25p, 30p, 50p, 60p |
| Presets | 255 via IP, RS-232, UVC, VISCA, Pelco-P, Pelco-D6 via IR |
|---|---|
| Pan/Tilt/Roll | Pan: 340° (-170 to 170°) at 0.5 to 100°/s Tilt: 120° (-30 to 90°) at 0.5 to 50°/s |
| Tally Light | Yes |
| Wireless | IR |
|---|
| Video I/O | 1x USB-C 2.0 Output 1x RJ45 (NDI) Input/Output 1x HDMI 1.4 Output 1x BNC (3G-SDI) Output |
|---|---|
| Other I/O | 1x RJ45 (RS-232, RS-485) Control Input 1x USB-A (USB 2.0) Aux Input (Shared with Mic/Line Input) |
| Built-In Microphone | No |
| Built-In Speaker | No |
| PoE Support | Yes: PoE+ 802.3at |
|---|---|
| Power I/O | 1x Barrel (12VDC) Input |
| Power Consumption | Device: 12 VDC at 4 A (10 to 13 W) |
| Operating Conditions | 14 to 122°F / -10 to 50°C up to 80% Humidity |
|---|
| Mounting | 1x 1/4"-20 Female |
|---|---|
| Materials | Magnesium Alloy |
| Dimensions (W x H x D) | 5.6 x 5.6 x 6.3" / 143 x 143 x 161 mm |
| Weight | 3 lb / 1.5 kg (Body Only) |
| Package Weight | 6.065 lb |
|---|---|
| Box Dimensions (Lx WxH) | 11.5 x 9.3 x 8.4" |
