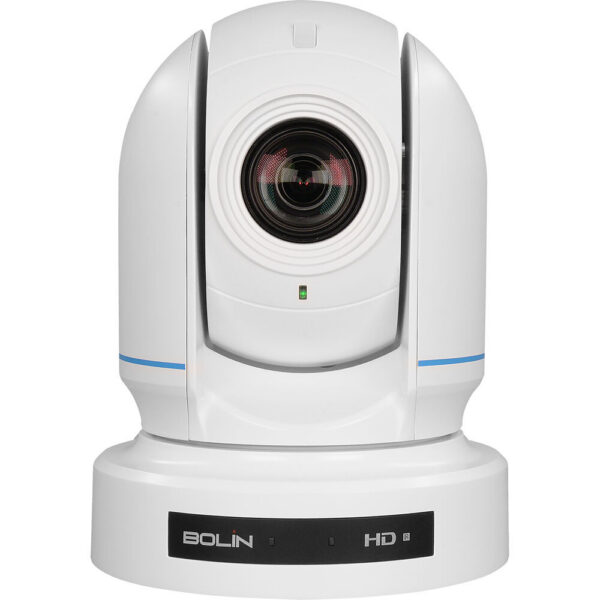

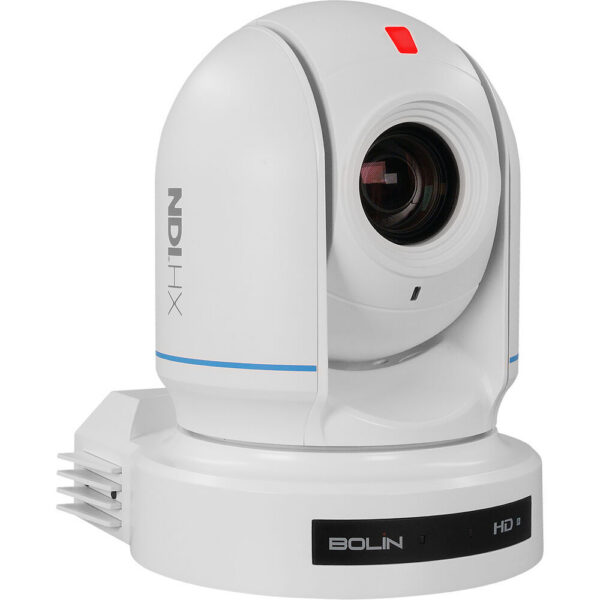

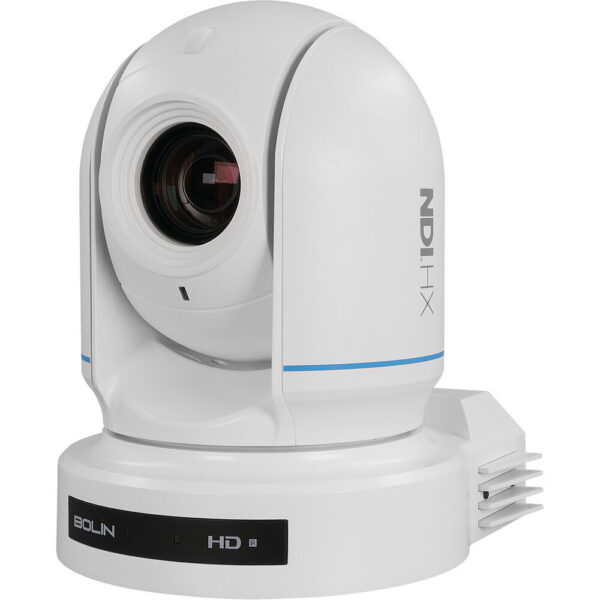

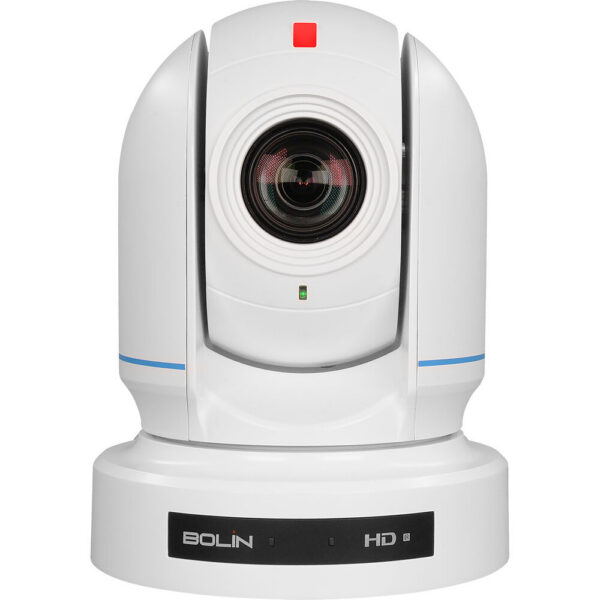

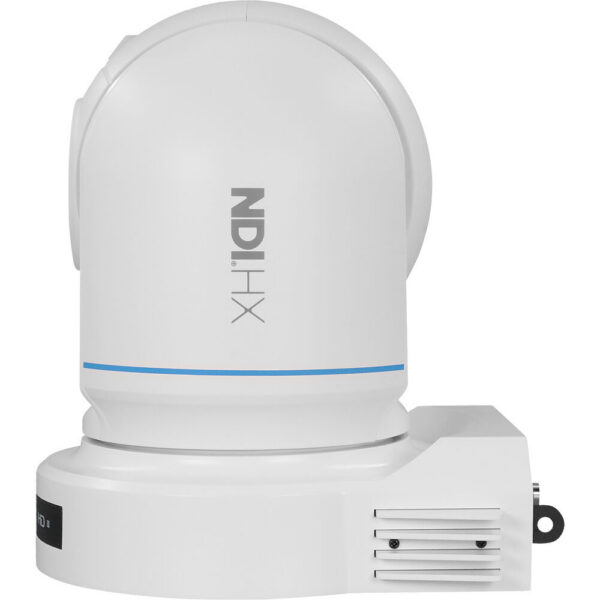

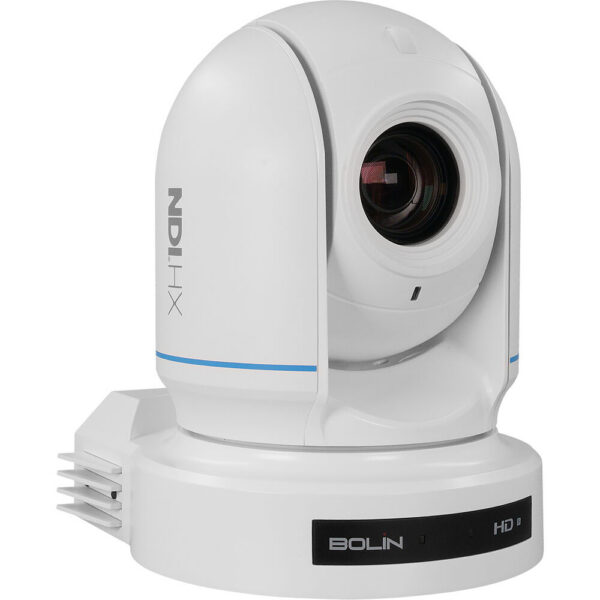

Bolin Technology N7-220XW NDI|HX3 Full HD PTZ Camera (White)
$1,395.00
In Stock
- 1080p60 Output over USB/IP/HDMI/3G-SDI
- NDI|HX3, H.264/H.265 Support
- 3.5mm Mic/Line Audio Input
- 20x Optical Zoom, 16x Digital Zoom
Tracked ShippingRates shown at checkout
60-Day ReturnsOn eligible items
Expert SupportReal people, real advice
Bolin Technology N7-220XW NDI|HX3 Full HD PTZ Camera (White)
The Bolin Technology N7-220XW NDI|HX3 Full HD PTZ Camera (White) is built for photographers and creators who want dependable, professional results. Everyday handling is covered with IR connectivity.
Highlights
- 1080p60 Output over USB/IP/HDMI/3G-SDI
- NDI|HX3, H.264/H.265 Support
- 3.5mm Mic/Line Audio Input
- 20x Optical Zoom, 16x Digital Zoom
Every order from NIXTRONIC ships tracked worldwide and is covered by our 60-day return policy on eligible items.
In the Box
- Bolin Technology N7-220XW NDI|HX3 Full HD PTZ Camera (White)
- IR Remote Control
- Power Adapter
- RJ45 to RS-232/422/485 Cable Adapter
| SKU | N7-220XW |
|---|---|
| Brand | Bolin Technology |
| White Balance | Presets: ATW, AWB, Auto, Indoors, Manual, One Push Set, Outdoors |
|---|
| Minimum Focus Distance | 0.4" / 1 cm |
|---|
| Video Output | via HDMI / SDI/BNC1920 x 1080p at 25/29.97/30.00/50/59.94/60.00 fps 1280 x 720 at 25/30.00/50/59.94/60.00 fps via RJ45 / USB1920 x 1080p at 25/30.00/50/60.00 fps 1280 x 720 at 25/30.00/50/60.00 fps |
|---|---|
| Internal Recording | No |
| Audio Recording | Yes |
| Broadcast Output | NTSC/PAL |
| IP Streaming | H.264/H.265/MJPEG via NDI/NDI HX3/RTMP/RTMPS/RTP/RTSP/SRT/TCP/UDP/UVC/UAC 320 x 180 to 1920 x 1080 at 25p, 30p, 50p, 60p (Simultaneous Multi-Stream) H.264/H.265/MJPEG via ONVIF/RTMP/RTP/RTSP/TCP/UDP 480 x 360 to 1920 x 1080 at 25p, 30p, 50p, 60p |
| Presets | 255 via IP, RS-232, UVC, VISCA, Pelco-P, Pelco-D6 via IR |
|---|---|
| Pan/Tilt/Roll | Pan: 340° (-170 to 170°) at 0.5 to 100°/s Tilt: 120° (-30 to 90°) at 0.5 to 50°/s |
| Tally Light | Yes |
| Wireless | IR |
|---|
| Video I/O | 1x USB-C 2.0 Output 1x HDMI 1.4 Output 1x BNC (3G-SDI) Output |
|---|---|
| Audio I/O | 1x 1/8" / 3.5 mm TS Mono Line Input |
| Other I/O | 1x RJ45 (RS-232) Control Input 1x RJ45 (RS-485) Control 1x RJ45 (LAN, NDI) (Shared with Power Input, Video Output)1x USB-A (USB 2.0) Input |
| Built-In Microphone | No |
| Built-In Speaker | No |
| PoE Support | Yes: PoE+ 802.3at |
|---|---|
| Power I/O | 1x Barrel (12VDC) Input |
| Power Consumption | Device: 12 VDC at 4 A (15 to 19 W) |
| Operating Conditions | 32 to 130°F / 0 to 54°C up to 80% Humidity |
|---|
| Mounting | 1x 1/4"-20 Female |
|---|---|
| Materials | Magnesium Alloy |
| Dimensions (W x H x D) | 7.04 x 6.3 x 8.3" / 178.75 x 159 x 211 mm |
| Weight | 4 lb / 2 kg (Body Only) |
