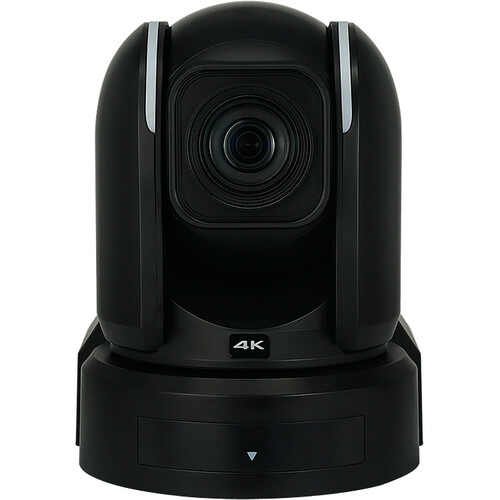

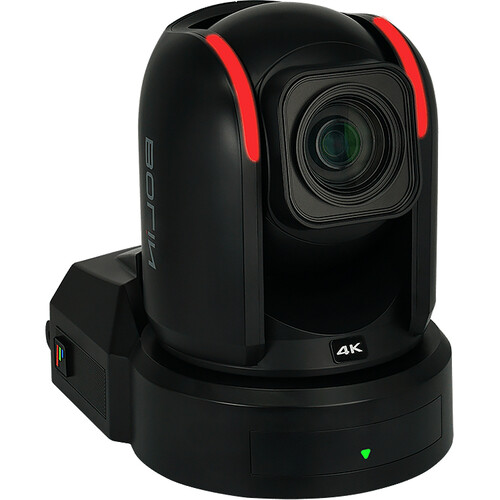

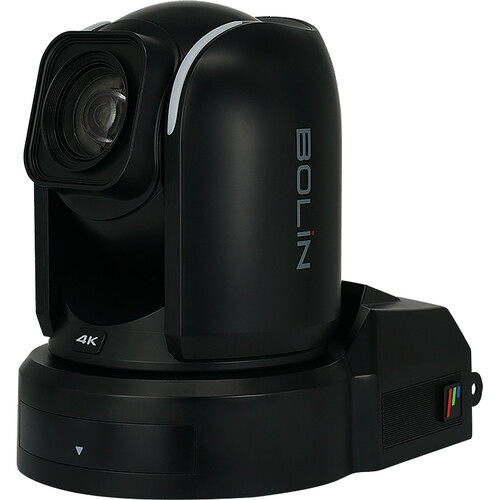

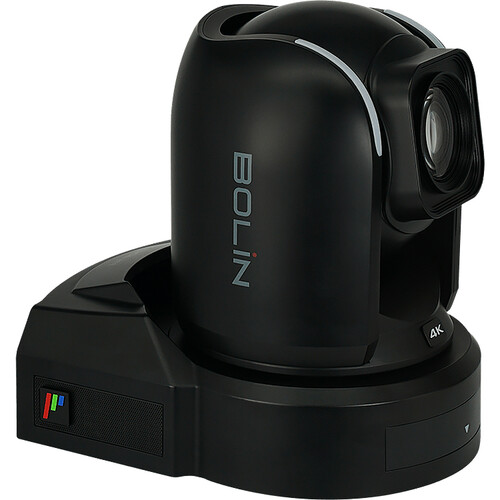

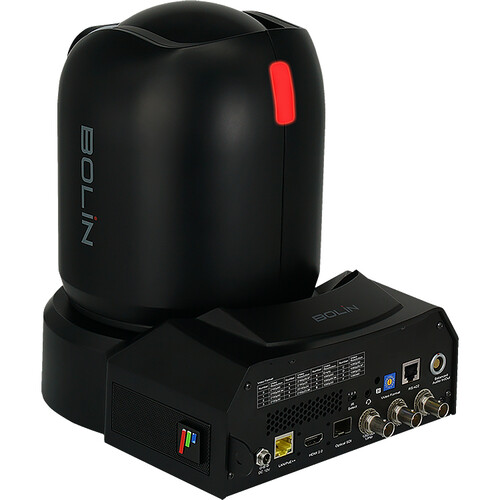

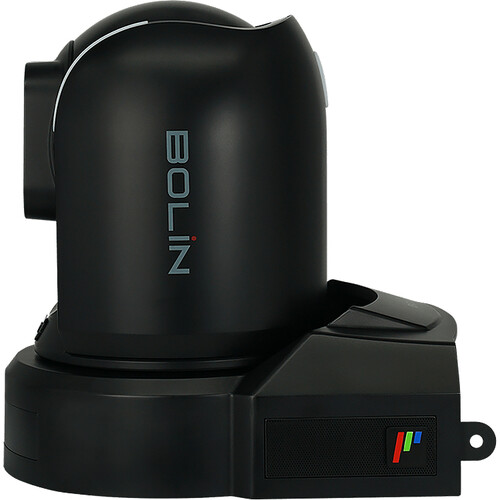

Bolin Technology R9-418F 4K PTZ Camera (Black)
$5,995.00
In Stock
- Up to UHD 4K30 via IP/HDMI/6G-SDI
- Sony 1" CMOS Sensor, 14.2MP
- 18x 4K Optical Zoom, 24x in HD
- Mic/Line Audio Input & Output
Tracked ShippingRates shown at checkout
60-Day ReturnsOn eligible items
Expert SupportReal people, real advice
Bolin Technology R9-418F 4K PTZ Camera (Black)
Designed for creators who demand more from their gear, the Bolin Technology R9-418F 4K PTZ Camera (Black) delivers capable, consistent performance. At its core is a 14.2 Megapixel 1"-Type sensor. Everyday handling is covered with No connectivity.
Highlights
- Up to UHD 4K30 via IP/HDMI/6G-SDI
- Sony 1" CMOS Sensor, 14.2MP
- 18x 4K Optical Zoom, 24x in HD
- Mic/Line Audio Input & Output
Ordered from NIXTRONIC, it ships with full tracking worldwide and is backed by our 60-day returns on eligible items.
In the Box
- Bolin Technology R9-418F 4K PTZ Camera (Black)
- IR Remote Control
- Power Adapter
- Power Cable
- RS-422/232 RJ45 Adapter
- Safety Cable
- Dust Cover
- Lens Cap
- Mounting Screw Set
| SKU | R9-418F |
|---|---|
| Brand | Bolin Technology |
| Image Sensor | 1"-Type CMOS |
|---|---|
| Effective Sensor Resolution | 14.2 Megapixel (3840 x 2160) |
| Focus Control | Autofocus Manual Focus |
| Shutter Speed | 1/10000 to 1 Second |
|---|---|
| Signal-to-Noise Ratio | 50 dB |
| Minimum Illumination | 0.5 Lux at 1/30 Shutter Speed |
| Flip / Mirror Support | Image Flip, Mirror (Vertical) |
| White Balance | Presets: ATW, AWB, Auto, Manual, One Push, Outdoors |
| Focal Length | 9.3 to 111.6mm |
|---|---|
| Max Optical Zoom | 18x |
| Field of View | Horizontal: 64.6 to 6.1° |
| Maximum Aperture | f/2.8 to 4.5 |
| Minimum Focus Distance | 3.1" / 8 cm (Wide) to 39.4" / 100 cm (Tele) |
| Video Output | 4:2:2 10-Bit via HDMI3840 x 2160 at 24.00/29.97/23.98 fps 1920 x 1080p at 59.94/60.00/23.98/24.00/25/29.97/30.00/50 fps 1920 x 1080i at 59.94/60.00/50 fps 1280 x 720 at 59.94/60.00/50 fps 4:2:2 10-Bit via SDI/BNC1920 x 1080p at 25/24.00/30.00/29.97/50/59.94/60.00/23.98 fps 1920 x 1080i at 59.94/60.00/50 fps 1280 x 720 at 59.94/60.00/50 fps |
|---|---|
| Embedded Audio | HDMI/LAN (RJ45)/SDI |
| Internal Recording | No |
| Audio Recording | 24-Bit 192 k Hz AAC Audio |
| Broadcast Output | NTSC/PAL |
| Presets | 255 via IP, VISCA, Pelco-P, Pelco-D |
|---|---|
| Pan/Tilt/Roll | Pan: 340° (-170 to 170°) at 0.05 to 100°/s Tilt: 120° (-30 to 90°) at 0.05 to 75°/s |
| Tally Light | Yes |
| Wireless | No |
|---|

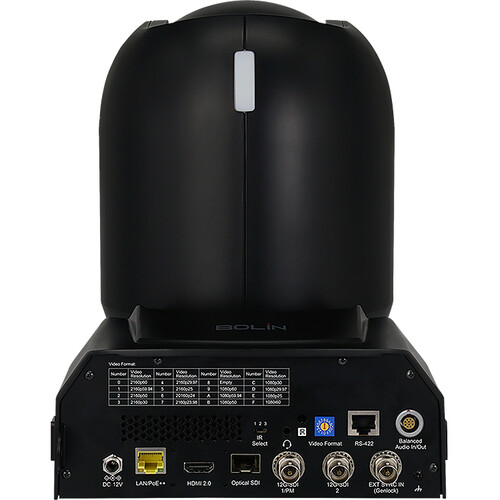

| Video I/O | 1x HDMI 2.0 Output 2x BNC (6G-SDI) Output 1x RJ45 LAN Input/Output |
|---|---|
| Audio I/O | 1x 1/8" / 3.5 mm TRRS Headphone/Mic Intercom Input 1x 10-Pin LEMO Mic/Line Input/Output (+48 V Phantom Power) |
| Other I/O | 1x RJ45 (RS-422) Control Input/Output 1x RJ45 (Ethernet, LAN) Control/Data Input/Output 1x BNC (Genlock) Input |
| Expansion Slots | 1x SFP+ Slot |
| PoE Support | Yes: PoE++ 802.3bt |
|---|---|
| Power I/O | 1x Barrel (12VDC) Input |
| Power Consumption | Device: 29 to 50 W |
| Operating Conditions | 14 to 122°F / -10 to 50°C up to 80% Humidity |
|---|
| Mounting | 1x 1/4"-20 Female |
|---|---|
| Materials | Magnesium Alloy |
| Dimensions (W x H x D) | 7.9 x 9.8 x 10" / 201 x 249 x 253 mm |
| Weight | 8.4 lb / 3.8 kg (Body Only) |
| Package Weight | 14.02 lb |
|---|---|
| Box Dimensions (Lx WxH) | 14.6 x 13.1 x 9.5" |
