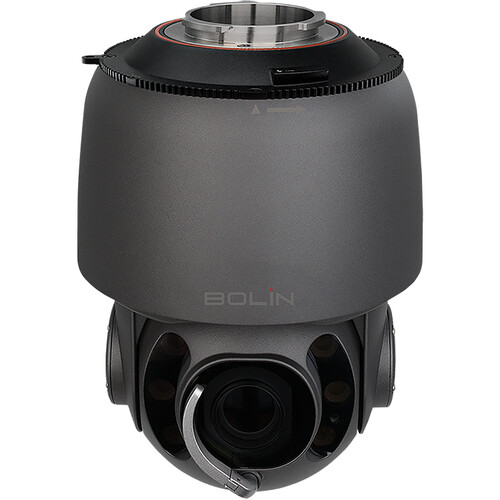

Bolin Technology SD530NX Outdoor NDI HX3 PTZ Camera (Gray)
Designed for creators who demand more from their gear, the Bolin Technology SD530NX Outdoor NDI HX3 PTZ Camera (Gray) delivers capable, consistent performance. At its core is a 2.13 Megapixel 1/2.8"-Type sensor. Everyday handling is covered with No connectivity.
Highlights
1/2.8" CMOS STARVIS Sensor
3G-SDI, IP, and NDI HX3 Video Output
30x Optical Zoom, 12x Digital Zoom
IP67 Rated / Wiper / Corrosion-Resistant
Every order from NIXTRONIC ships tracked worldwide and is covered by our 60-day return policy on eligible items.
In the Box
Bolin Technology SD530NX Outdoor NDI HX3 PTZ Camera (Gray)
Power Adapter
Power Connector
Safety Chain
SKU
SD530NX
Brand
Bolin Technology
Imaging
Image Sensor
1/2.8"-Type CMOS
Effective Sensor Resolution
2.13 Megapixel (1920 x 1080)
Focus Control
Autofocus
Manual Focus
Exposure Control
Shutter Speed
1/10000 to 1/1 Second
Flip / Mirror Support
Image Flip, Mirror (Vertical)
White Balance
Presets: ATW, Auto, Manual, One Push, One Push Set, Outdoors
Lens
Focal Length
4.3 to 129mm
Max Optical Zoom
30x
Max Digital Zoom
12x
Field of View
Horizontal: 64 to 2.4°
Maximum Aperture
f/1.6 to 4.7
Minimum Focus Distance
0.4" / 1 cm (Wide) to 47.2" / 120 cm (Tele)
Video Capture
Video Output
via RJ45 / SDI/BNC1920 x 1080p
Embedded Audio
LAN (RJ45)/NDI/SDI
Internal Recording
No
Broadcast Output
NTSC/PAL
Control
Presets
255
Pan/Tilt/Roll
Pan: 360° at 150°/s Tilt: 120° (-90 to 30°)
Networking
Wireless
No
Interface
Video I/O
1x BNC (3G-SDI) Output
1x RJ45 (NDI) Input/Output
Other I/O
1x RJ45 (RS-422) Control Input/Output
1x Block 3-Pin Input/Output
Built-In Speaker
No
Power
PoE Support
Yes: PoE++ 802.3bt
Power I/O
1x Proprietary (24VDC) Input
Power Consumption
Device: 55 W with Heater
Device: 30 W
Environmental
Operating Conditions
-40 to 140°F / -40 to 60°C up to 100% Humidity
General
Mounting
1x Proprietary for Ceiling
Certifications
CCC, CE, FCC, IC, RoHS, UL, WEEE
Dimensions (W x H x D)
8.3 x 11.7 x 8.3" / 212 x 297 x 212 mm
Weight
11.5 lb / 5.2 kg (Gimbal)
Packaging Info
Package Weight
18 lb
Box Dimensions (Lx WxH)
18.3 x 12.8 x 12.5"
