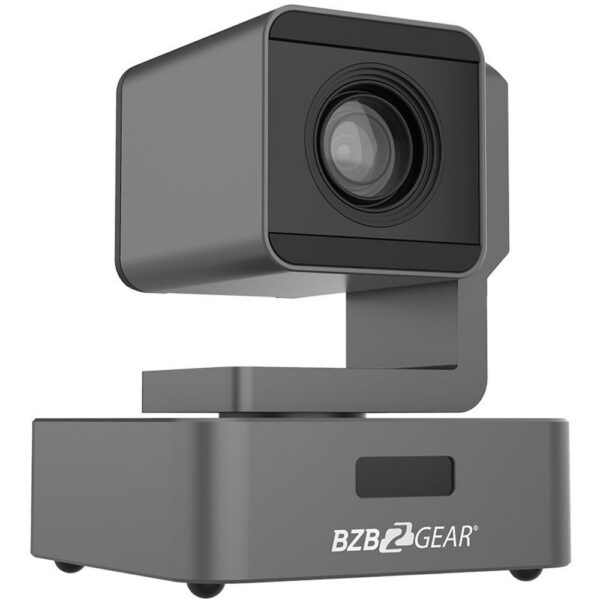

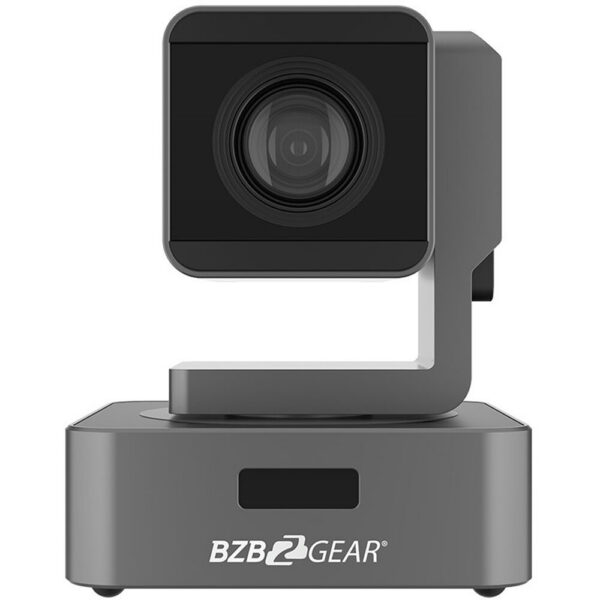

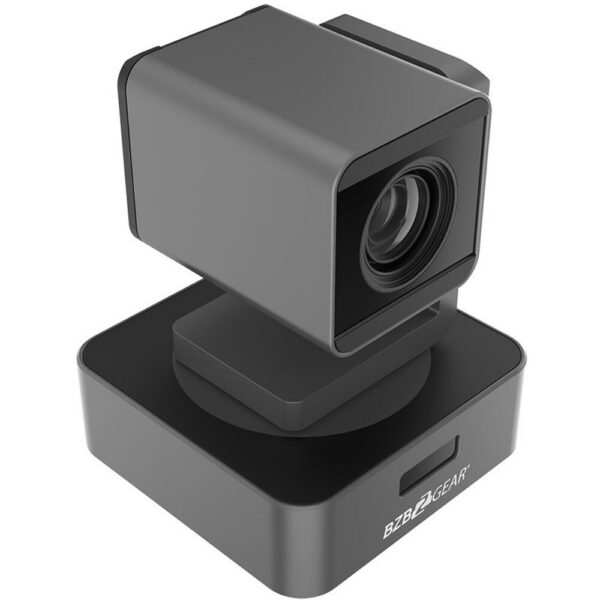

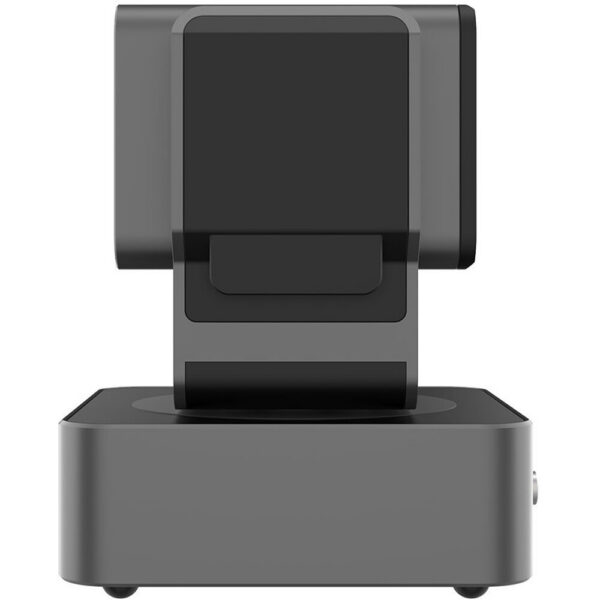

BZBGEAR 1080p HDMI/SDI/USB & NDI HX2 Live Streaming PTZ Camera with 20x Zoom & PoE
$1,079.20
In Stock
- 1/2.8" 2.38MP CMOS Sensor
- Efficient NDI|HX2 Streaming Capability
- HDMI, 3G-SDI, USB & IP Streaming Output
- 20x Optical Zoom, 12x Digital Zoom
Tracked ShippingRates shown at checkout
60-Day ReturnsOn eligible items
Expert SupportReal people, real advice
BZBGEAR 1080p HDMI/SDI/USB & NDI HX2 Live Streaming PTZ Camera with 20x Zoom & PoE
Designed for creators who demand more from their gear, the BZBGEAR 1080p HDMI/SDI/USB & NDI HX2 Live Streaming PTZ Camera with 20x Zoom & PoE delivers capable, consistent performance. At its core is a 2.38 Megapixel 1/2.8"-Type sensor. Everyday handling is covered with No connectivity.
Highlights
- 1/2.8" 2.38MP CMOS Sensor
- Efficient NDI|HX2 Streaming Capability
- HDMI, 3G-SDI, USB & IP Streaming Output
- 20x Optical Zoom, 12x Digital Zoom
Every order from NIXTRONIC ships tracked worldwide and is covered by our 60-day return policy on eligible items.
In the Box
- BZBGEAR 1080p HDMI/SDI/USB & NDI HX2 Live Streaming PTZ Camera with 20x Zoom & PoE
- Power Adapter
- IR Remote Control
- RS-232 to DB-9 Adapter
Videos
| SKU | BG-VPTZN-20HSU3 |
|---|---|
| Brand | BZBGEAR |
| Image Sensor | 1/2.8"-Type CMOS |
|---|---|
| Sensor Resolution | 2.38 Megapixel (1920 x 1080) |
| IR Cut Filter | No |
| Focus Control | Autofocus Manual Focus |
| Shutter Speed | 1/10000 to 1 Second |
|---|---|
| Minimum Illumination | 0.005 Lux |
| Flip / Mirror Support | Image Flip, Mirror (Vertical) |
| White Balance | Presets: Auto, Indoors, Manual, Outdoors Range: 3000 to 6500K |
| Focal Length | 4.7 to 94mm |
|---|---|
| Max Optical Zoom | 20x |
| Max Digital Zoom | 12x |
| Field of View | Horizontal: 65° |
| Maximum Aperture | f/1.6 to 2.8 |
| Video Output | via HDMI / RJ45 / SDI/BNC / USB1920 x 1080p at 25/29.97/50/59.94 fps 1920 x 1080i at 25/29.97/50/59.94 fps 1280 x 720 at 25/29.97/50/59.94 fps |
|---|---|
| Internal Recording | No |
| Broadcast Output | NTSC/PAL |
| IP Streaming | H.264/H.265 via NDI/NDI HX/ONVIF/RTMP/RTSP/TCP 1280 x 720 to 1920 x 1080 |
| Presets | 255 via IP, RS-232, VISCA9 via IR |
|---|---|
| Pan/Tilt/Roll | Pan: 356° (-178 to 178°) at 0.1 to 180°/s Tilt: 120° (-30 to 90°) at 0.1 to 120°/s |
| Wireless | No |
|---|

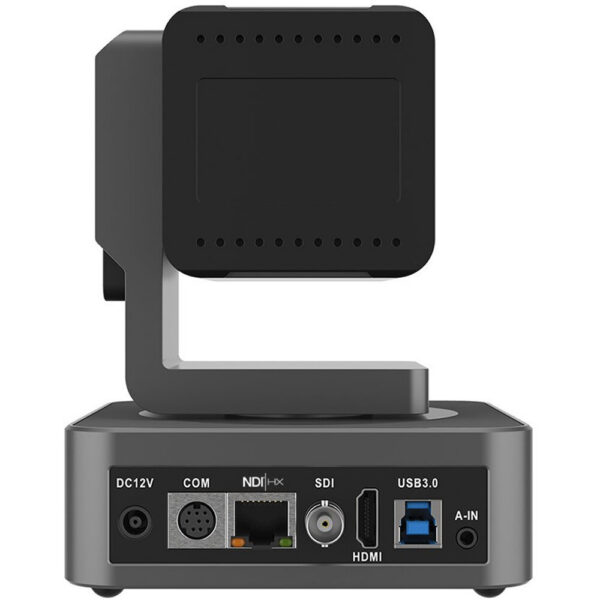

| Video I/O | 1x HDMI Output 1x BNC (3G-SDI) Output 1x USB-B 3.0 / 3.1/3.2 Gen 1 Output |
|---|---|
| Audio I/O | 1x 1/8" / 3.5 mm TRS Stereo Line Input |
| Other I/O | 1x Mini-DIN 8-Pin (Pelco-D, Pelco-P, RS-232, VISCA) Control Input 1x RJ45 (LAN, NDI) Input/Output |
| Built-In Microphone | No |
| Built-In Speaker | No |
| PoE Support | Yes: PoE 802.3af |
|---|---|
| Power I/O | 1x Barrel (12VDC up to 2 A) Input |
| Power Consumption | Power Supply: 100 to 240 VAC 12 W |
| Mounting | 1x M3 Female |
|---|---|
| Materials | Aluminum |
| Dimensions (W x H x D) | 4.7 x 5.7 x 4.7" / 120 x 145 x 120 mm |
| Weight | 4 lb / 1.6 kg (Body Only) |
| Package Weight | 4.665 lb |
|---|---|
| Box Dimensions (Lx WxH) | 10.25 x 9.25 x 8.15" |
