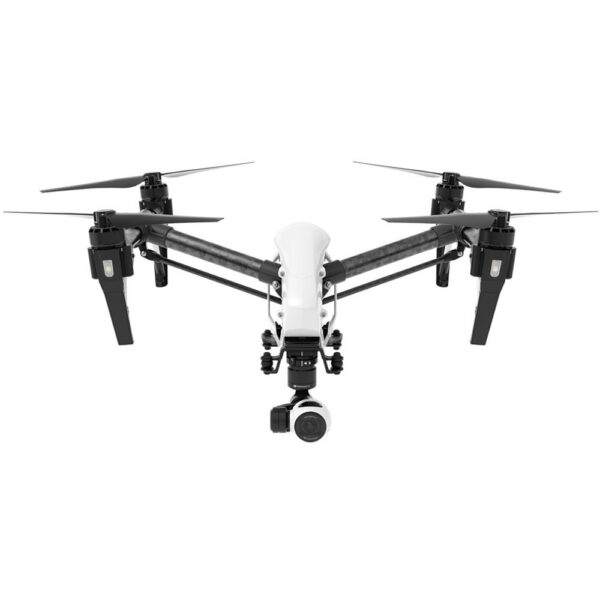

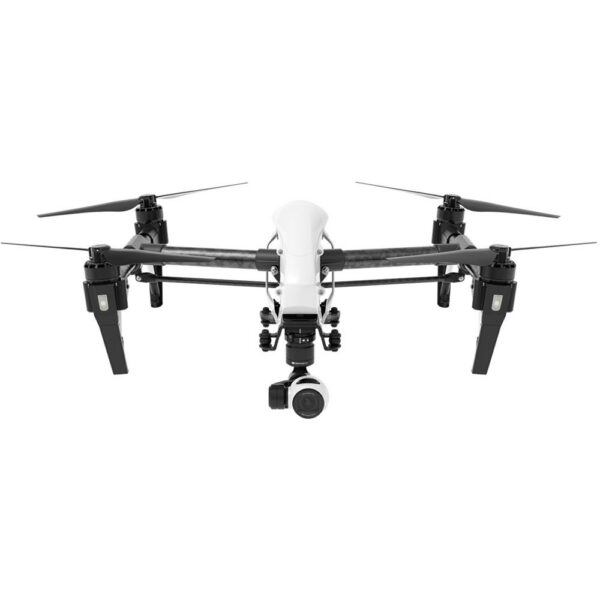

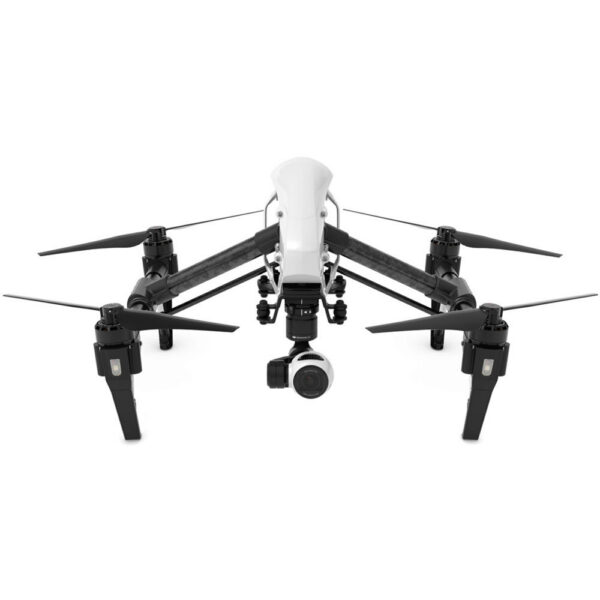

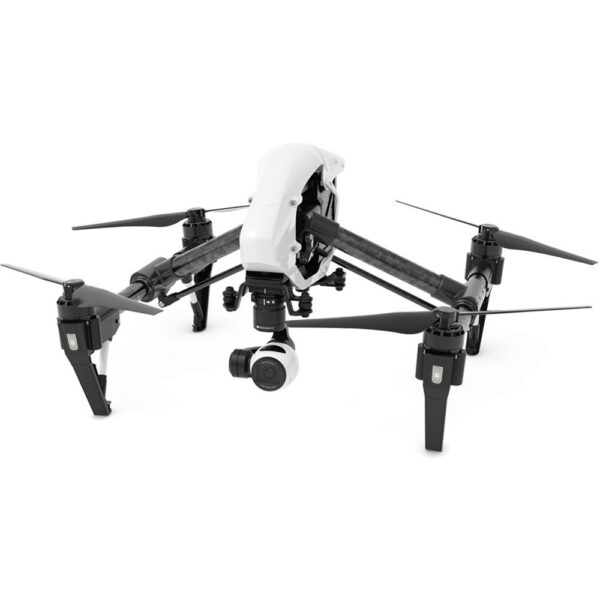

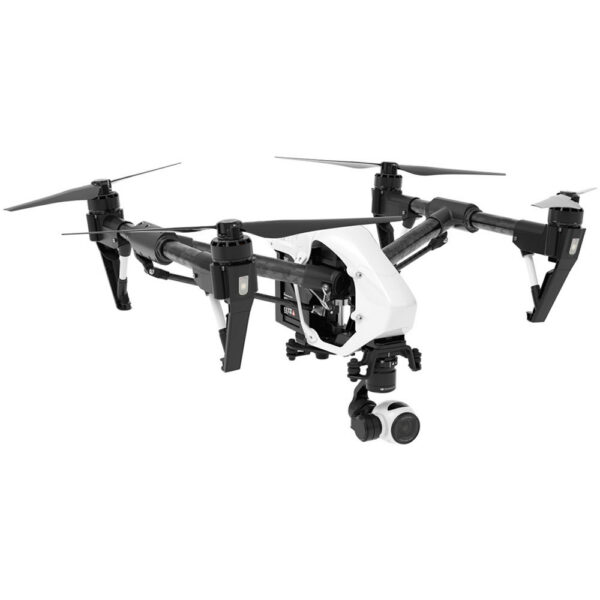

DJI Inspire 1 v2.0 Quadcopter with 4K Camera and 3-Axis Gimbal (No Remote/Charger)
The DJI Inspire 1 v2.0 Quadcopter with 4K Camera and 3-Axis Gimbal (No Remote/Charger) brings serious imaging performance to every shoot, from planned sessions to spontaneous moments. It flies for up to with zenmuse x3: up to 18 minutes with zenmuse x5/x5r: up to 15 minutes.
Highlights
Capture 4K Video and 12MP Stills
3-Axis Gimbal Stabilizes Camera
Up to 1.2 Mile Radio Range
GPS-Based Flight Control System
Ordered from NIXTRONIC, it ships with full tracking worldwide and is backed by our 60-day returns on eligible items.
In the Box
DJI Inspire 1 v2.0 Quadcopter with 4K Camera and 3-Axis Gimbal (No Remote/Charger)
DJI Zenmuse X3 Gimbal and Camera Unit (Inspire 1 Variant)
Ascent: 16.4 fps / 5 m/s Descent: 13.1 fps / 4 m/s
Maximum Speed
72.2 fps / 22 m/s (Attitude mode; no wind)
Maximum Flight Altitude
14,764' / 4,500 m
Maximum Wind Speed Resistance
32.8 fps / 10 m/s
Maximum Flight Time
With Zenmuse X3: Up to 18 minutes With Zenmuse X5/X5R: Up to 15 minutes
Camera
Model
Name: X3 Designation: FC350
Sensor
Sony EXMOR 1/2.3" CMOS
Resolution
12.0 MP
Lens
Field of View: 94° Focal Length (35 mm Equivalent): 20 mm Aperture: f/2.8 Design: 9 elements in 9 groups; aspherical lens element Filters: Anti-distortion filter; UV filter
Video Recording
UHD (4K): 4096 x 2160: 24p, 25p 3840 x 2160: 24p, 25p, 30p FHD (1080p): 1920 x 1080: 24p, 25p, 30p, 48p, 50p, 60p HD (720p): 1280 x 720: 24p, 25p, 30p, 48p, 50p, 60p Maximum Bitrate: 60 Mbps
File Format
Photo: JPEG, DNG Video: MP4 in a .MOV wrapper （MPEG-4 AVC/H.264）
Recording Media
Type: microSD/SDHC/SDXC up to 64 GB Speed: Class 10 or faster Format: FAT32/exFAT
Photography Modes
Single shot Burst: 3, 5, 7 frames per second (AEB: 3/5 frames per second; 0.7 EV bias) Time-lapse
Operating Temperature
32 to 104°F / 0 to 40°C
Gimbal
Model
Zenmuse X3
Number of Axes
3-axis
Control Accuracy
±0.03°
Maximum Controlled Rotation Speed
Pitch: 120°/s Pan: 180°/s
Controlled Rotation Range
Pitch: -90° to +30° Pan: ±330°
Angular Vibration Range
±0.03°
Output Power
Static: 9 W In Motion: 11 W
Operational Current
Static: 750 mA In Motion: 900 mA
Mounting
Detachable
Flight Controller
Indoor Hovering
Enabled by default
Optical Sensor (Optical Flow)
Frequency: 50 Hz Velocity Range: Below 26.2 fps / 8 m/s (6.6' / 2 m above the ground) Altitude Range: 2 to 196.8" / 5 to 500 cm Operating Environment: Rich pattern surface with adequate lighting (> 15 lux) Operating Range: 0 to 8.2' / 0 to 2.5 m
Motor
Model
DJI 3510H
Motor Velocity Constant
420 Kv
Maximum Thrust
4.8 lb / 2200 g at 25 V and sea level
Weight
3.8 oz / 107 g
Propeller
Model
DJI 1345
Flight Battery
Model
TB47
Voltage
6S LiPo; 22.2 VDC
Capacity
4500 m
Ah / 99.9 Wh
Maximum Charging Power
180 W
Operating Temperature
-4 to 104°F / -20 to 40°C
Storage Temperature
-4 to 113°F / -20 to 45°C 72 to 82°F / 22 to 28°C
Charging Temperature
32 to 104°F / 0 to 40°C
Weight
1.3 lb / 570 g
Mobile App
System Requirements
iOS: 7.1 or later Android: 4.1.2 or later Note: The device must be connected to a transmitter via USB (wireless linking is not supporting). Additionally, waypoint navigation requires an active Internet connection in order to load the maps
General
Model
Aircraft: T600
Operating Temperature
14 to 104°F / -10 to 40°C
Dimensions
Diagonal Distance: Landing Gear Lowered: 22" / 559 mm Landing Gear Raised: 22.9" / 581 mm Overall Dimensions: 17.2 x 17.8 x 11.9" / 438 x 451 x 301 mm
Weight
With Battery: 6.5 lb / 2.9 kg
Packaging Info
Package Weight
19.35 lb
Box Dimensions (Lx WxH)
23 x 21.1 x 11.7"
