ikan OTTICA 3 x Full NDI 20x PTZ Cameras and IP Controller Bundle (Black)
$3,099.00
In Stock
- 3 x OTTICA Full NDI 1080p PTZ Cameras
- OTTICA V2 IP PTZ Camera Controller
- 20x Optical Zoom, 4.42 to 88.5mm
- Licensed, Selectable NDI and NDI HX3
Tracked ShippingRates shown at checkout
60-Day ReturnsOn eligible items
Expert SupportReal people, real advice

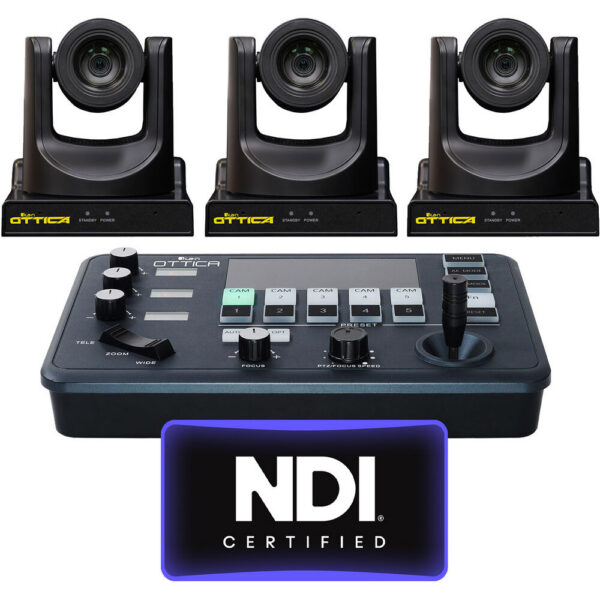

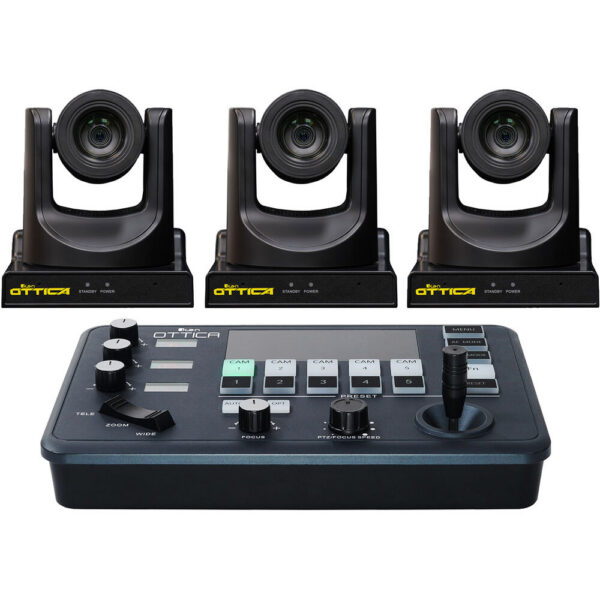

ikan OTTICA 3 x Full NDI 20x PTZ Cameras and IP Controller Bundle (Black)
The ikan OTTICA 3 x Full NDI 20x PTZ Cameras and IP Controller Bundle (Black) brings serious imaging performance to every shoot, from planned sessions to spontaneous moments. At its core is a 2.07 Megapixel 1/2.8"-Type sensor. Everyday handling is covered with IR connectivity.
Highlights
- 3 x OTTICA Full NDI 1080p PTZ Cameras
- OTTICA V2 IP PTZ Camera Controller
- 20x Optical Zoom, 4.42 to 88.5mm
- Licensed, Selectable NDI and NDI HX3
Every order from NIXTRONIC ships tracked worldwide and is covered by our 60-day return policy on eligible items.
In the Box

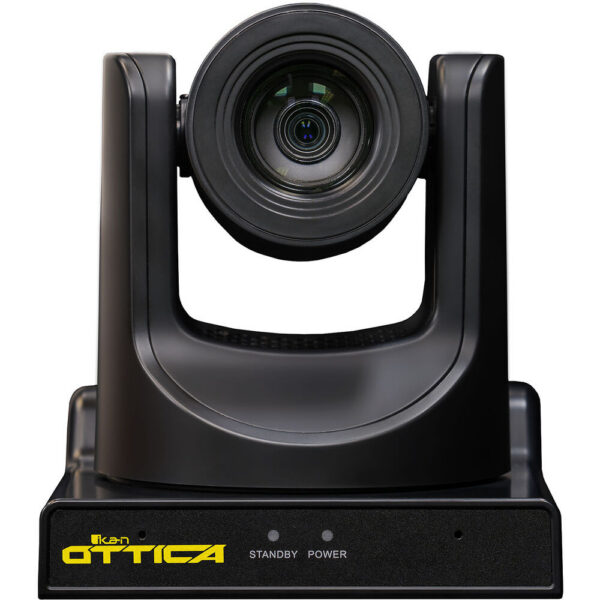

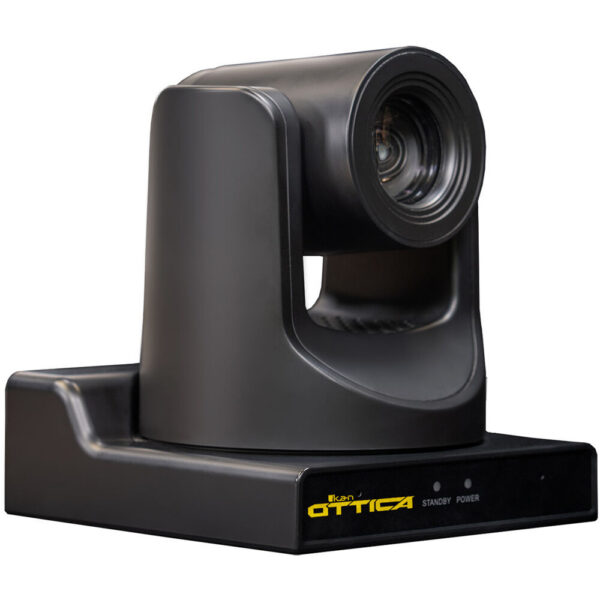

- 3 x ikan OTTICA Full NDI and NDI HX3 PTZ Camera with AI Tracking and 20x Zoom
- Power Adapter
- Power Cable
- RS-232 Cable
- IR Remote Control
- Wall Bracket

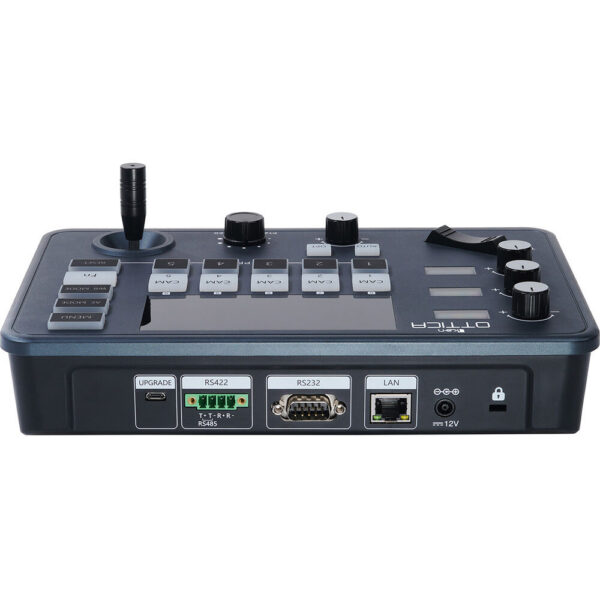

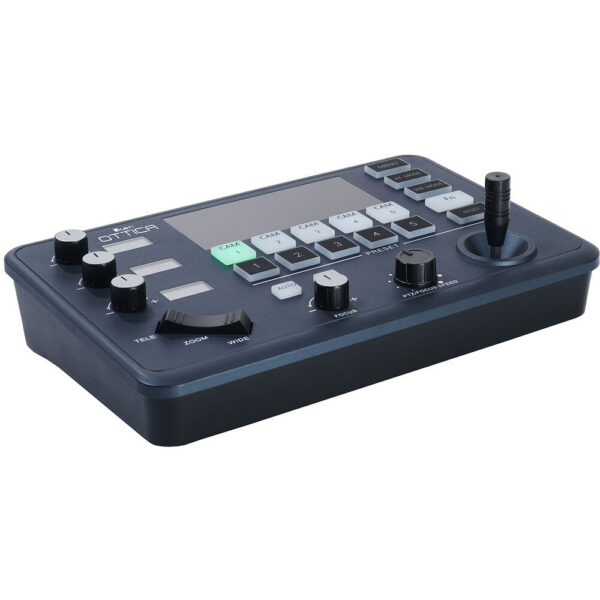

- ikan OTTICA V2 IP PTZ Camera Controller
- Phoenix 4-Pin Terminal
| SKU | OTTICAF2-3PTZ |
|---|---|
| Brand | ikan |
| Image Sensor | 1/2.8"-Type CMOS |
|---|---|
| Sensor Resolution | 2.07 Megapixel (1920 x 1080) |
| Focus Control | Autofocus Manual Focus |
| Shutter Speed | 1/10000 to 1/30 Second |
|---|---|
| Signal-to-Noise Ratio | 55 dB |
| Minimum Illumination | 0.5 Lux |
| Flip / Mirror Support | Image Flip, Mirror (Vertical) |
| White Balance | Presets: Auto, Indoors, Manual, One Push, Outdoors, VARRange: 2000 to 8500K |
| Focal Length | 4.42 to 88.5mm |
|---|---|
| Max Optical Zoom | 20x |
| Max Digital Zoom | 16x |
| Field of View | Horizontal: 60.7 to 3.36°Vertical: 34.1 to 1.89° |
| Maximum Aperture | f/1.8 to 2.8 |
| Video Output | via HDMI / RJ45 / SDI/BNC / USB1920 x 1080p at 25/29.97/30.00/50/59.94/60.00 fps 1920 x 1080i at 50/59.94 fps 1280 x 720 at 50/59.94/60.00 fps |
|---|---|
| Internal Recording | No |
| Audio Recording | AAC Audio |
| Broadcast Output | NTSC/PAL |
| IP Streaming | H.264/H.265 via NDI/NDI HX2/RTMP/RTMPS/RTP/RTSP/TCP/UDP 640 x 360 to 1920 x 1080 up to 60p (Main Stream) 320 x 180 to 1280 x 720 |
| Presets | 25510 via IR |
|---|---|
| Pan/Tilt/Roll | Pan: 340° (-170 to 170°) at 1.7 to 100°/s Tilt: 120° (-30 to 90°) at 1.7 to 69.9°/s |
| Tally Light | No |
| Wireless | IR |
|---|

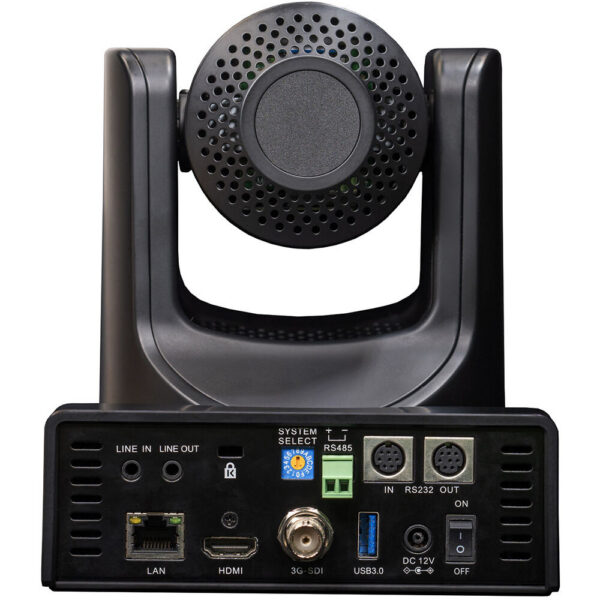

| Video I/O | 1x HDMI 1.3 Output 1x BNC (3G-SDI) Output 1x RJ45 LAN Output 1x USB-A 3.0 / 3.1/3.2 Gen 1 Output |
|---|---|
| Audio I/O | 1x 1/8" / 3.5 mm TRS Stereo Line Input 1x 1/8" / 3.5 mm TRS Stereo Line Output |
| Other I/O | 1x Block 2-Pin (RS-485) Control 1x Mini-DIN 8-Pin (RS-232) Control 1x Mini-DIN 9-Pin (RS-232) Control |
| Built-In Microphone | Stereo |
| Built-In Speaker | No |
| Power I/O | 1x Barrel (12VDC at 1.2 A) |
|---|---|
| Power Consumption | 15 W |
| Operating Conditions | 32 to 104°F / 0 to 40°C |
|---|---|
| Storage Conditions | -40 to 140°F / -40 to 60°C |
| Impact Resistance | No |
| Environmental Resistance | No |
| Mounting | 2x 1/4"-20 Female3x M3 Female |
|---|---|
| OS Compatibility | Computer: Windows 7 to 10 / macOS 10 Only / Linux Mobile: Android Only |
| Security Lock Support | Kensington Lock Slot |
| Dimensions (W x H x D) | 6.7 x 6.6 x 5.7" / 169 x 168 x 146 mm |
| Weight | 3 lb / 1.5 kg (Body Only) |
| Package Weight | 7.015 lb |
|---|---|
| Box Dimensions (Lx WxH) | 14.2 x 9.7 x 9.4" |
Reviews
There are no reviews yet.
