ikan OTTICA Full NDI and NDI HX3 PTZ Camera with AI Tracking and 20x Zoom
$999.99
In Stock
- 1/2.8" CMOS Sensor, 1080p60 Video
- 20x Optical Zoom, 4.42 to 88.5mm
- Licensed, Selectable Full NDI & NDI HX3
- AI Auto Tracking & Face Recognition
Tracked ShippingRates shown at checkout
60-Day ReturnsOn eligible items
Expert SupportReal people, real advice
ikan OTTICA Full NDI and NDI HX3 PTZ Camera with AI Tracking and 20x Zoom
The ikan OTTICA Full NDI and NDI HX3 PTZ Camera with AI Tracking and 20x Zoom is built for photographers and creators who want dependable, professional results. At its core is a 2.07 Megapixel 1/2.8"-Type sensor. Everyday handling is covered with IR connectivity.
Highlights
- 1/2.8" CMOS Sensor, 1080p60 Video
- 20x Optical Zoom, 4.42 to 88.5mm
- Licensed, Selectable Full NDI & NDI HX3
- AI Auto Tracking & Face Recognition
Every order from NIXTRONIC ships tracked worldwide and is covered by our 60-day return policy on eligible items.
In the Box
- ikan OTTICA Full NDI and NDI HX3 PTZ Camera with AI Tracking and 20x Zoom
- Power Adapter
- Power Cable
- RS-232 Cable
- IR Remote Control
- Wall Bracket
| SKU | OTTICA-FHD-20X |
|---|---|
| Brand | ikan |
| Image Sensor | 1/2.8"-Type CMOS |
|---|---|
| Sensor Resolution | 2.07 Megapixel (1920 x 1080) |
| Focus Control | Autofocus Manual Focus |
| Shutter Speed | 1/10000 to 1/30 Second |
|---|---|
| Signal-to-Noise Ratio | 55 dB |
| Minimum Illumination | 0.5 Lux |
| Flip / Mirror Support | Image Flip, Mirror (Vertical) |
| White Balance | Presets: Auto, Indoors, Manual, One Push, Outdoors, VARRange: 2000 to 8500K |
| Focal Length | 4.42 to 88.5mm |
|---|---|
| Max Optical Zoom | 20x |
| Max Digital Zoom | 16x |
| Field of View | Horizontal: 60.7 to 3.36°Vertical: 34.1 to 1.89° |
| Maximum Aperture | f/1.8 to 2.8 |
| Video Output | via HDMI / RJ45 / SDI/BNC / USB1920 x 1080p at 25/29.97/30.00/50/59.94/60.00 fps 1920 x 1080i at 50/59.94 fps 1280 x 720 at 50/59.94/60.00 fps |
|---|---|
| Internal Recording | No |
| Audio Recording | AAC Audio |
| Broadcast Output | NTSC/PAL |
| IP Streaming | H.264/H.265 via NDI/NDI HX2/RTMP/RTMPS/RTP/RTSP/TCP/UDP 640 x 360 to 1920 x 1080 up to 60p (Main Stream) 320 x 180 to 1280 x 720 |
| Presets | 25510 via IR |
|---|---|
| Pan/Tilt/Roll | Pan: 340° (-170 to 170°) at 1.7 to 100°/s Tilt: 120° (-30 to 90°) at 1.7 to 69.9°/s |
| Tally Light | No |
| Wireless | IR |
|---|

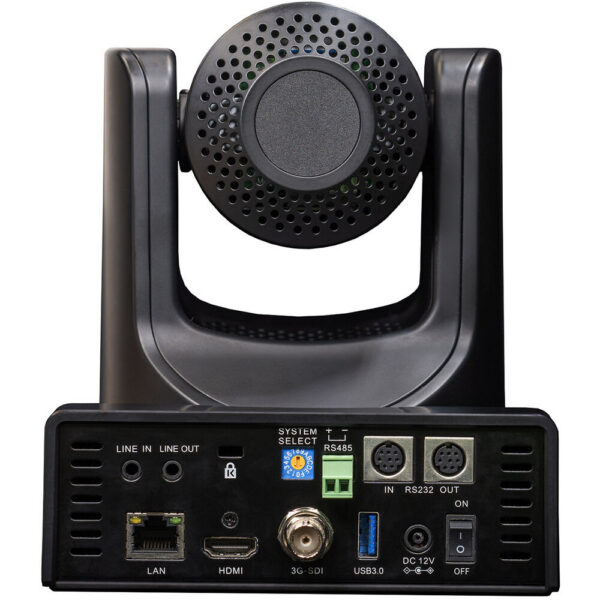

| Video I/O | 1x HDMI 1.3 Output 1x BNC (3G-SDI) Output 1x RJ45 LAN Output 1x USB-A 3.0 / 3.1/3.2 Gen 1 Output |
|---|---|
| Audio I/O | 1x 1/8" / 3.5 mm TRS Stereo Line Input 1x 1/8" / 3.5 mm TRS Stereo Line Output |
| Other I/O | 1x Block 2-Pin (RS-485) Control 1x Mini-DIN 8-Pin (RS-232) Control 1x Mini-DIN 9-Pin (RS-232) Control |
| Built-In Microphone | Stereo |
| Built-In Speaker | No |
| Power I/O | 1x Barrel (12VDC at 1.2 A) |
|---|---|
| Power Consumption | 15 W |
| Operating Conditions | 32 to 104°F / 0 to 40°C |
|---|---|
| Storage Conditions | -40 to 140°F / -40 to 60°C |
| Impact Resistance | No |
| Environmental Resistance | No |
| Mounting | 2x 1/4"-20 Female3x M3 Female |
|---|---|
| OS Compatibility | Computer: Windows 7 to 10 / macOS 10 Only / Linux Mobile: Android Only |
| Security Lock Support | Kensington Lock Slot |
| Dimensions (W x H x D) | 6.7 x 6.6 x 5.7" / 169 x 168 x 146 mm |
| Weight | 3 lb / 1.5 kg (Body Only) |
| Package Weight | 7.015 lb |
|---|---|
| Box Dimensions (Lx WxH) | 14.2 x 9.7 x 9.4" |
