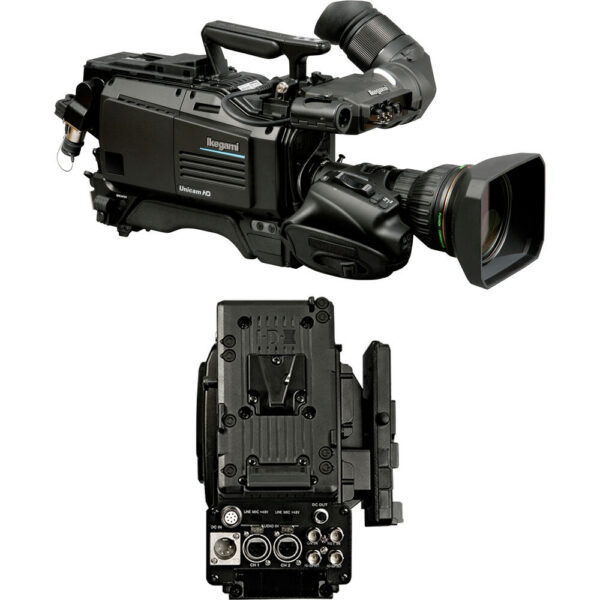

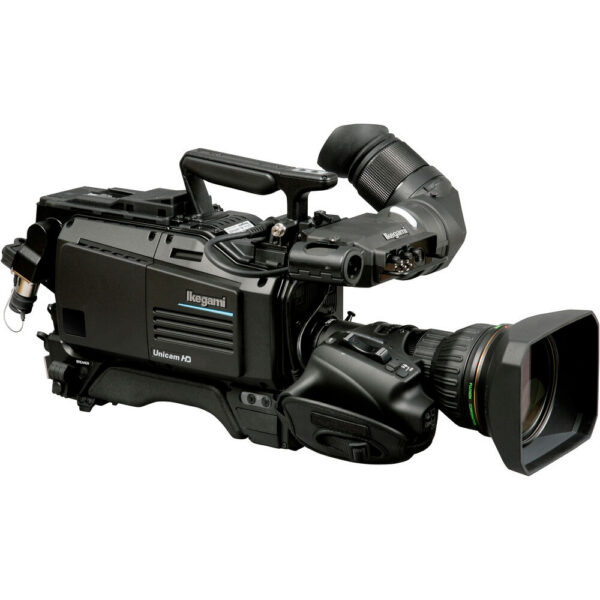

Ikegami HDK-99 HDTV Portable Camera System with CA-75HD Camera Adapter
$44,500.00
In Stock
- Three 2.6MP 2/3" CMOS Sensors
- RGB Prism Optical System | 1080p60 Video
- Custom HDR Settings | Preinstalled HLG
- B4 Lens Mount for Studio & Field Lenses
Tracked ShippingRates shown at checkout
60-Day ReturnsOn eligible items
Expert SupportReal people, real advice
Ikegami HDK-99 HDTV Portable Camera System with CA-75HD Camera Adapter
The Ikegami HDK-99 HDTV Portable Camera System with CA-75HD Camera Adapter brings serious imaging performance to every shoot, from planned sessions to spontaneous moments. At its core is a 2.6 Megapixel 2/3"-Type sensor paired with the B4 lens mount.
Highlights
- Three 2.6MP 2/3" CMOS Sensors
- RGB Prism Optical System | 1080p60 Video
- Custom HDR Settings | Preinstalled HLG
- B4 Lens Mount for Studio & Field Lenses
Ordered from NIXTRONIC, it ships with full tracking worldwide and is backed by our 60-day returns on eligible items.
In the Box
- Ikegami HDK-99 HDTV Portable Camera System with CA-75HD Camera Adapter
- Ikegami T-430 Tripod Mounting Plate
| SKU | HDK-99/CA |
|---|---|
| Brand | Ikegami |
| Lens Mount | B4 |
|---|---|
| Image Sensor | 2/3"-Type 3-Chip CMOS |
| Sensor Resolution | 2.6 Megapixel |
| Built-In ND Filter | Mechanical Filter Wheel with 2-Stop (1/4), 4-Stop (1/16), 6-Stop (1/64) ND Filters |
| Built-In CC Filter | Mechanical Filter Wheel with 3200K, 4300K, 6300K, 8000K Color Correction Filter |
| Broadcast System Compatibility | NTSC, PAL |
| Shutter Type | Electronic Rolling Shutter |
|---|---|
| Shutter Speed | 1/2000 to 1/100 Second |
| ISO/Gain Sensitivity | Gain in Manual Mode: -6 to 18 dB |
| Signal-to-Noise Ratio | 62 dB |
| Precise Scan Rate Control | No |
| Sensitivity | f/11 at 2000 lux (at 59.94p)f/12 at 2000 lux (at 50p) |
| White Balance | Range: 2000 to 20,000K Presets: Daylight |
| Exposure Modes | Auto, Manual |
| Focus Mode | Manual Focus |
|---|
| Internal Recording | No |
|---|---|
| Video Output | via SDI/BNC1920 x 1080p at 23.98/25/29.97/50/59.94 fps 1920 x 1080i at 50/59.94/100/120 fps 1280 x 720 at 50/59.94 fps |
| Broadcast Output | NTSC with 800 TV LinesPAL with 800 TV Lines |
| Gamma Curve | Custom, HDR-HLG, Standard |
| Built-In Microphone | No |
| Audio Recording | No |
| IP Streaming | No |
| Media/Memory Card Slot | Single Slot: SD (Unspecified Type) |
|---|---|
| Internal Storage | No |
| CCU I/O | No |
| Video I/O | 4x BNC (HD-SDI) Output 1x BNC (HD-SDI) Input |
| Audio I/O | 2x XLR 3-Pin Line Input |
| Power I/O | 1x XLR 4-Pin Input 1x XLR 4-Pin (12VDC) Output 2x LEMO 4-Pin (12VDC) Output 1x D-Tap (12VDC) Output 2x USB-A (5VDC at 2 A) Output |
| Other I/O | 1x BNC (Genlock) Input 1x LEMO 8-Pin (Remote) Input |
| Global Positioning (GPS, GLONASS, etc.) | No |
| Display Type | No |
|---|
| Battery | V-Mount |
|---|---|
| Power Consumption | 10 W |
| Operating Conditions | -4 to 113°F / -20 to 45°C at 30 to 90% Humidity |
|---|
| Shoe Mount | No |
|---|---|
| Tripod Mount | No |
| Dimensions (W x H x D) | 13.3 x 10.6 x 5.5" / 33.7 x 27 x 13.9 cm |
| Weight | 11 lb / 4.9 kg (With Fiber Back) |
