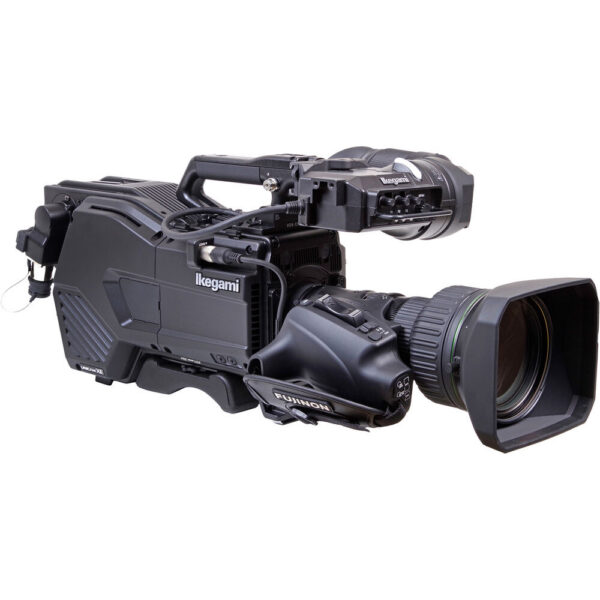

Ikegami HDK-X500 HD Portable Camera System with VFL201D LCD Viewfinder
$38,270.00
In Stock
- UNICAM XE HD Camera System
- 2/3" 3-CMOS Sensors with Global Shutter
- 2" Digital I/F LCD Color Viewfinder
- Supports 1080p60 Resolution
Tracked ShippingRates shown at checkout
60-Day ReturnsOn eligible items
Expert SupportReal people, real advice
Ikegami HDK-X500 HD Portable Camera System with VFL201D LCD Viewfinder
Designed for creators who demand more from their gear, the Ikegami HDK-X500 HD Portable Camera System with VFL201D LCD Viewfinder delivers capable, consistent performance. At its core is a Not Specified by Manufacturer 2/3"-Type sensor paired with the B4 lens mount.
Highlights
- UNICAM XE HD Camera System
- 2/3" 3-CMOS Sensors with Global Shutter
- 2" Digital I/F LCD Color Viewfinder
- Supports 1080p60 Resolution
Ordered from NIXTRONIC, it ships with full tracking worldwide and is backed by our 60-day returns on eligible items.
In the Box
- Ikegami HDK-X500 HD Portable Camera System with VFL201D LCD Viewfinder

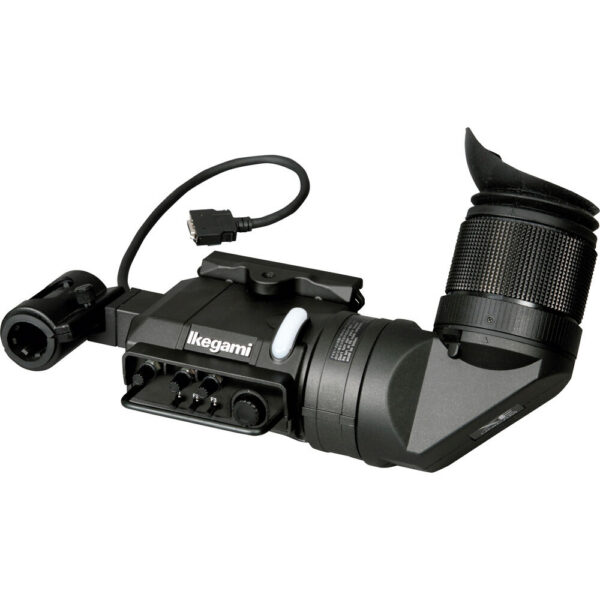

- Ikegami VFL201D 2" Digital I/F LCD Color Viewfinder
| SKU | HDK-X500/WL |
|---|---|
| Brand | Ikegami |
| Lens Mount | B4 |
|---|---|
| Image Sensor | 2/3"-Type 3-Chip CMOS |
| Sensor Resolution | Not Specified by Manufacturer |
| Image Stabilization | No |
| Built-In ND Filter | Mechanical Filter Wheel with Clear, 2-Stop (1/4), 3-Stop (1/8), 4-Stop (1/16), 6-Stop (1/64) ND Filters |
| Internal Filter Holder | No |
| Capture Type | Video Only |
| Shutter Type | Mechanical Focal Plane Shutter and Electronic Global Shutter |
|---|---|
| Signal-to-Noise Ratio | 62 dB |
| White Balance | Range: 3200 to 6300K |
| Exposure Modes | Auto, Manual |
| Focus Mode | Continuous-Servo AF, Manual Focus |
|---|
| Internal Recording | No |
|---|---|
| Video Output | via SDI/BNC1920 x 1080p at 50/59.94 fps 1920 x 1080i at 50/59.94 fps 1280 x 720 at 50/59.94 fps |
| Broadcast Output | NTSC with 1000 TV LinesPAL with 1000 TV Lines |
| Fast-/Slow-Motion Support | No |
| Interval Recording Modes | No |
| Built-In Microphone | No |
| IP Streaming | No |
| Media/Memory Card Slot | No |
|---|---|
| Internal Storage | No |
| Video I/O | 3x BNC (3G-SDI) Output 1x BNC (3G-SDI) Input |
| Audio I/O | 2x XLR 3-Pin Mic/Line Input on Camera Body (+48 V Phantom Power)2x XLR 3-Pin Intercom Output on Camera Body1x 1/8" / 3.5 mm TRS Stereo Output |
| Power I/O | 1x DC (11 to 17VDC) Output |
| Other I/O | 1x 20-Pin 1x USB-A (USB 2.0) |
| Wireless | No |
| Mobile App Compatible | No |
| Global Positioning (GPS, GLONASS, etc.) | No |
| Display Type | No |
|---|---|
| Resolution | No |
| Power Consumption | 56 W |
|---|
| Operating Conditions | -4 to 113°F / -20 to 45°C at 30 to 90% Humidity |
|---|---|
| Storage Conditions | -22 to 140°F / -30 to 60°C at 30 to 90% Humidity |
| Shoe Mount | No |
|---|---|
| Accessory Mounting Thread | No |
| Dimensions (W x H x D) | 5.8 x 9.6 x 13.4" / 148.5 x 243 x 340 mm |
| Weight | 10 lb / 4.7 kg (Body Only) |
