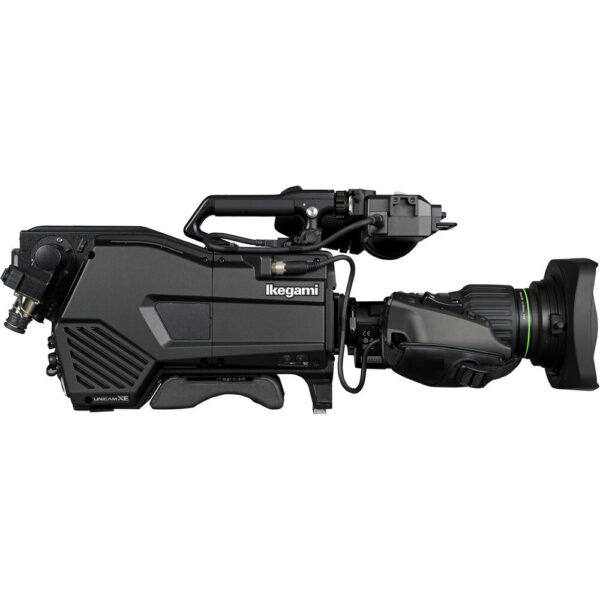

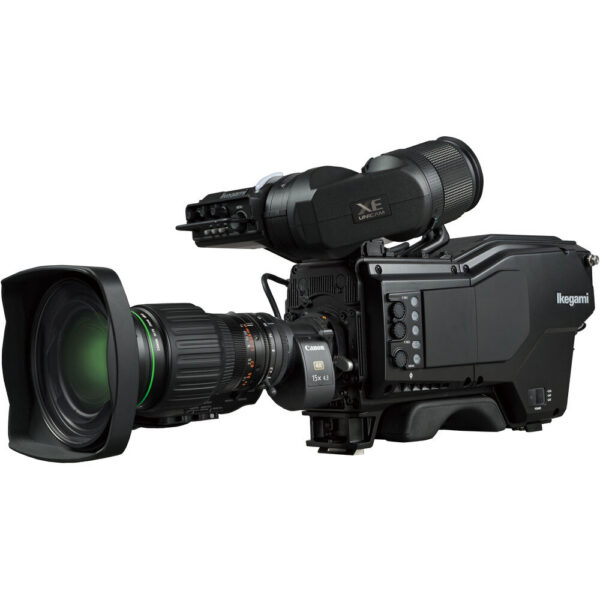

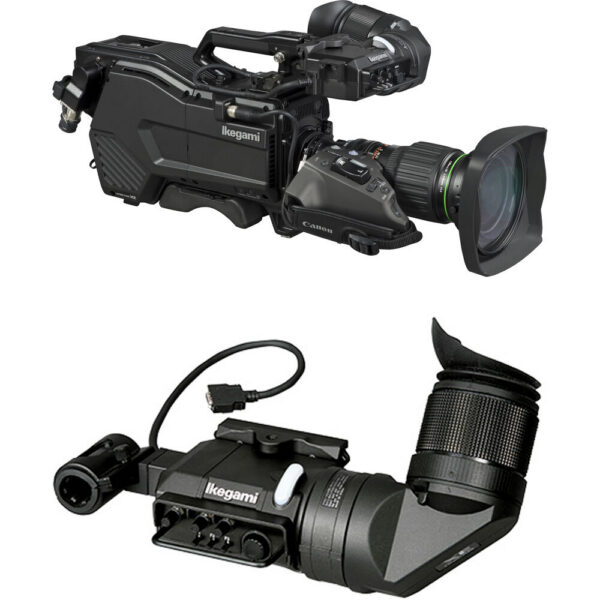

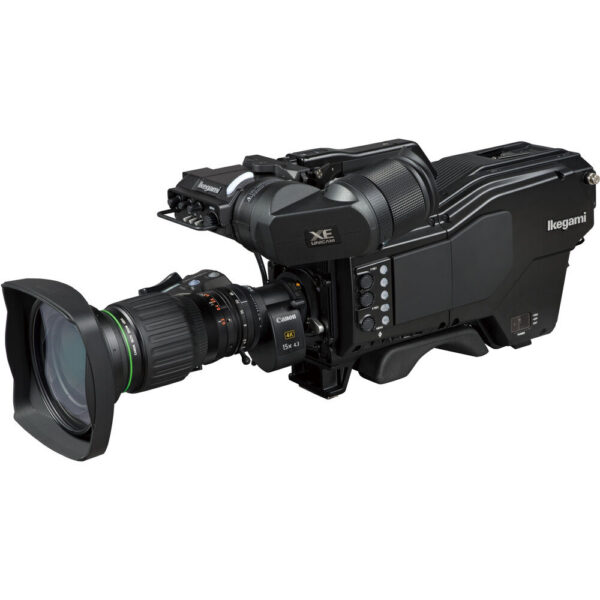

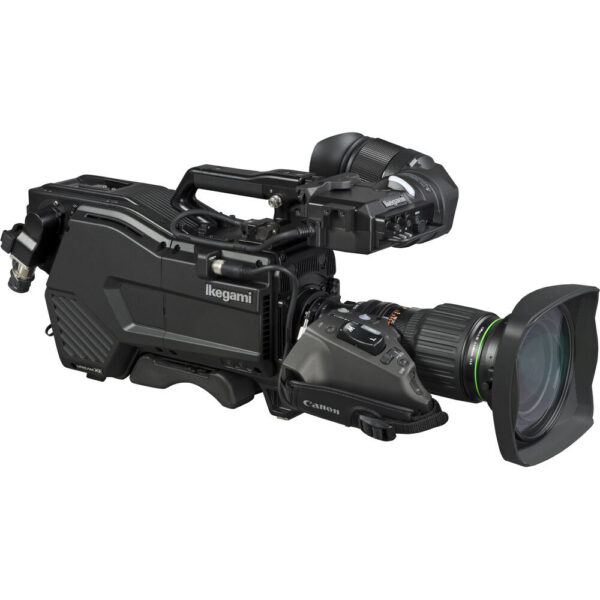

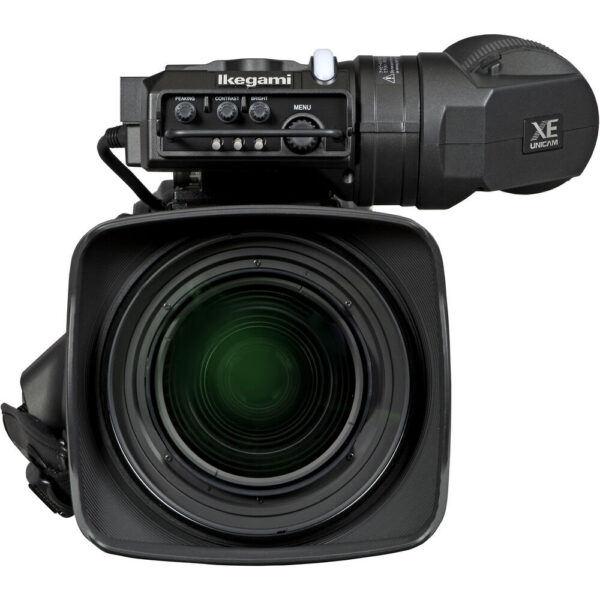

Ikegami UHK-X700 4K/HD Portable Camera System with VFL201D LCD Viewfinder and Battery Bracket
$56,170.00
In Stock
- Three 2/3" Global Shutter CMOS Sensors
- RGB Prism Optical System | 4K60 Video
- Custom HDR Settings | Preinstalled HLG
- B4 Lens Mount for Studio & Field Lenses
Tracked ShippingRates shown at checkout
60-Day ReturnsOn eligible items
Expert SupportReal people, real advice
Ikegami UHK-X700 4K/HD Portable Camera System with VFL201D LCD Viewfinder and Battery Bracket
The Ikegami UHK-X700 4K/HD Portable Camera System with VFL201D LCD Viewfinder and Battery Bracket is built for photographers and creators who want dependable, professional results. At its core is a Not Specified by Manufacturer 2/3"-Type sensor paired with the B4 lens mount.
Highlights
- Three 2/3" Global Shutter CMOS Sensors
- RGB Prism Optical System | 4K60 Video
- Custom HDR Settings | Preinstalled HLG
- B4 Lens Mount for Studio & Field Lenses
Ordered from NIXTRONIC, it ships with full tracking worldwide and is backed by our 60-day returns on eligible items.
In the Box
- Ikegami UHK-X700 4K/HD Portable Camera System with VFL201D LCD Viewfinder and Battery Bracket
- Ikegami VFL201D 2" Digital I/F LCD Color Viewfinder
- Ikegami Battery Bracket for Select UNICAM XE Cameras (Gold Mount)
- Ikegami T-430 Tripod Mounting Plate
| SKU | UHK-X700/WL |
|---|---|
| Brand | Ikegami |
| Lens Mount | B4 |
|---|---|
| Lens Communication | Yes |
| Image Sensor | 2/3"-Type 3-Chip CMOS |
| Sensor Resolution | Not Specified by Manufacturer |
| Built-In ND Filter | Mechanical Filter Wheel with Clear, 2-Stop (1/4), 3-Stop (1/8), 4-Stop (1/16), 6-Stop (1/64) ND Filters |
| Built-In CC Filter | Mechanical Filter Wheel with 3200K, 4300K, 6300K Color Correction Filter |
| Broadcast System Compatibility | NTSC, PAL |
| Shutter Type | Electronic Global Shutter |
|---|---|
| Shutter Speed | Electronic Shutter 1/2000 to 1/100 Second |
| Signal-to-Noise Ratio | 62 dB |
| Precise Scan Rate Control | No |
| Sensitivity | f/10 at 2000 lux 89.9% Reflectance (at 59.94p)f/11 at 2000 lux 89.9% Reflectance (at 50p) |
| Exposure Modes | Auto, Manual |
| Focus Mode | Manual Focus |
|---|
| Internal Recording | No |
|---|---|
| Video Output | 3840 x 2160 at 50/59.94 fps 1920 x 1080p at 50/59.94 fps 1920 x 1080i at 50/59.94 fps 1024 x 720 at 50/59.94 fps |
| Broadcast Output | NTSC with 1000 TV Lines or MorePAL with 1000 TV Lines or More |
| Gamma Curve | Custom, HDR-HLG, Standard |
| Built-In Microphone | No |
| IP Streaming | No |
| Media/Memory Card Slot | No |
|---|---|
| Internal Storage | No |
| CCU I/O | No |
| Video I/O | 3x BNC (12G-SDI) Output 1x BNC (12G-SDI) Input/Output 1x BNC (3G-SDI) Output |
| Audio I/O | 2x XLR 3-Pin Mic/Line Input on Camera Body (+48 V Phantom Power)2x XLR 3-Pin Intercom Output on Camera Body1x 1/8" / 3.5 mm TRS Stereo Headphone Output on Camera Body |
| Power I/O | 1x D-Tap (12VDC up to 2.5 A) Output 1x DC (12VDC up to 1 A) Output |
| Other I/O | 1x BNC (Reference) Input/Output 1x 20-Pin 1x USB-A (USB 2.0) 1x RJ45 Data |
| Global Positioning (GPS, GLONASS, etc.) | No |
| Display Type | No |
|---|
| Type | Removable Electronic (LCD) |
|---|---|
| Resolution | 960 x 540 |
| Size | 2" |
| Battery | Gold Mount |
|---|---|
| Power Consumption | 85 W |
| Operating Conditions | -4 to 113°F / -20 to 45°C at 30 to 90% Humidity |
|---|---|
| Storage Conditions | -22 to 140°F / -30 to 60°C at 30 to 90% Humidity |
| Shoe Mount | No |
|---|---|
| Tripod Mount | 1x VCT-14 |
| Dimensions (W x H x D) | 5.9 x 9.6 x 13.4" / 14.9 x 24.3 x 34 cm |
| Weight | 11 lb / 5 kg (Body Only) |
