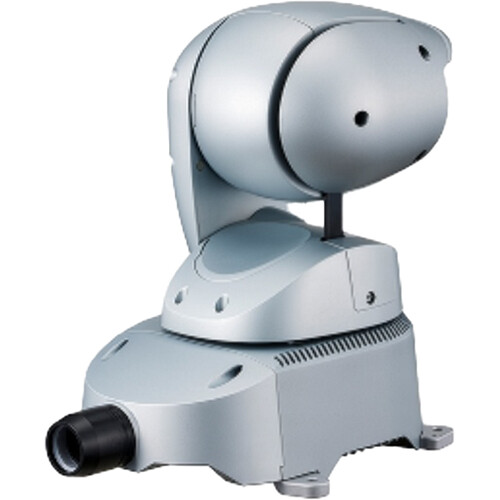

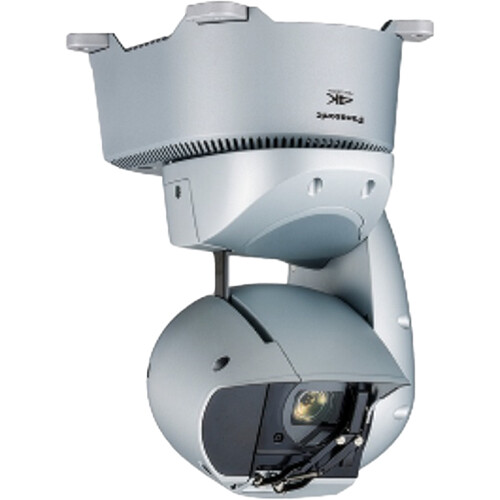

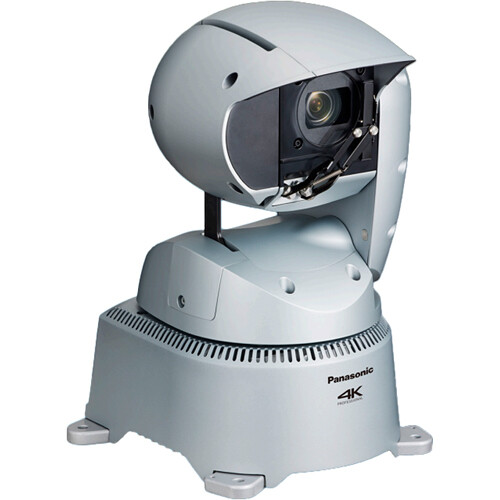

Panasonic AW-UR100 4K Outdoor PTZ Camera with Fiber, SRT, NDI Output
$12,995.00
In Stock
- 1/2.5" MOS Image Sensor
- Up to UHD 4K at 60 fps
- 24x Optical Zoom, 10x Digital Zoom
- RS-422 and IP Control, Genlock
Tracked ShippingRates shown at checkout
60-Day ReturnsOn eligible items
Expert SupportReal people, real advice
Panasonic AW-UR100 4K Outdoor PTZ Camera with Fiber, SRT, NDI Output
The Panasonic AW-UR100 4K Outdoor PTZ Camera with Fiber, SRT, NDI Output is built for photographers and creators who want dependable, professional results. At its core is a 8.49 Megapixel 1/2.5"-Type sensor. Everyday handling is covered with No connectivity.
Highlights
- 1/2.5" MOS Image Sensor
- Up to UHD 4K at 60 fps
- 24x Optical Zoom, 10x Digital Zoom
- RS-422 and IP Control, Genlock
Every order from NIXTRONIC ships tracked worldwide and is covered by our 60-day return policy on eligible items.
In the Box
- Panasonic AW-UR100 4K Outdoor PTZ Camera with Fiber, SRT, NDI Output
- 4 x M8 Bolt
- 4 x M8 Washer
- Cable Cover
- Washer Nozzle Mount Bracket
- Safety Wire
| SKU | AW-UR100GJ5S |
|---|---|
| Brand | Panasonic |
| Image Sensor | 1/2.5"-Type CMOS |
|---|---|
| Horizontal Resolution (TV Lines) | 1500 TV Lines |
| Sensor Resolution | 8.49 Megapixel (3864 x 2196) |
| Focus Control | Autofocus Manual Focus |
| Shutter Speed | 1/10000 to 1/25 Second in Video Mode |
|---|---|
| Minimum Illumination | 3 Lux at f/1.8 Aperture |
| Flip / Mirror Support | Image Flip, Mirror (Vertical) |
| White Balance | Range: 2000 to 15,000K Presets: ATW, AWB, Daylight, Tungsten |
| Focal Length | 4.12 to 98.9mm (35mm Equivalent: 25 to 600mm) |
|---|---|
| Max Optical Zoom | 24x |
| Max Digital Zoom | 10x |
| Field of View | Horizontal: 74.1 to 3.3°Vertical: 46 to 1.9°Diagonal: 81.8 to 3.8° |
| Maximum Aperture | f/1.8 to 4 |
| Minimum Focus Distance | 3.9" / 100 mm (Wide) to 47244.1" / 1200 m (Tele) |
| Video Output | via RJ453840 x 2160p3840 x 2160p at 23.98/24.00/25/29.97/30.00/50/59.94 fps 1920 x 1080p at 23.98/24.00/25/29.97/30.00/50/59.94 fps 1280 x 720 at 50/59.94 fps via SDI/BNC3840 x 2160p3840 x 2160p at 23.98/24.00/25/29.97/30.00/50/59.94 fps 1920 x 1080p at 23.98/24.00/25/29.97/30.00/50/59.94 fps 1920 x 1080i at 50/59.94 fps 1920 x 1080 PsF at 23.98/24.00/25/29.97 fps 1280 x 720 at 50/59.94 fps |
|---|---|
| Embedded Audio | IP/LAN (RJ45)/NDI/SDI Output: 2-Channel |
| Internal Recording | No |
| Audio Recording | Yes |
| Broadcast Output | NTSC/PAL |
| Supported Protocols | Camera Control FreeD/IP/NDI/NDI/HX2/RS-422 Video StreamingDNS/HTTP/HTTPS/mDNS/NDI/NDI/HX2/NTP/RTMP/RTMPS/RTP/RTSP/SNMP v1/v2c/v3 (MIB-II)/SRT/TCP/UDP |
| IP Streaming | H.264/H.265/MJPEG via H.245/NDI/NDI HX2/RTMP/RTMPS/SRT/UDP 1280 x 720 to 3840 x 1260 at 5.00p, 15p, 24p, 25p, 30p, 50p, 60p (250.00 Mb/s) |
| Presets | 100 via IP, RS-422 |
|---|---|
| Pan/Tilt/Roll | Pan: 350° (-175 to 175°) at 0.08 to 60°/s Tilt: 240° (-30 to 210°) at 0.08 to 60°/s |
| Tally Light | Yes |
| Wireless | No |
|---|

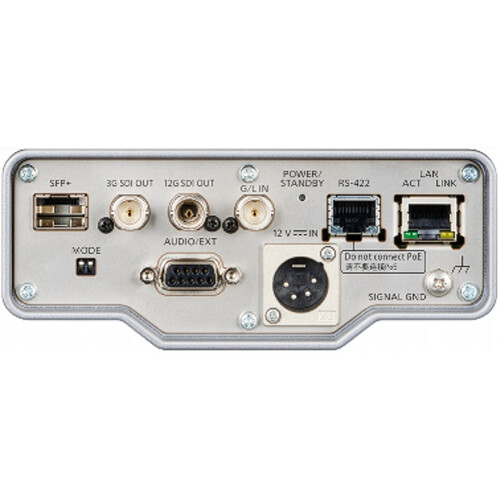

| Video I/O | 1x BNC (12G-SDI) Output 1x BNC (3G-SDI) Output 1x RJ45 (NDI) Input/Output |
|---|---|
| Other I/O | 1x BNC (Genlock) 1x RJ45 (RS-422) 1x D-Sub 9-Pin (Camera Interface) |
| Expansion Slots | 1x SFP+ Slot |
| Built-In Microphone | No |
| PoE Support | Yes: PoE++ 802.3bt |
|---|---|
| Power I/O | 1x XLR 4-Pin (12 to 21.8VDC) Input |
| Power Consumption | PoE: 42 to 57 |
| Operating Conditions | 5 to 113°F / -15 to 45°C at 10 to 100% Humidity |
|---|---|
| Storage Conditions | -4 to 131°F / -20 to 55°C |
| Impact Resistance | Vibration-Resistant (Unrated) |
| Environmental Resistance | Corrosion/Salt/Weather/Water-Resistant (IP65) |
| OS Compatibility | Computer: macOS / Windows Mobile: Android/iOSWeb-Based (Runs in Your Browser) |
|---|---|
| Dimensions (W x H x D) | 15.4 x 14.4 x 10.2" / 392 x 367 x 258 mm |
| Weight | 20 lb / 9 kg (Body Only) |
| Package Weight | 27.83 lb |
|---|---|
| Box Dimensions (Lx WxH) | 24 x 16 x 15.5" |
