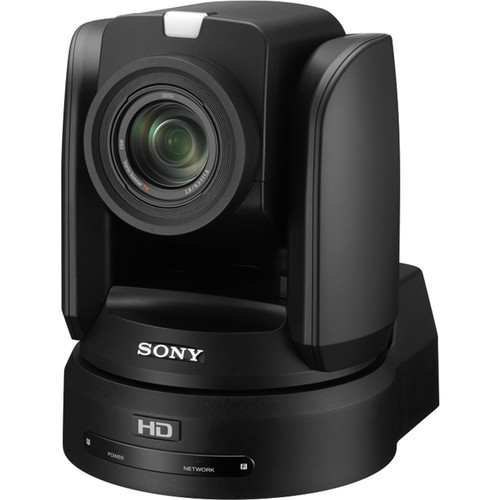

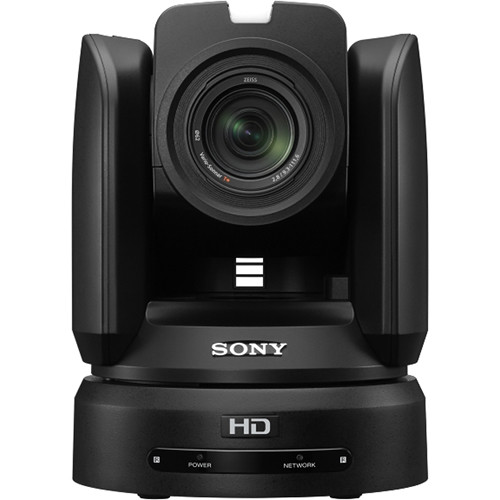

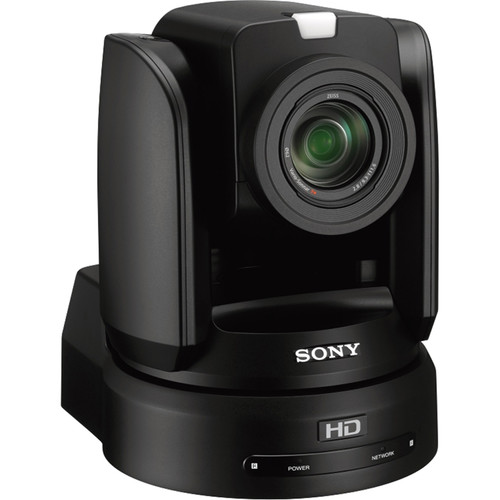

Sony BRC-H800 HD PTZ Camera with 1" CMOS Sensor and PoE+ (Black)
$5,900.00
In Stock
- Supports up to 1080p/60 HD Video
- 1" Type Exmor R CMOS Sensor
- 3G-SDI, HDMI & Ethernet Output
- PTZ Trace Memory & PTZ Motion Sync
Tracked ShippingRates shown at checkout
60-Day ReturnsOn eligible items
Expert SupportReal people, real advice
Sony BRC-H800 HD PTZ Camera with 1" CMOS Sensor and PoE+ (Black)
Designed for creators who demand more from their gear, the Sony BRC-H800 HD PTZ Camera with 1" CMOS Sensor and PoE+ (Black) delivers capable, consistent performance. At its core is a 14.2 Megapixel 1"-Type sensor. Everyday handling is covered with IR connectivity.
Highlights
- Supports up to 1080p/60 HD Video
- 1" Type Exmor R CMOS Sensor
- 3G-SDI, HDMI & Ethernet Output
- PTZ Trace Memory & PTZ Motion Sync
Every order from NIXTRONIC ships tracked worldwide and is covered by our 60-day return policy on eligible items.
In the Box
- Sony BRC-H800 HD PTZ Camera with 1" CMOS Sensor and PoE+ (Black)
- IR Remote Commander
- Ceiling Bracket A
- Ceiling Bracket B
- Wire Rope
- 7 x M3x8 Mounting Screw
- M4x8 Stainless Steel Screw
- HDMI Cable Clamp
| SKU | BRC-H800/1 |
|---|---|
| Brand | Sony |
| Image Sensor | 1"-Type CMOS |
|---|---|
| Horizontal Resolution (TV Lines) | 850 TV Lines |
| Sensor Resolution | Effective: 14.2 Megapixel Actual: 20.4 Megapixel |
| Focus Control | Autofocus Manual Focus |
| Shutter Speed | 1/10000 to 1/6 Second |
|---|---|
| ISO/Gain Sensitivity | Gain: -3 to 33 dB |
| Minimum Illumination | 1.7 Lux at 1/30 Shutter Speed |
| Flip / Mirror Support | Image Flip |
| White Balance | Presets: Auto, Indoors, Manual, One Push, Outdoors |
| Focal Length | 9.3 to 111.6mm (35mm Equivalent: 29 to 348mm) |
|---|---|
| Max Optical Zoom | 12x |
| Max Digital Zoom | 48x |
| Field of View | 64.6° |
| Maximum Aperture | f/2.8 to 4.5 |
| Minimum Focus Distance | 3.1" / 8 cm (Wide) to 39.4" / 100 cm (Tele) |
| Video Output | via HDMI / SDI/BNC1920 x 1080p at 23.98/50/59.94 fps 3840 x 2160 at 23.98/25/29.97 fps 1920 x 1080i at 50/59.94 fps 1280 x 720 at 50/59.94 fps |
|---|---|
| Internal Recording | No |
| Broadcast Output | NTSC/PAL |
| Presets | 100 |
|---|---|
| Pan/Tilt/Roll | Pan: 340° (-170 to 170°) at 0.03 to 60°/s Tilt: 120° (-30 to 90°) at 0.03 to 60°/s |
| Tally Light | Yes |
| Wireless | IR |
|---|
| Video I/O | 1x BNC (3G-SDI) Output 1x HDMI Output |
|---|---|
| Other I/O | 1x BNC (Sync) Input 1x RJ45 (LAN) 2x RJ45 (RS-422, VISCA) Control |
| Built-In Microphone | No |
| Built-In Speaker | No |
| PoE Support | Yes: PoE+ 802.3at |
|---|---|
| Power I/O | 1x Barrel (10.8 to 13.2VDC) Input |
| Power Consumption | Power Supply: 19 WPoE: 23 W |
| Operating Conditions | 32 to 104°F / 0 to 40°C |
|---|---|
| Storage Conditions | -4 to 140°F / -20 to 60°C |
| Impact Resistance | No |
| Environmental Resistance | No |
| Mounting | 2x 1/4"-20 Female for Ceiling/Tripod4x 3/8"-16 Female for Bracket/Ceiling |
|---|---|
| OS Compatibility | Windows 8 or Later |
| Dimensions (W x H x D) | 7.8 x 10.2 x 9.4" / 19.8 x 26 x 23.8 cm (Without Protrusions) |
| Weight | 9 lb / 4.3 kg (Body Only) |
| Package Weight | 16.8 lb |
|---|---|
| Box Dimensions (Lx WxH) | 21.9 x 18.8 x 16.7" |
