Designed for creators who demand more from their gear, the Vaddio RoboSHOT 30E QCCU Camera System (Black) delivers capable, consistent performance. At its core is a 8.51 Megapixel 1/2.5"-Type sensor. Everyday handling is covered with IR connectivity.
Highlights
1/2.5 Image Sensor
Wide Dynamic Range
30x Total Zoom
Tri-Synchronous Motion Technology
Every order from NIXTRONIC ships tracked worldwide and is covered by our 60-day return policy on eligible items.
In the Box

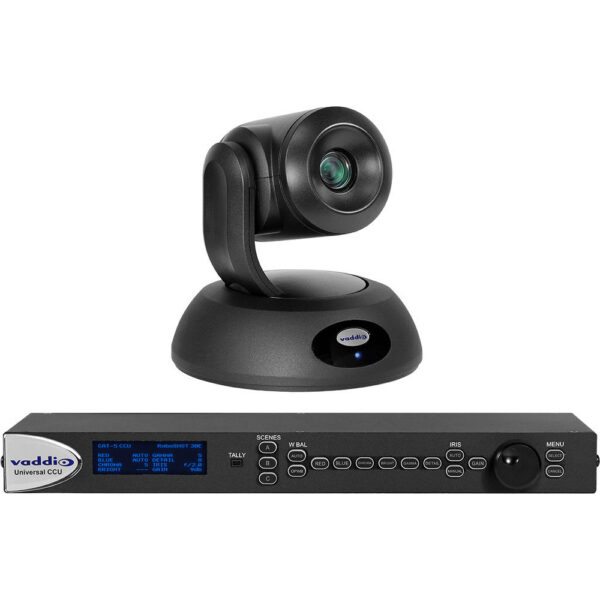

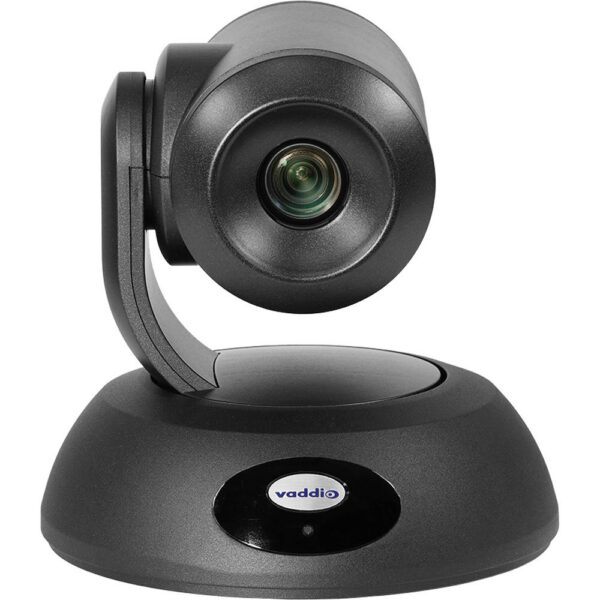

Vaddio RoboSHOT 30E QCCU Camera System (Black)

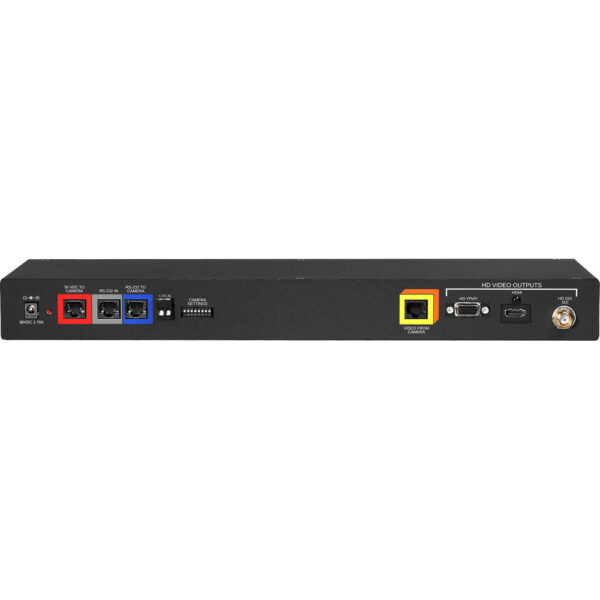

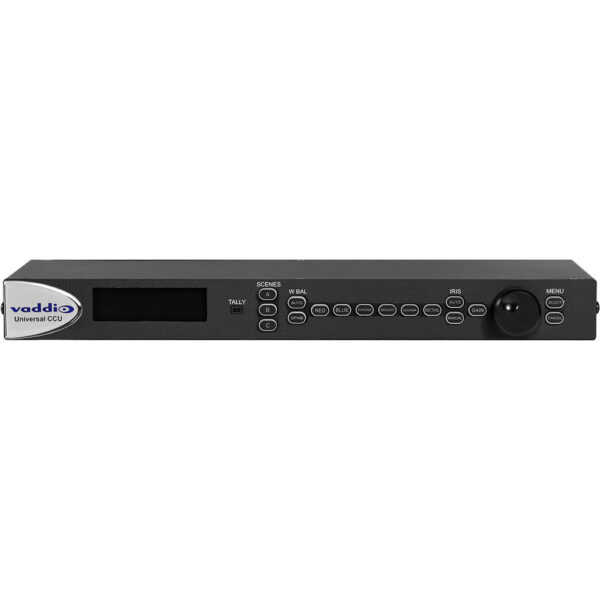

Quick-Connect Universal CCU Cat-5 Interface
Power Supply with AC Cord Set
2 x Rack Ears

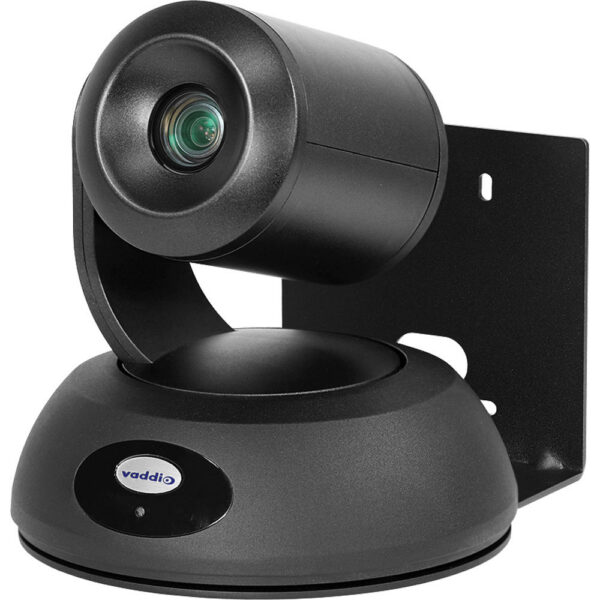

Thin Black Profile Wall Mount with Mounting Hardware
IR Remote Commander
SKU
999-99170-000
Brand
Vaddio
Imaging
Image Sensor
1/2.5"-Type CMOS
Effective Sensor Resolution
8.51 Megapixel
Focus Control
Autofocus
Exposure Control
Shutter Speed
1 to 1/10000 Second
Precise Scan Rate Control
No
Signal-to-Noise Ratio
50 dB
Minimum Illumination
100 Lux
Flip / Mirror Support
Image Flip
White Balance
Presets: ATW, Auto, Indoors, Manual, Outdoors
Lens
Max Optical Zoom
30x
Field of View
Horizontal: 70.2 to 4.1°
Maximum Aperture
f/1.4 to 3.8
Minimum Focus Distance
8" / 20.3 cm (Wide) to 30" / 76.2 cm (Tele)
Video Capture
Video Output
via HDMI / RJ45 / SDI/BNC1920 x 1080p1920 x 1080i1280 x 720
Internal Recording
No
Broadcast Output
NTSC
Control
Presets
16
Tally Light
Yes
Networking
Wireless
IR
Interface
Video I/O
1x RJ45 Output
Other I/O
1x RJ45 (RS-232) Control 1x RJ45 (Shared with Power Input, Video Output)1x RJ45 (LAN)
Built-In Microphone
No
Built-In Speaker
No
Power
PoE Support
Yes: PoE 802.3af
Power I/O
1x RJ45 Input
Hub I/O
4x RJ45 Input/Output
1x HDMI
General
Mounting
1x 1/4"-20 Female for Bracket/Tripod
Security Lock Support
Bolt-Down Base
Dimensions
7.05 x 6.94 x 6.75" / 17.91 x 17.63 x 17.14 cm
Weight
4.85 lb / 2.2 kg
Packaging Info
Package Weight
17.425 lb
Box Dimensions (Lx WxH)
21.7 x 17.4 x 12.8"
