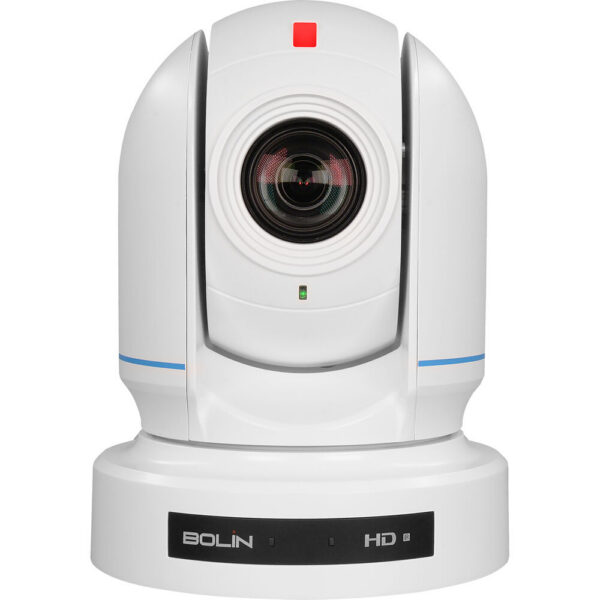

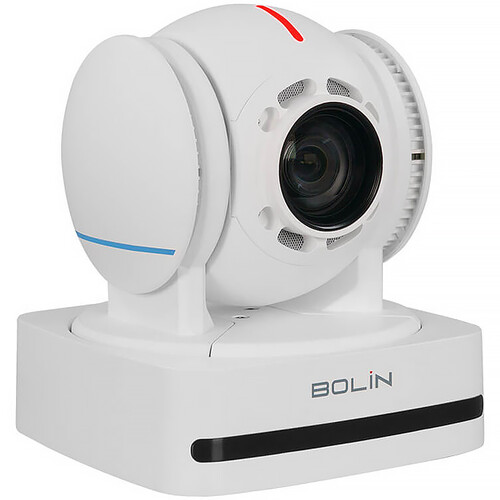

Bolin Technology B2-220W HDMI/3G-SDI/USB/IP PTZ Camera with 20x Optical Zoom (White)
$995.00
In Stock
- 1080p60 Output over USB/IP/HDMI/3G-SDI
- 3.5mm Mic/Line Audio Input
- 20x Optical Zoom, 16x Digital Zoom
- Gimbal-Style Design
Tracked ShippingRates shown at checkout
60-Day ReturnsOn eligible items
Expert SupportReal people, real advice
Bolin Technology B2-220W HDMI/3G-SDI/USB/IP PTZ Camera with 20x Optical Zoom (White)
Designed for creators who demand more from their gear, the Bolin Technology B2-220W HDMI/3G-SDI/USB/IP PTZ Camera with 20x Optical Zoom (White) delivers capable, consistent performance. Everyday handling is covered with No connectivity.
Highlights
- 1080p60 Output over USB/IP/HDMI/3G-SDI
- 3.5mm Mic/Line Audio Input
- 20x Optical Zoom, 16x Digital Zoom
- Gimbal-Style Design
Ordered from NIXTRONIC, it ships with full tracking worldwide and is backed by our 60-day returns on eligible items.
In the Box
- Bolin Technology B2-220W HDMI/3G-SDI/USB/IP PTZ Camera with 20x Optical Zoom (White)
- IR Remote Control
- Power Adapter
- Power Cable
- RJ45 to RS-232/422/485 Cable Adapter
| SKU | B2-220W |
|---|---|
| Brand | Bolin Technology |
| Shutter Speed | 1/10000 to 1 Second |
|---|---|
| White Balance | Presets: One Push Set, Indoors, Outdoors, Manual, ATW, Auto, AWB |
| Focal Length | 5.2 to 104mm |
|---|---|
| Max Optical Zoom | 20x |
| Max Digital Zoom | 16x |
| Field of View | Horizontal: 55.8 to 3.2° |
| Maximum Aperture | f/1.6 to 3 |
| Minimum Focus Distance | 0.4" / 1 cm |
| Video Output | via RJ45 / USB1920 x 1080p at 25/30.00/50/60.00 fps 1280 x 720 at 60.00/25/30.00/50 fps 10-Bit via SDI/BNC / HDMI1920 x 1080p at 25/30.00/29.97/50/59.94/60.00 fps 1280 x 720 at 59.94/60.00/25/30.00/50 fps |
|---|---|
| Embedded Audio | HDMI/LAN (RJ45)/SDI/USB |
| Internal Recording | No |
| Audio Recording | Yes |
| Broadcast Output | NTSC/PAL |
| IP Streaming | H.264/MJPEG/H.265 via UDP/TCP/SRT/RTSP/RTP/RTMPS/RTMP/UVC/UAC 320 x 180 to 1920 x 1080 at 30p, 25p, 60p, 50p (Simultaneous Multi-Stream) |
| Presets | 255 via IP, RS-232, UVC, VISCA, Pelco-P, Pelco-D6 via IR |
|---|---|
| Pan/Tilt/Roll | Pan: 340° (-170 to 170°) at 0.5 to 100°/s Tilt: 180° (-90 to 90°) at 0.5 to 50°/s |
| Tally Light | Yes |
| Wireless | No |
|---|

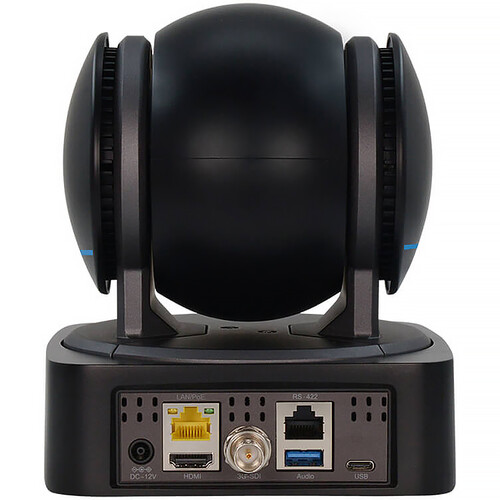

| Video I/O | 1x USB-C 2.0 Output 1x RJ45 LAN Input/Output 1x HDMI 1.4 Output 1x BNC (3G-SDI) Output |
|---|---|
| Other I/O | 1x RJ45 (RS-232) Control Input 1x USB-A (USB 2.0) Input |
| PoE Support | Yes: PoE+ 802.3at |
|---|---|
| Power I/O | 1x Barrel (12VDC) Input |
| Power Consumption | Device: 12 VDC at 4 A (10 to 13 W) |
| Operating Conditions | 32 to 130°F / 0 to 54°C up to 80% Humidity |
|---|---|
| Environmental Resistance | No |
| Mounting | 1x 1/4"-20 Female |
|---|
| Package Weight | 6.09 lb |
|---|---|
| Box Dimensions (Lx WxH) | 11.8 x 8.8 x 8.7" |
