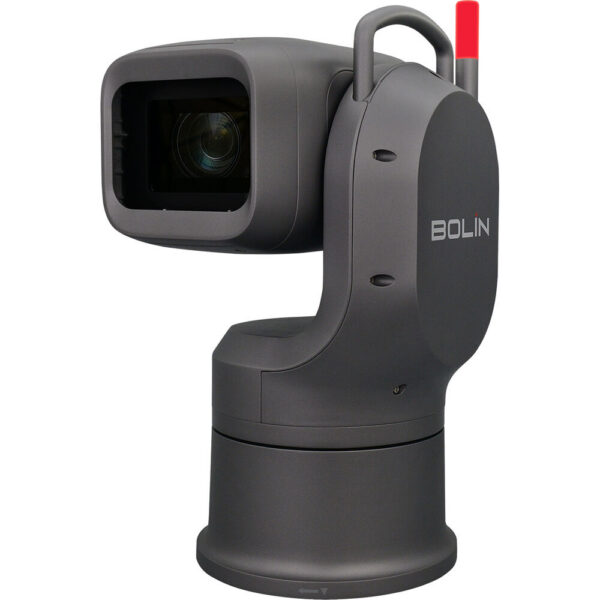

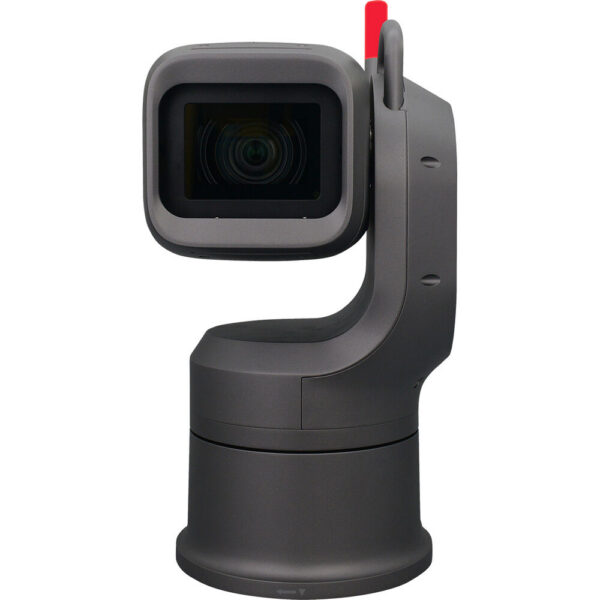

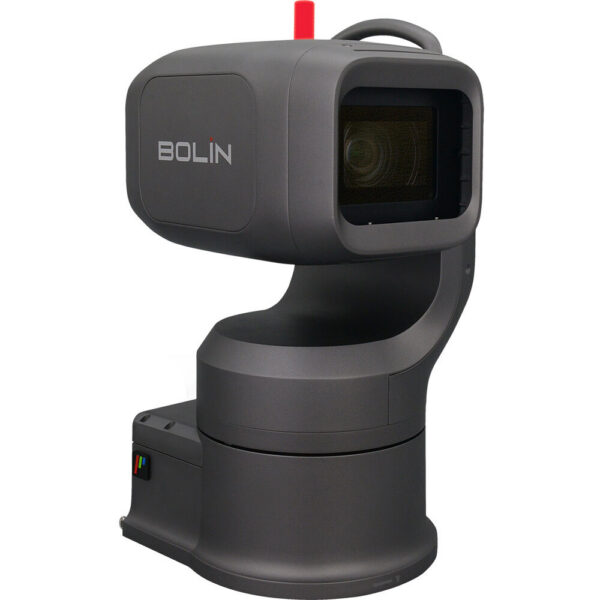

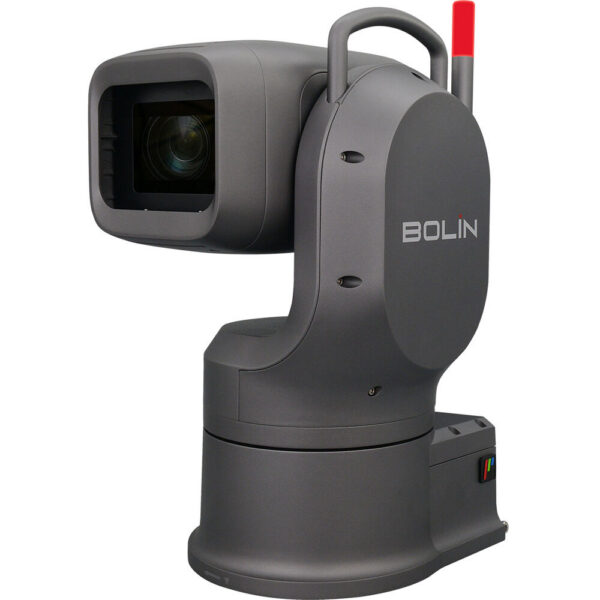

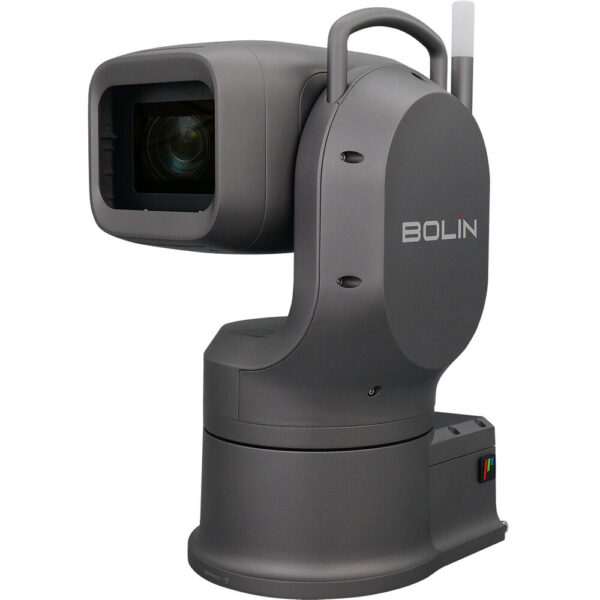

Bolin Technology EXU420F EX-ULTRA 4K60 Outdoor PTZ Camera (Dark Gray)
$7,995.00
In Stock
- 1/2.8" CMOS Sensor, 8.29MP
- Up to UHD 4K60 Output
- 12G-SDI, HDMI 2.0, and IP Transmission
- 20x Optical Zoom, 16x Digital Zoom
Tracked ShippingRates shown at checkout
60-Day ReturnsOn eligible items
Expert SupportReal people, real advice
Bolin Technology EXU420F EX-ULTRA 4K60 Outdoor PTZ Camera (Dark Gray)
The Bolin Technology EXU420F EX-ULTRA 4K60 Outdoor PTZ Camera (Dark Gray) is built for photographers and creators who want dependable, professional results. At its core is a 8.29 Megapixel 1/2.8"-Type sensor. Everyday handling is covered with No connectivity.
Highlights
- 1/2.8" CMOS Sensor, 8.29MP
- Up to UHD 4K60 Output
- 12G-SDI, HDMI 2.0, and IP Transmission
- 20x Optical Zoom, 16x Digital Zoom
Ordered from NIXTRONIC, it ships with full tracking worldwide and is backed by our 60-day returns on eligible items.
In the Box
- Bolin Technology EXU420F EX-ULTRA 4K60 Outdoor PTZ Camera (Dark Gray)
- IR Remote Control
- Tally Light Attachment
- Safety Wire
- Screw
- Cable Cover
- 12 x Seal Ring
- 4 x Panel Bolt
Videos
| SKU | EXU420F |
|---|---|
| Brand | Bolin Technology |
| Image Sensor | 1/2.8"-Type CMOS |
|---|---|
| Sensor Resolution | 8.29 Megapixel (3840 x 2160) |
| Focus Control | Autofocus Manual Focus |
| Shutter Speed | 1/10000 to 1/1 Second |
|---|---|
| Signal-to-Noise Ratio | 50 dB |
| Minimum Illumination | 0.5 Lux (Color) |
| Flip / Mirror Support | Image Flip, Mirror (Vertical) |
| White Balance | Presets: ATW, Auto, Indoors, Manual, One Push Set, Outdoors |
| Focal Length | 3.55 to 63.58mm |
|---|---|
| Max Optical Zoom | 20x |
| Max Digital Zoom | 16x |
| Field of View | Horizontal: 78.59 to 4.92°Vertical: 48.39 to 2.79° |
| Maximum Aperture | f/2 to 3.8 |
| Minimum Focus Distance | 19.7" / 50 cm |
| Video Output | via RJ453840 x 2160 at 25/30.00/50/60.00 fps 1920 x 1080p at 25/30.00/50/60.00 fps 1280 x 720 at 50/60.00 fps 4:2:2/4:2:0 10/12-Bit via HDMI / SDI/BNC3840 x 2160 at 23.98/24.00/25/29.97/50/60.00 fps 1920 x 1080p at 24.00/25/29.97/50/59.94/60.00 fps 1920 x 1080i at 50/60.00 fps 1280 x 720 at 50/59.94/60.00 fps |
|---|---|
| Embedded Audio | HDMI/LAN (RJ45)/SDI |
| Internal Recording | No |
| Audio Recording | 2-Channel 16-Bit 48 k Hz AAC LC Audio |
| Broadcast Output | NTSC/PAL |
| IP Streaming | H.264/H.265/MJPEG via NDI/RTMP/RTP/RTSP/TCP/UDP 1920 x 1080 at 25p, 30p, 50p, 60p (Simultaneous Multi-Stream) 1280 x 720 at 50p, 60p (Simultaneous Multi-Stream) |
| Presets | 255 via IP, IR |
|---|---|
| Pan/Tilt/Roll | Pan: 340° (-170 to 170°) at 0.01 to 60°/s Tilt: 210° (-90 to 120°) at 0.01 to 60°/s |
| Tally Light | Yes |
| Wireless | No |
|---|
| Video I/O | 1x HDMI 2.0 Output 2x BNC (12G-SDI) Loop Output 1x RJ45 Input/Output |
|---|---|
| Audio I/O | 1x 10-Pin Hirose Mic/Line Input/Output |
| Other I/O | 1x BNC (Genlock) Input 1x RJ45 (RS-422) Control |
| Expansion Slots | 1x SFP Slot |
| Built-In Microphone | No |
| PoE Support | Yes: PoE++ 802.3bt |
|---|---|
| Power I/O | 1x Hirose 4-Pin (24VDC) Input 1x Hirose 4-Pin (12VDC) Output |
| Power Consumption | Device: 12 VDC 30 to 60 W |
| Operating Conditions | -40 to 140°F / -40 to 60°C |
|---|
| Mounting | 1x 1/4"-20 Female1x 3/8"-16 Female |
|---|---|
| Weight | 22 lb / 10 kg (Body Only) |
| Package Weight | 31.99 lb |
|---|---|
| Box Dimensions (Lx WxH) | 20.2 x 19.7 x 13.8" |
