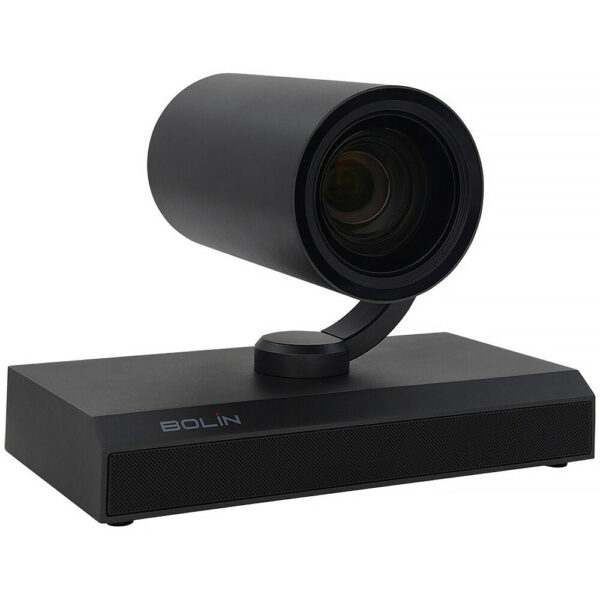

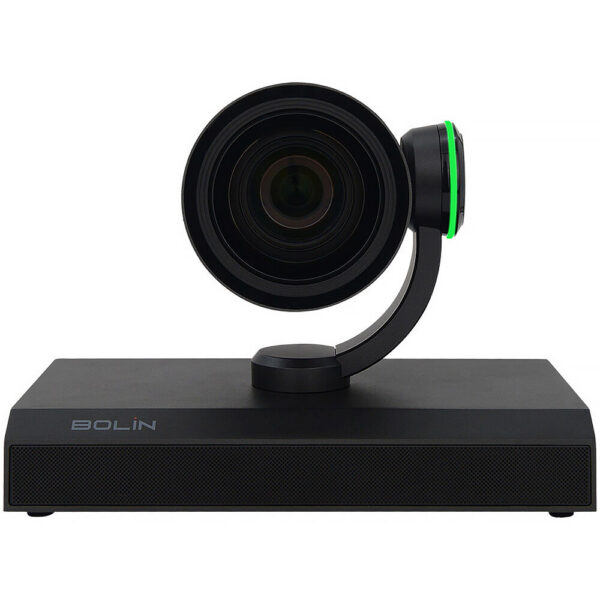

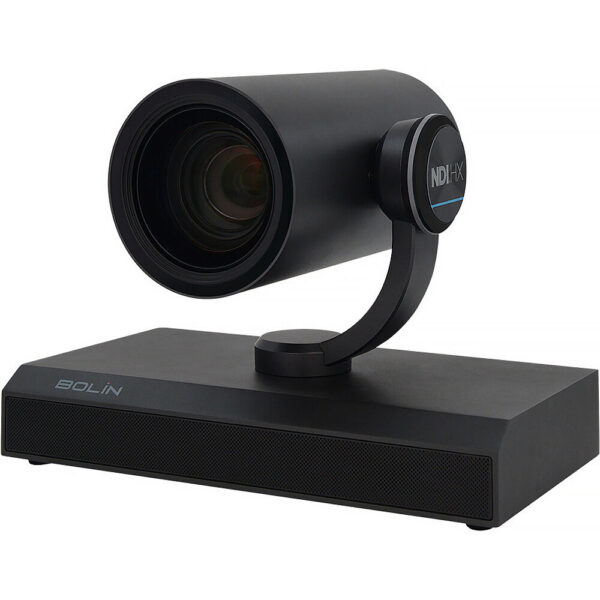

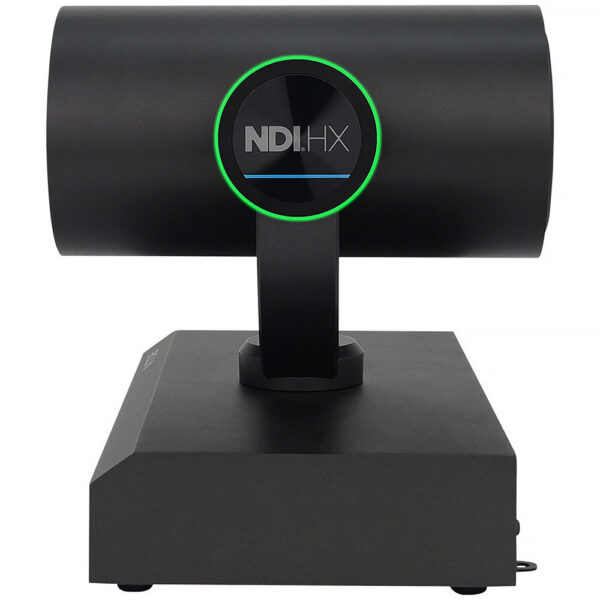

Bolin Technology N6-420X NDI|HX3 4K60 PTZ Camera (Dark Gray)
$1,695.00
In Stock
- UHD 4K60 Output over USB, IP, HDMI
- NDI|HX3, H.265/H.264 Support
- 20x Optical Zoom, 16x Digital Zoom
- 1/2.8" 8.29MP CMOS Sensor
Tracked ShippingRates shown at checkout
60-Day ReturnsOn eligible items
Expert SupportReal people, real advice
Bolin Technology N6-420X NDI|HX3 4K60 PTZ Camera (Dark Gray)
The Bolin Technology N6-420X NDI|HX3 4K60 PTZ Camera (Dark Gray) brings serious imaging performance to every shoot, from planned sessions to spontaneous moments. At its core is a 8.29 Megapixel 1/2.8"-Type sensor. Everyday handling is covered with IR connectivity.
Highlights
- UHD 4K60 Output over USB, IP, HDMI
- NDI|HX3, H.265/H.264 Support
- 20x Optical Zoom, 16x Digital Zoom
- 1/2.8" 8.29MP CMOS Sensor
Ordered from NIXTRONIC, it ships with full tracking worldwide and is backed by our 60-day returns on eligible items.
In the Box
- Bolin Technology N6-420X NDI|HX3 4K60 PTZ Camera (Dark Gray)
- IR Remote Control
- Power Adapter
- RJ45 to RS-232/422/485 Cable Adapter
| SKU | N6-420X |
|---|---|
| Brand | Bolin Technology |
| Image Sensor | 1/2.8"-Type CMOS |
|---|---|
| Effective Sensor Resolution | 8.29 Megapixel (3840 x 2160) |
| Focus Control | Autofocus Manual Focus |
| Shutter Speed | 1 to 10,000 Second in Video Mode |
|---|---|
| Signal-to-Noise Ratio | 50 dB |
| Minimum Illumination | 0.5 Lux |
| Flip / Mirror Support | Image Flip, Mirror (Vertical) |
| White Balance | Presets: ATW, AWB, Auto, Indoors, Manual, One Push Set, Outdoors |
| Focal Length | 3.55 to 63.58mm |
|---|---|
| Max Optical Zoom | 20x |
| Max Digital Zoom | 16x |
| Field of View | Horizontal: 78.59 to 4.92°Vertical: 48.71 to 2.81° |
| Maximum Aperture | f/1.8 to 3.58 |
| Minimum Focus Distance | 0.4" / 1 cm |
| Video Output | via USB3840 x 2160 at 25/30.00/50/60.00 fps 1920 x 1080p at 25/30.00/50/60.00 fps 1280 x 720 at 25/30.00/50/60.00 fps 8-Bit via HDMI3840 x 2160 at 25/29.97/30.00/50/59.94/60.00 fps 1920 x 1080p at 25/29.97/30.00/50/59.94/60.00 fps 1280 x 720 at 25/30.00/50/59.94/60.00 fps |
|---|---|
| Embedded Audio | HDMI/LAN (RJ45)/NDI/USB |
| Internal Recording | No |
| Audio Recording | Yes |
| Broadcast Output | NTSC |
| Presets | 255 via IP, RS-232, UVC, VISCA, Pelco-P, Pelco-D6 via IR |
|---|---|
| Tally Light | Yes |
| Wireless | IR |
|---|
| Video I/O | 1x USB-C 3.0 / 3.1/3.2 Gen 1 Output 1x HDMI 2.0 Output |
|---|---|
| Audio I/O | 1x 1/8" / 3.5 mm TRS Stereo Mic/Line Input on Camera Body |

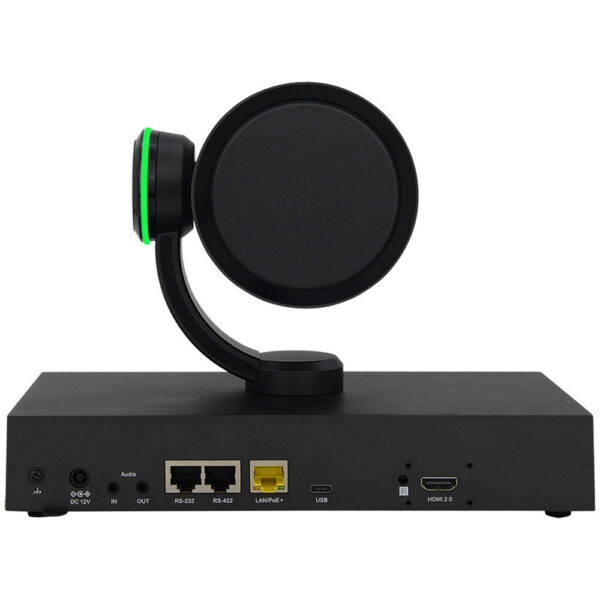

| Other I/O | 1x RJ45 (RS-232) Control Input 1x RJ45 (RS-485) Control 1x RJ45 (LAN, NDI) (Shared with Power Input, Video Output) |
| PoE Support | Yes: PoE+ 802.3at |
|---|---|
| Power I/O | 1x Barrel (12VDC) Input |
| Power Consumption | Device: 12 VDC at 4 A (10 to 13 W) |
| Operating Conditions | 32 to 130°F / 0 to 54°C up to 80% Humidity |
|---|
| Mounting | 1x 1/4"-20 Female |
|---|---|
| Materials | Aluminum |
| Dimensions (W x H x D) | 110.2 x 68.1 x 62.6" / 280 x 173 x 159 cm |
| Weight | 4.4 lb / 2 kg (Body Only) |
| Package Weight | 8.655 lb |
|---|---|
| Box Dimensions (Lx WxH) | 13.9 x 11.9 x 9.3" |
