BZBGEAR Live Streaming HD PTZ Camera with Auto-Tracking, Tally & 20x Zoom (White)
$1,799.00
In Stock
- 1/2.8" 2.07MP HD CMOS Sensor
- HDMI, 3G-SDI, USB & IP Streaming Output
- Capture up to 1080p60 Video
- 60.04 to 3.45° Horizontal Field of View
Tracked ShippingRates shown at checkout
60-Day ReturnsOn eligible items
Expert SupportReal people, real advice
BZBGEAR Live Streaming HD PTZ Camera with Auto-Tracking, Tally & 20x Zoom (White)
The BZBGEAR Live Streaming HD PTZ Camera with Auto-Tracking, Tally & 20x Zoom (White) brings serious imaging performance to every shoot, from planned sessions to spontaneous moments. At its core is a 2.07 Megapixel 1/2.8"-Type sensor. Everyday handling is covered with IR connectivity.
Highlights
- 1/2.8" 2.07MP HD CMOS Sensor
- HDMI, 3G-SDI, USB & IP Streaming Output
- Capture up to 1080p60 Video
- 60.04 to 3.45° Horizontal Field of View
Ordered from NIXTRONIC, it ships with full tracking worldwide and is backed by our 60-day returns on eligible items.
In the Box
- BZBGEAR Live Streaming HD PTZ Camera with Auto-Tracking, Tally & 20x Zoom (White)
- IR Remote Control
- Power Adapter
- RS-232 Control Cable
- USB 2.0 Cable
- USB 3.0 Cable
Videos
| SKU | BG-ADAMO-JR20X-W |
|---|---|
| Brand | BZBGEAR |
| Image Sensor | 1/2.8"-Type CMOS |
|---|---|
| Sensor Resolution | 2.07 Megapixel |
| Focus Control | Autofocus Manual Focus |
| Shutter Speed | 1/10000 to 1/25 Seconds |
|---|---|
| Signal-to-Noise Ratio | 50 dB |
| Minimum Illumination | 0.5 Lux |
| Flip / Mirror Support | Image Flip, Mirror (Vertical) |
| White Balance | Presets: Auto, Color Temperature, Manual, One Push |
| Focal Length | 5.05 to 91.49mm |
|---|---|
| Max Optical Zoom | 20x |
| Field of View | Horizontal: 60.04 to 3.45°Vertical: 35.31 to 1.97° |
| Maximum Aperture | f/1.8 to 2.9 |
| Video Output | via HDMI / SDI/BNC1920 x 1080p at 25/29.97/30.00/50/59.94/60.00 fps 1920 x 1080i at 50/59.94/60.00 fps 1280 x 720 at 50/59.94/60.00 fps via USB1920 x 1080p up to 30.00 fps 1280 x 720 up to 30.00 fps 1024 x 576 up to 30.00 fps 960 x 540 up to 30.00 fps 640 x 480p up to 30.00 fps 800 x 448 up to 30.00 fps 640 x 360 up to 30.00 fps 432 x 240 up to 30.00 fps 320 x 176 up to 30.00 fps |
|---|---|
| Embedded Audio | HDMI/LAN (RJ45)/SDI/USB |
| Internal Recording | No |
| Broadcast Output | NTSC |
| IP Streaming | H.264/H.265/MJPEG via ONVIF/RTMP/RTSP 1920 x 1080 at 60p |
| Presets | 255 via IP, RS-232, VISCA10 via IR |
|---|---|
| Pan/Tilt/Roll | Pan: 340° (-170 to 170°) at 1.4 to 100°/s Tilt: 120° (-30 to 90°) at 2.9 to 30°/s |
| Tally Light | Yes |
| Wireless | IR |
|---|
| Media/Memory Card Slot | Single Slot: microSDXC Only |
|---|---|

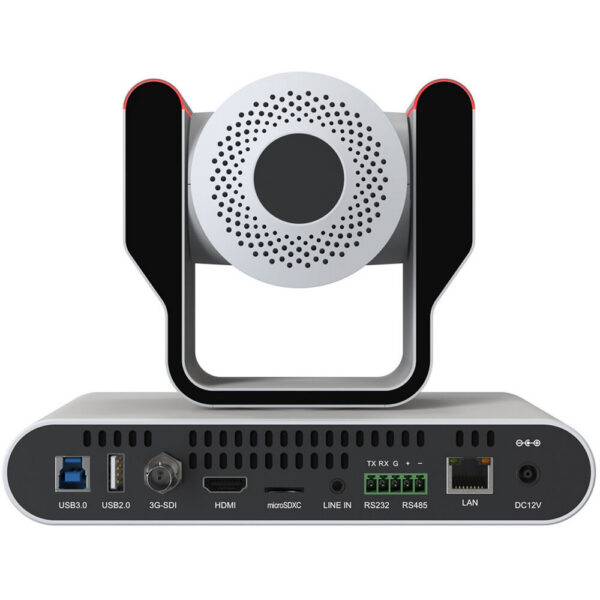

| Video I/O | 1x USB-B 3.0 / 3.1/3.2 Gen 1 Output 1x USB-A 2.0 Output 1x HDMI Output 1x BNC (12G-SDI) Output 1x RJ45 Output |
| Audio I/O | 1x 1/8" / 3.5 mm TRS Stereo Line Input |
| Other I/O | 1x Block (RS-422, RS-485) Control Input |
| Built-In Microphone | No |
| Built-In Speaker | No |
| PoE Support | Yes: PoE 802.3af |
|---|---|
| Power I/O | 1x Barrel (12VDC at 1.5 A) Input |
| Power Consumption | Power Supply: 110 to 220 VAC at 1.5 A (12 W) |
| Operating Conditions | 14 to 122°F / -10 to 50°C at 20 to 80% Humidity |
|---|---|
| Storage Conditions | 14 to 140°F / -10 to 60°C at 20 to 95% Humidity |
| Impact Resistance | No |
| Environmental Resistance | No |

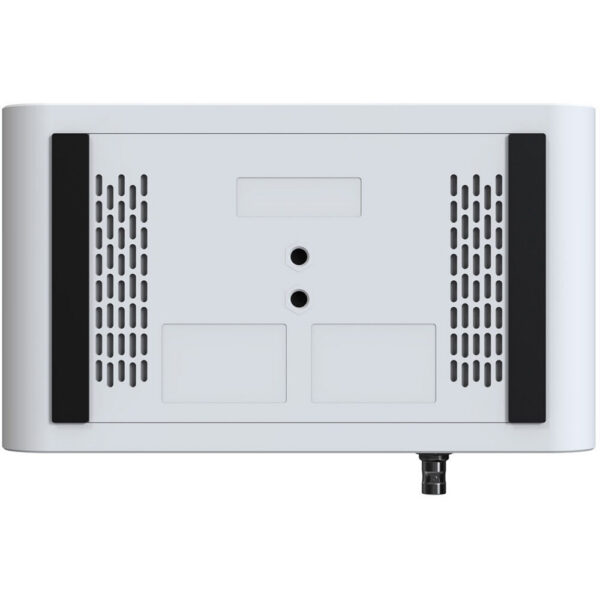

| Mounting | 1x 1/4"-20 Female for Bracket |
|---|---|
| OS Compatibility | Computer: Windows / macOS 11 or Later Mobile: iOS Only |
| Weight | 4 lb / 1.8 kg (Body Only) |
| Package Weight | 5.945 lb |
|---|---|
| Box Dimensions (Lx WxH) | 11.7 x 10.7 x 7.7" |
