Datavideo PTC-305T 20x 4K HDBaseT PTZ Camera with Auto Tracking (White)
$3,389.00
In Stock
- 1/1.8" CMOS Sensor
- Supports HDBaseT Protocol
- Up to 4K60 Resolution
- Automatic Tracking Functionality
Tracked ShippingRates shown at checkout
60-Day ReturnsOn eligible items
Expert SupportReal people, real advice

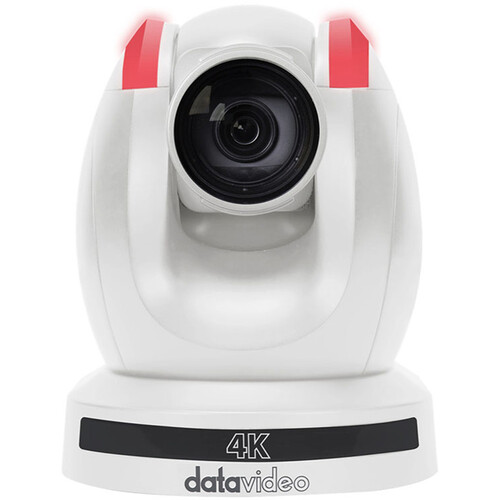

Datavideo PTC-305T 20x 4K HDBaseT PTZ Camera with Auto Tracking (White)
Designed for creators who demand more from their gear, the Datavideo PTC-305T 20x 4K HDBaseT PTZ Camera with Auto Tracking (White) delivers capable, consistent performance. At its core is a 8.51 Megapixel 1/1.8"-Type sensor. Everyday handling is covered with IR connectivity.
Highlights
- 1/1.8" CMOS Sensor
- Supports HDBaseT Protocol
- Up to 4K60 Resolution
- Automatic Tracking Functionality
Every order from NIXTRONIC ships tracked worldwide and is covered by our 60-day return policy on eligible items.
In the Box
- Datavideo PTC-305T 20x 4K HDBaseT PTZ Camera with Auto Tracking (White)
| SKU | PTC-305TW |
|---|---|
| Brand | Datavideo |
| Image Sensor | 1/1.8"-Type CMOS |
|---|---|
| Sensor Resolution | 8.51 Megapixel |
| IR Cut Filter | No |
| Focus Control | Autofocus Manual Focus |
| Shutter Speed | 1/10000 to 1/30 Second |
|---|---|
| Signal-to-Noise Ratio | 55 dB |
| Minimum Illumination | 0.5 Lux |
| Flip / Mirror Support | Image Flip, Mirror (Vertical) |
| White Balance | Presets: Auto, Indoors, Manual, One Push, Outdoors |
| Focal Length | 6.7 to 125mm |
|---|---|
| Max Optical Zoom | 20x |
| Max Digital Zoom | 16x |
| Field of View | 60° |
| Maximum Aperture | f/1.58 to 3.95 |
| Video Output | via HDMI / SDI/BNC3840 x 2160 at 25/29.97/30.00/50/59.94/60.00 fps 1920 x 1080p at 25/29.97/30.00/50/59.94/60.00 fps 1920 x 1080i at 50/59.94/60.00 fps 1280 x 720 at 50/59.94/60.00 fps |
|---|---|
| Internal Recording | No |
| Audio Recording | AAC Audio |
| Broadcast Output | NTSC/PAL |
| IP Streaming | H.264/H.265/MJPEG via ONVIF/RTMP/RTMPS/RTP/RTSP/SRT/TCP/UDP 320 x 240 to 3840 x 2160 (Simultaneous Multi-Stream: 0.03 to 50.00 Mb/s) |
| Presets | 255 |
|---|---|
| Pan/Tilt/Roll | Pan: 300° at 0.876 to 43°/s Tilt: 145° (-15 to 130°) at 0.693 to 21.32°/s |
| Tally Light | Yes |
| Wireless | IR |
|---|

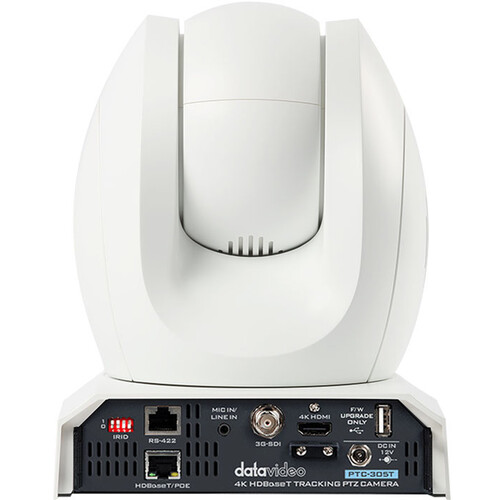

| Video I/O | 1x HDMI 2.0 Output 1x BNC (3G-SDI) Output 1x RJ45 (HDBaseT) Output |
|---|---|
| Audio I/O | 1x 1/8" / 3.5 mm TRS Stereo Mic/Line Input |
| Other I/O | 1x RJ45 (RS-422) Control 1x USB-A (Firmware) |
| Built-In Microphone | No |
| PoE Support | Yes: PoE+ 802.3at |
|---|---|
| Power I/O | 1x Barrel (12VDC) Input |
| Power Consumption | 21 W |
| Operating Conditions | 32 to 104°F / 0 to 40°C |
|---|
| Mounting | 1x 1/4"-20 Female for Tripod |
|---|---|
| Certifications | CE, FCC, UKCA, WEEE |
| OS Compatibility | Android/iOS |
| Dimensions (W x H x D) | 6.8 x 8.6 x 7.44" / 173 x 219 x 189.08 mm |
| Weight | 6 lb / 2.6 kg (Body Only) |
| Package Weight | 8.87 lb |
|---|---|
| Box Dimensions (Lx WxH) | 13.4 x 11.9 x 11.7" |
