DVDO C4-1 1080p HDMI/IP/3G-SDI/USB3.0 PTZ Camera with 20x Zoom & AI Auto Tracking (White)
$1,399.00
In Stock
- Up to 1080p60, 1/2.8" Sony CMOS Sensor
- Dual-Stream Outputs via USB 3.0
- HDMI, 3G-SDI, USB 3.0, RJ45 & Line-In
- 20x Optical Zoom, Wide 56° Angle
Tracked ShippingRates shown at checkout
60-Day ReturnsOn eligible items
Expert SupportReal people, real advice
DVDO C4-1 1080p HDMI/IP/3G-SDI/USB3.0 PTZ Camera with 20x Zoom & AI Auto Tracking (White)
The DVDO C4-1 1080p HDMI/IP/3G-SDI/USB3.0 PTZ Camera with 20x Zoom & AI Auto Tracking (White) brings serious imaging performance to every shoot, from planned sessions to spontaneous moments. At its core is a 2.07 Megapixel 1/2.8"-Type sensor. Everyday handling is covered with IR connectivity.
Highlights
- Up to 1080p60, 1/2.8" Sony CMOS Sensor
- Dual-Stream Outputs via USB 3.0
- HDMI, 3G-SDI, USB 3.0, RJ45 & Line-In
- 20x Optical Zoom, Wide 56° Angle
Every order from NIXTRONIC ships tracked worldwide and is covered by our 60-day return policy on eligible items.
In the Box
- DVDO C4-1 1080p HDMI/IP/3G-SDI/USB3.0 PTZ Camera with 20x Zoom & AI Auto Tracking (White)
- Power Supply
- RS-232 Control Cable
- USB 2.0 Cable
- IR Remote Control
- Ceiling Bracket
- Wall Bracket
| SKU | DVDO-C4-1-W |
|---|---|
| Brand | DVDO |
| Image Sensor | 1/2.8"-Type CMOS |
|---|---|
| Effective Sensor Resolution | 2.07 Megapixel |
| Focus Control | Autofocus Manual Focus |
| Shutter Speed | 1/10000 to 1/25 Second |
|---|---|
| Signal-to-Noise Ratio | 50 dB |
| Minimum Illumination | 0.5 Lux |
| Flip / Mirror Support | Image Flip, Mirror (Vertical) |
| White Balance | Presets: Auto, Color Temperature, Manual, One Push |
| Focal Length | 5.2 to 98mm |
|---|---|
| Max Optical Zoom | 20x |
| Max Digital Zoom | 15x |
| Field of View | Horizontal: 59 to 3.2° |
| Maximum Aperture | f/1.5 to 3 |
| Video Output | via RJ45 / SDI/BNC / USB / HDMI1920 x 1080p at 25/30.00/29.97/50/59.94/60.00 fps 1280 x 720 at 59.94/60.00/50 fps |
|---|---|
| Embedded Audio | HDMI/LAN (RJ45)/USB Output |
| Internal Recording | No |
| Broadcast Output | NTSC/PAL |
| Presets | 255 via RS-232, VISCA |
|---|---|
| Pan/Tilt/Roll | Pan: 340° (-170 to 170°) at 0.1 to 100°/s Tilt: 120° (-30 to 90°) at 0.1 to 45°/s |
| Tally Light | No |
| Wireless | IR |
|---|

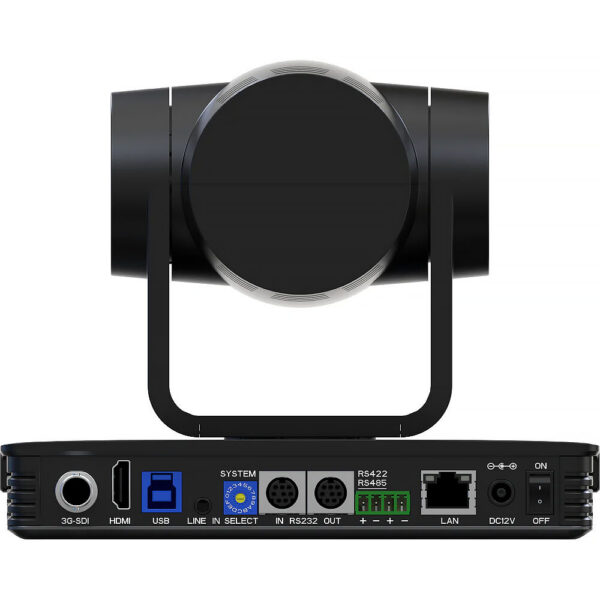

| Video I/O | 1x HDMI 1.3 Output 1x BNC (HD-SDI) Output 1x RJ45 LAN Output 1x USB-B 3.0 / 3.1/3.2 Gen 1 Output |
|---|---|
| Audio I/O | 1x 1/8" / 3.5 mm TRS Stereo Line Input |
| Other I/O | 1x Block 4-Pin (Pelco-D, Pelco-P, RS-232, RS-485) Control Input/Output 1x Mini-DIN 8-Pin (Pelco-D, Pelco-P, RS-232) Control Input 1x Mini-DIN 8-Pin (Pelco-D, Pelco-P, RS-232) Control Output |
| Built-In Speaker | No |
| PoE Support | Yes: PoE 802.3af |
|---|---|
| Power I/O | 1x Barrel (12VDC at 2.5 A) Input |
| Power Consumption | 12 W |
| Operating Conditions | 14 to 122°F / -10 to 50°C at 20 to 80% Humidity |
|---|---|
| Storage Conditions | 14 to 140°F / -10 to 60°C at 20 to 95% Humidity |
| Environmental Resistance | No |

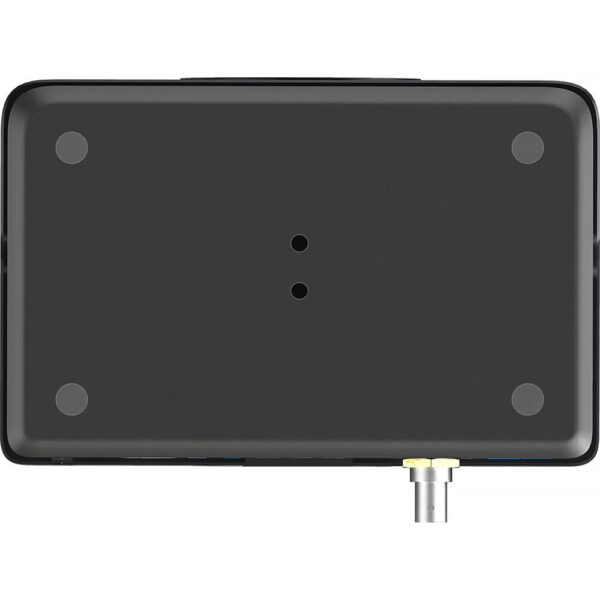

| Mounting | 1x 1/4"-20 Female for Bracket |
|---|---|
| Certifications | FCC Class A |
| Dimensions (W x H x D) | 7.1 x 5.9 x 4.5" / 181 x 149 x 115 mm |
| Weight | 2.54 lb / 1.15 kg (Body Only) |
