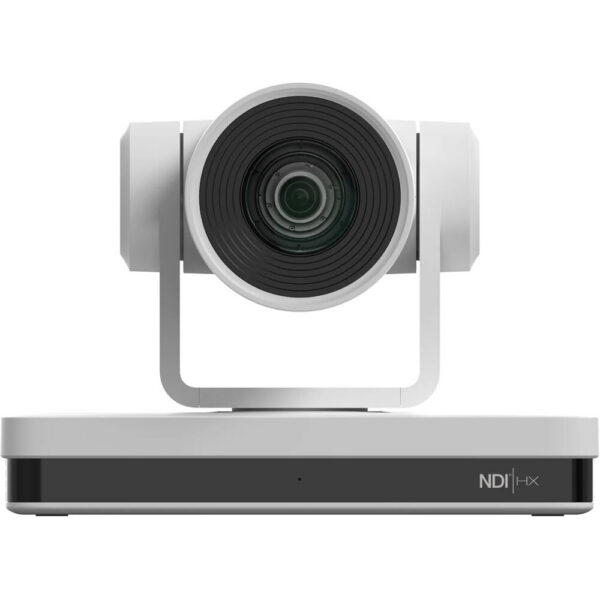

DVDO C5-1 4K NDI HDMI/IP/3G-SDI/USB PTZ Camera with 25x Optical Zoom & AI Auto Tracking (White)

Name: DVDO C5-1 4K NDI HDMI/IP/3G-SDI/USB PTZ Camera with 25x Optical Zoom &amp; AI Auto Tracking (White)
Brand: DVDO
SKU: DVDO-C5-1-NDI-W
Price: 2899.00 USD
Availability: InStock

(0)

Be the first to review SKU: DVDO-C5-1-NDI-W

$2,899.00

In Stock

Up to UHD 4K60, 1/1.8" Sony CMOS Sensor
Dual-Stream Outputs via USB 2.0
NDI|HX, HDMI, 3G-SDI, USB 2.0 & Line-In
25x Optical Zoom, Wide 59.2° Angle

Tracked ShippingRates shown at checkout
60-Day ReturnsOn eligible items
Expert SupportReal people, real advice

DVDO C5-1 4K NDI HDMI/IP/3G-SDI/USB PTZ Camera with 25x Optical Zoom & AI Auto Tracking (White)

Designed for creators who demand more from their gear, the DVDO C5-1 4K NDI HDMI/IP/3G-SDI/USB PTZ Camera with 25x Optical Zoom & AI Auto Tracking (White) delivers capable, consistent performance. At its core is a 8.51 Megapixel 1/1.8"-Type sensor. Everyday handling is covered with IR connectivity.

Highlights

Up to UHD 4K60, 1/1.8" Sony CMOS Sensor
Dual-Stream Outputs via USB 2.0
NDI|HX, HDMI, 3G-SDI, USB 2.0 & Line-In
25x Optical Zoom, Wide 59.2° Angle

Ordered from NIXTRONIC, it ships with full tracking worldwide and is backed by our 60-day returns on eligible items.

In the Box

DVDO C5-1 4K NDI HDMI/IP/3G-SDI/USB PTZ Camera with 25x Optical Zoom & AI Auto Tracking (White)
Power Supply
RS-232 Control Cable
USB 2.0 Cable
IR Remote Control
Ceiling Bracket
Wall Bracket

Videos

SKU	DVDO-C5-1-NDI-W
Brand	DVDO

Imaging
Image Sensor	1/1.8"-Type CMOS
Effective Sensor Resolution	8.51 Megapixel
Focus Control	Autofocus Manual Focus

Exposure Control
Shutter Speed	1/10000 to 1/25 Second
Signal-to-Noise Ratio	50 dB
Minimum Illumination	0.05 Lux
Flip / Mirror Support	Image Flip, Mirror (Vertical)
White Balance	Presets: Color Temperature, One Push, Manual, Auto

Lens
Focal Length	7.1 to 171.95mm
Max Optical Zoom	25x
Field of View	Horizontal: 59.2 to 2.5°Vertical: 34.6 to 1.4°
Maximum Aperture	f/1.8 to 3.56f/1.61 to 5.19

Video Capture
Video Output	via RJ45 / SDI/BNC / USB / HDMI3840 x 2160 at 25/29.97/50/59.94/60.00 fps 1920 x 1080p at 59.94/60.00/25/29.97/30.00/50 fps 1920 x 1080i at 59.94/60.00/50 fps 1280 x 720 at 59.94/60.00/50 fps
Embedded Audio	HDMI/LAN (RJ45)/USB Output
Internal Recording	No
Broadcast Output	NTSC/PAL

Control
Presets	255 via RS-232, VISCA
Pan/Tilt/Roll	Pan: 220° (-110 to 110°) at 0.1 to 100°/s Tilt: 60° (-30 to 30°) at 0.1 to 70°/s
Tally Light	No

Networking
Wireless	IR

Interface
Video I/O	1x HDMI 1.3 Output 1x BNC (3G-SDI) Output 1x RJ45 LAN Output 1x USB-A 2.0 Output
Audio I/O	1x 1/8" / 3.5 mm TRS Stereo Line Input
Other I/O	1x Mini-DIN 8-Pin (RS-232) Control Input 1x Mini-DIN 8-Pin (RS-232) Control Output 1x Block 4-Pin (RS-422, RS-485) Control
Built-In Speaker	No

Power
PoE Support	Yes: PoE 802.3af
Power I/O	1x Barrel (12VDC at 2.5 A) Input
Power Consumption	12 W

Environmental
Operating Conditions	14 to 122°F / -10 to 50°C at 20 to 80% Humidity
Storage Conditions	14 to 140°F / -10 to 60°C at 20 to 95% Humidity
Impact Resistance	No
Environmental Resistance	No
