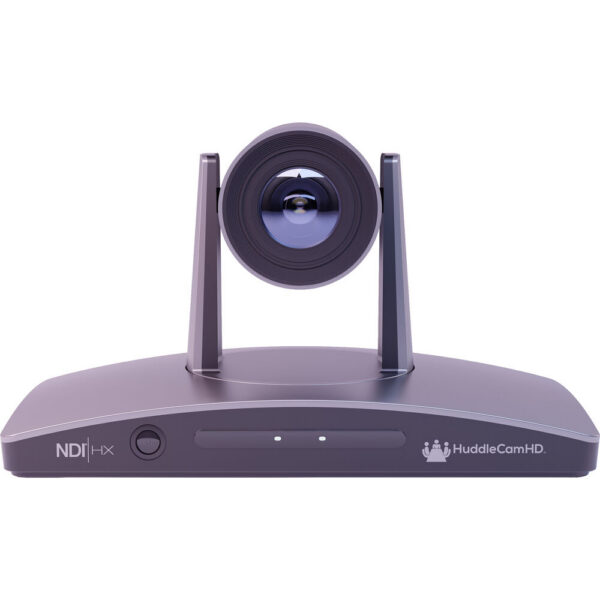

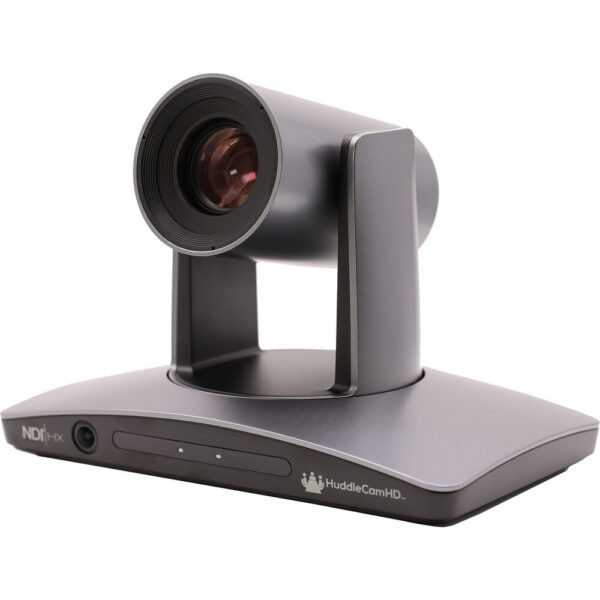

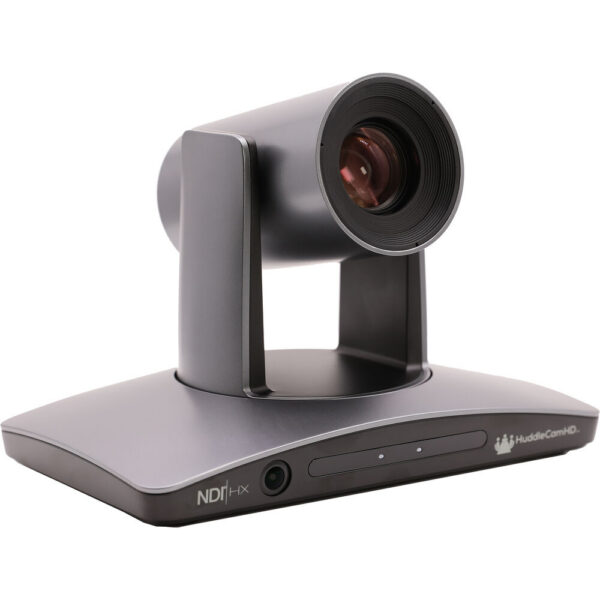

Huddle CamHD Simpl Track3 Auto-Tracking PTZ Camera with 20x Optical Zoom
$1,999.00
In Stock

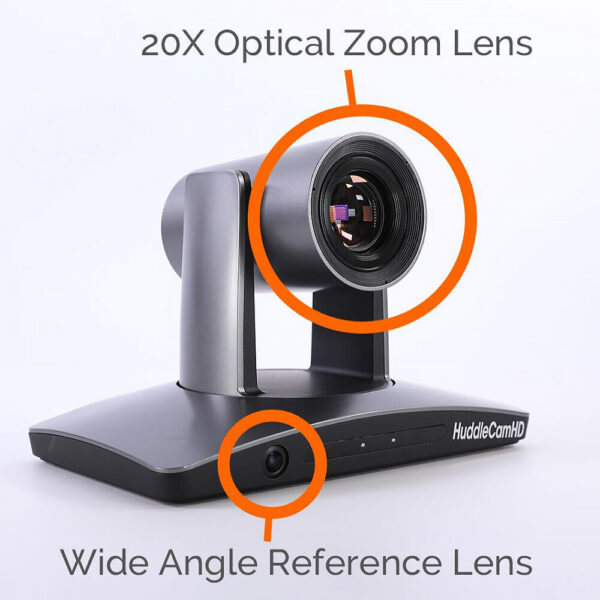

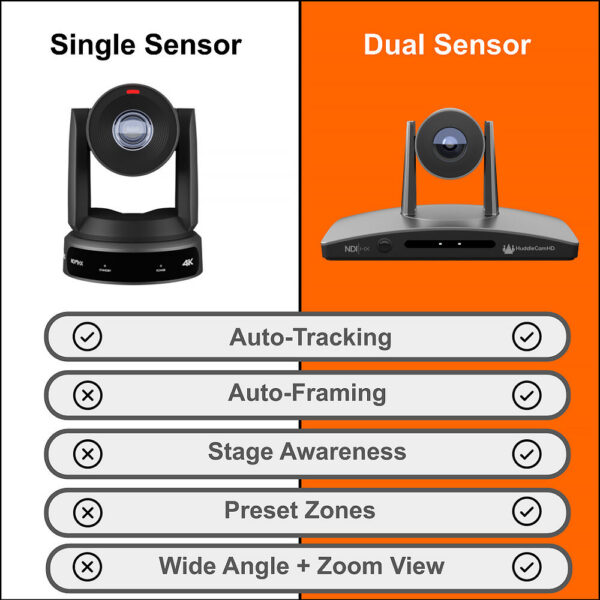

- Dual-Sensor Auto-Tracking PTZ Camera
- Motion Tracking up to 55' Away
- 59.5° Field of View, 20x Optical Zoom
- Resolutions up to 1080p60
Tracked ShippingRates shown at checkout
60-Day ReturnsOn eligible items
Expert SupportReal people, real advice
Huddle CamHD Simpl Track3 Auto-Tracking PTZ Camera with 20x Optical Zoom
Designed for creators who demand more from their gear, the Huddle CamHD Simpl Track3 Auto-Tracking PTZ Camera with 20x Optical Zoom delivers capable, consistent performance. At its core is a 2.14 Megapixel 1/2.8"-Type sensor. Recording reaches 1080p video up to 60 fps. Everyday handling is covered with IR connectivity.
Highlights
- Dual-Sensor Auto-Tracking PTZ Camera
- Motion Tracking up to 55' Away
- 59.5° Field of View, 20x Optical Zoom
- Resolutions up to 1080p60
Every order from NIXTRONIC ships tracked worldwide and is covered by our 60-day return policy on eligible items.
In the Box
- Huddle CamHD Simpl Track3 Auto-Tracking PTZ Camera with 20x Optical Zoom
- Power Supply
- IR Remote
- USB 3.0 Cable
Videos
| SKU | HC20X-SIMPLTRACK3 |
|---|---|
| Brand | HuddleCamHD |
| Image Sensor | 1/2.8"-Type CMOS |
|---|---|
| Horizontal Resolution (TV Lines) | 1080 TV Lines |
| Sensor Resolution | 2.14 Megapixel |
| Focus Control | Autofocus Manual Focus |
| Shutter Speed | 1/10000 to 1 Second |
|---|---|
| Minimum Illumination | 0.5 Lux |
| Flip / Mirror Support | Mirror (Vertical) |
| White Balance | Presets: ATW, Auto, Manual, One Push, Outdoors |
| Focal Length | 4.7 to 94mm |
|---|---|
| Max Optical Zoom | 20x |
| Max Digital Zoom | 8x |
| Field of View | Vertical: 36 to 2°Horizontal: 59.5 to 3° |
| Maximum Aperture | f/1.6 to 14 |
| Video Output | via HDMI / RJ45 / SDI/BNC / USB1920 x 1080p at 25/30.00/50/60.00 fps 1920 x 1080i at 50/60.00 fps 1280 x 720 at 25/30.00/60.00 fps 640 x 360 |
|---|---|
| Embedded Audio | HDMI/LAN (RJ45)/NDI/SDI/USB |
| Internal Recording | 1920 x 1080p at 25/30.00/50/60.00 fps 1920 x 1080i at 50/60.00 fps 1280 x 720 at 25/30.00/50/60.00 fps 640 x 360 |
| Audio Recording | AAC Audio |
| Broadcast Output | NTSC |
| IP Streaming | H.264/H.265 via HTTP/NDI/NDI HX/ONVIF/RTMP/RTMPS/RTSP/SRT/TCP 1920 x 1080 at 50i, 60i (Simultaneous Multi-Stream) 640 x 360 to 1920 x 1080 at 25p, 30p, 50p, 60p (Simultaneous Multi-Stream) |
| Presets | 255 via IP |
|---|---|
| Pan/Tilt/Roll | Pan: 340° (-170 to 170°) Tilt: 120° (-30 to 90°) |
| Tally Light | No |
| Wireless | IR |
|---|---|
| Wireless Range | 30' / 9.1 m (IR) |
| Max Cable Length | 98.5' / 30 m (RS-232) |
| Media/Memory Card Slot | Single Slot: microSD (Unspecified Type) |
|---|---|

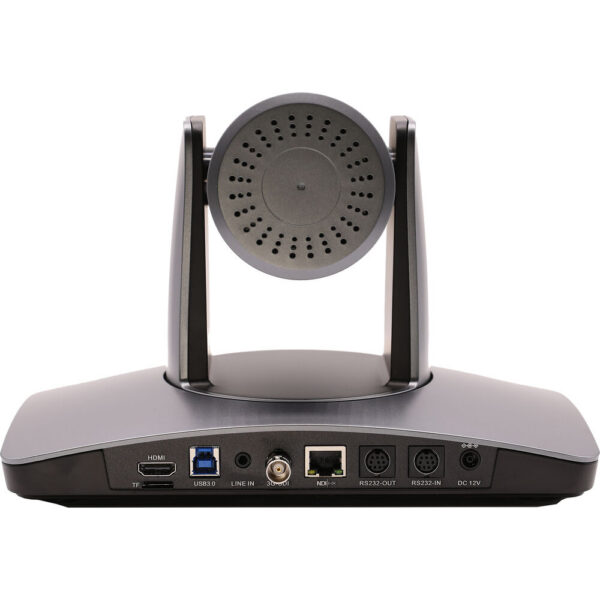

| Video I/O | 1x HDMI Output 1x BNC (3G-SDI) Output 1x RJ45 LAN Input/Output |
| Audio I/O | 1x 1/8" / 3.5 mm TRS Stereo Input |
| Other I/O | 1x Mini-DIN 8-Pin (RS-232) Control Input 1x Mini-DIN 8-Pin (RS-232) Control Output 1x USB-B (USB 3.2 / 3.1 Gen 1) Control (Shared with Video Output) |
| Built-In Microphone | No |
| Built-In Speaker | No |
| PoE Support | Yes: PoE 802.3af |
|---|---|
| Power I/O | 1x RJ45 Input 1x Barrel Input |
| Power Consumption | 12 W |
| Operating Conditions | 32 to 104°F / 0 to 40°C at 10 to 80% Humidity |
|---|---|
| Impact Resistance | No |
| Environmental Resistance | No |
| Mounting | 1x 1/4"-20 Female for Bracket |
|---|---|
| OS Compatibility | Computer: Windows 7 or Later / macOS 10 or Later / Linux Mobile: Android Only |
| Dimensions (W x H x D) | 9.6 x 6.4 x 6.1" / 24.4 x 16.3 x 15.5 cm |
| Weight | 5.7 lb / 3 kg (Body Only) |
| Package Weight | 6.53 lb |
|---|---|
| Box Dimensions (Lx WxH) | 11.9 x 11.4 x 9.9" |
