ikan OTTICA NDI HX3 4K PTZ Camera with AI Tracking and 30x Zoom
$1,499.00
In Stock
- 1/1.8" CMOS Sensor, UHD 4K60 Video
- 30x Optical Zoom, 7.1 to 210mm
- Integrated NDI HX3 License
- AI Auto Tracking and Face Recognition
Tracked ShippingRates shown at checkout
60-Day ReturnsOn eligible items
Expert SupportReal people, real advice
ikan OTTICA NDI HX3 4K PTZ Camera with AI Tracking and 30x Zoom
Designed for creators who demand more from their gear, the ikan OTTICA NDI HX3 4K PTZ Camera with AI Tracking and 30x Zoom delivers capable, consistent performance. At its core is a 8.42 Megapixel 1/1.8"-Type sensor. Everyday handling is covered with No connectivity.
Highlights
- 1/1.8" CMOS Sensor, UHD 4K60 Video
- 30x Optical Zoom, 7.1 to 210mm
- Integrated NDI HX3 License
- AI Auto Tracking and Face Recognition
Ordered from NIXTRONIC, it ships with full tracking worldwide and is backed by our 60-day returns on eligible items.
In the Box
- ikan OTTICA NDI HX3 4K PTZ Camera with AI Tracking and 30x Zoom
- Remote Control
- Power Adapter
- Power Cable
- RS-232 Cable
| SKU | OTTICA-4K-30X |
|---|---|
| Brand | ikan |
| Image Sensor | 1/1.8"-Type CMOS |
|---|---|
| Sensor Resolution | 8.42 Megapixel (3840 x 2160) |
| Focus Control | Autofocus |
| Shutter Speed | 1/10000 to 1/30 Second |
|---|---|
| Signal-to-Noise Ratio | 55 dB |
| Minimum Illumination | 0.5 Lux at f/1.8 Aperture |
| Flip / Mirror Support | Image Flip, Mirror (Vertical) |
| White Balance | Presets: Auto, Indoors, Manual, One Push, Outdoors, VAR |
| Focal Length | 7.1 to 210mm |
|---|---|
| Max Optical Zoom | 30x |
| Max Digital Zoom | 16x |
| Field of View | Horizontal: 59.2 to 2.5°Vertical: 34.6 to 1.4° |
| Maximum Aperture | f/1.61 to 5.19 |
| Video Output | 3840 x 2160 at 25/29.97/30.00/50/59.94/60.00 fps 1920 x 1080p at 29.97/30.00/50/59.94/60.00 fps 1920 x 1080i at 50/59.94/60.00 fps 1080 x 720 at 59.94/60.00 fps |
|---|---|
| Embedded Audio | HDMI/SDI |
| Internal Recording | No |
| Audio Recording | 96 k Hz AAC Audio 128 k Hz AAC Audio |
| Broadcast Output | NTSC/PAL |
| IP Streaming | H.264/H.265/MJPEG via NDI HX3 640 x 360 to 3840 x 2160 up to 50p, 60p (Sub Stream: 0.32 to 51.2 Mb/s) 320 x 240 to 720 x 480 up to 50p, 60p (Sub Stream: 0.32 to 20.48 Mb/s) H.264/H.265/MJPEG/YUY2 via UVC/UAC 1920 x 1080 to 3840 x 2160 up to 30p |
| Presets | 255 via RS-232, VISCA10 via IR |
|---|---|
| Pan/Tilt/Roll | Pan: 340° (-170 to 170°) at 1.7 to 100°/s Tilt: 120° (-30 to 90°) at 1.7 to 69.9°/s |
| Tally Light | Yes |
| Wireless | No |
|---|
| Video I/O | 1x HDMI 2.0 Output 1x BNC (3G-SDI) Output 1x USB-A 2.0 Output |
|---|---|
| Audio I/O | 1x 1/8" / 3.5 mm TRS Stereo Line Input 1x 1/8" / 3.5 mm TRS Stereo Line Output |

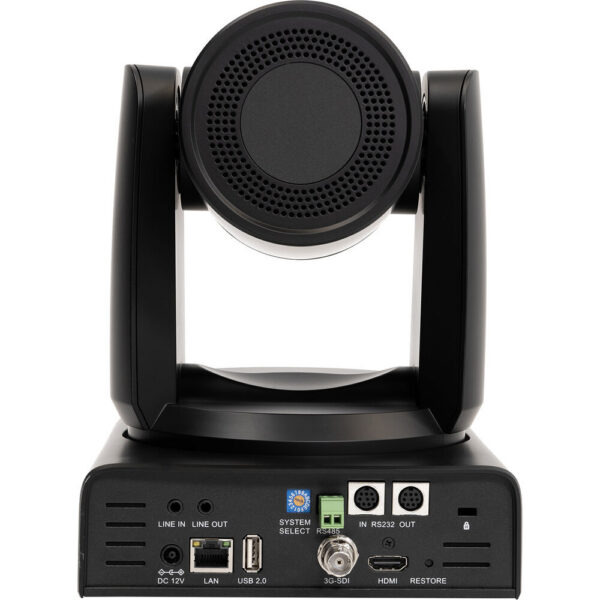

| Other I/O | 1x RJ45 (LAN, NDI) Control/Data/Video 1x D-Sub 8-Pin (RS-232) Control Input 1x D-Sub 8-Pin (RS-232) Control Output 1x Block 2-Pin (RS-485) |
| Built-In Microphone | Yes |
| PoE Support | Yes: PoE+ 802.3at |
|---|---|
| Power I/O | 1x Barrel (12VDC) Input |
| Power Consumption | 18 W |
| Operating Conditions | 32 to 104°F / 0 to 40°C |
|---|---|
| Storage Conditions | -40 to 140°F / -40 to 60°C |
| Impact Resistance | No |
| Environmental Resistance | No |
| Mounting | 1x 1/4"-20 Female4x M3 Female |
|---|---|
| Certifications | CE, FCC Part 15 |
| Security Lock Support | Kensington Lock Slot |
| Dimensions (W x H x D) | 8.9 x 7.4 x 6.7" / 226 x 188 x 169 mm |
| Weight | 5 lb / 2.3 kg (Body Only) |
| Package Weight | 9.055 lb |
|---|---|
| Box Dimensions (Lx WxH) | 12.9 x 11.6 x 9.5" |
