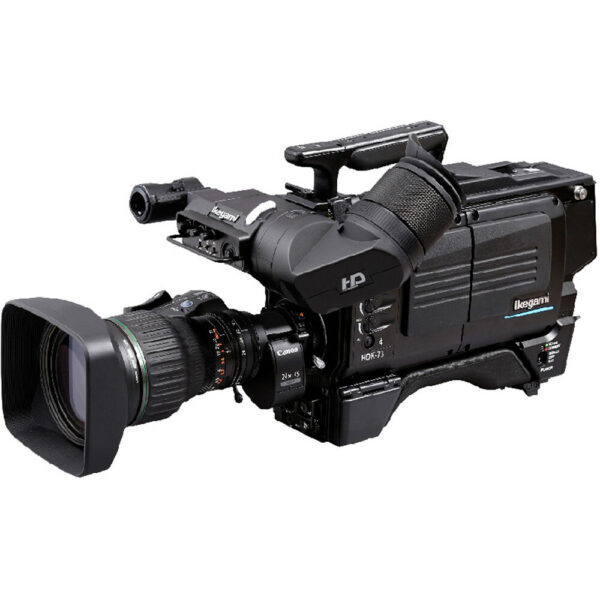

Ikegami HDK-73 HDTV Camera Head
The Ikegami HDK-73 HDTV Camera Head brings serious imaging performance to every shoot, from planned sessions to spontaneous moments. At its core is a 2.6 Megapixel 2/3"-Type sensor paired with the B4 lens mount.
Highlights
Three 2.6MP 2/3" CMOS Sensors
Native Multiformat Support
Advanced Full Digital DSP
Quick EZ Focus Assist Function
Every order from NIXTRONIC ships tracked worldwide and is covered by our 60-day return policy on eligible items.
In the Box
Ikegami HDK-73 HDTV Camera Head
Imaging
Lens Mount B4 Lens Communication Yes Image Sensor 2/3"-Type CMOS Sensor Resolution 2.6 Megapixel (1920 x 1080) Built-In ND Filter Mechanical Filter Wheel with 2-Stop (1/4), 4-Stop (1/16), 6-Stop (1/64) ND Filters Built-In CC Filter Mechanical Filter Wheel with 3200K, 4300K, 6300K, 8000K Color Correction Filter Broadcast System Compatibility NTSC, PAL
Exposure Control
Shutter Type Electronic Rolling Shutter Shutter Speed 1/2000 to 1/100 Second ISO/Gain Sensitivity Gain: -6 to 18 dB Signal-to-Noise Ratio 60 dB Precise Scan Rate Control No Sensitivity f/12 at 2000 lux 89.9% Reflectance (at 59.94 fps)f/13 at 2000 lux 89.9% Reflectance (at 50 fps) White Balance Presets: AWB, Tungsten Exposure Modes Auto, Manual
Focus
Focus Mode Manual Focus
Video Capture
Internal Recording No Video Output via Proprietary Module1920 x 1080 at 50/59.94 fps Broadcast Output NTSC with 1000 TV LinesPAL with 1000 TV Lines Gamma Curve Custom, HDR-HLG, Standard Audio Recording No IP Streaming No
Interface
Media/Memory Card Slot Single Slot: SD (Unspecified Type) Internal Storage No CCU I/O No Video I/O 1x Proprietary Output Power I/O 1x Proprietary (11 to 16VDC) Global Positioning (GPS, GLONASS, etc.) No
Power
Power Consumption 18 W
Environmental
Operating Conditions -4 to 113°F / -20 to 45°C at 30 to 60% Humidity Storage Conditions -22 to 140°F / -30 to 60°C at 30 to 90% Humidity
General
Shoe Mount No Tripod Mount No
